| Specifications | Value |
|---|---|
| No. | 967589 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.24 |
| Country of origin | Hefei (Capital of Anhui Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

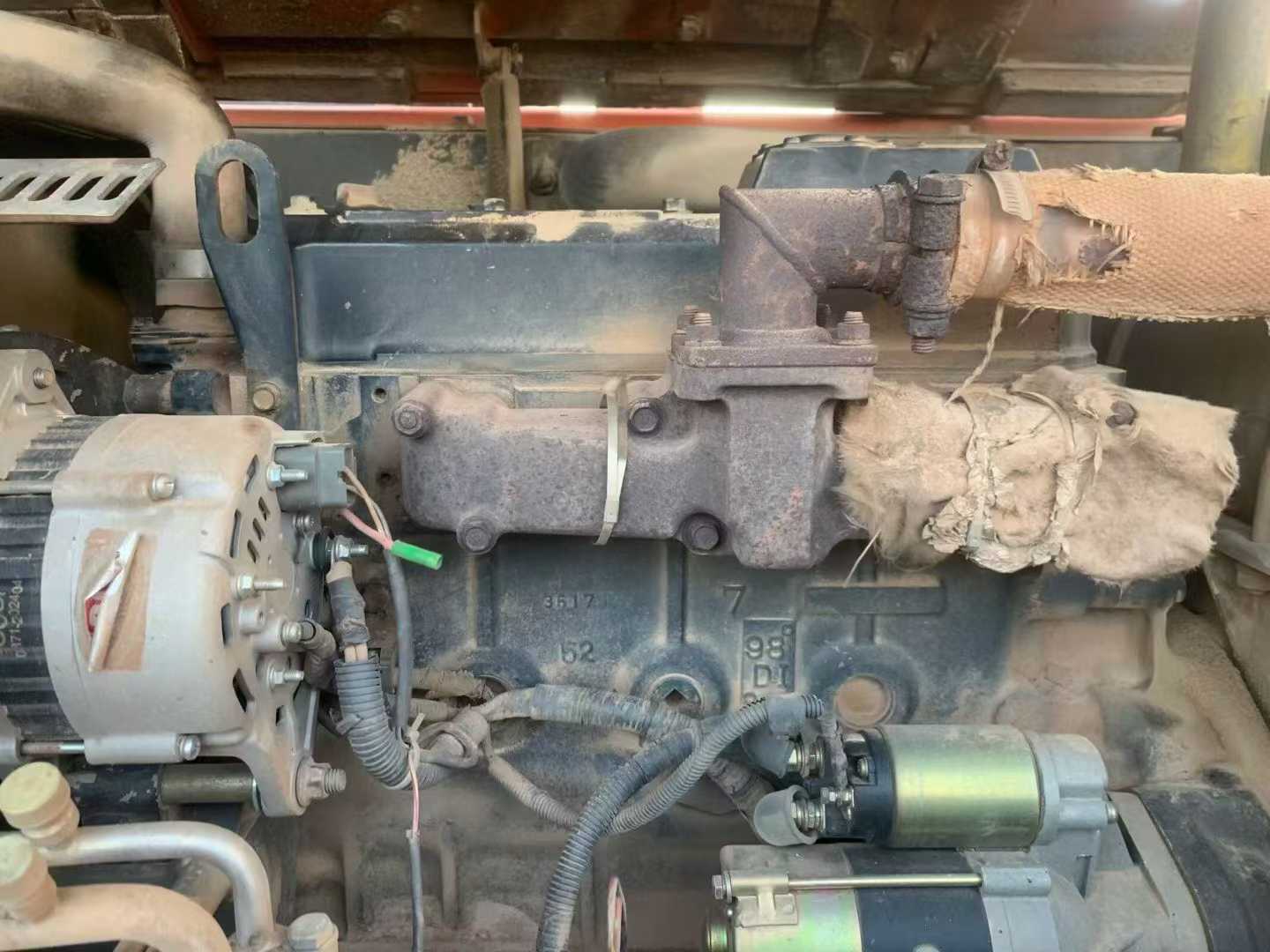

| Engine type | Yanmar 4TNV98-AVHBW |
| Rated power (kw/rpm) | 42.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Maximum torque (N.m) | 236 |
| Number of cylinders (PCS) | 4 |
| Working form | Four-stroke, water-cooled, direct injection |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70% (35°) |
| Maximum tractive force (kN) | 38.5 |
| Travel speed (km/h) | 0-4.5/0-2.5 |
| Turning torque (Nm) | 10 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 17.6 |
| Main pump type | 3 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 60 |
| Coolant (L) | 8 |
| Hydraulic System (L) | 93 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2085 |
| Full cab height (mm) | 2475 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 2060 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3440 |
| Dodging plate width × height (mm) | 200 x 400 |
| Maximum excavation radius of stop surface (mm) | 6130 |
Description

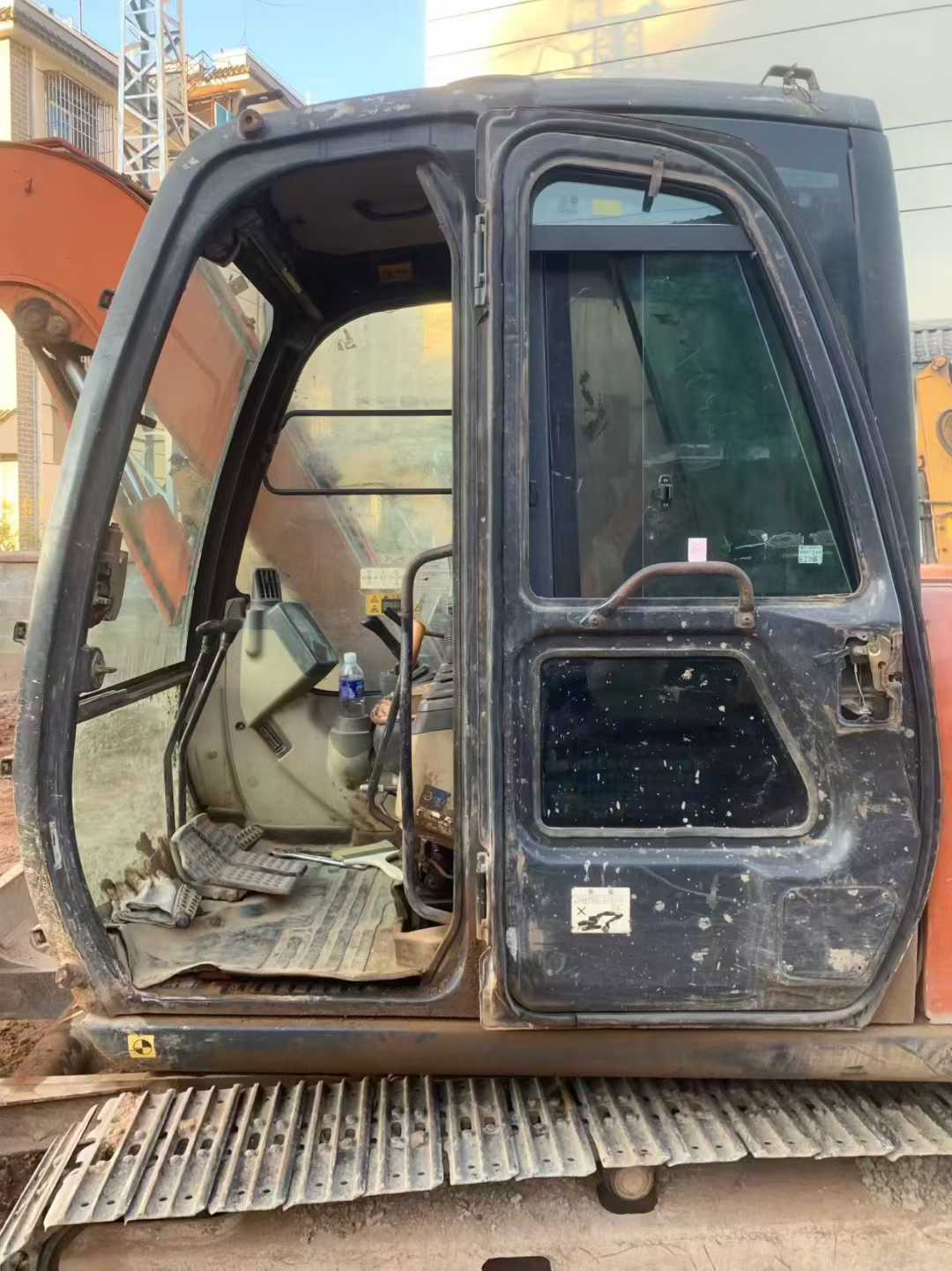

【 Premium Recommendation 】 Second-hand Hitachi 60-5G excavator from 2013, the best choice for Value for money! This second-hand Hitachi 60-5G excavator from 2013 is a very popular small excavator in the market. It is not only affordable in price, but also stable and reliable in performance, making it very suitable for use in small and medium-sized engineering projects. The current working time of this machine is only 4,500 hours. For a device that has been in service for nearly a decade, this working duration is very ideal, indicating that its service life is still quite long. In terms of power, this 60-5G is equipped with an efficient and energy-saving original Hitachi engine, which can provide strong and stable power output. Even in complex and changeable construction environments, it can easily handle various challenges. Meanwhile, it has excellent fuel economy performance, significantly reducing operating costs. The hydraulic system adopts advanced negative flow control technology, ensuring smoothness and accuracy during operation. Whether it is excavation, loading or crushing operations, precise control can be achieved, which not only improves work efficiency but also ensures operation quality. In addition, this machine also h
