| Specifications | Value |
|---|---|
| No. | 969887 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.24 |
| Country of origin | Hefei (Capital of Anhui Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98-AVHBW |
| Rated power (kw/rpm) | 42.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Maximum torque (N.m) | 236 |
| Number of cylinders (PCS) | 4 |
| Working form | Four-stroke, water-cooled, direct injection |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70% (35°) |
| Maximum tractive force (kN) | 38.5 |
| Travel speed (km/h) | 0-4.5/0-2.5 |
| Turning torque (Nm) | 10 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 17.6 |
| Main pump type | 3 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 60 |
| Coolant (L) | 8 |
| Hydraulic System (L) | 93 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2085 |
| Full cab height (mm) | 2475 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 2060 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3440 |
| Dodging plate width × height (mm) | 200 x 400 |
| Maximum excavation radius of stop surface (mm) | 6130 |
Description

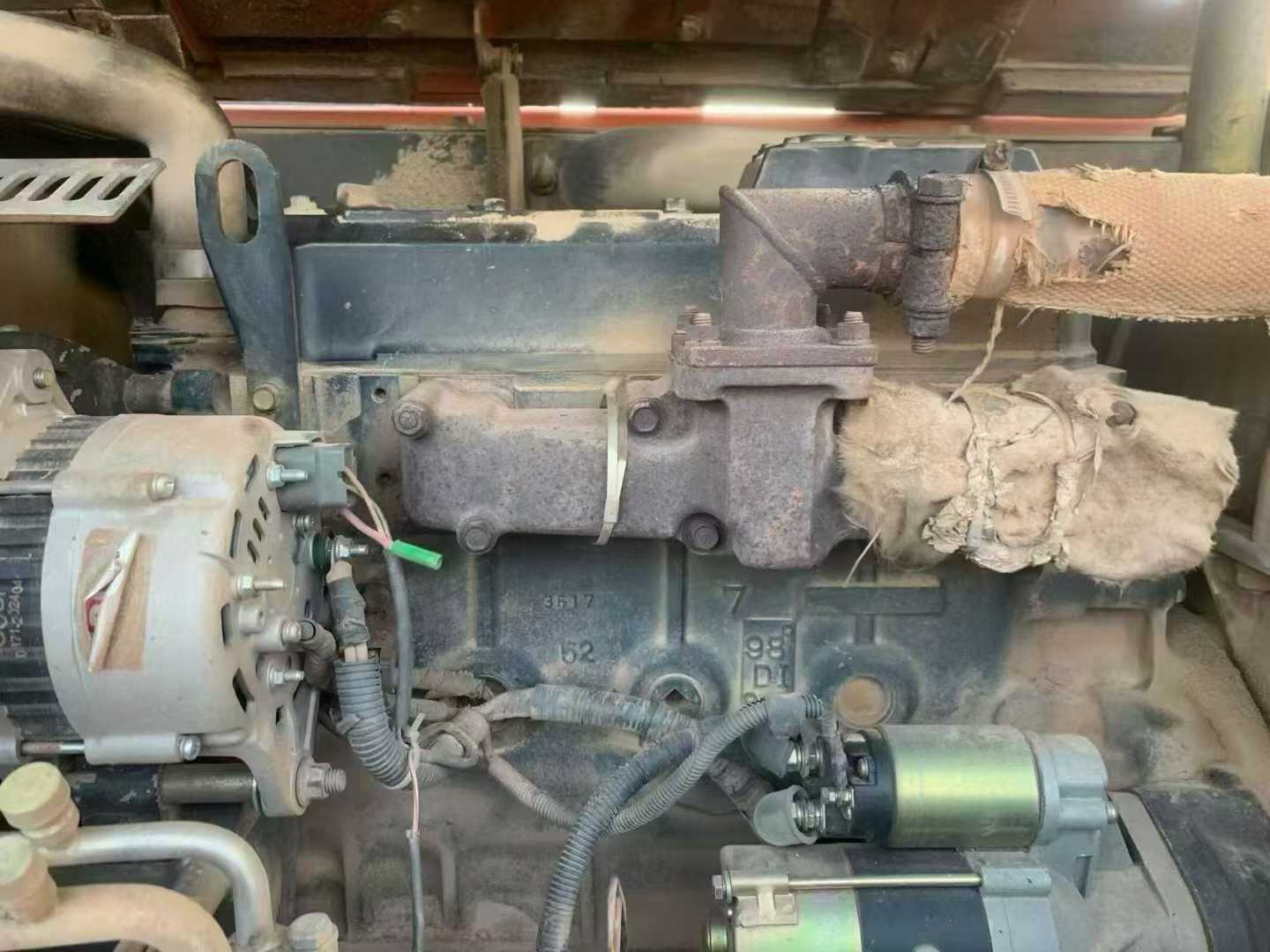

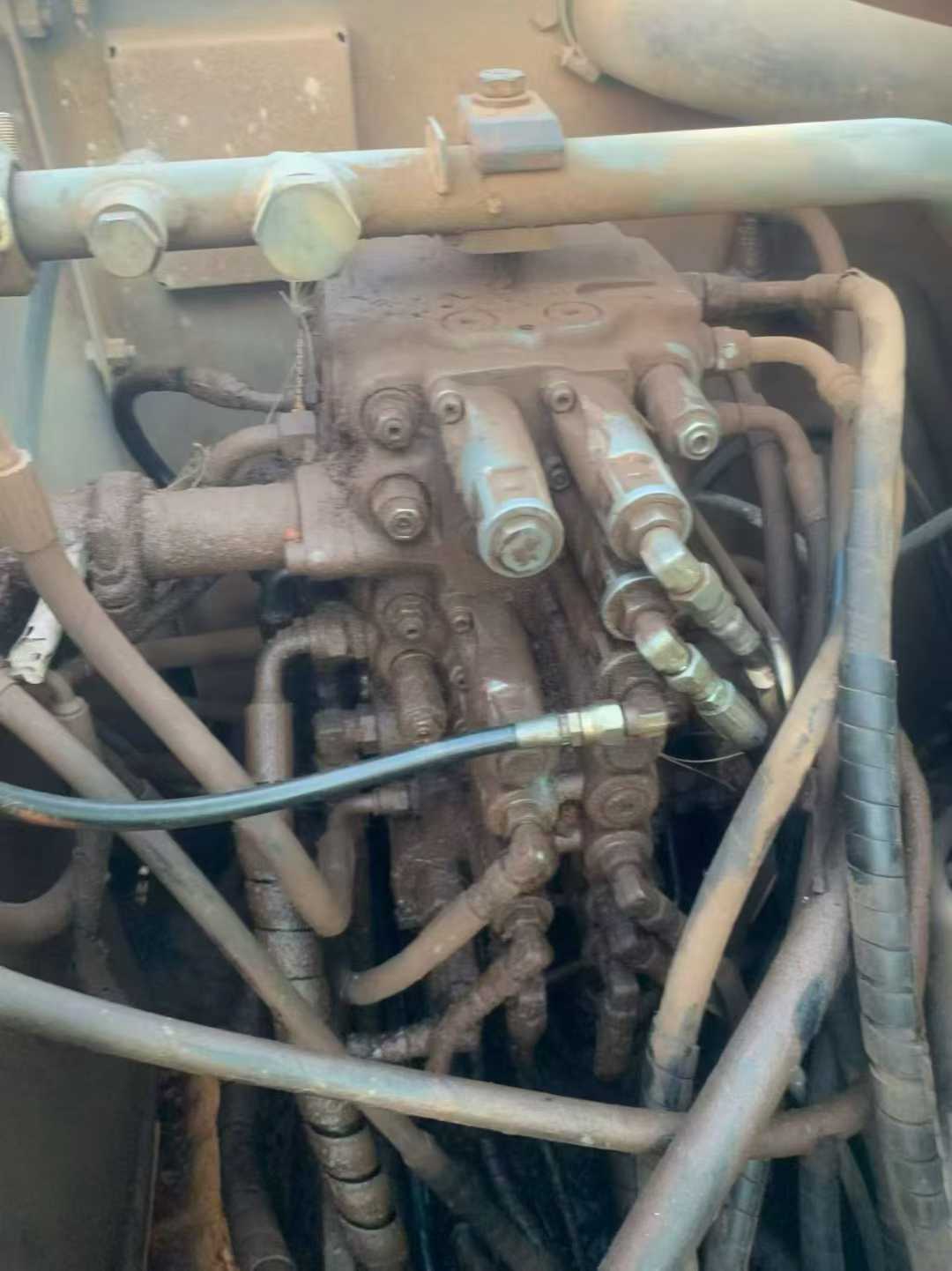

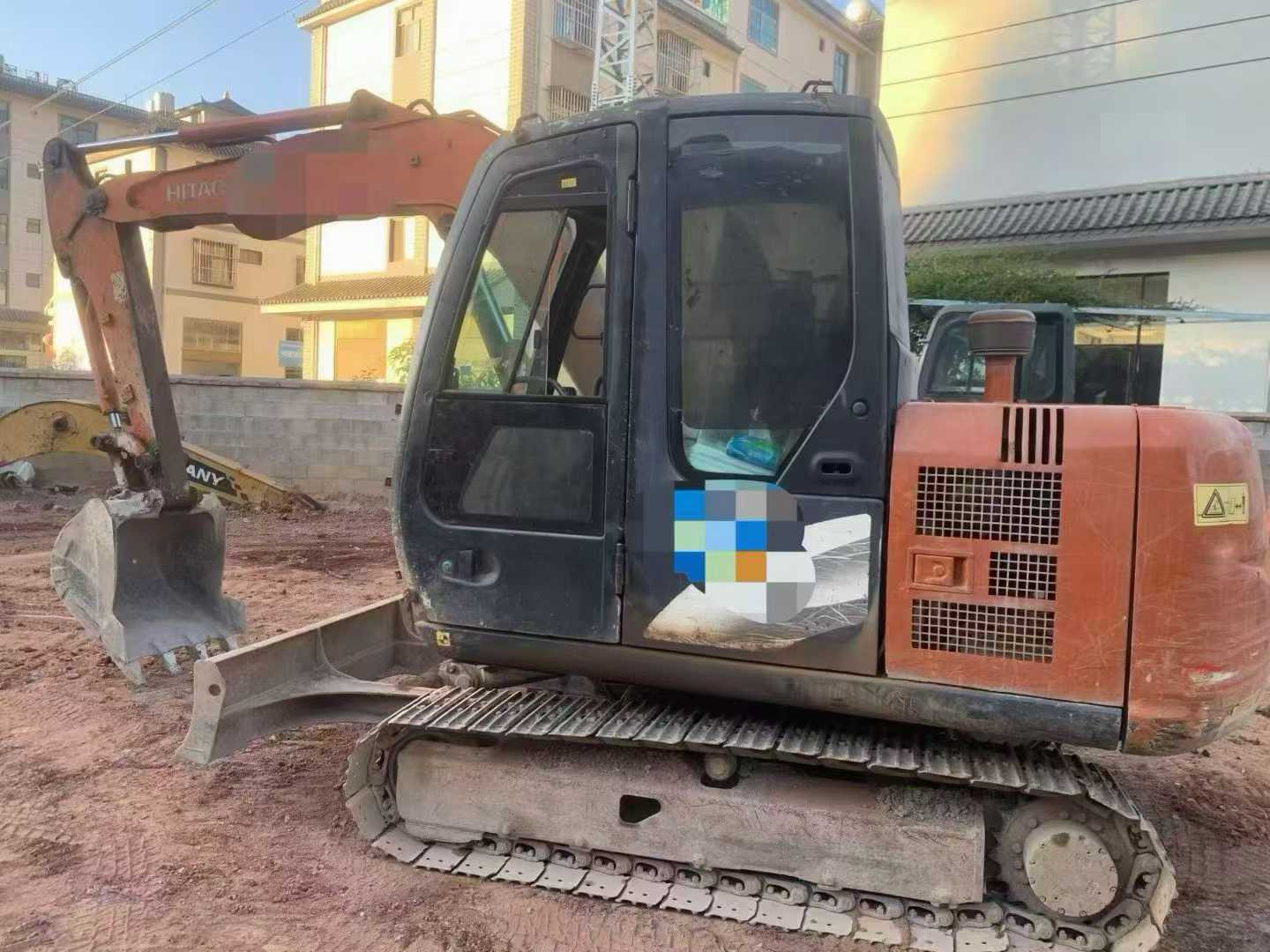

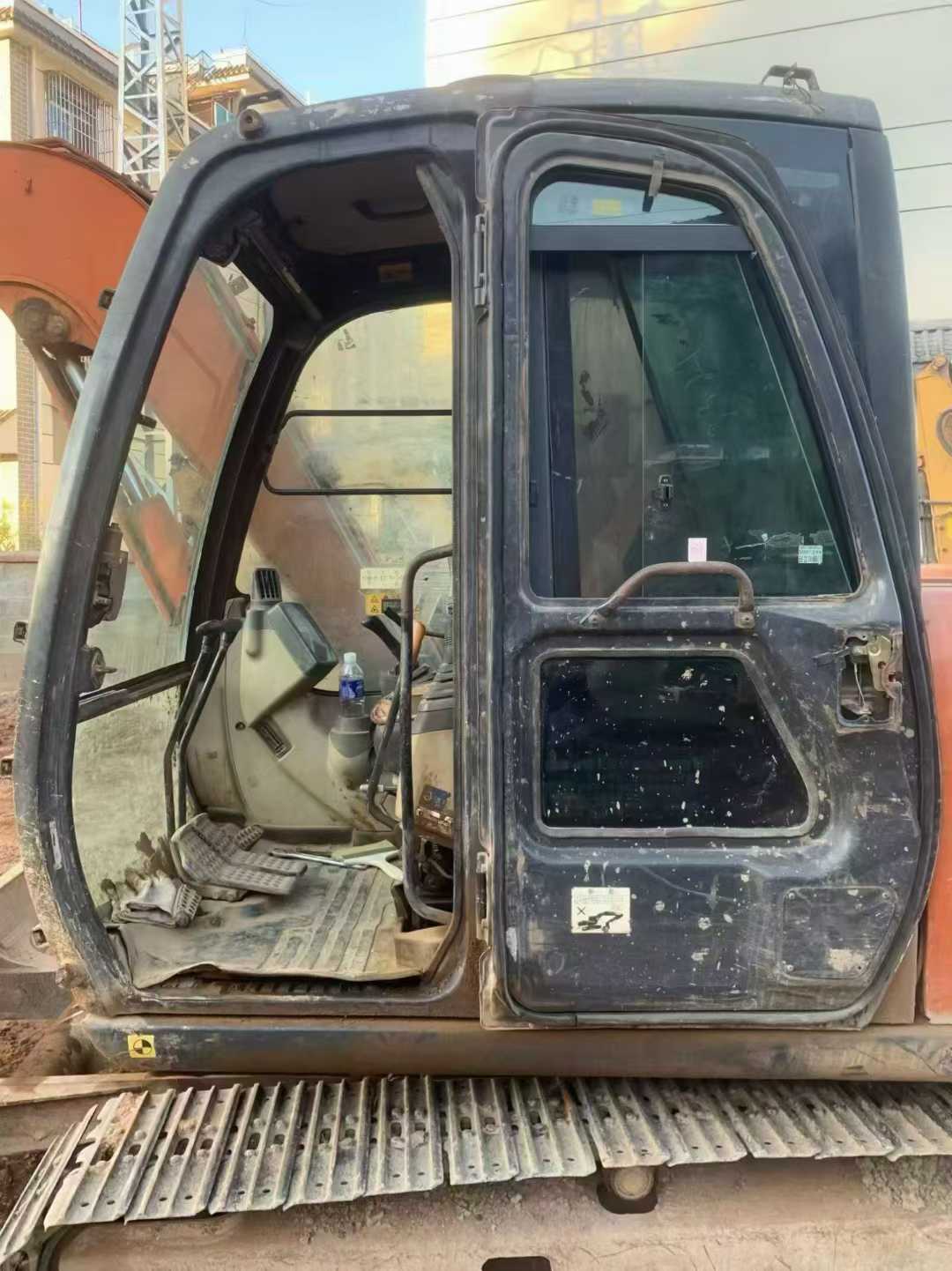

【 Premium Recommendation 】 Second-hand Hitachi 60-5G excavator from 2013, complete procedures, affordable price, only over 50,000! Since this excavator was put into use in 2013, it has accumulated only about 3,000 hours of working time. With low usage frequency and proper maintenance, the overall condition of the vehicle is excellent. The exterior is clean and tidy without obvious scratches or dents. The paint surface is bright and new. The interior of the cab is clean and tidy, and the operation is flexible and comfortable. In terms of power, this aircraft is equipped with an original imported high-efficiency and energy-saving engine from Hitachi, which is powerful and has good fuel economy. It can handle both urban demolition and rural construction with ease. The hydraulic system adopts original imported pumps and valves from Japan, featuring rapid response and precise control. It can maintain a stable working state even under complex working conditions. In addition, this machine is also equipped with an advanced electronic control system, which can automatically adjust the power output according to the operation requirements, effectively improving work efficiency while reducing energy consumption. In conclusion, this is a second-h
