Product Description

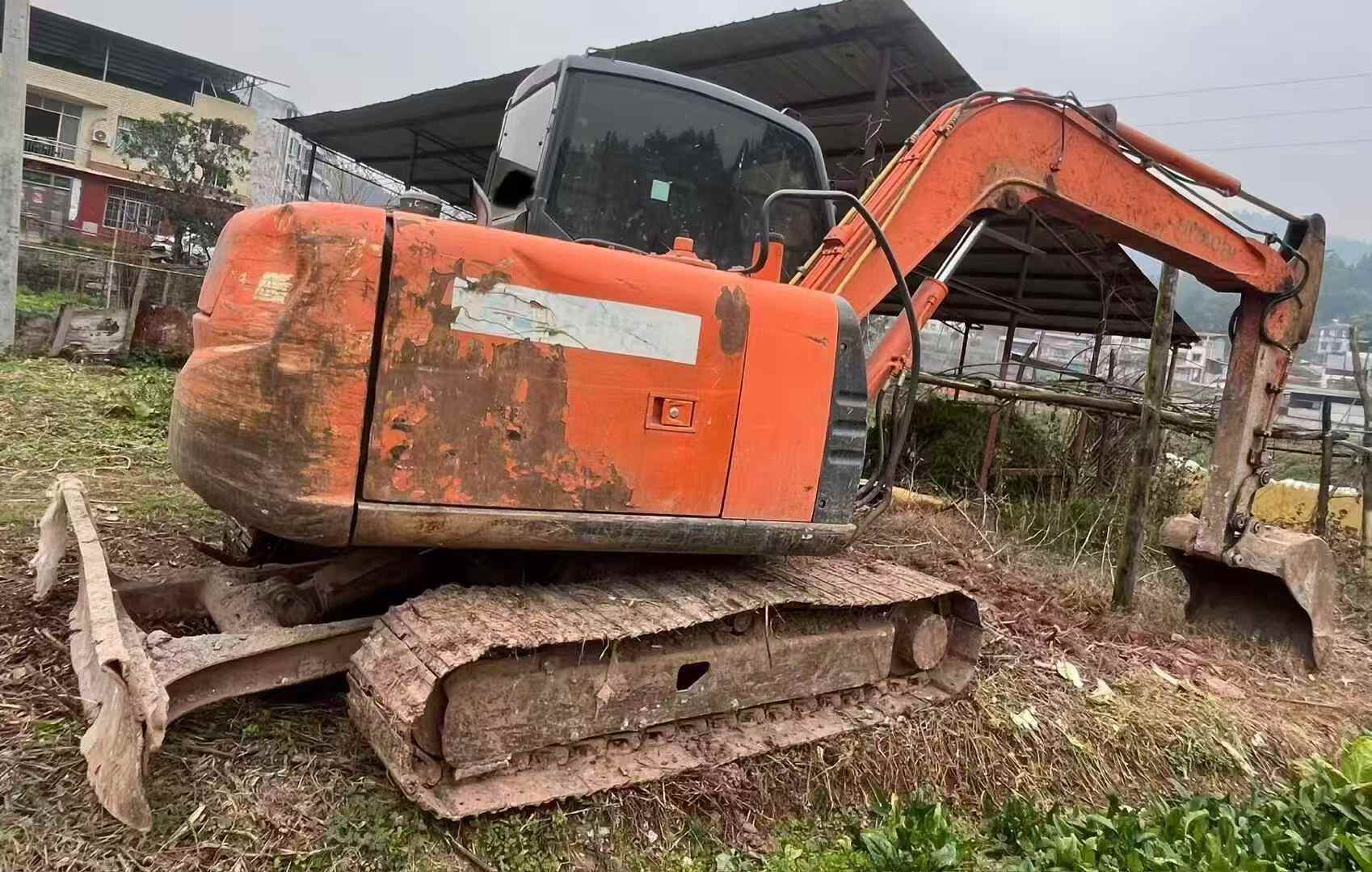

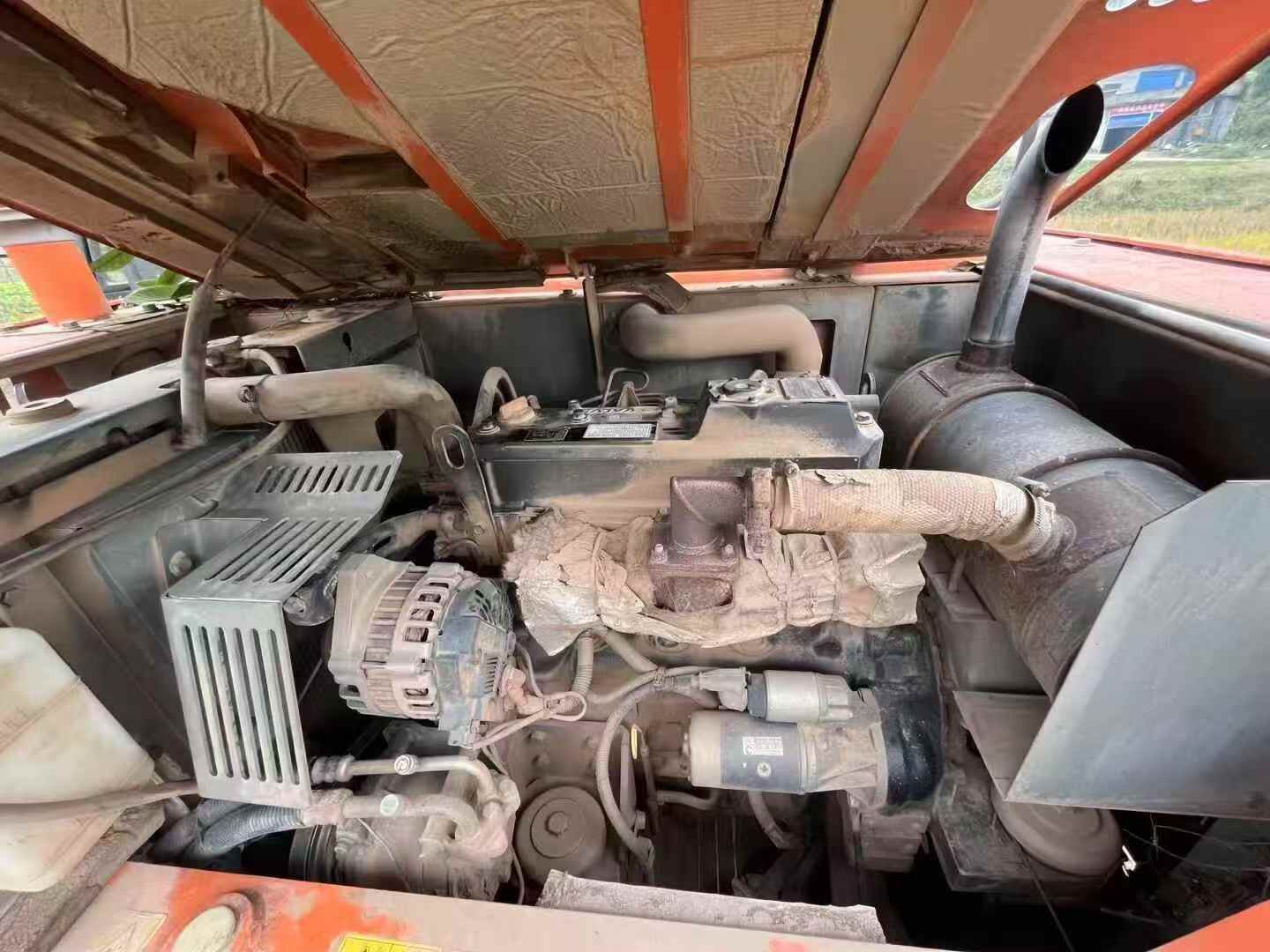

There is currently a second-hand Hitachi 60-5G excavator from the end of 2013. This equipment is highly favored for its outstanding performance and good maintenance condition. The operating hours of this excavator are over 70,000 hours. For such an efficient and durable machine, it is still in the best stage of its life cycle. It is equipped with a high-quality Hitachi original engine, with the expected model being 4BG1-T, which is powerful and has high fuel efficiency, ensuring stable operation under various working conditions. In terms of the hydraulic system, this excavator adopts an advanced combination design of hydraulic pumps and hydraulic motors, which can provide a smooth and fluid operation experience as well as precise motion control. Whether it is excavation, loading or crushing operations, it can handle them with ease. In addition, this machine has just been equipped with brand-new chain ribs and chain plates, which not only enhance the stability of the walking system but also extend the overall service life of the machine. As a well-maintained Hitachi 60-5G excavator, it boasts numerous advantages: Firstly, its compact design enables flexible operation even in confined Spaces; Secondly, the sturdy and durable structure
| Specifications | Value |
|---|---|
| No. | 975600 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.24 |
| Country of origin | Hefei (Capital of Anhui Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98-AVHBW |
| Rated power (kw/rpm) | 42.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Maximum torque (N.m) | 236 |
| Number of cylinders (PCS) | 4 |
| Working form | Four-stroke, water-cooled, direct injection |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70% (35°) |
| Maximum tractive force (kN) | 38.5 |
| Travel speed (km/h) | 0-4.5/0-2.5 |
| Turning torque (Nm) | 10 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 17.6 |
| Main pump type | 3 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 60 |
| Coolant (L) | 8 |
| Hydraulic System (L) | 93 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2085 |
| Full cab height (mm) | 2475 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 2060 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3440 |
| Dodging plate width × height (mm) | 200 x 400 |
| Maximum excavation radius of stop surface (mm) | 6130 |
