| Specifications | Value |
|---|---|
| No. | 962678 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
Description

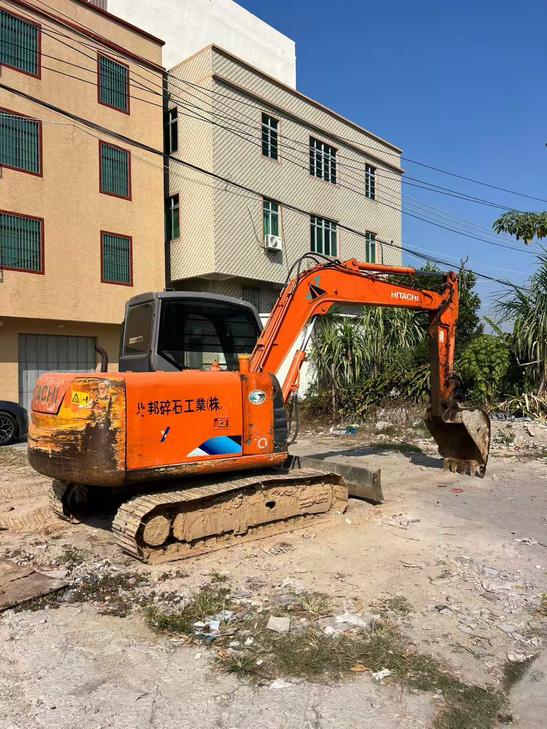

【 Premium Recommendation 】 Local second-hand Hitachi 60-6 excavators are now on hot sale! This excavator is a very popular small excavator in the market, especially suitable for urban construction and small-scale projects. It not only operates flexibly and is easy to maintain, but also performs exceptionally well in construction efficiency, capable of meeting the operational requirements under various complex working conditions. 【 Basic Information - ** Brand Model ** : Hitachi 60-6 - ** Working Time ** : This machine has a cumulative working time of 2,500 hours and is in the best usage condition with stable and reliable performance. - ** Power System ** : It adopts a highly efficient and energy-saving original imported engine, which is powerful and has low fuel consumption. Even under long-term high-intensity operation, it can maintain a good operating condition, significantly reducing operating costs. - ** Hydraulic System ** : Equipped with an advanced hydraulic control system, it ensures smoother and more accurate movements, making it easy to handle both excavation and loading. In addition, its unique hydraulic oil cooling device effectively extends the service life of the equipment. - ** Appearance and Accessories ** : The overal
