| Specifications | Value |
|---|---|
| No. | 964703 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
Description

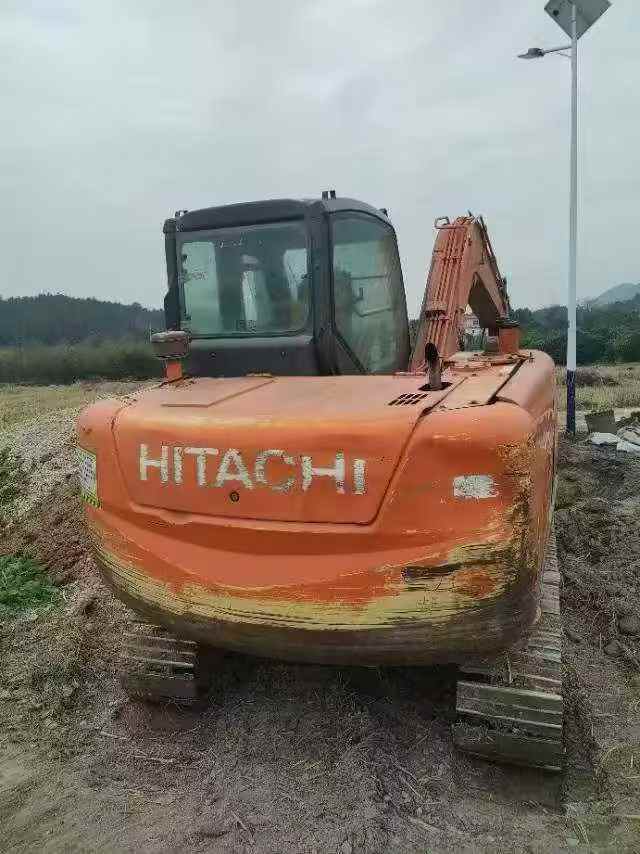

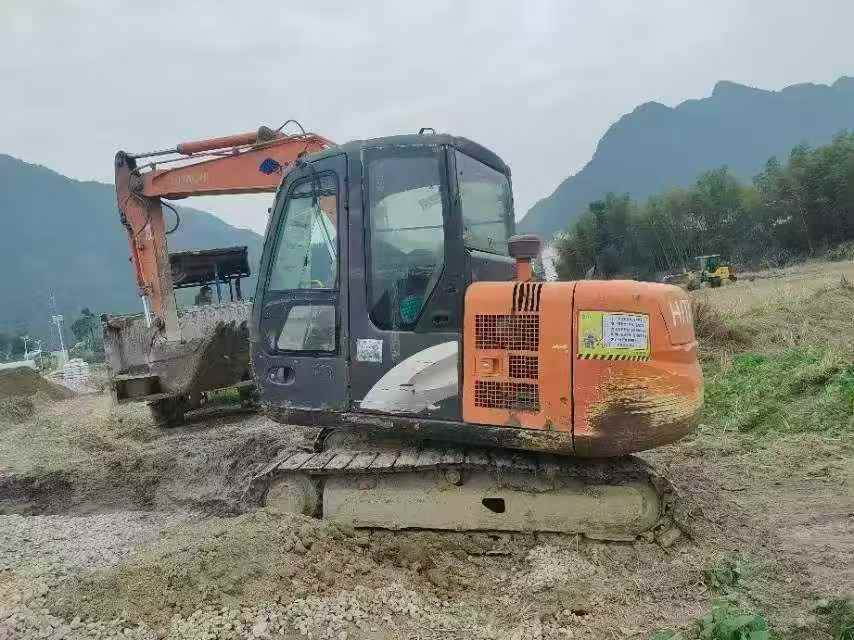

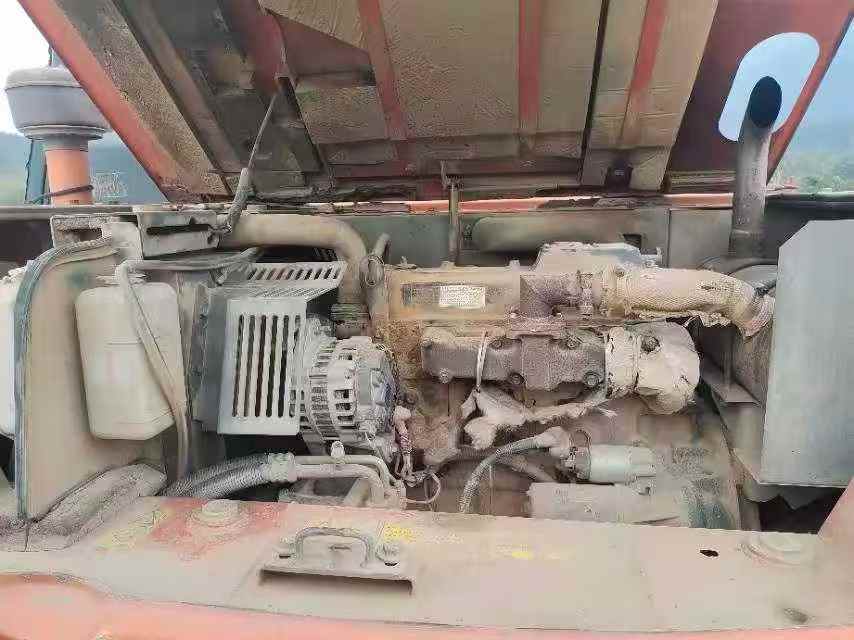

【 Premium Recommendation 】 Second-hand Hitachi ZX60 excavator from 2013, now priced at only 63,000 yuan! Since this excavator was put into use in 2013, it has accumulated a working time of 4,500 hours, which is a medium usage frequency. With proper maintenance, its overall condition is very good. It is equipped with an original imported high-efficiency and energy-saving engine from Hitachi, which is powerful and has excellent fuel economy. Even under complex working conditions, it can maintain stable output and meet various construction needs. In terms of the hydraulic system, advanced load sensing technology and a high-flow main pump configuration are adopted, ensuring smooth operation and rapid response. Whether it is excavation, loading or crushing operations, it can handle them with ease. In addition, this model is also equipped with reinforced structural components and durable walking devices, effectively extending the service life of the equipment. It is worth mentioning that this machine has been comprehensively inspected and maintained by a professional team. All key components are in good condition and there is no record of any major accidents. It has an extremely high cost performance and is very suitable for small and medium
