| Specifications | Value |
|---|---|
| No. | 965577 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
Description

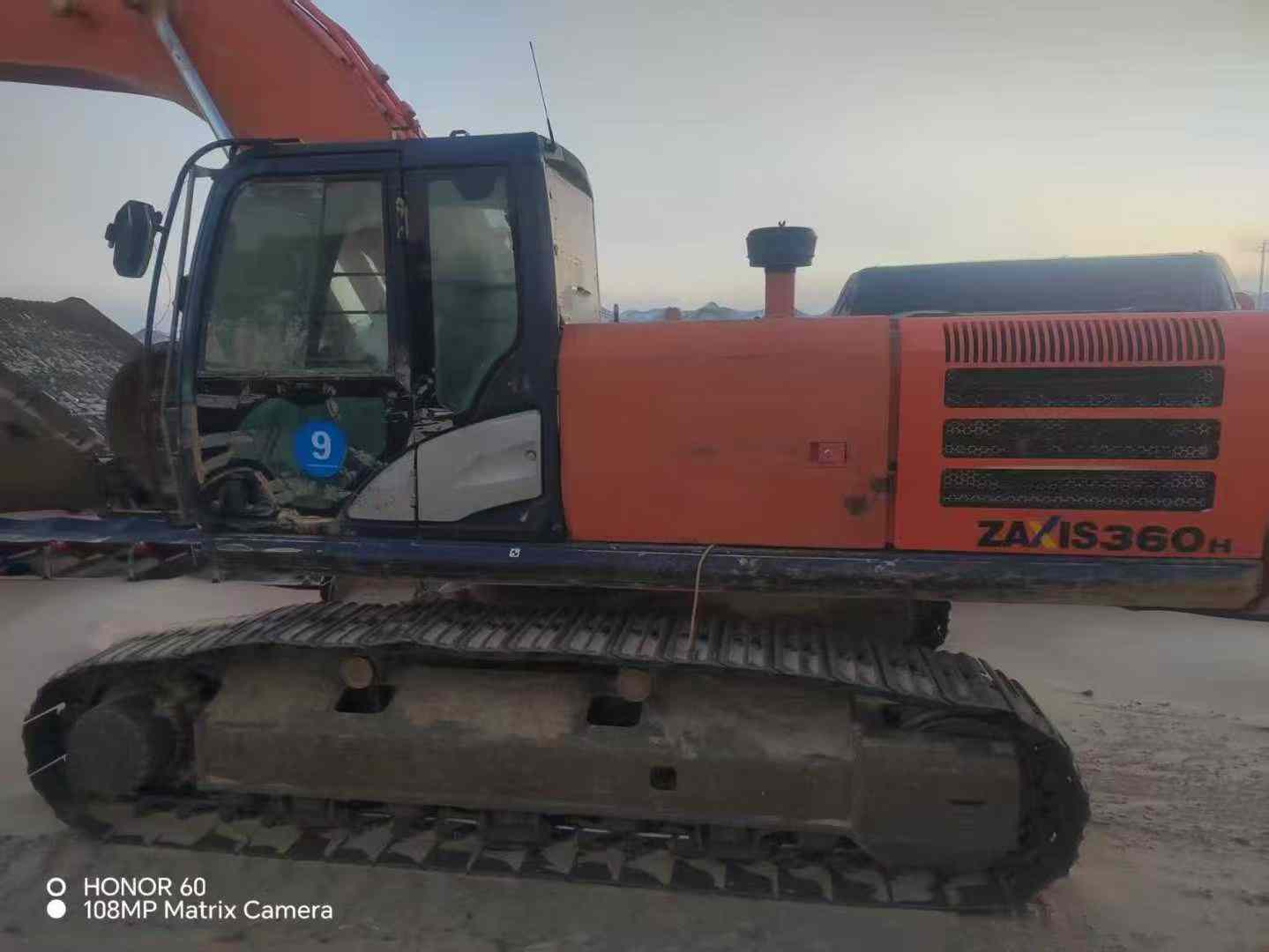

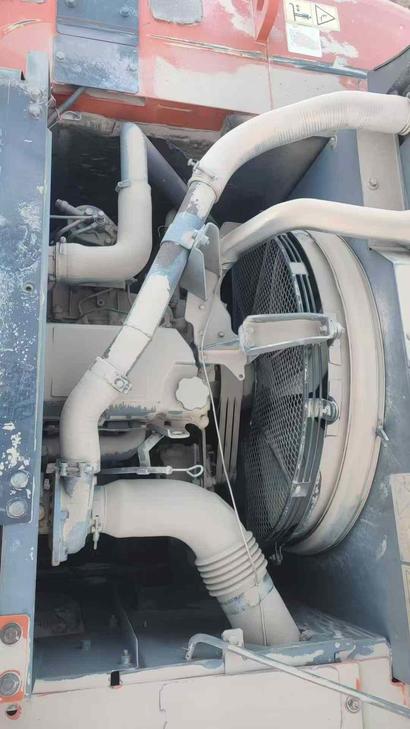

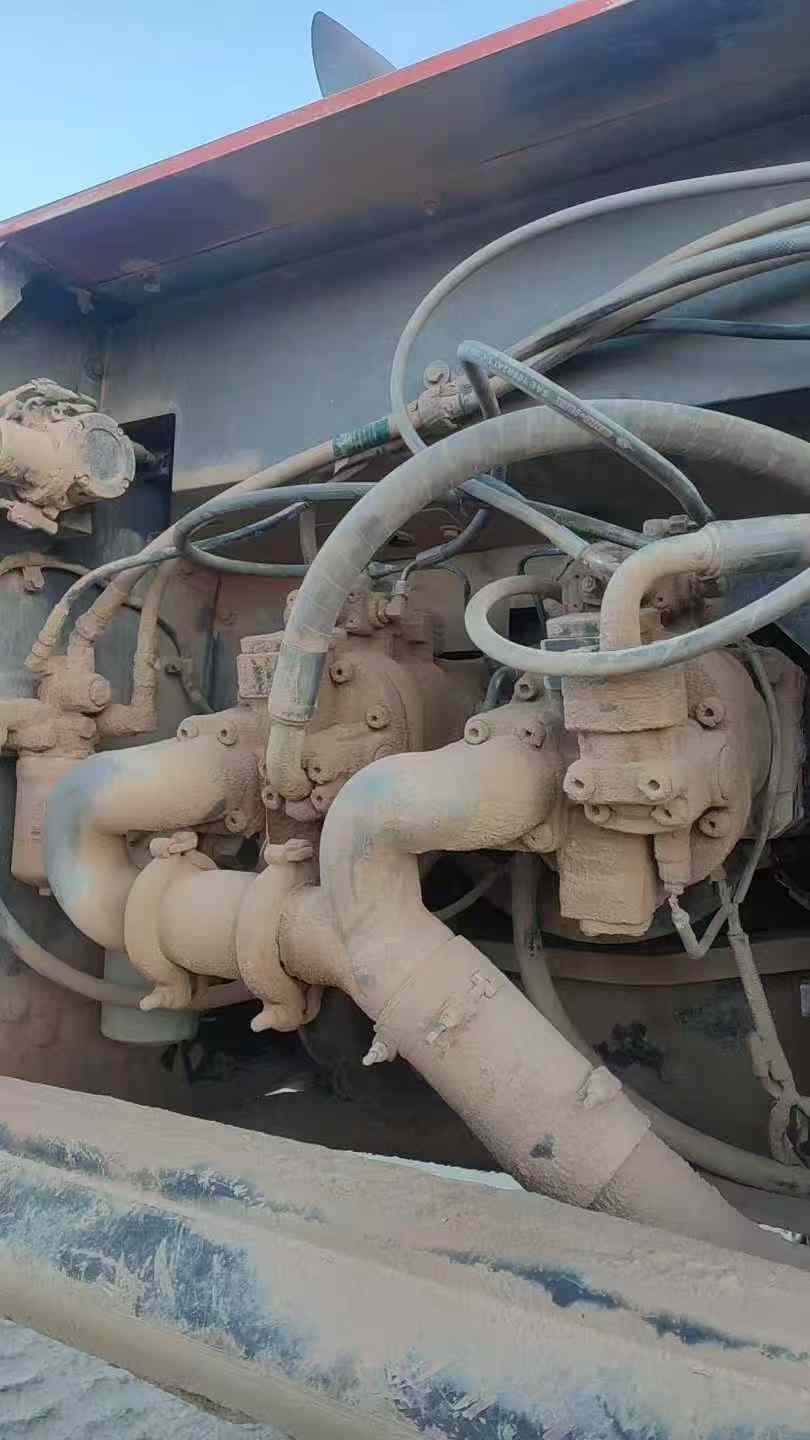

【 Premium Recommendation 】 Two top-quality Hitachi 360 excavators from 2014 are available for sale as a package We are extremely honored to recommend to you these two Hitachi ZX360-5G excavators produced in 2014. Both of these two devices have been meticulously maintained and are in excellent overall condition. Their working hours are 4,800 hours and 5,200 hours respectively, which are far shorter than the average service life of similar models, ensuring the high residual value and long service life of the machines. In terms of the power system, it adopts the well-tested and stable Isuzu six-cylinder turbocharged engine, with a maximum power output of up to 200kW (approximately 272 horsepower). It not only offers strong power output but also has excellent fuel economy, ensuring efficient operation while effectively reducing operating costs. In addition, the advanced electronic control system can automatically adjust the rotational speed according to the actual working conditions, further enhancing work efficiency and reducing fuel consumption. The hydraulic system is Hitachi's proud HIOS III technology, featuring fast response speed and high operational accuracy. It can handle operations such as excavation, loading and crushing with
