| Specifications | Value |
|---|---|
| No. | 965616 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
Description

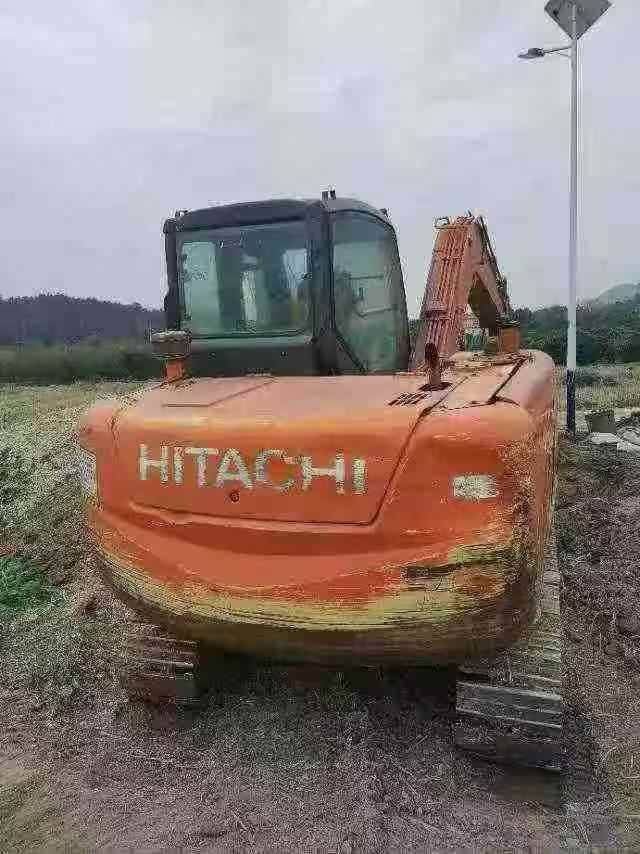

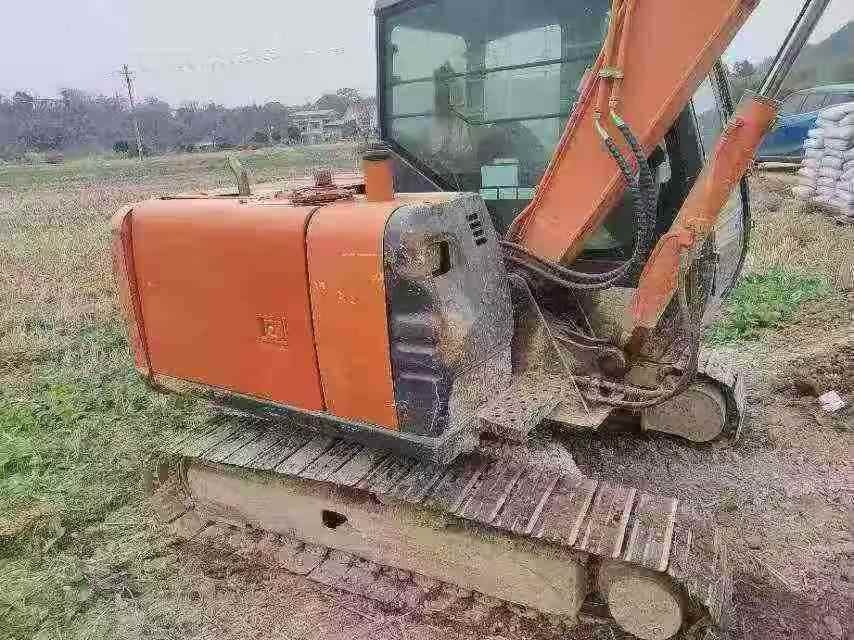

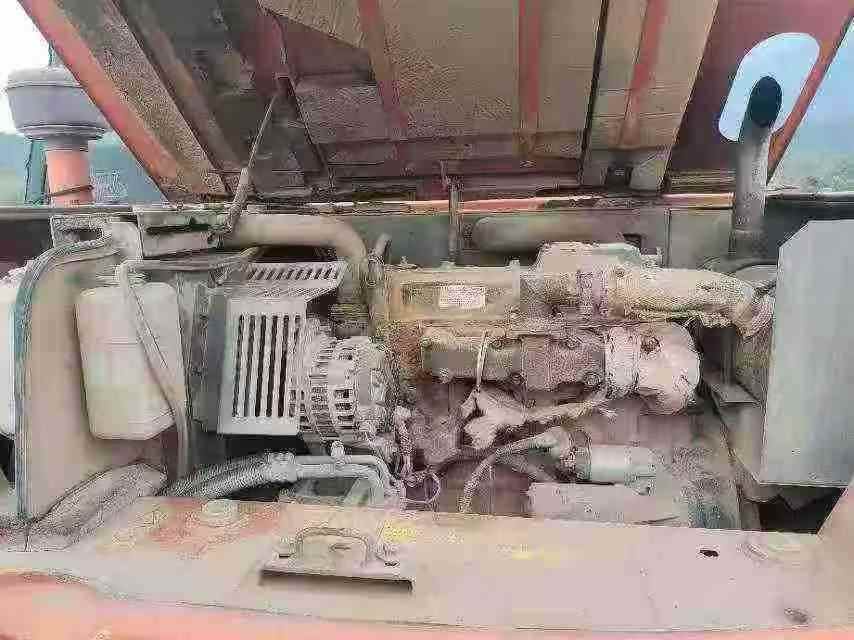

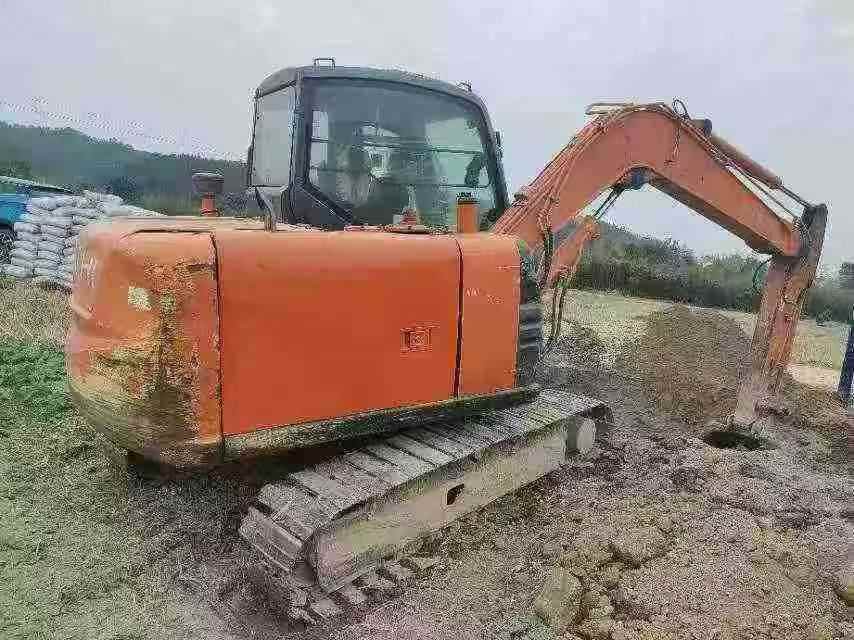

【 Premium Recommendation 】 Second-hand Hitachi ZX60 excavator from 2013, now priced at only 60,000 yuan! Since this excavator was put into use in 2013, its cumulative working time has only been 4,500 hours, which is far lower than the average service life of similar equipment. However, its overall performance remains at a relatively high level. As a small excavator, it features excellent flexibility and powerful working capacity, making it highly suitable for construction needs in confined urban Spaces. In terms of the power system, this aircraft is equipped with an original imported Hitachi engine, which features high efficiency and energy conservation. It not only provides strong power output but also has low fuel consumption and low noise, meeting national environmental protection standards. It can operate stably even under harsh working conditions, ensuring continuous operation for long periods without pressure. The hydraulic system adopts advanced load sensing technology, which can automatically adjust the flow rate according to the actual load, making the operation more precise and smooth, and greatly improving work efficiency. Meanwhile, the hydraulic oil tank has a large capacity and good heat dissipation effect, effectively
