| Specifications | Value |
|---|---|
| No. | 966015 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
Description

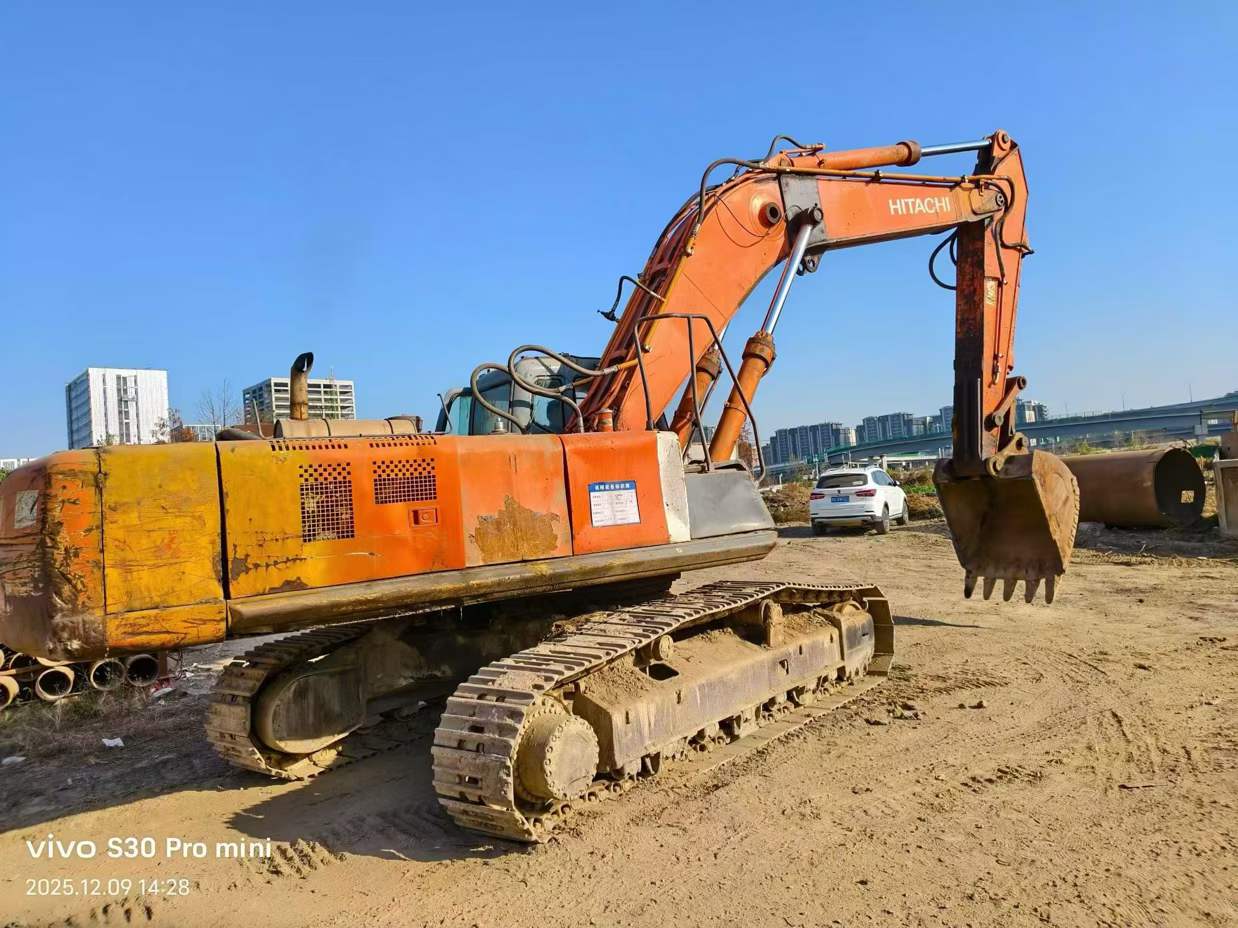

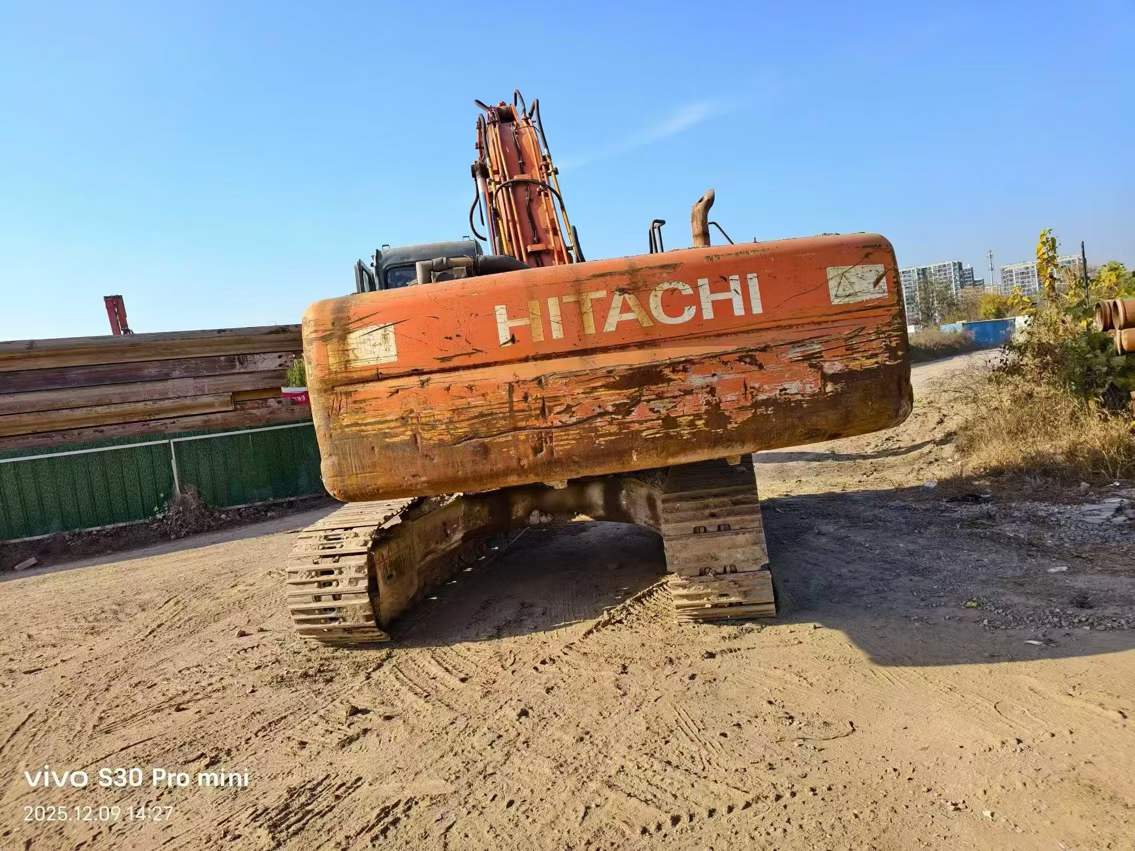

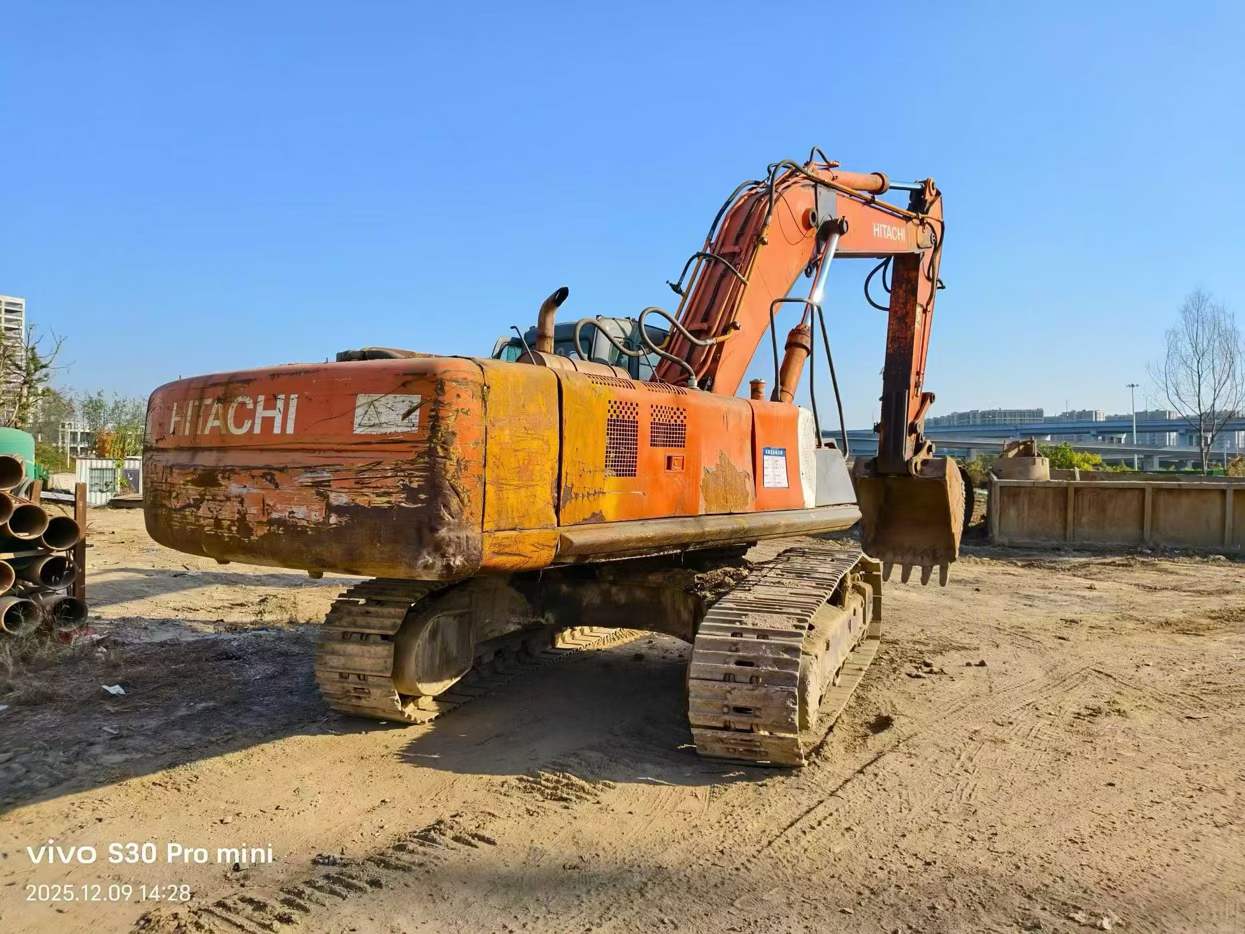

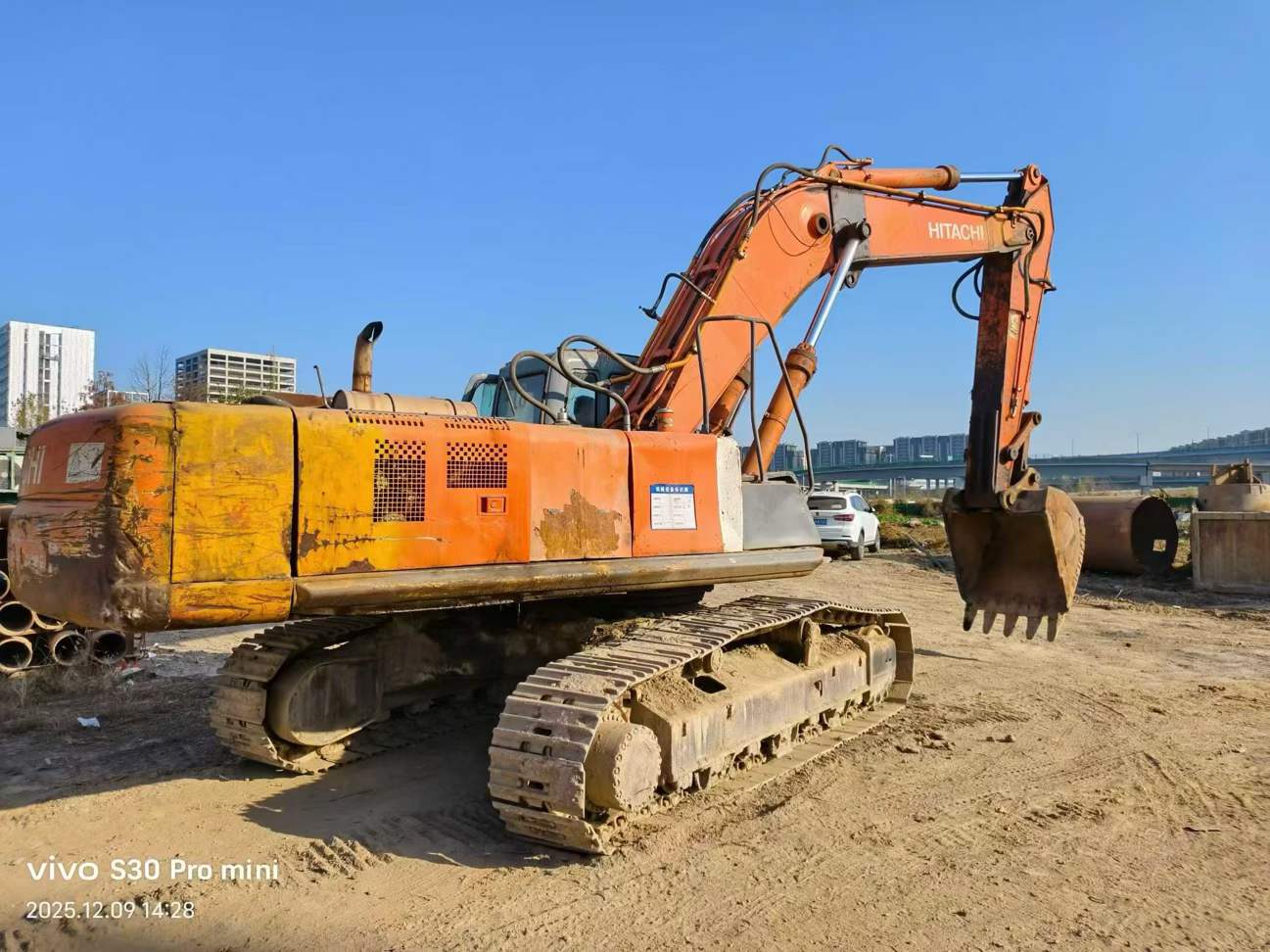

【 Hitachi 360-3G second-hand excavator, in stock with special offer, only 95,000 yuan 】 We sincerely recommend this second-hand Hitachi 360-3G excavator to you. This equipment is currently in excellent condition and offers an extremely high cost performance. This excavator has a working duration of approximately 4,500 hours. For a heavy machine, such a working time indicates that it is in its best service period. There are neither the running-in issues of a new machine nor is it far from the state that requires major overhauls. In terms of power, the Hitachi 360-3G is equipped with a high-performance engine, ensuring strong and stable power output. It can handle both hard rocks and soft soil with ease. In addition, it has a high fuel efficiency, which can effectively reduce operating costs and ensure that every penny of yours is spent where it counts. The hydraulic system is one of the important indicators for measuring the performance of excavators. This Hitachi 360-3G model adopts advanced hydraulic technology, featuring flexible and precise operation and rapid response. Whether it is excavation, loading or leveling operations, it can demonstrate outstanding work efficiency. Meanwhile, it is easy to maintain and highly reliable, w
