| Specifications | Value |
|---|---|
| No. | 966843 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
Description

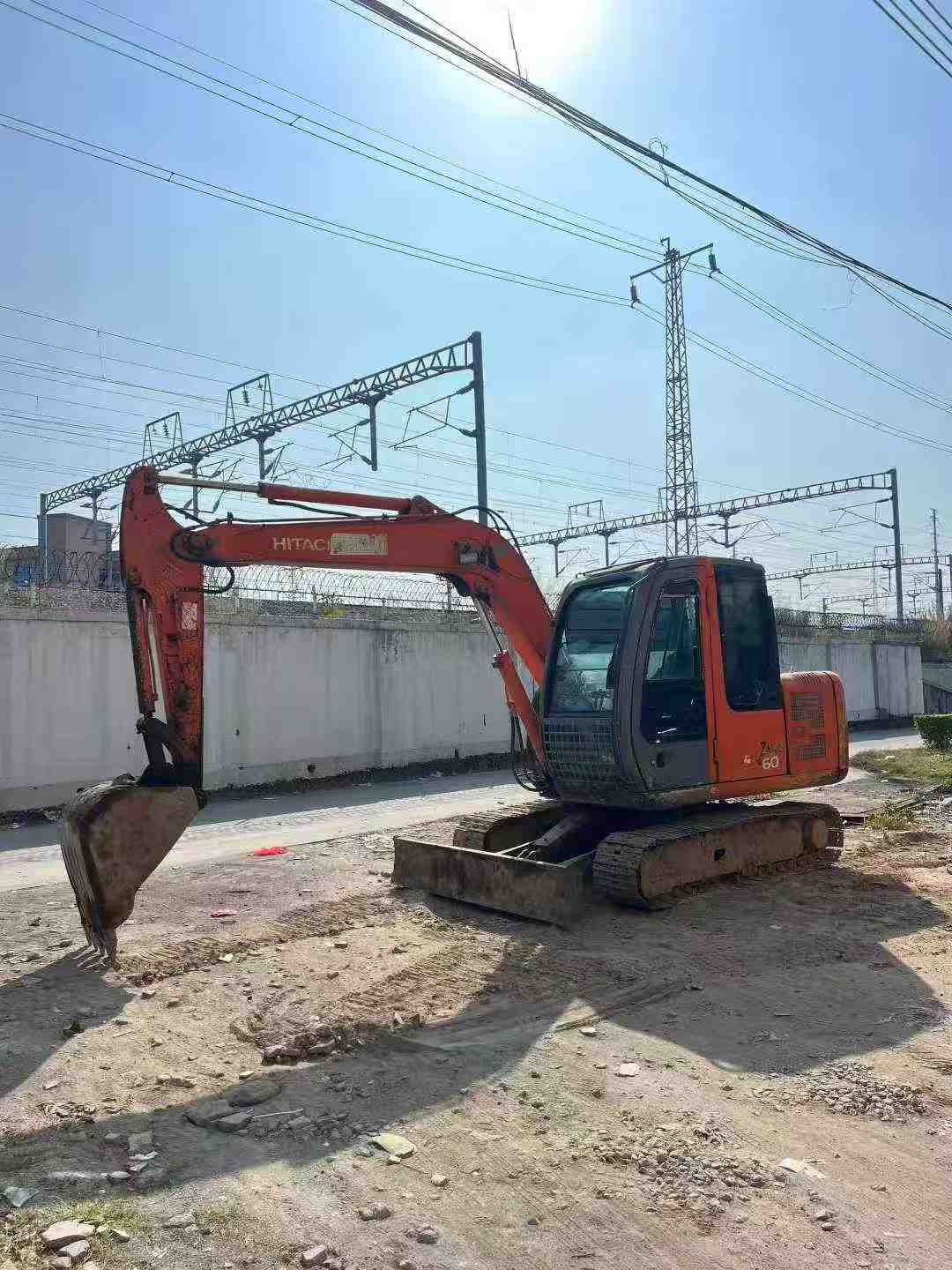

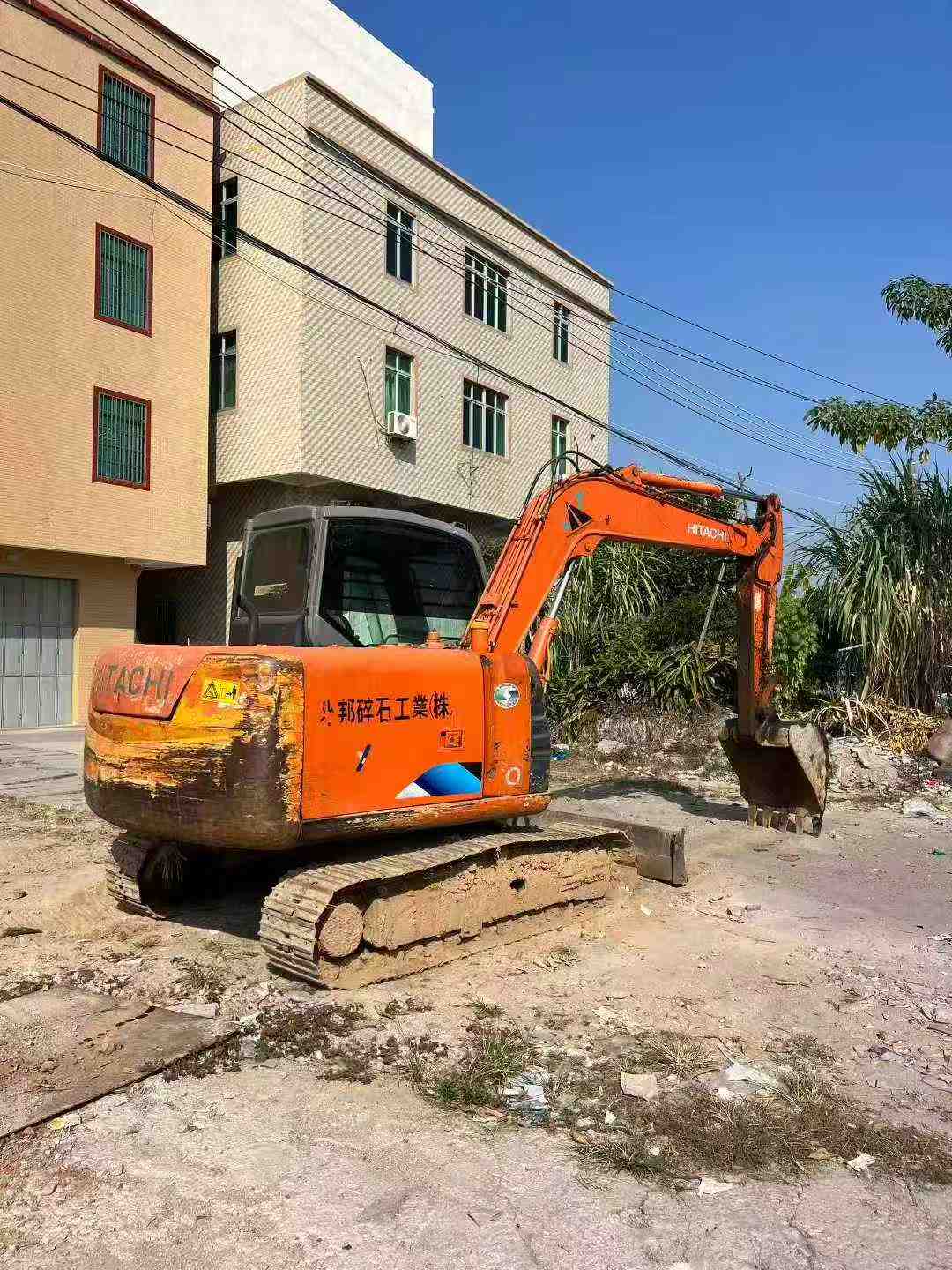

Detailed Introduction to the Second-hand Hitachi 60-6 Excavator This second-hand Hitachi 60-6 excavator is a very popular small excavator in the market. It not only features stable and reliable performance, but also is easy to operate and has low maintenance costs, making it highly suitable for application scenarios such as urban construction sites, landscaping, and small-scale earthwork projects. The device has a working duration of approximately 3,500 hours and is in good working condition. For a well-maintained Hitachi 60-6, such a usage period is not long, which means it still has a long service life waiting for its new owner to discover. In terms of power, this excavator is equipped with an efficient engine system, ensuring strong and stable power output. It can handle both hard rocks and soft soil with ease. Meanwhile, the advanced fuel management system has significantly reduced fuel consumption, enhancing work efficiency while being more energy-efficient and environmentally friendly. In terms of the hydraulic system, the Hitachi 60-6 adopts advanced closed center load sensing hydraulic technology, which enables the machine to perform various complex actions more smoothly and freely, with fast response speed and high control
