| Specifications | Value |
|---|---|
| No. | 967491 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

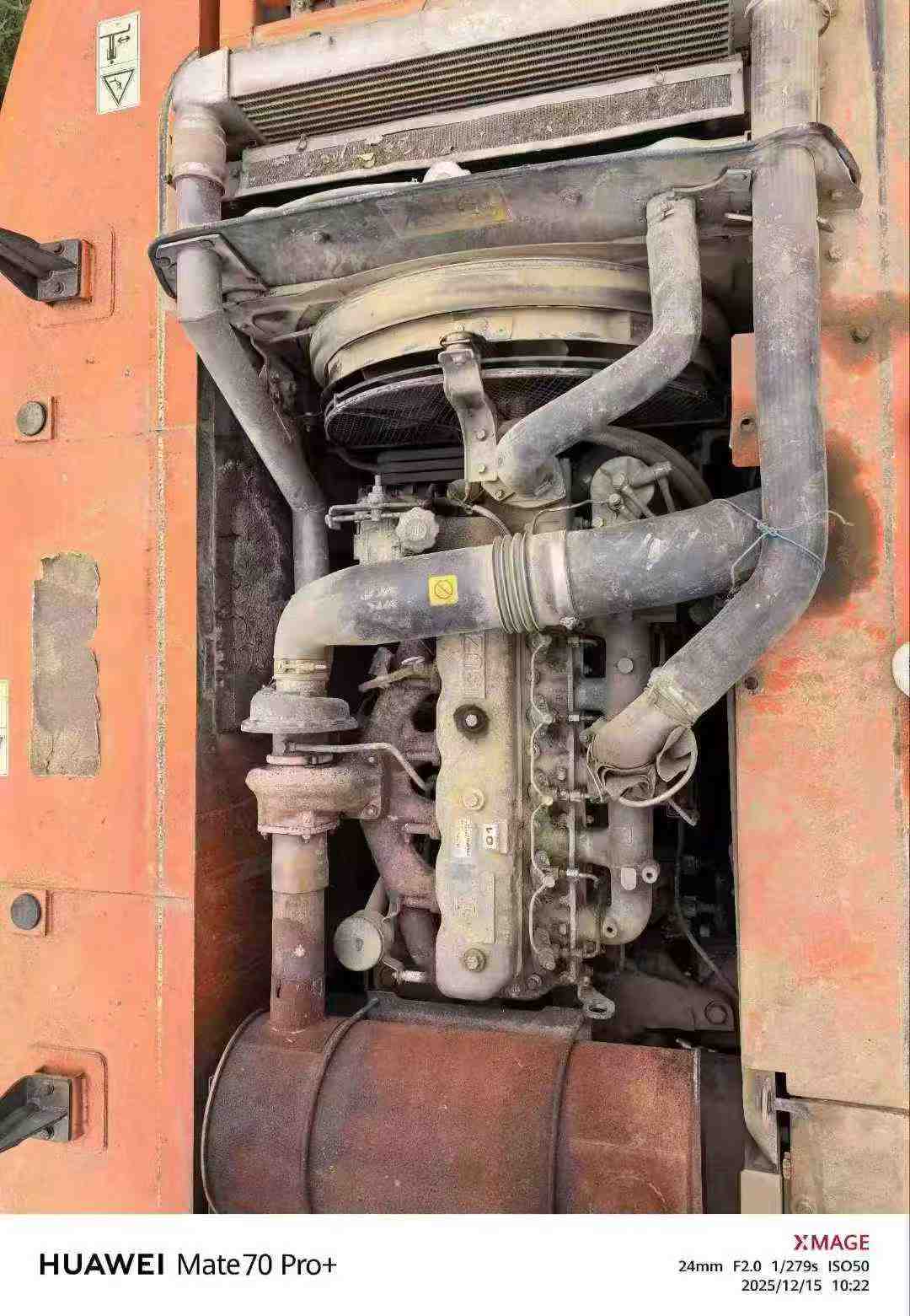

| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
Description

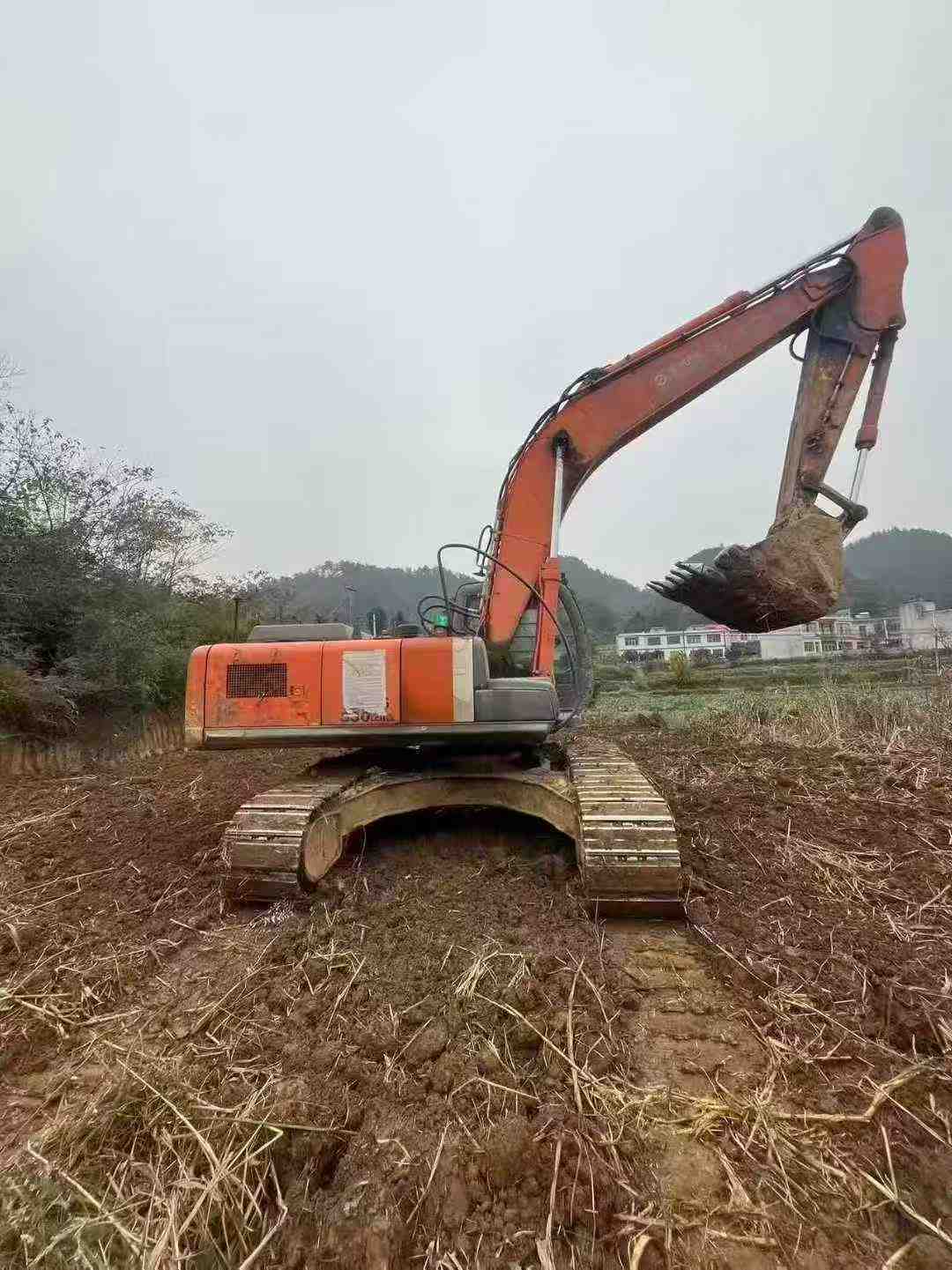

【 Premium Recommendation 】 Second-hand Hitachi ZX260 excavator from 2015, priced at just over 110,000! Since it was put into use in 2015, this machine has accumulated a working time of only about 7,000 hours, which is at a moderately low working intensity. With proper maintenance and stable performance, it is an ideal choice for your engineering operations. This machine is equipped with a high-power engine imported from Hitachi, which is powerful and has good fuel economy. It can maintain efficient operation even under harsh working conditions. Its advanced electronic control system can automatically adjust the output power according to the actual load, which not only ensures the excavation efficiency but also reduces fuel consumption, saving users a large amount of operating costs. In addition, this excavator is equipped with a high-performance hydraulic system, featuring fast response and flexible operation. It can handle both precise excavation and heavy-load operations with ease. The large-capacity fuel tank design enables longer continuous operation time, reduces the frequency of refueling, and enhances work efficiency. This Hitachi 260 excavator is highly favored by a large number of users for its outstanding cost performance,
