| Specifications | Value |
|---|---|
| No. | 967677 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
Description

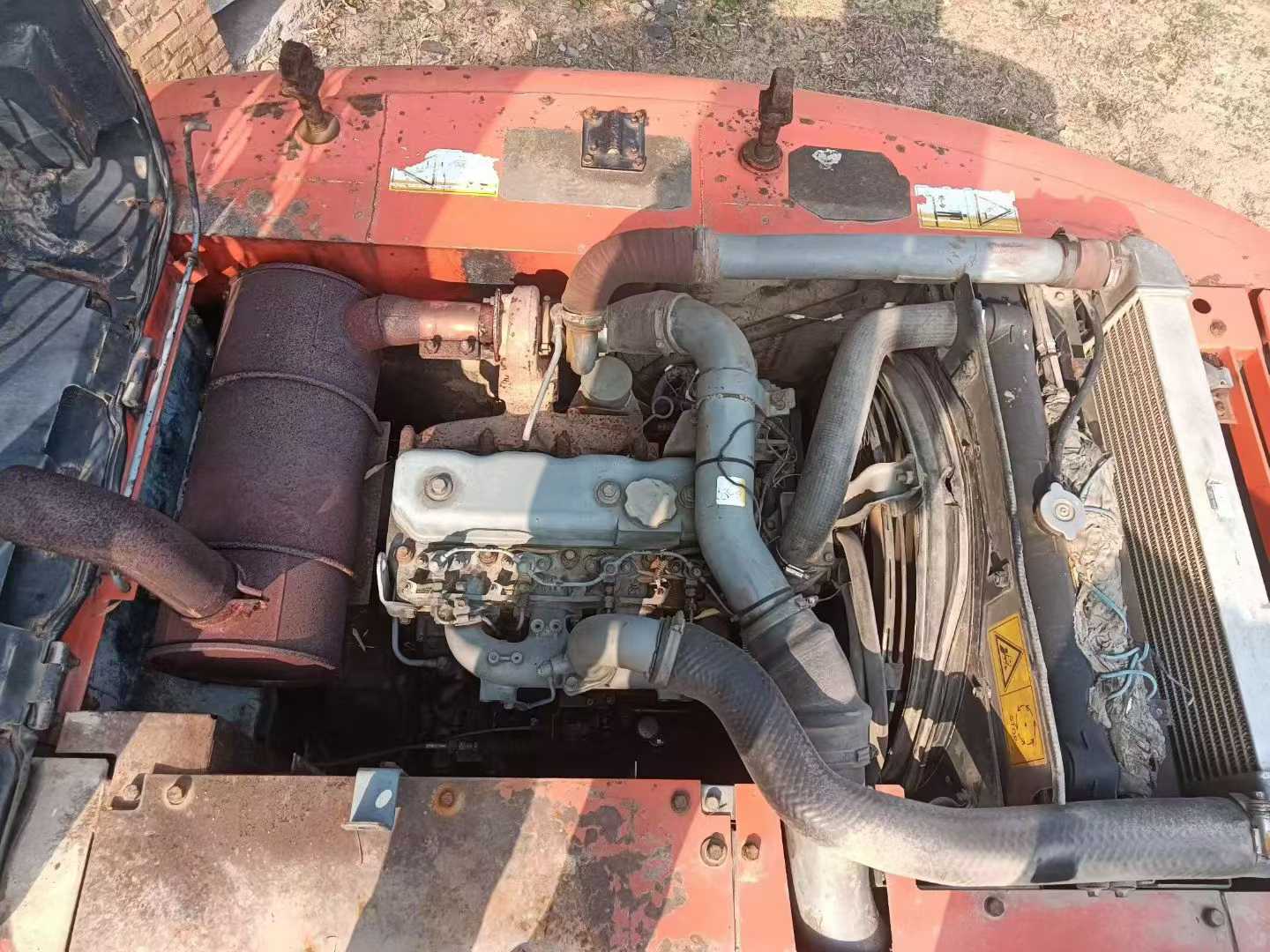

【 Premium Recommendation 】 Local first-hand Hitachi ZX160-5 second-hand excavator that has been declared for 17 years, only a few tens of thousands of yuan! This Hitachi ZX160-5 excavator was imported in 2017 and is in excellent condition. The overall working time of the machine is only about 3,500 hours. With proper maintenance and moderate usage frequency, it ensures the high efficiency and long service life of the equipment. In terms of the power system, it adopts an original imported four-stroke inline-four water-cooled turbocharged engine from Hitachi. It is stable and reliable in performance, has good fuel economy, and can handle both plain and high-altitude operations with ease. The hydraulic system adopts Hitachi's latest CLSS closed center load sensing system, which features fast response speed and flexible operation, significantly enhancing work efficiency. In addition, this excavator is equipped with a spacious and comfortable cab, offering a wide field of vision and excellent shock absorption, making it less likely to cause fatigue even after long-term operation. The exterior paint surface is as smooth as new, without obvious scratches or rust, and the internal structural components are also very sturdy and durable. We pr
