| Specifications | Value |
|---|---|
| No. | 967883 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
Description

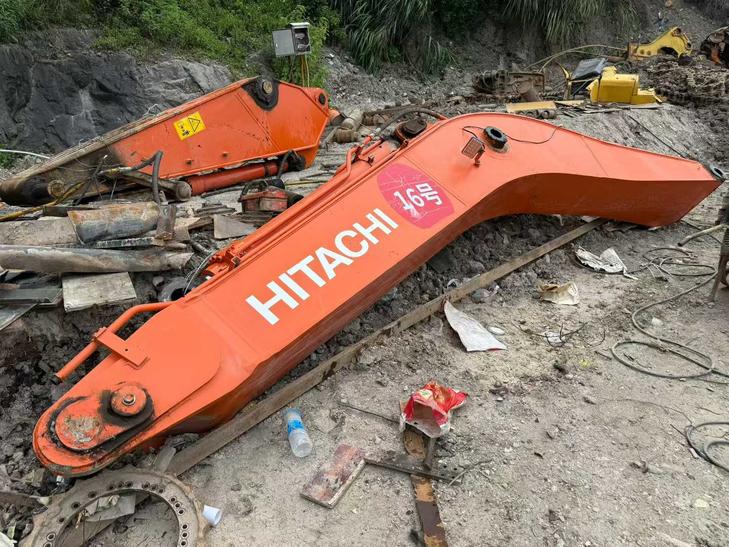

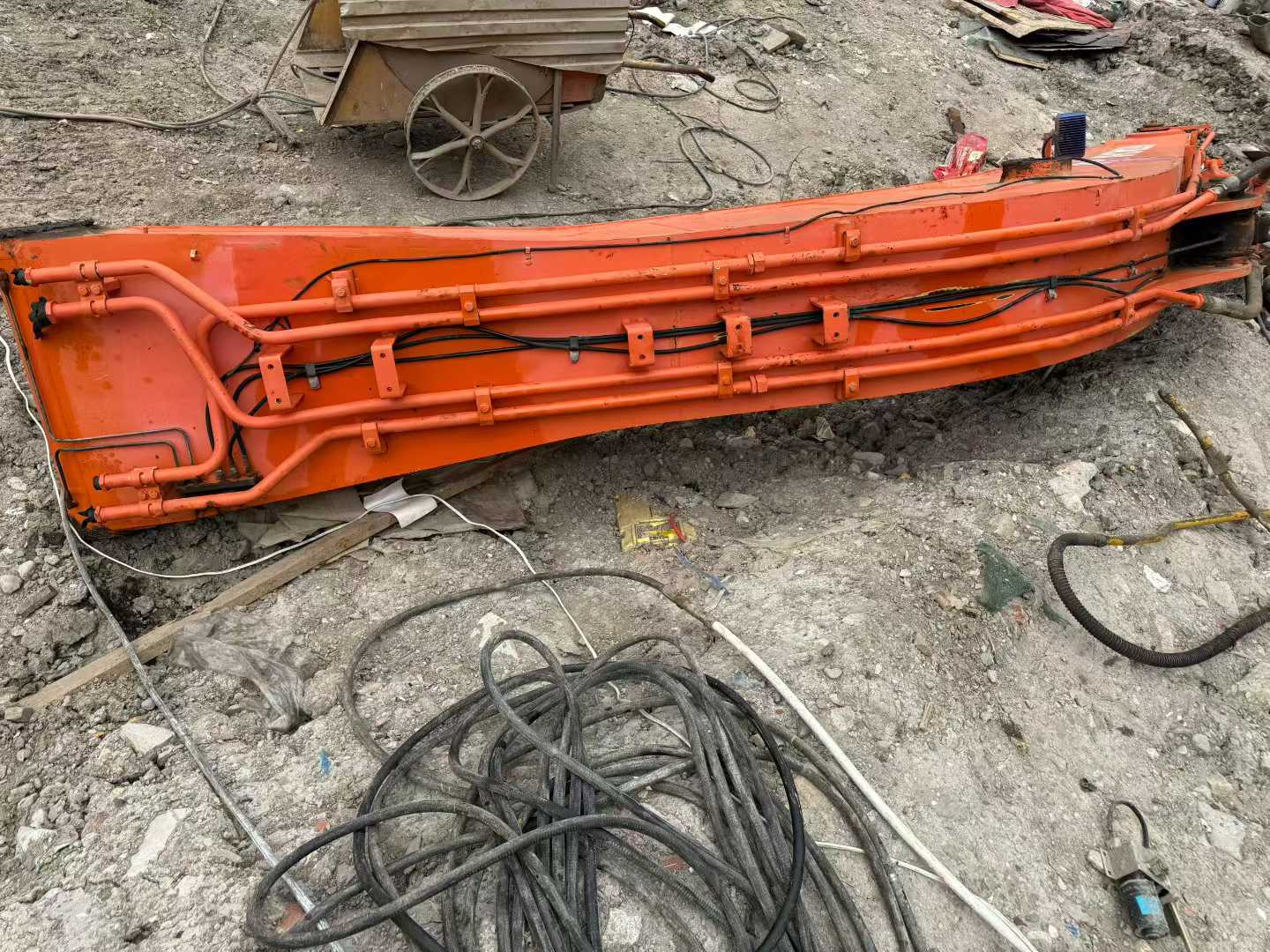

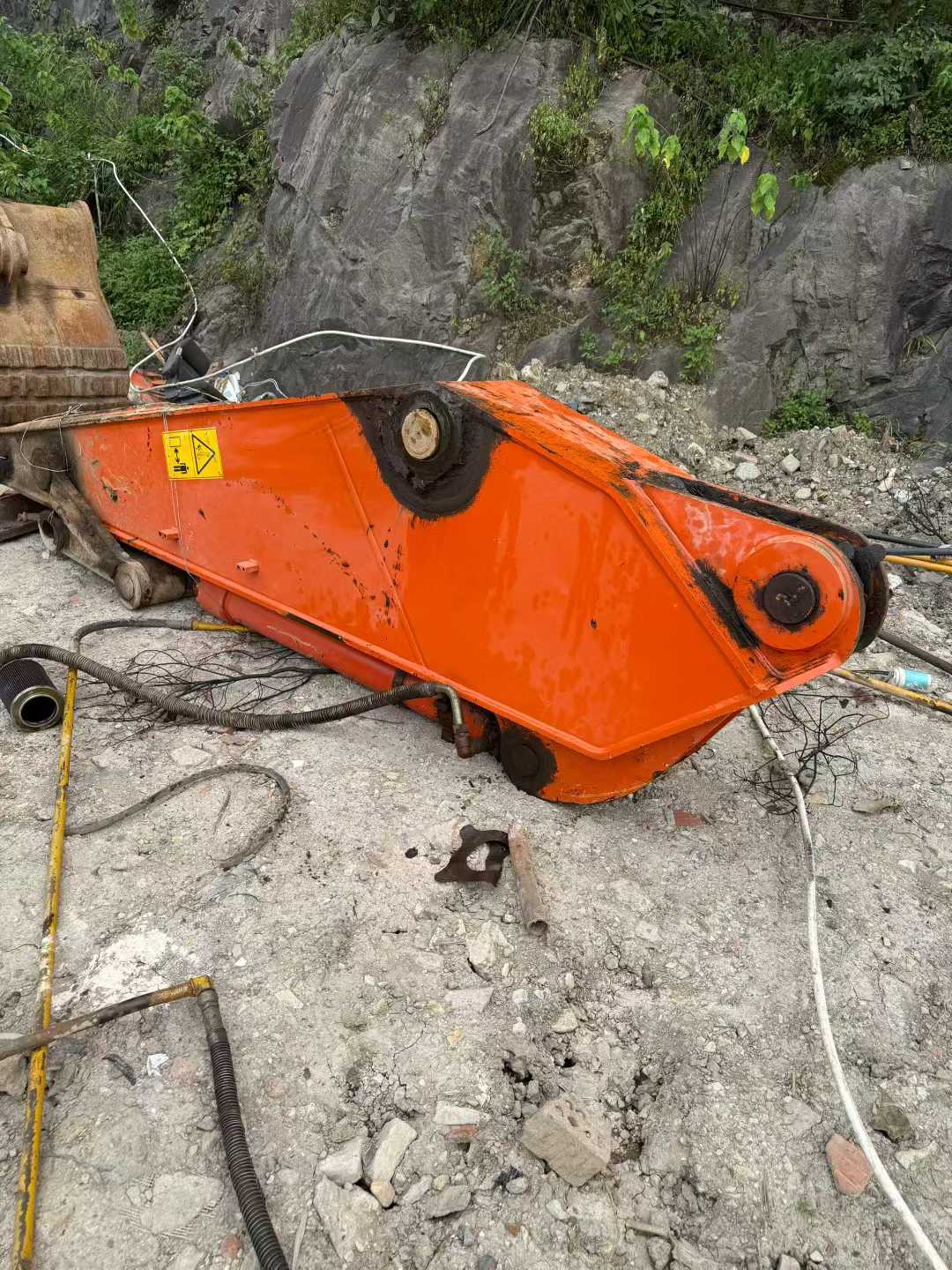

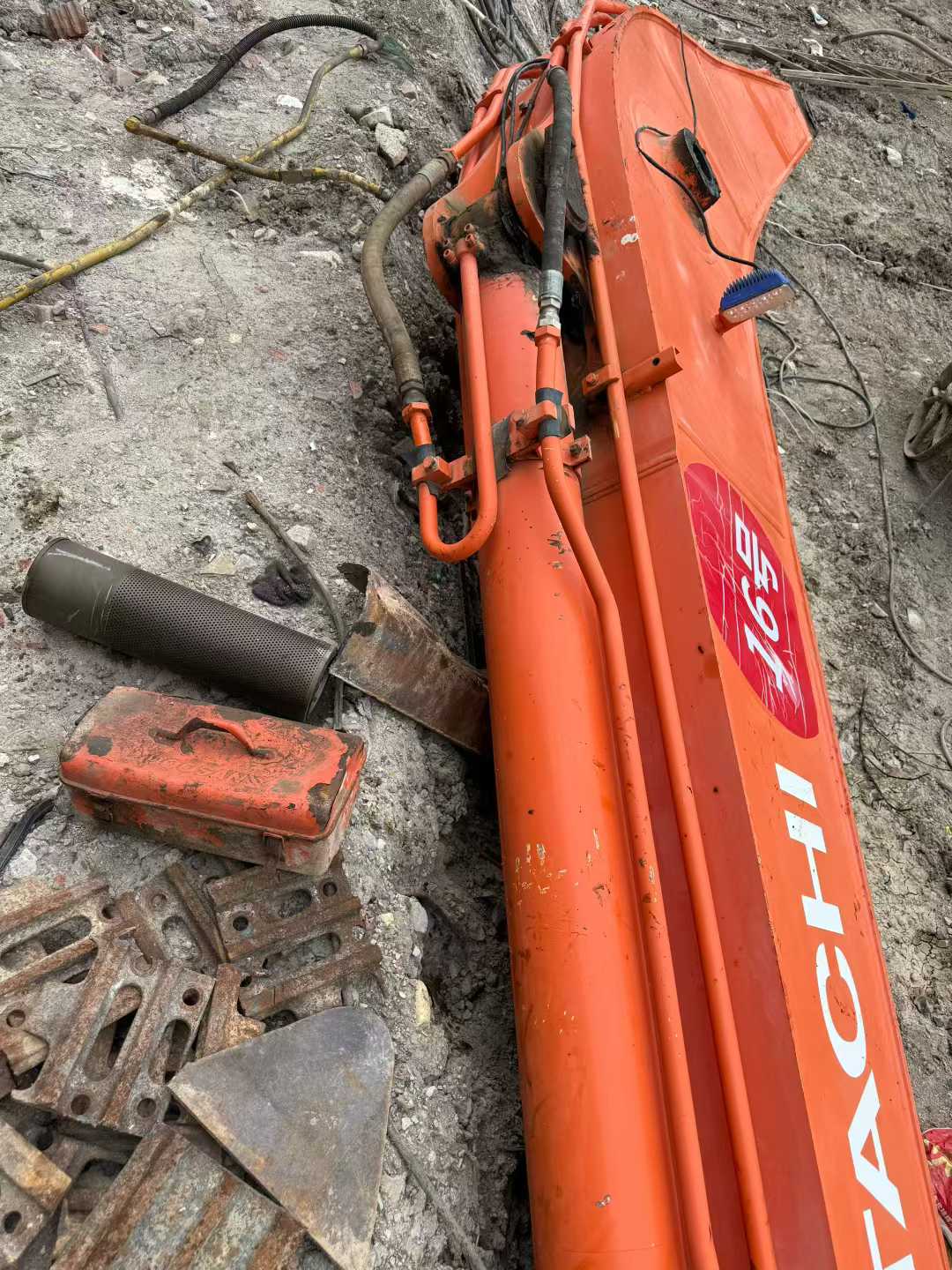

Detailed Introduction of Hitachi 360/5A Second-hand Excavator This second-hand Hitachi 360/5A excavator is a highly praised medium to large-sized earthmoving machine in the market. Since its manufacture, this machine has accumulated a working time of 7,800 hours and is in the best usage condition, with stable and reliable overall performance. The power system is equipped with a high-performance engine imported from Hitachi, which features strong power output and smooth operation characteristics. It can maintain efficient operation even in harsh working environments. Meanwhile, this engine also features excellent fuel economy and can effectively reduce operating costs. In terms of the hydraulic system, the Hitachi 360/5A is equipped with an advanced closed center load sensing hydraulic system, ensuring rapid response and precise control. Whether it is excavation, loading or crushing operations, it can handle them with ease. It is particularly worth mentioning that this machine is equipped with a complete set of large and small arm assemblies. After comprehensive inspection and maintenance by a professional team, there is no damage or crack. The structure is solid and durable, suitable for construction needs under various complex terra
