| Specifications | Value |
|---|---|
| No. | 968456 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
Description

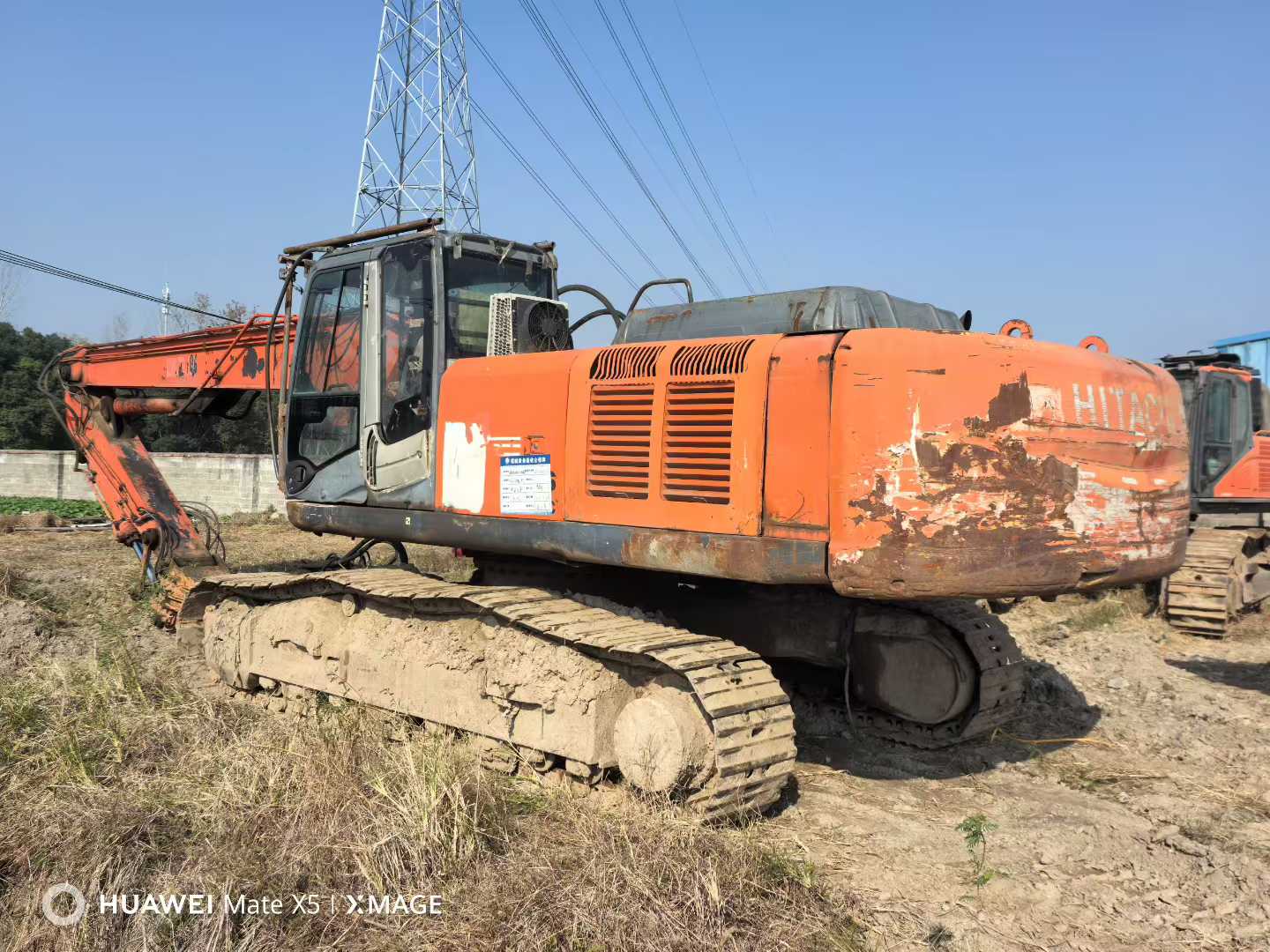

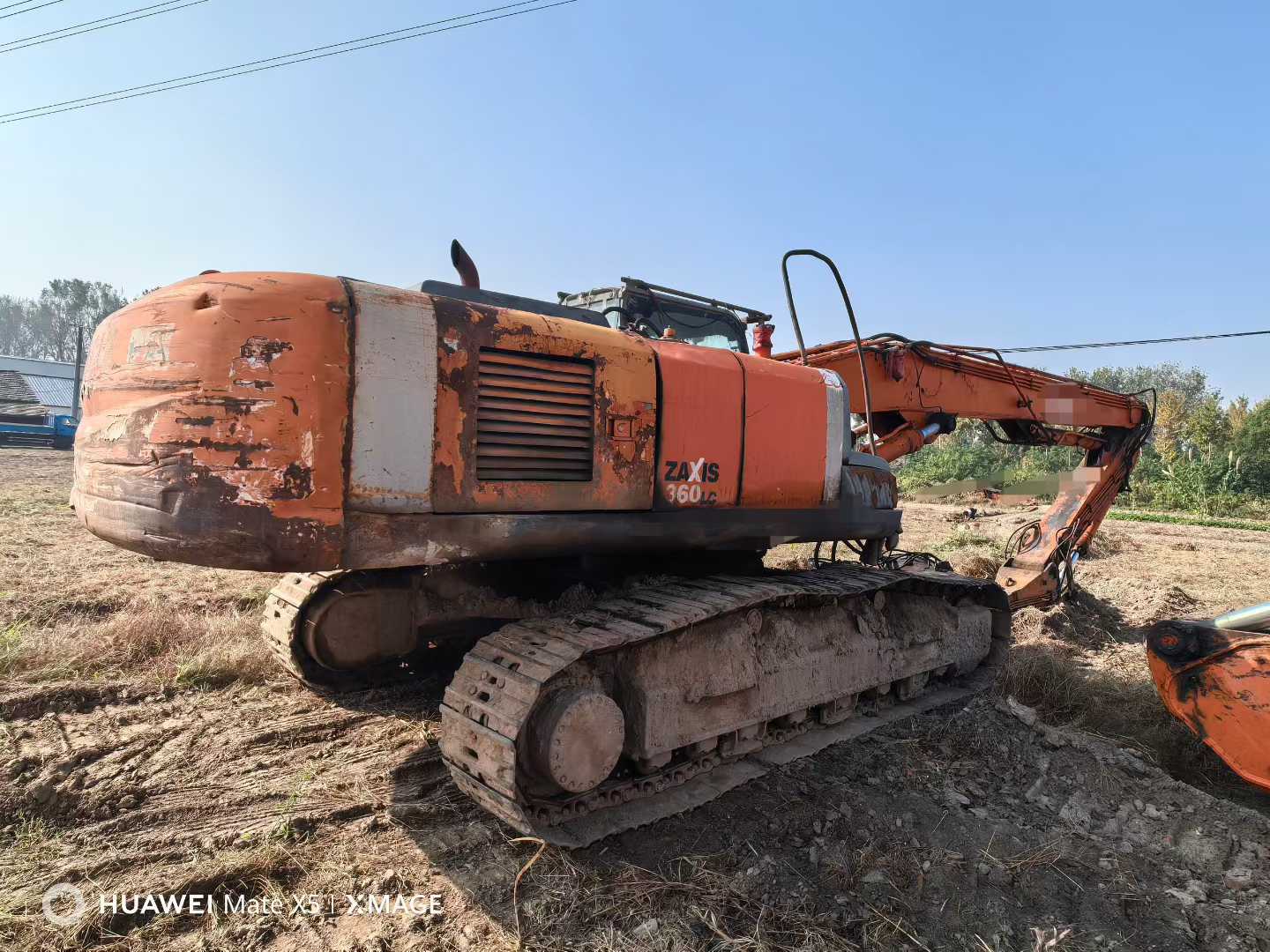

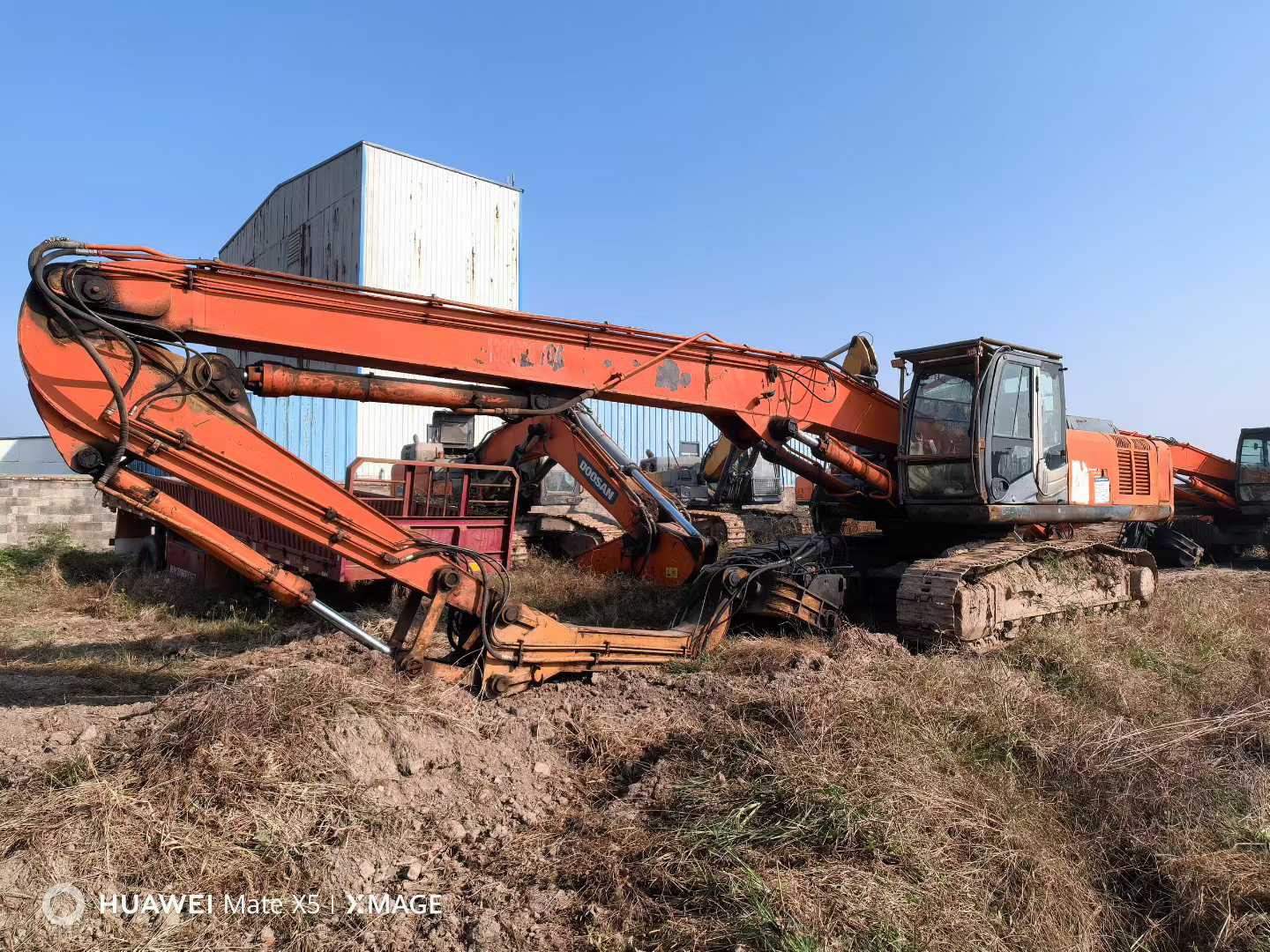

Hitachi 360-3 Pile driver, with outstanding performance and reasonable price This second-hand Hitachi 360-3 pile driver is one of the highly regarded and efficient construction equipment in the market. Its working time is only 2,800 hours, which is in the golden period of mechanical service life. This not only ensures the stability and reliability of the equipment but also avoids the high depreciation cost in the early stage of a new machine. This is undoubtedly a very ideal choice for engineering projects that require long-term operation. In terms of the power system, this machine is equipped with an original imported Hitachi engine, which is renowned for its powerful output and excellent fuel economy. While providing abundant power, it can also effectively reduce operating costs and meet the demands under various complex working conditions. Whether facing hard geological conditions or continuous high-intensity operations, it can handle them with ease, ensuring that the construction progress is not affected. The hydraulic system adopts advanced negative flow control technology, making the operation more precise and smooth, and the response speed faster. Meanwhile, an efficient hydraulic oil cooling system can effectively prevent ov
