| Specifications | Value |
|---|---|
| No. | 970080 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

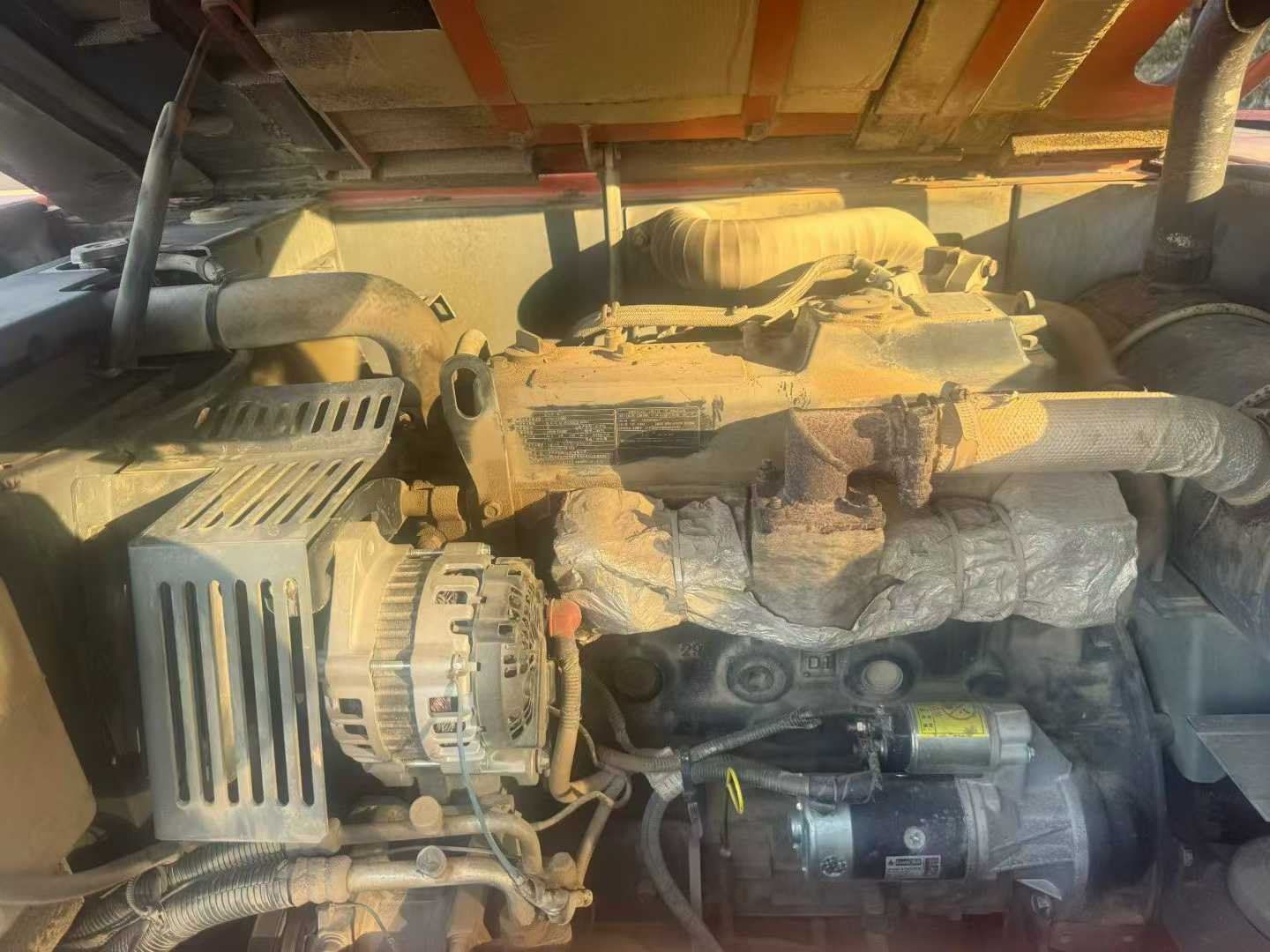

| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
Description
【 Premium Recommendation 】 Hitachi ZX60-5A second-hand excavator from 2019. This equipment is one of the most popular small excavators in the market. It boasts outstanding performance and reliable quality. Since its commissioning, the cumulative working time has been only 3,500 hours, and its overall condition has been maintained very well with low mechanical wear, almost meeting the standards of a nearly new car. In terms of power, this excavator is equipped with an original imported high-efficiency and energy-saving engine from Hitachi. It not only has strong power but also excellent fuel economy, providing stable and reliable power output under various working conditions. More importantly, this engine has undergone strict emission tests and meets the latest environmental protection standards, allowing you to use it with greater peace of mind and no worries. In terms of the hydraulic system, advanced negative flow control technology is adopted, ensuring the accuracy and sensitivity of operation. Whether it is excavation, loading or crushing operations, it can handle them with ease. Meanwhile, an efficient cooling system can effectively prevent the oil temperature from being too high and extend the service life of hydraulic componen
