| Specifications | Value |
|---|---|
| No. | 970501 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

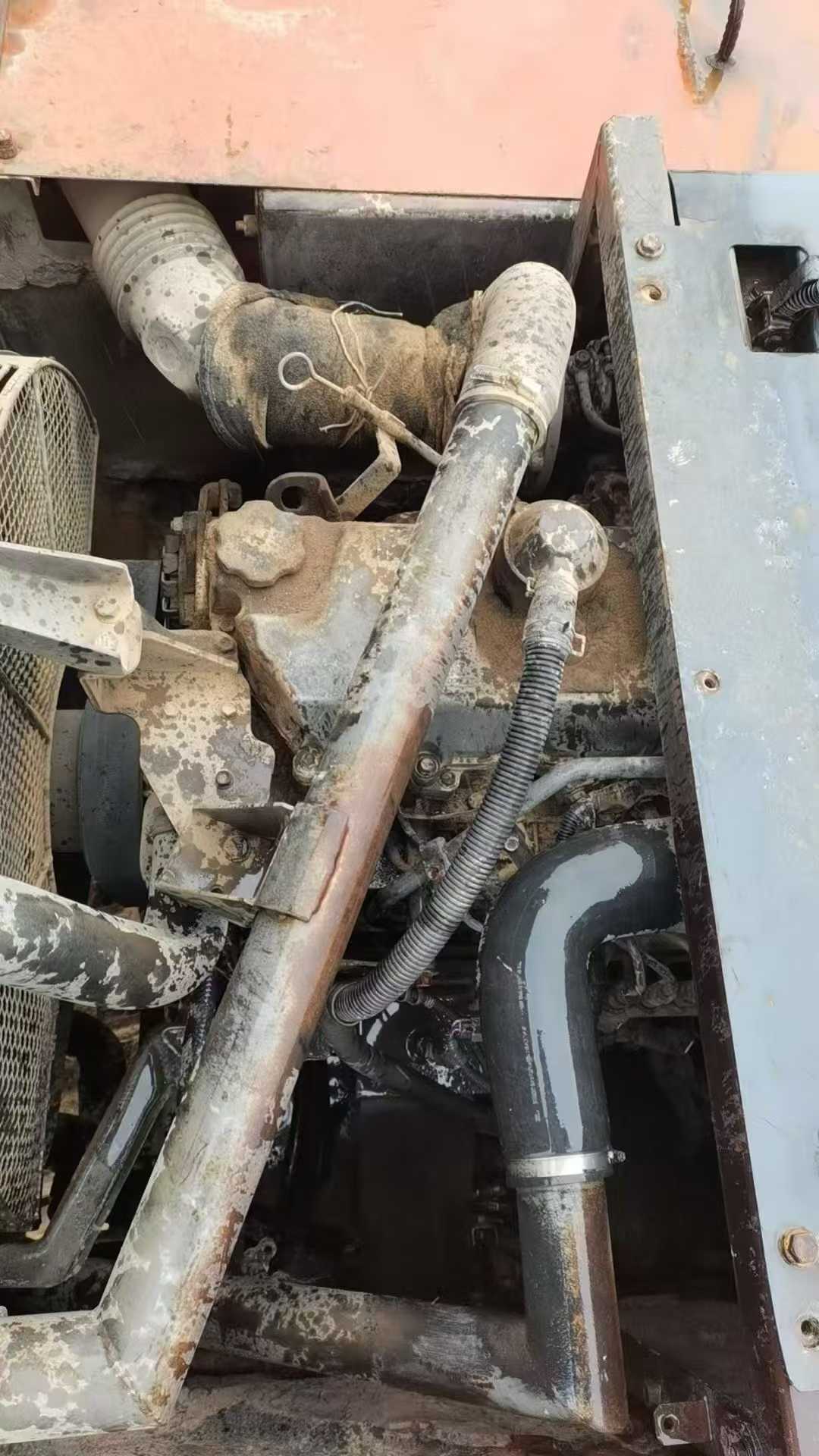

| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |

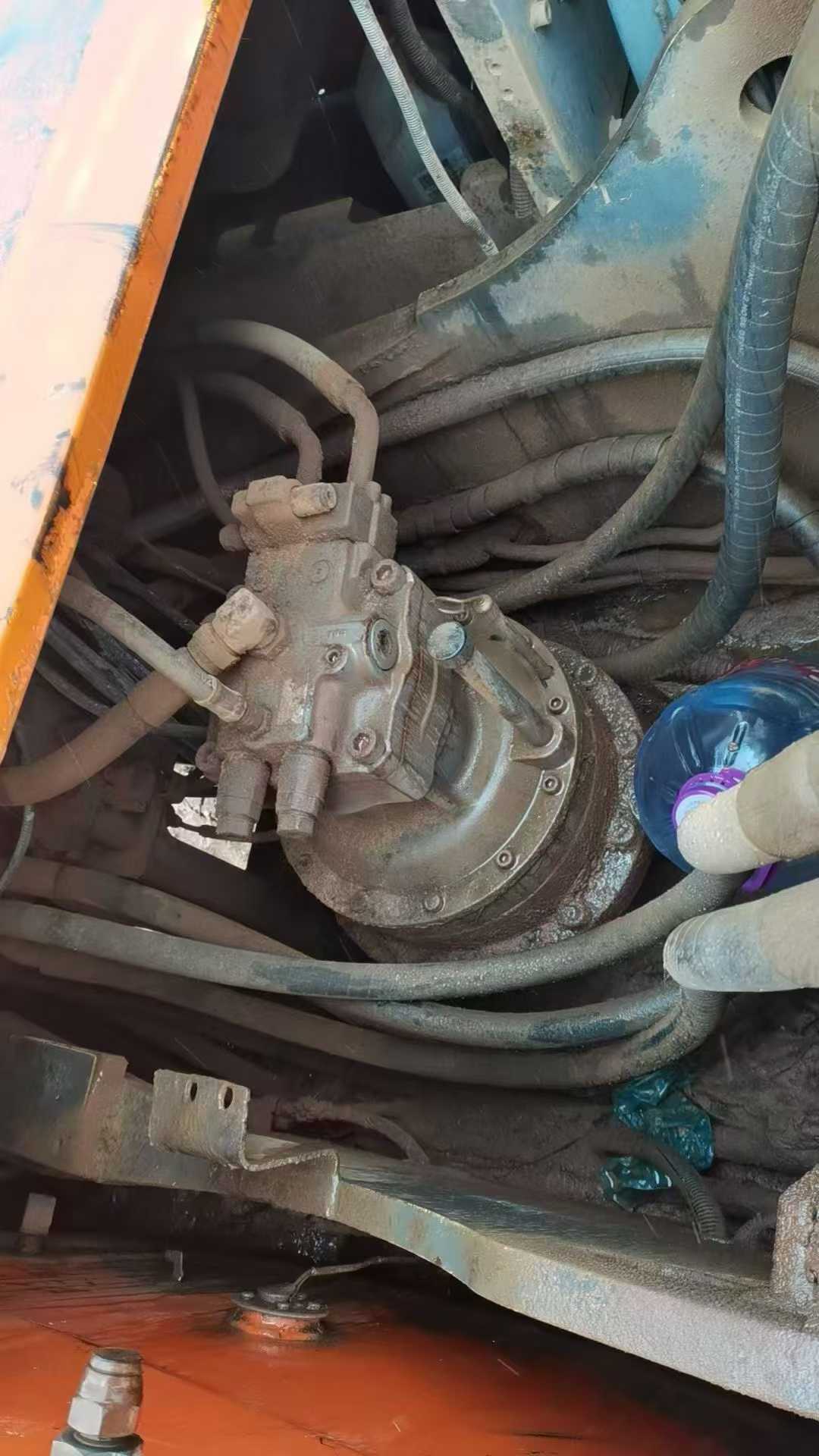

| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |

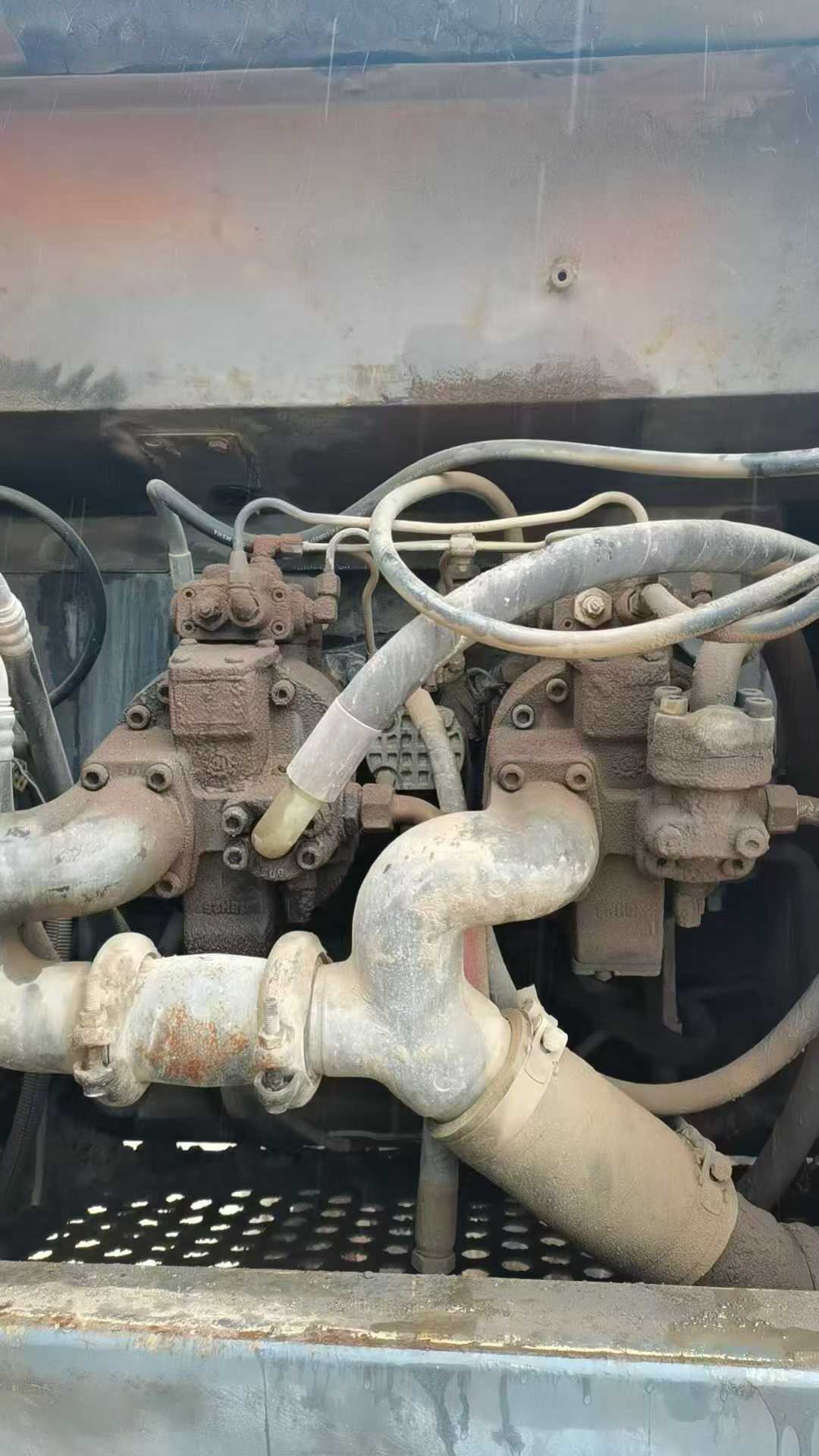

| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
Description
"Hitachi 360-3 second-hand excavator, on-site viewing, you can own it for just over 90,000!" " This second-hand Hitachi 360-3 excavator is one of the most popular medium and large-sized excavators in the market. Its working time is only 4,500 hours. For an excavator, this working duration indicates that it is still in its prime, with stable and reliable performance. The engine is equipped with a well-tested original imported Hitachi engine, which is powerful and fuel-efficient, and can easily handle excavation tasks under various complex working conditions. In terms of the hydraulic system, an advanced closed center load sensing hydraulic system is adopted, ensuring high efficiency and smoothness during operation, while significantly reducing energy consumption and enhancing work efficiency. This equipment is well maintained, with a clean appearance and no obvious damage. The cab is spacious and comfortable, and the field of vision is wide, making it very suitable for long-term operation. In addition, we also offer professional after-sales service and technical support to ensure that you can use it without worries after purchase. Now, for just over 90,000 yuan, you can take home such a second-hand Hitachi 360-3 excavator with outstan
