Product Description

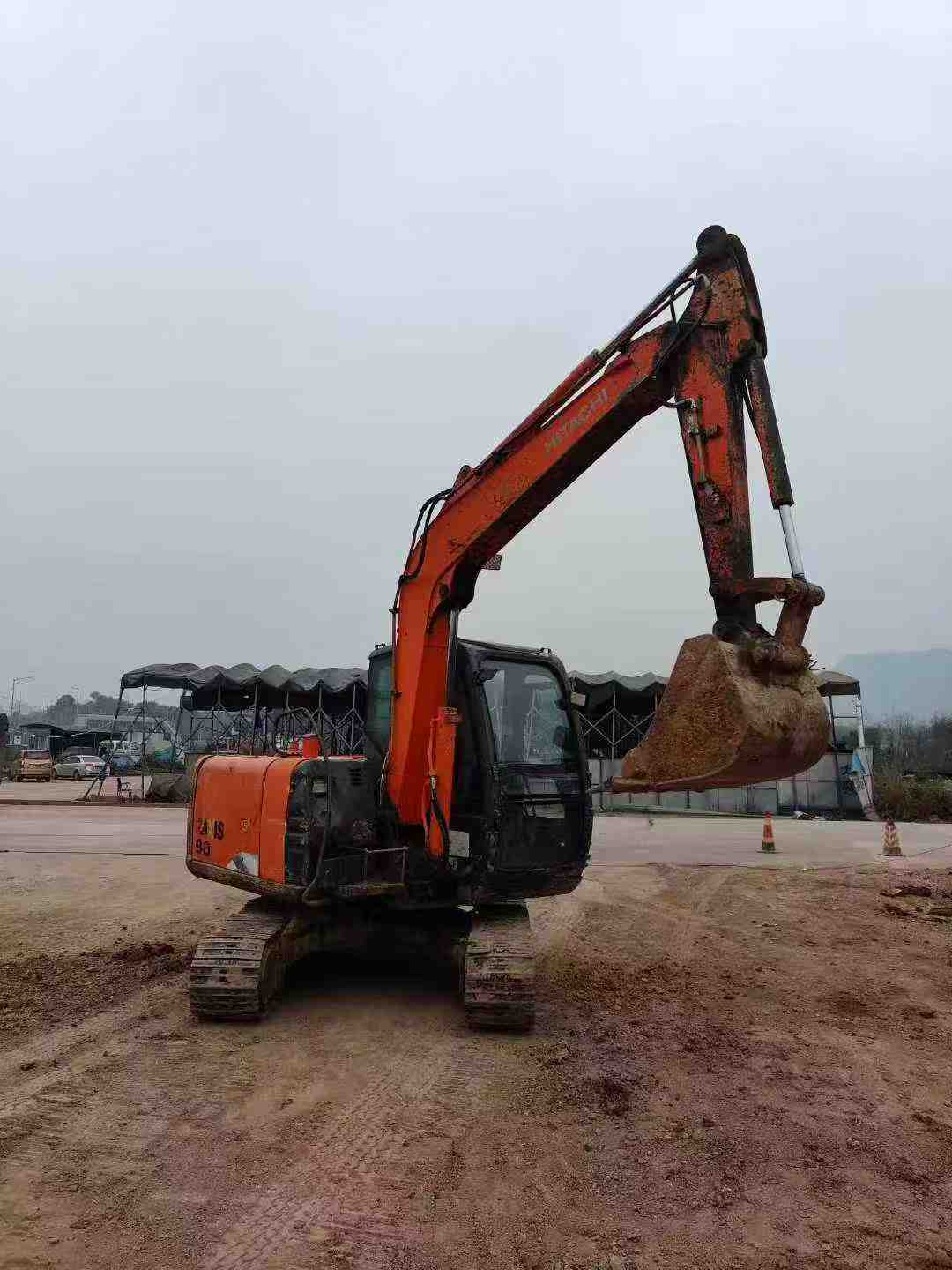

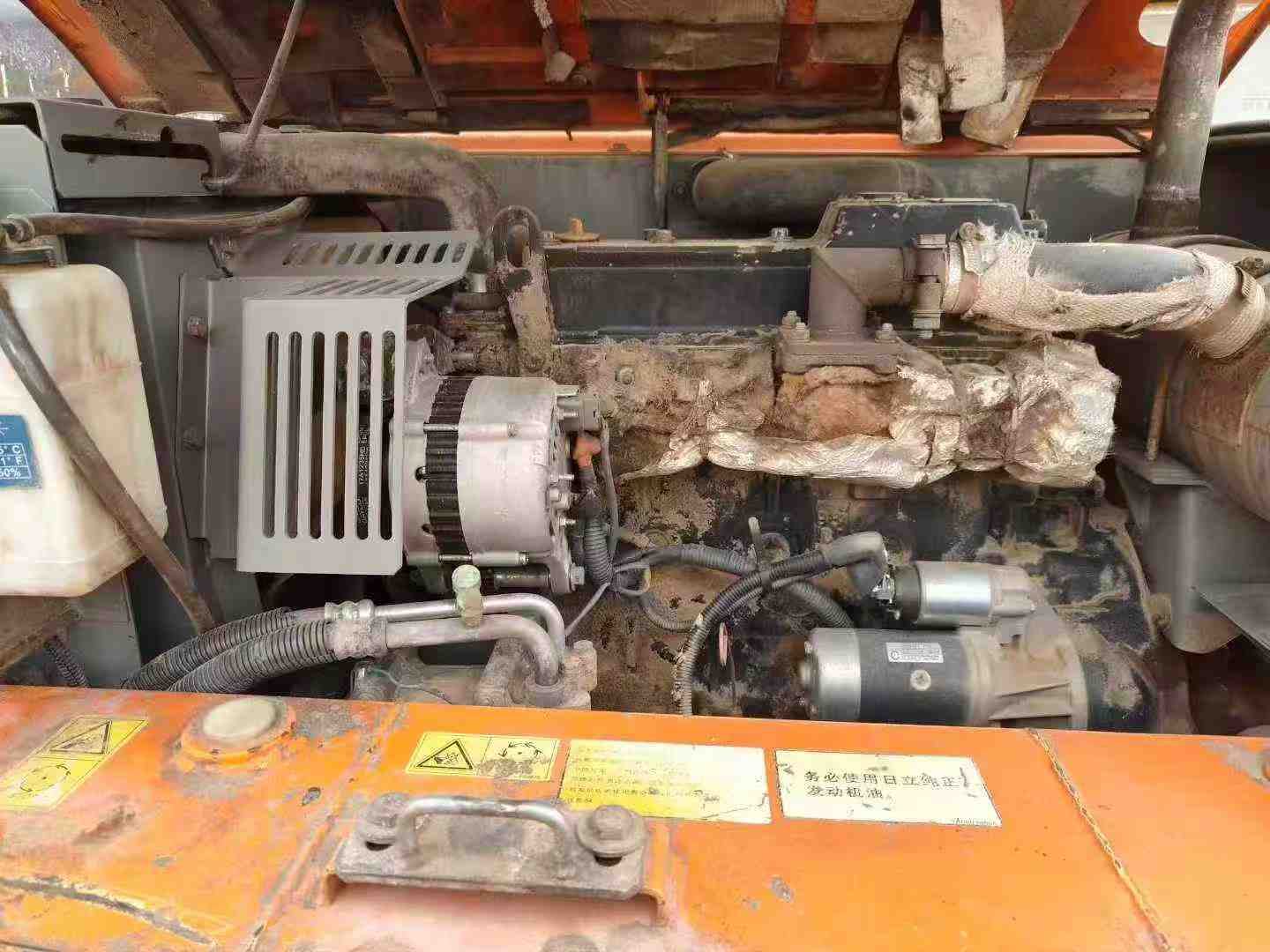

【 Premium Recommendation 】 Second-hand Hitachi ZX60-5 excavator from 2016, excellent quality and affordable price! This Hitachi ZX60-5 excavator is the top model of 2016, with a working time of only about 3,000 hours, and it is in the best condition for use. The vehicle is well maintained overall, with no major accident records. It has a clean appearance and stable performance, making it highly suitable for small-scale projects and earthwork operations. In terms of the power system, this aircraft is equipped with an original imported high-efficiency and energy-saving engine from Hitachi, which is powerful and has high fuel economy, and can easily handle various complex working conditions. In addition, its advanced emission control system complies with the latest environmental protection standards, ensuring that the impact on the environment during the construction process is minimized. The hydraulic system adopts Hitachi's unique HIOS III intelligent hydraulic technology, which has a rapid and sensitive operation response, smooth and natural movements, and greatly improves work efficiency. Whether it is digging, loading or leveling the ground, it can perform well. Meanwhile, the optimized hydraulic circuit design effectively reduces
| Specifications | Value |
|---|---|
| No. | 971476 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
