Product Description

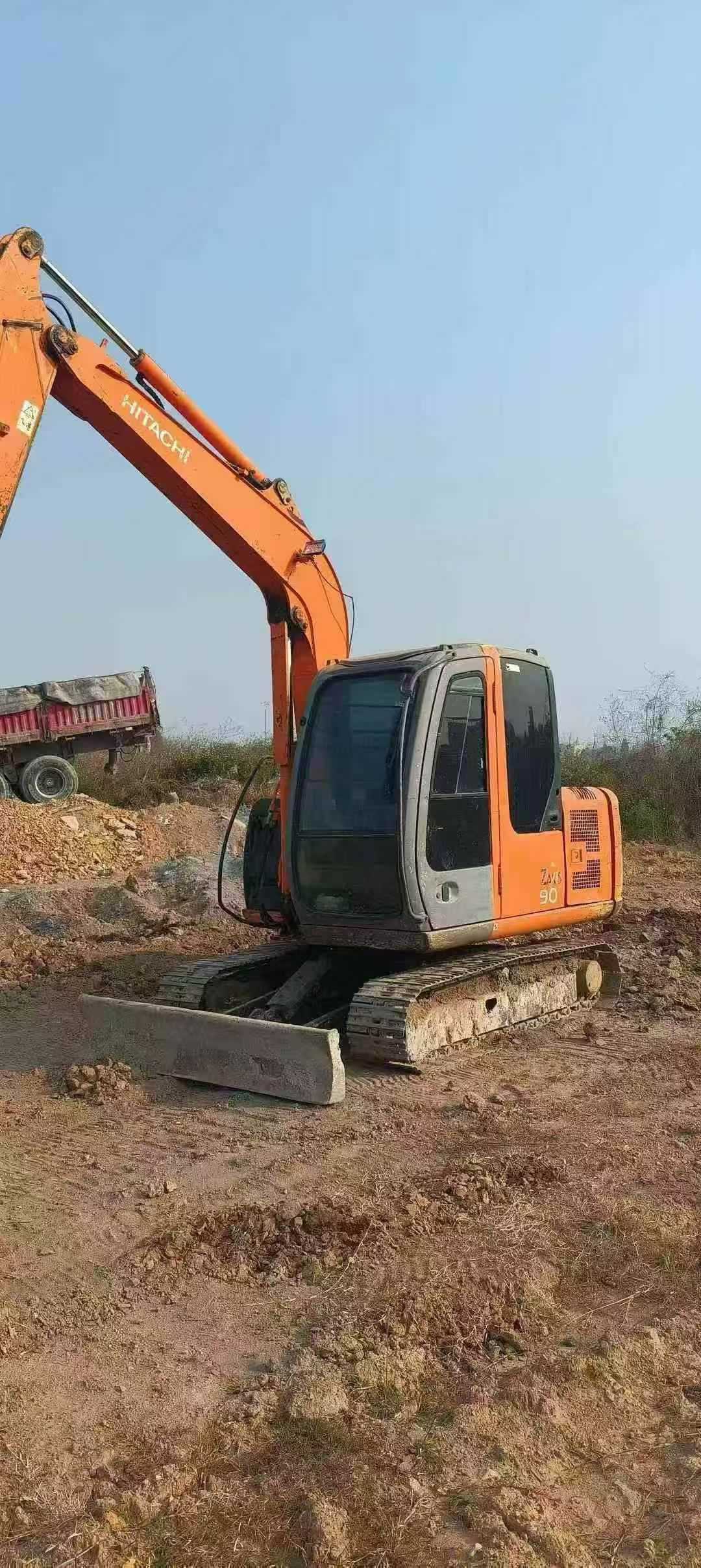

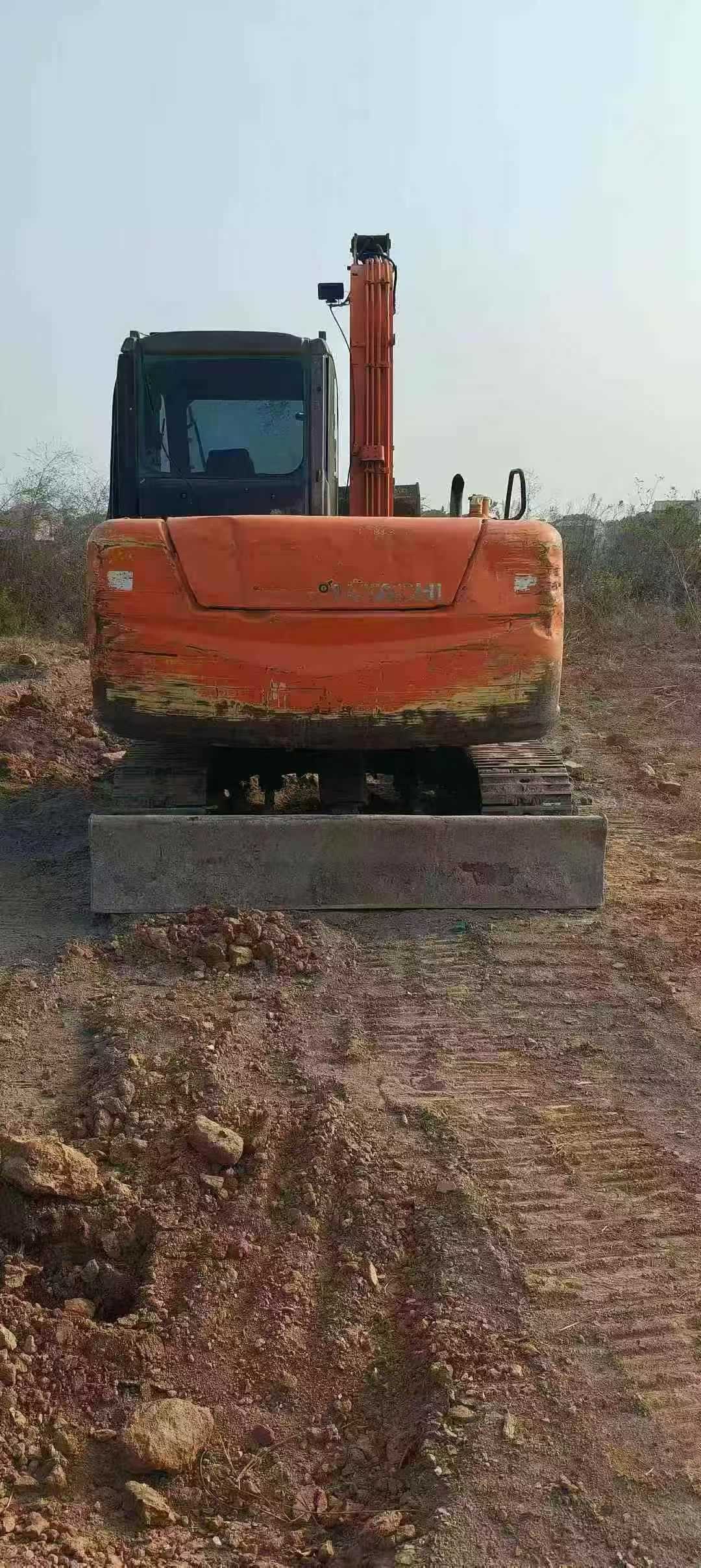

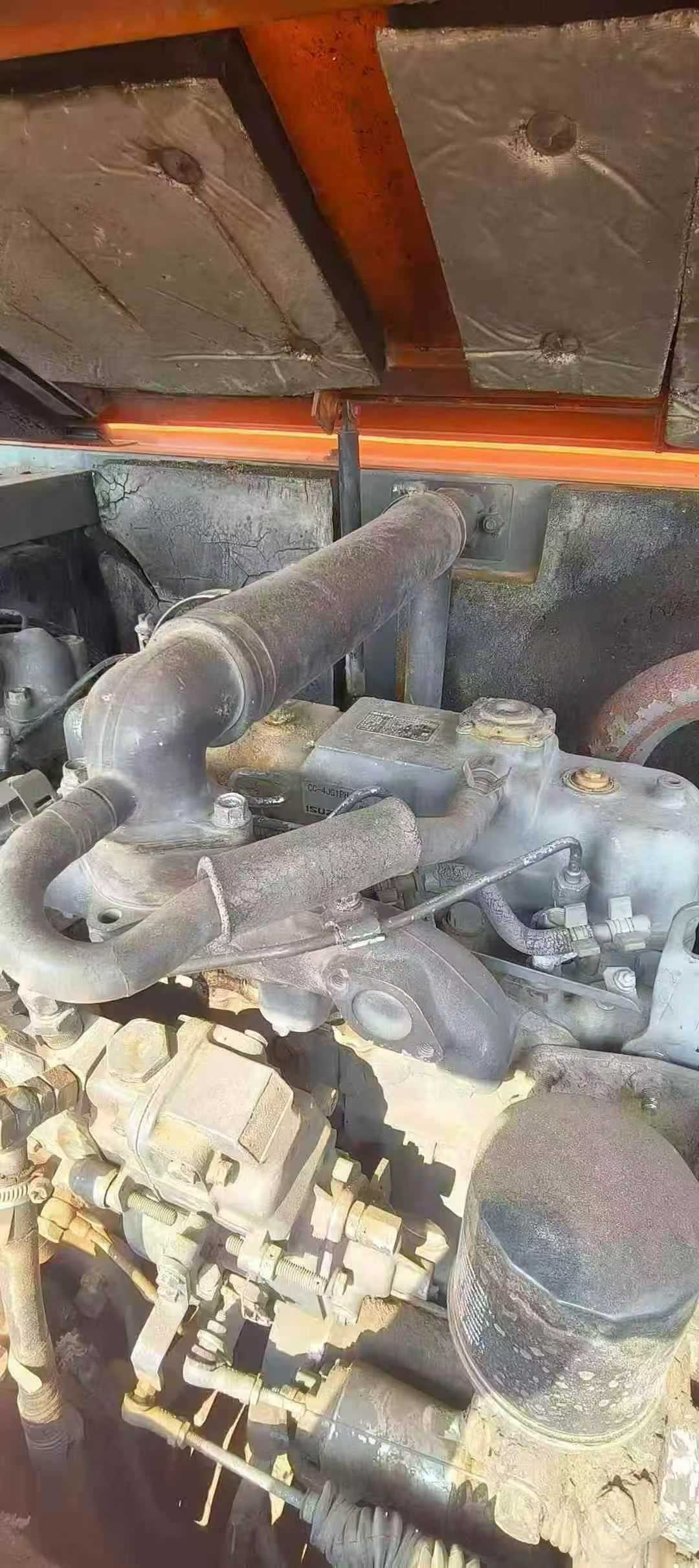

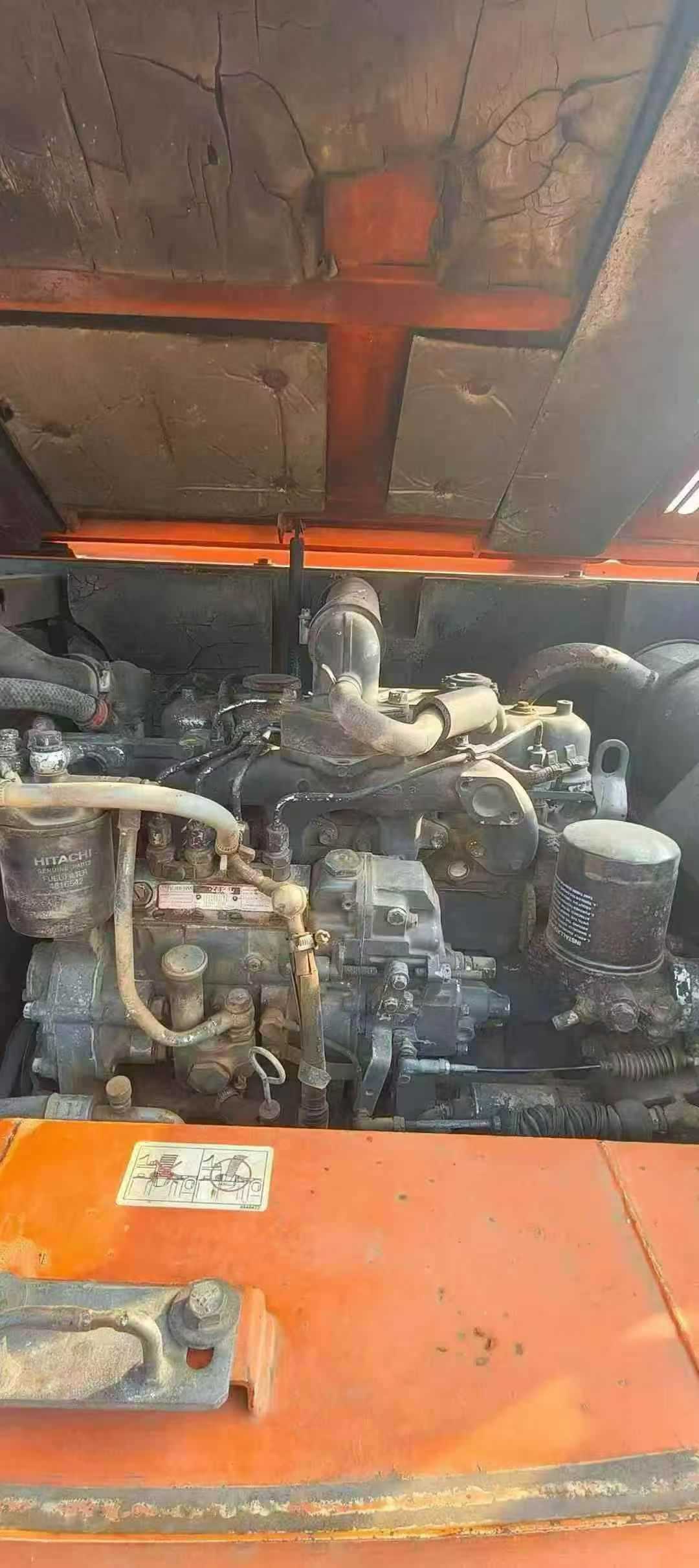

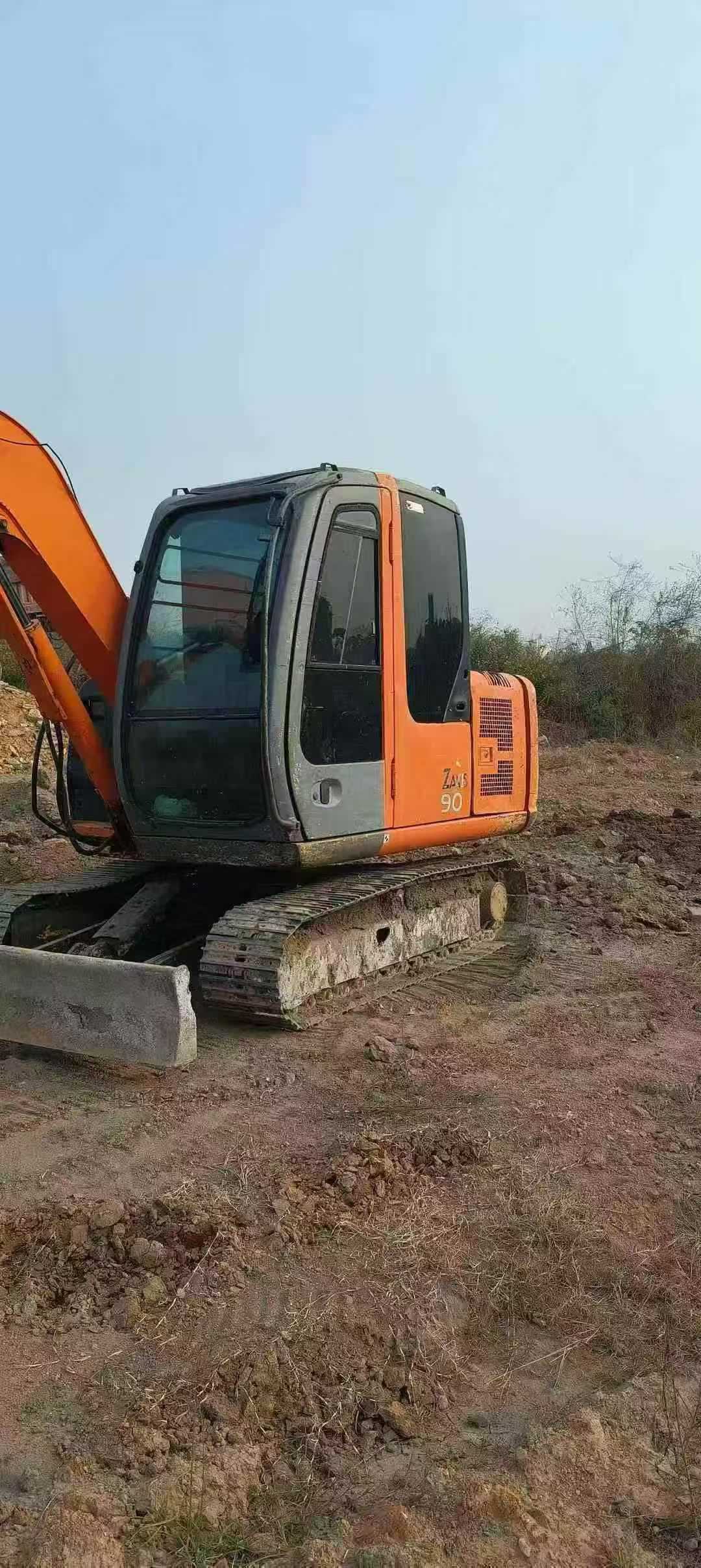

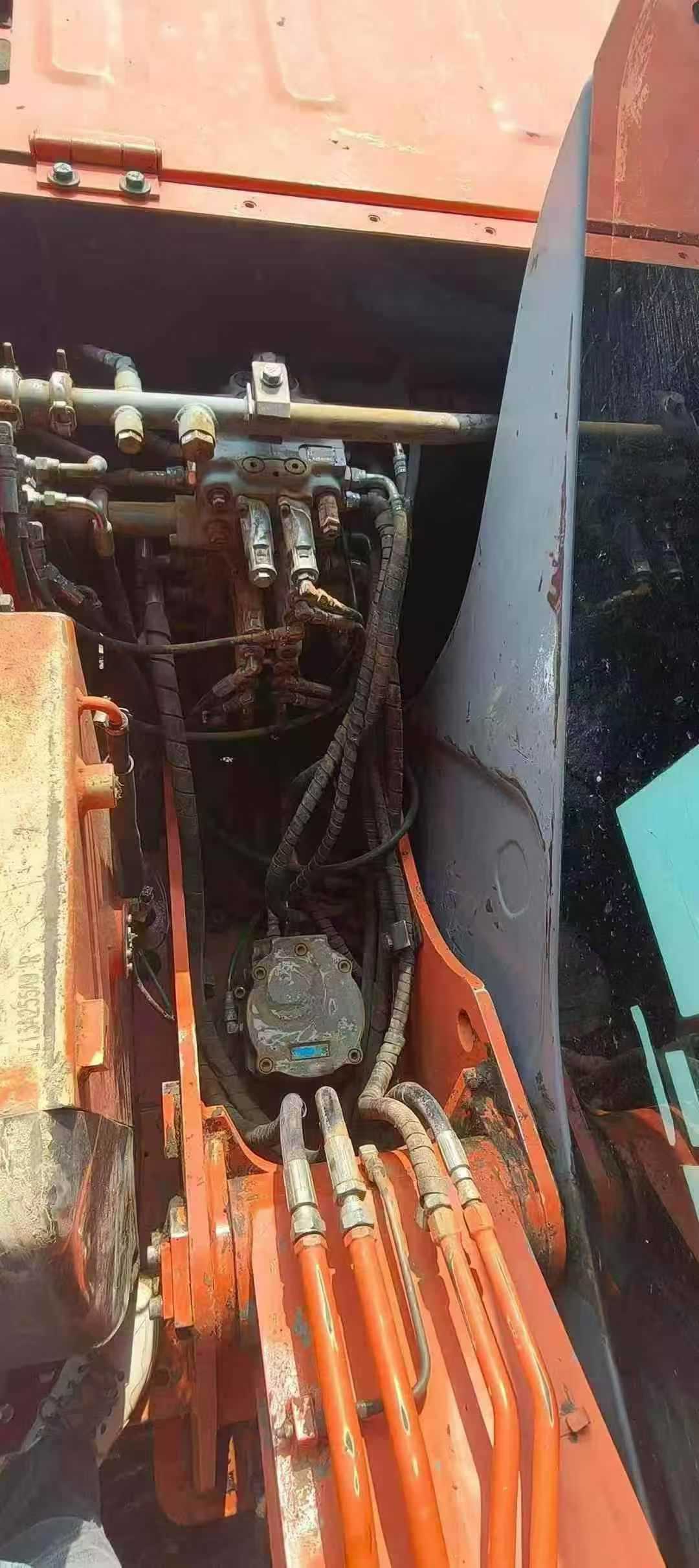

【 Premium Recommendation 】 Second-hand Hitachi ZAX60 excavator, manufactured in 2013, quality guaranteed, tenfold compensation for any fake! This is the last batch of Hitachi ZAX60 excavators equipped with Isuzu engines. They have outstanding performance, original configuration and are definitely trustworthy. The working time of this machine is only 5,000 hours, which is far lower than the average service life of similar equipment, meaning it still has a long service life and high residual value. In terms of the power system, it adopts the original imported Isuzu engine, which is renowned worldwide for its powerful output, low fuel consumption and high reliability. This engine can maintain stable operation under all kinds of complex working conditions. Whether it is digging hard soil or moving heavy objects, it can handle them with ease. Meanwhile, we also conducted a comprehensive inspection and maintenance of the engine to ensure it was in the best condition. The hydraulic system is equally outstanding. It adopts advanced load sensing technology and can automatically adjust the flow rate according to the actual operation requirements. This not only improves work efficiency but also significantly reduces energy consumption. All key
| Specifications | Value |
|---|---|
| No. | 971554 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
