Product Description

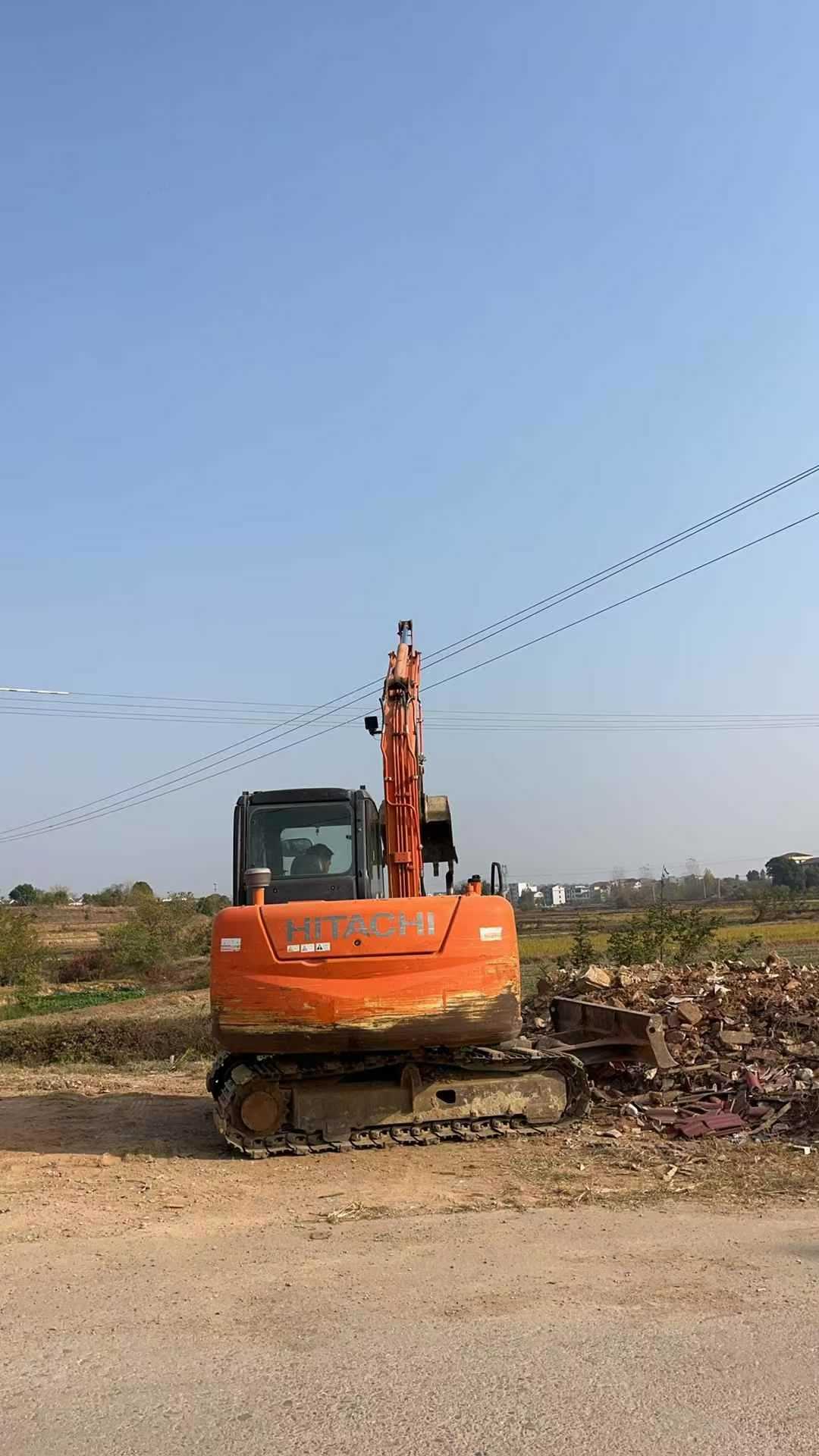

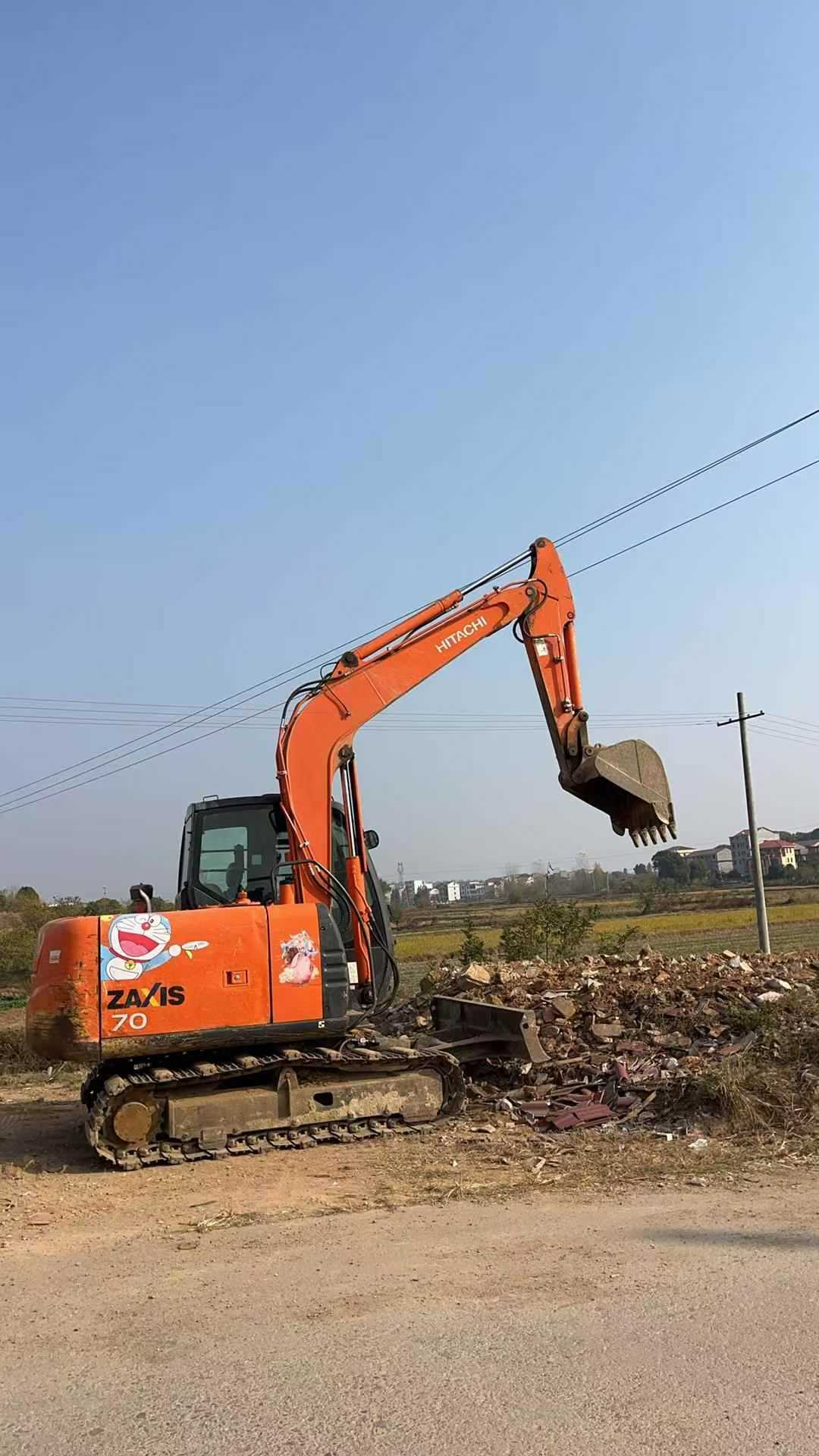

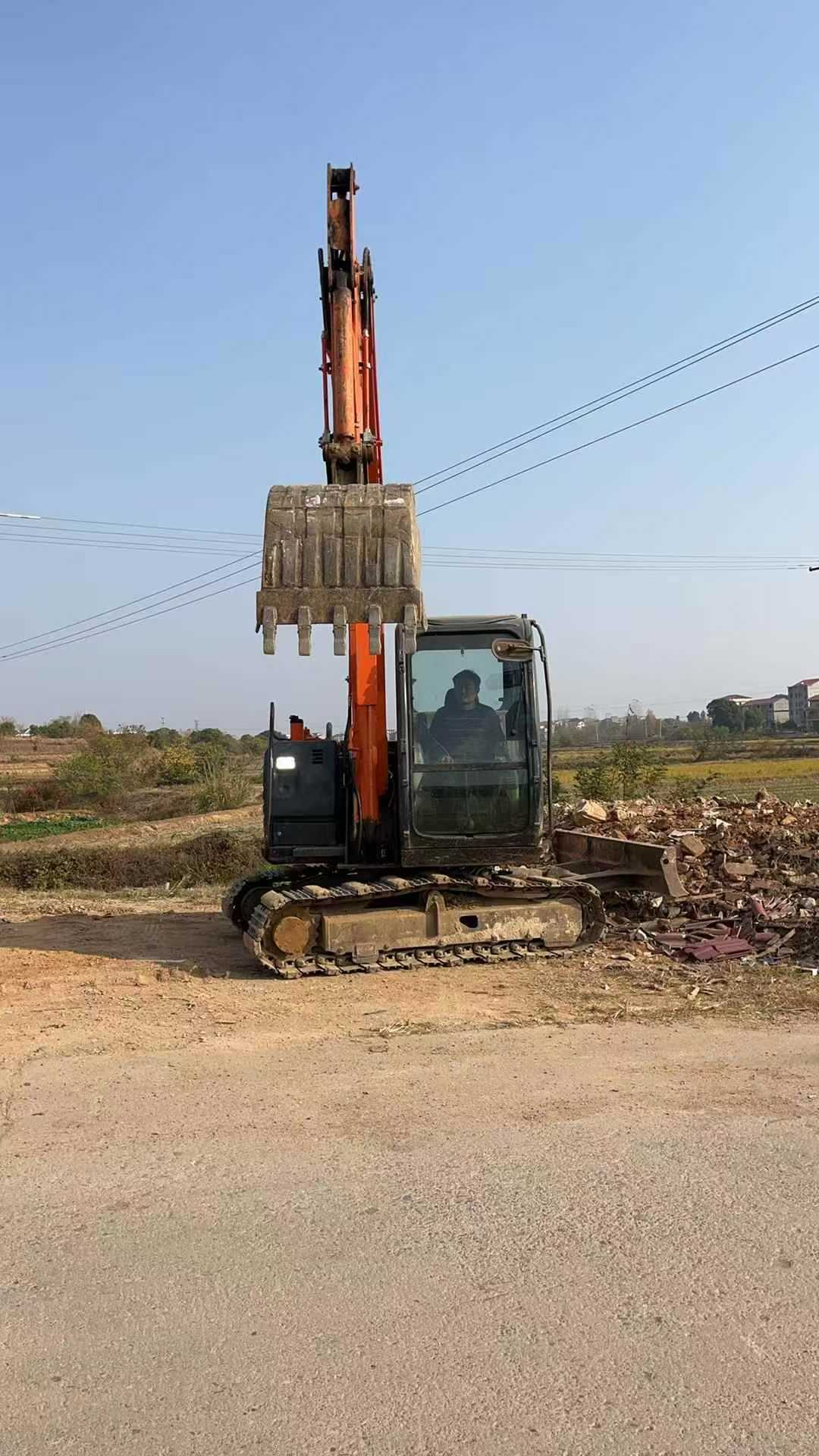

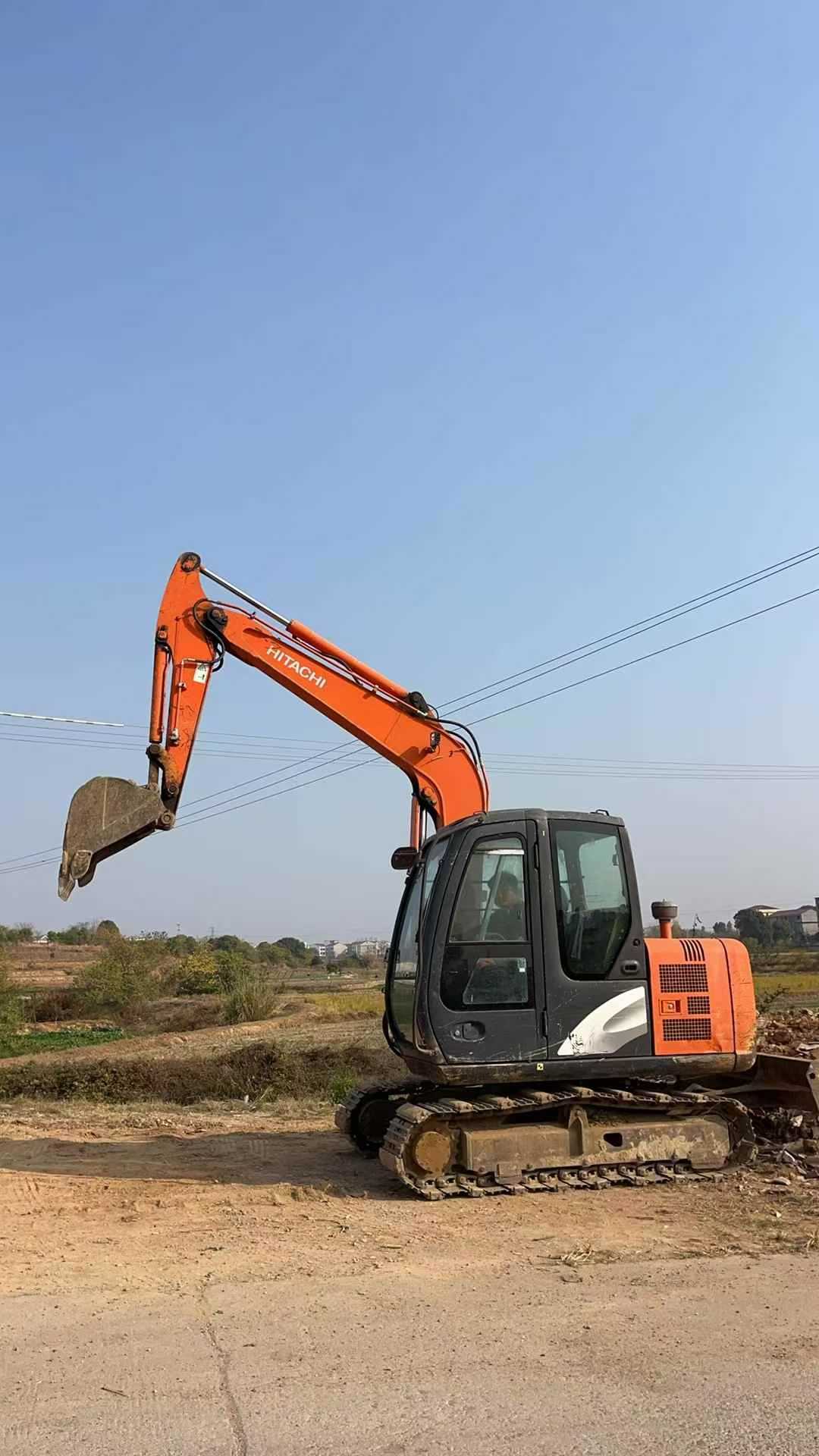

【 Premium Recommendation 】 Second-hand Hitachi ZX60-5 excavator from 2016. This machine is truly the best of the best and is definitely a rare and excellent choice for you! Since leaving the factory, the large parts have been free of oil marks, no disassembly or repair has been carried out, and not even the screws have been touched. The condition of the machine has been maintained in perfect condition. With a cumulative working time of only 3,000 hours, for such a durable excavator, its lifespan is far from reaching its limit. In terms of the power system, it is equipped with an original imported Hitachi high-efficiency and energy-saving engine, which not only has strong power and quick response, but also has excellent fuel economy, earning it the title of "Fuel-saving King" from users. Even under long-term and high-intensity operation, it can maintain stable output, significantly reducing operating costs. In addition, this model adopts advanced electronic control injection technology, ensuring that the emission standards comply with national environmental protection requirements. The hydraulic system is another major highlight. It is equipped with Hitachi's unique HIOS III hydraulic system, which features high efficiency and low ene
| Specifications | Value |
|---|---|
| No. | 971555 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
