Product Description

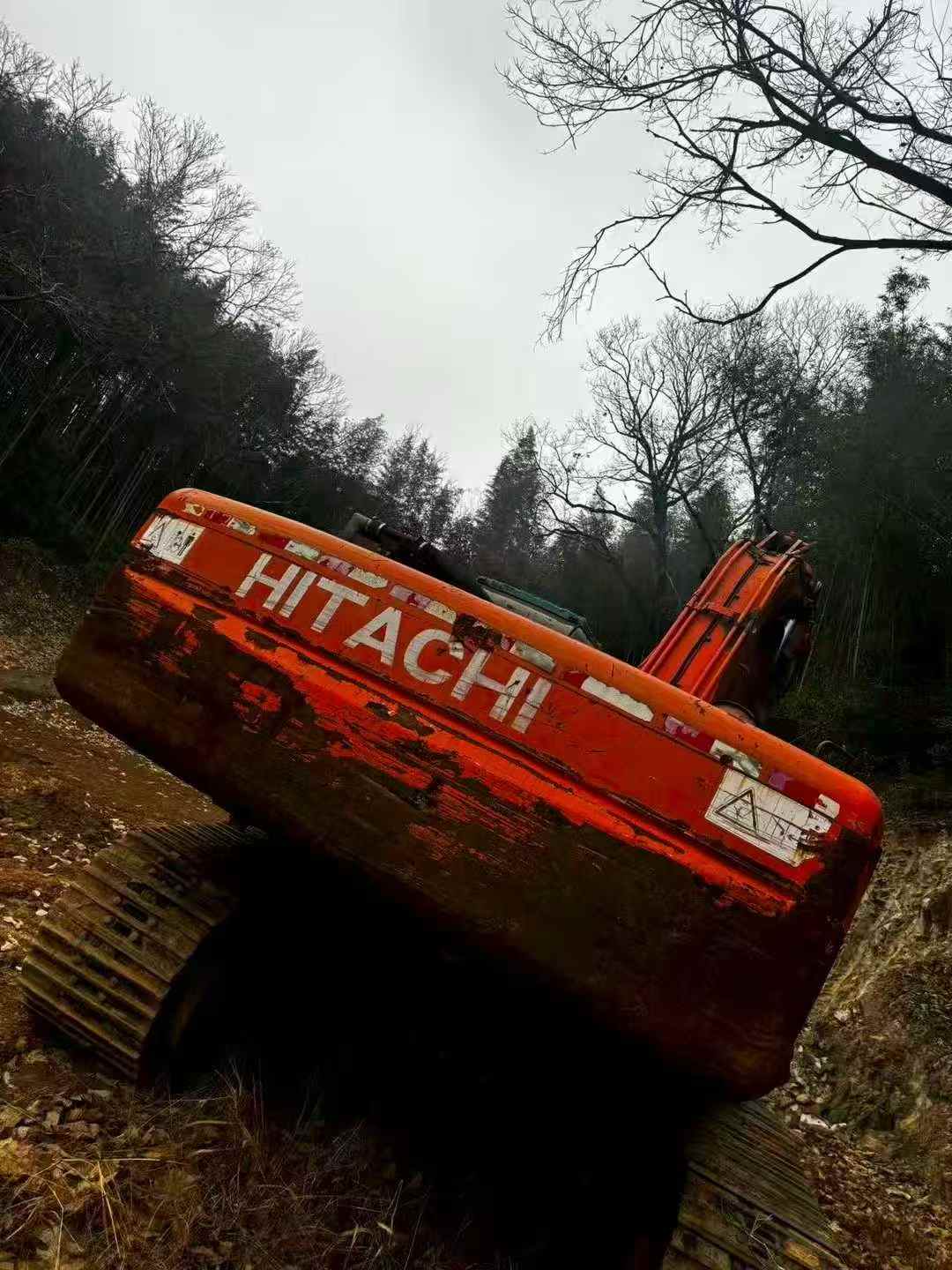

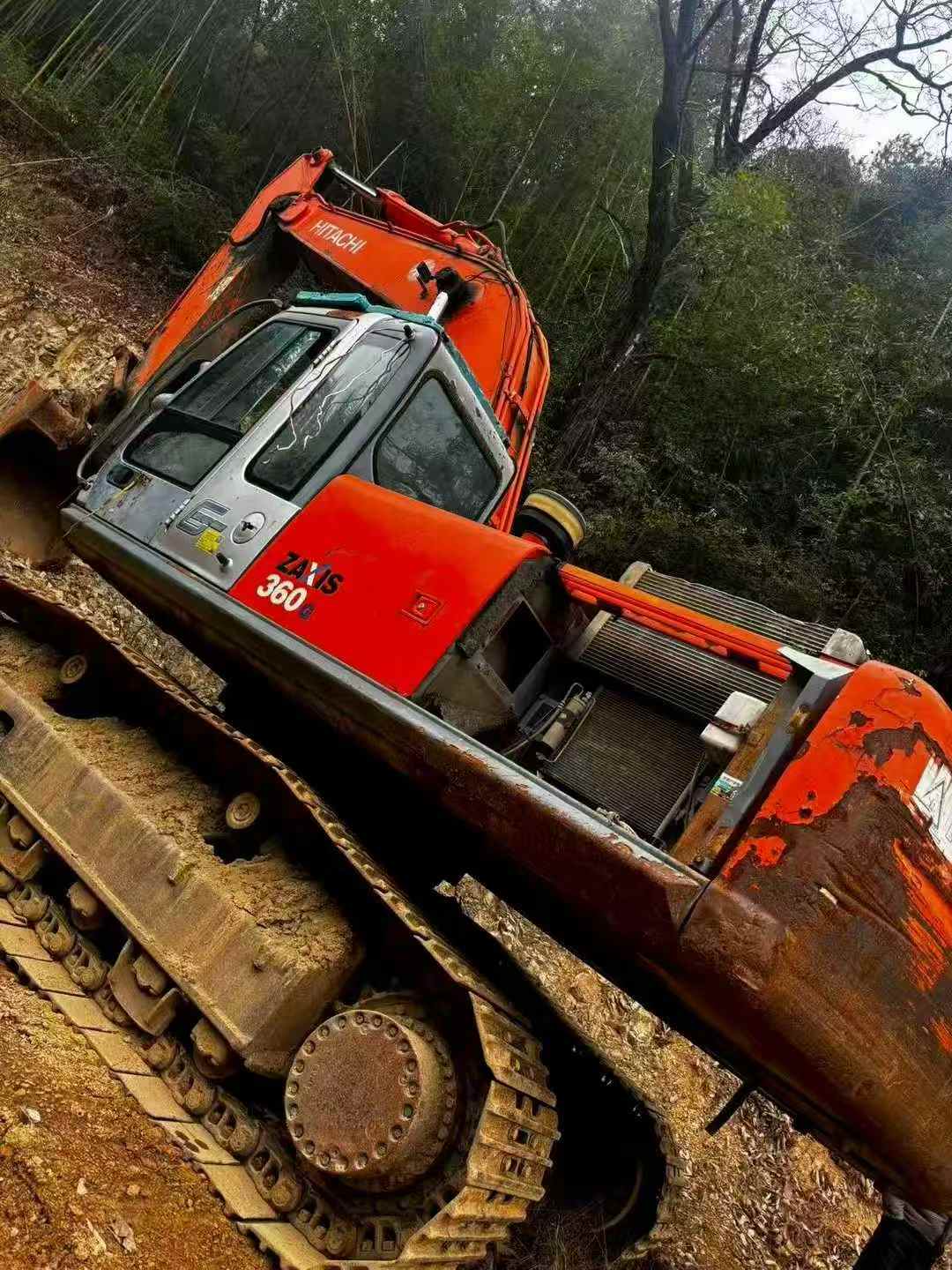

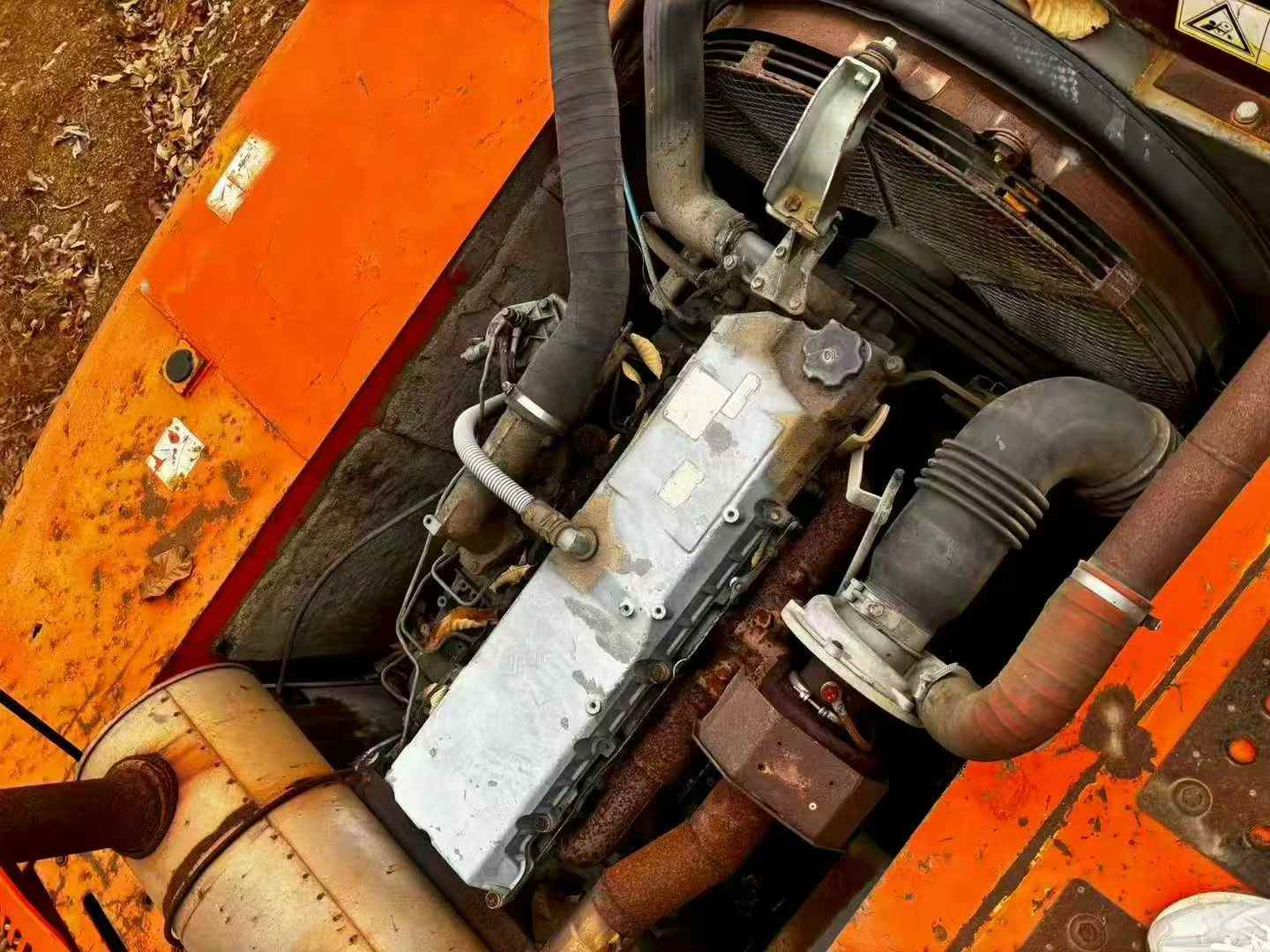

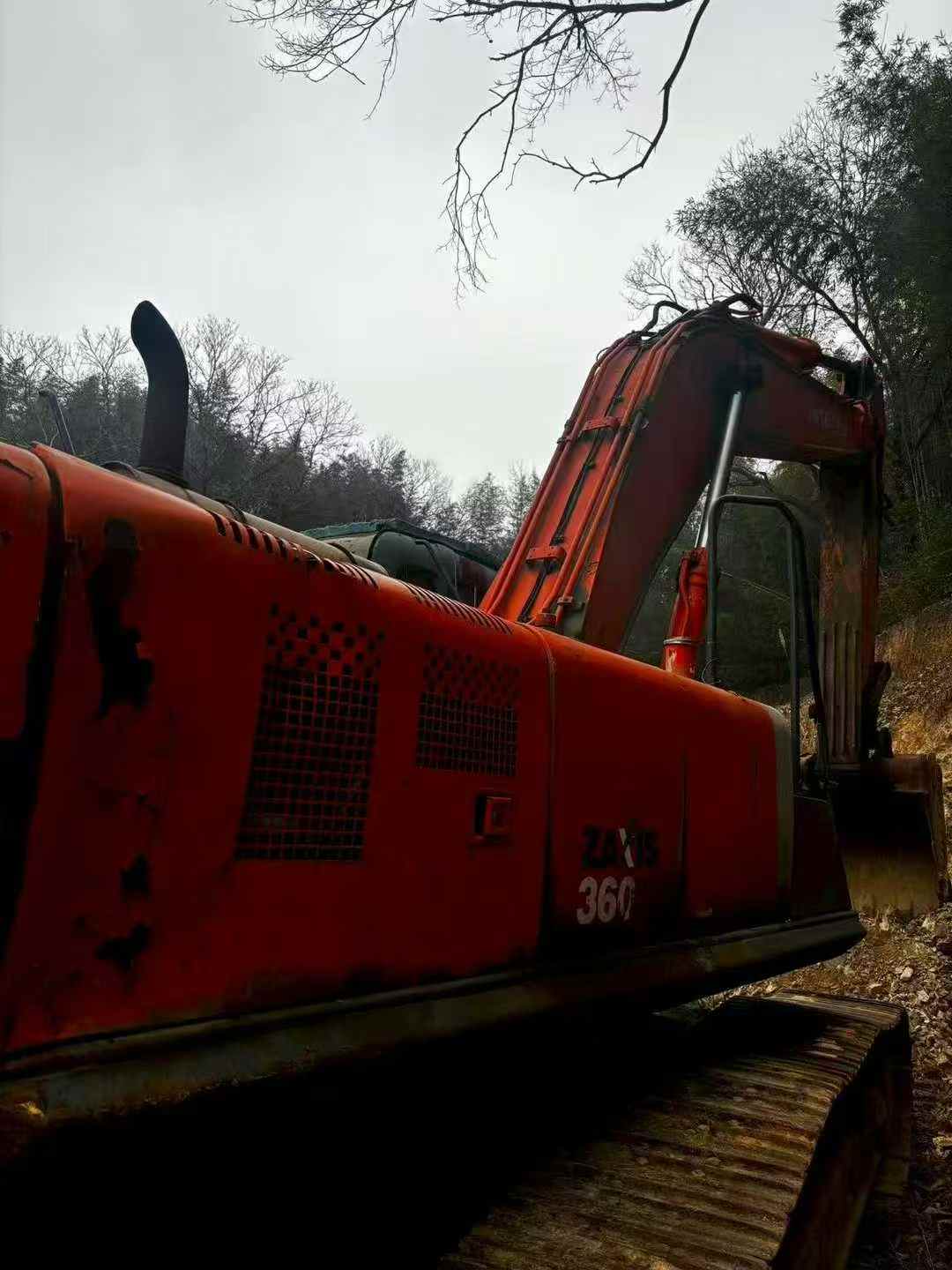

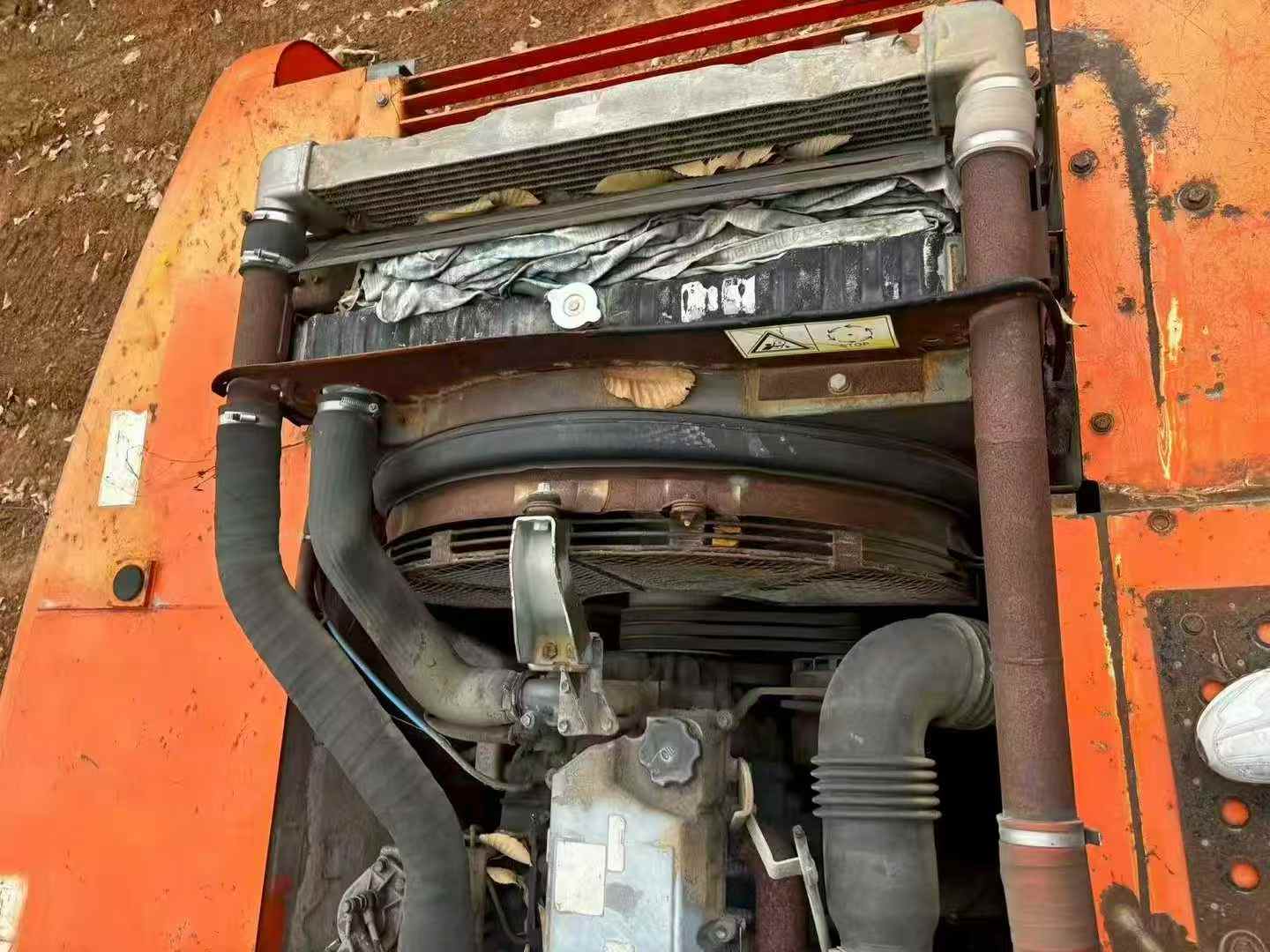

The Hitachi 360-3G excavator has a working time of approximately over 100,000 hours. The overall condition of the machine is good and its performance is stable and reliable. This excavator is equipped with an efficient engine system, which is expected to be the original Hitachi ISUZU AH-4HK1X inline-four water-cooled turbocharged engine with a rated power of approximately 270 horsepower (201 kilowatts). It is powerful and has excellent fuel economy, ensuring efficient operation under various working conditions. In terms of the hydraulic system, this equipment is equipped with an advanced dual-pump dual-loop negative flow control system, which may include two large-capacity variable piston pumps and multiple high-performance hydraulic motors. This not only enhances the excavation efficiency but also ensures the flexibility and smoothness of operation. In addition, its unique hydraulic oil cooling system can effectively lower the oil temperature, extend the service life of hydraulic components, and reduce maintenance costs. The main advantage of the Hitachi 360-3G excavator lies in its outstanding durability and reliability. The key structural components made of high-strength materials and the optimally designed cab provide a good fiel
| Specifications | Value |
|---|---|
| No. | 976346 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
