Product Description
The premium Hitachi 260-3G excavator is now on sale at a price of over 100,000 yuan and is a high-end second-hand device in the local market of Hangzhou. This excavator has a working time of approximately 5,000 hours, ensuring its outstanding performance in terms of efficient operation and durability. In terms of the power system, this Hitachi 260-3G is equipped with a powerful and reliable engine, the possible ISUZU AH-6HK1X, with a maximum output power of up to 140kW, ensuring strong driving force and smooth operation under various complex working conditions. Advanced fuel injection technology not only enhances fuel efficiency but also significantly reduces emissions, meeting modern environmental protection requirements. The hydraulic system adopts a high-quality Hitachi original hydraulic pump and motor combination, which can provide an accurate and fast-response operation experience. The main pumps are expected to be two variable piston pumps, combined with highly efficient hydraulic motors, which endow the entire machine with excellent excavation force and stability, performing outstandingly in application scenarios such as earthwork excavation and crushing operations. In addition, this excavator is equipped with a spacious and
| Specifications | Value |
|---|---|
| No. | 976647 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

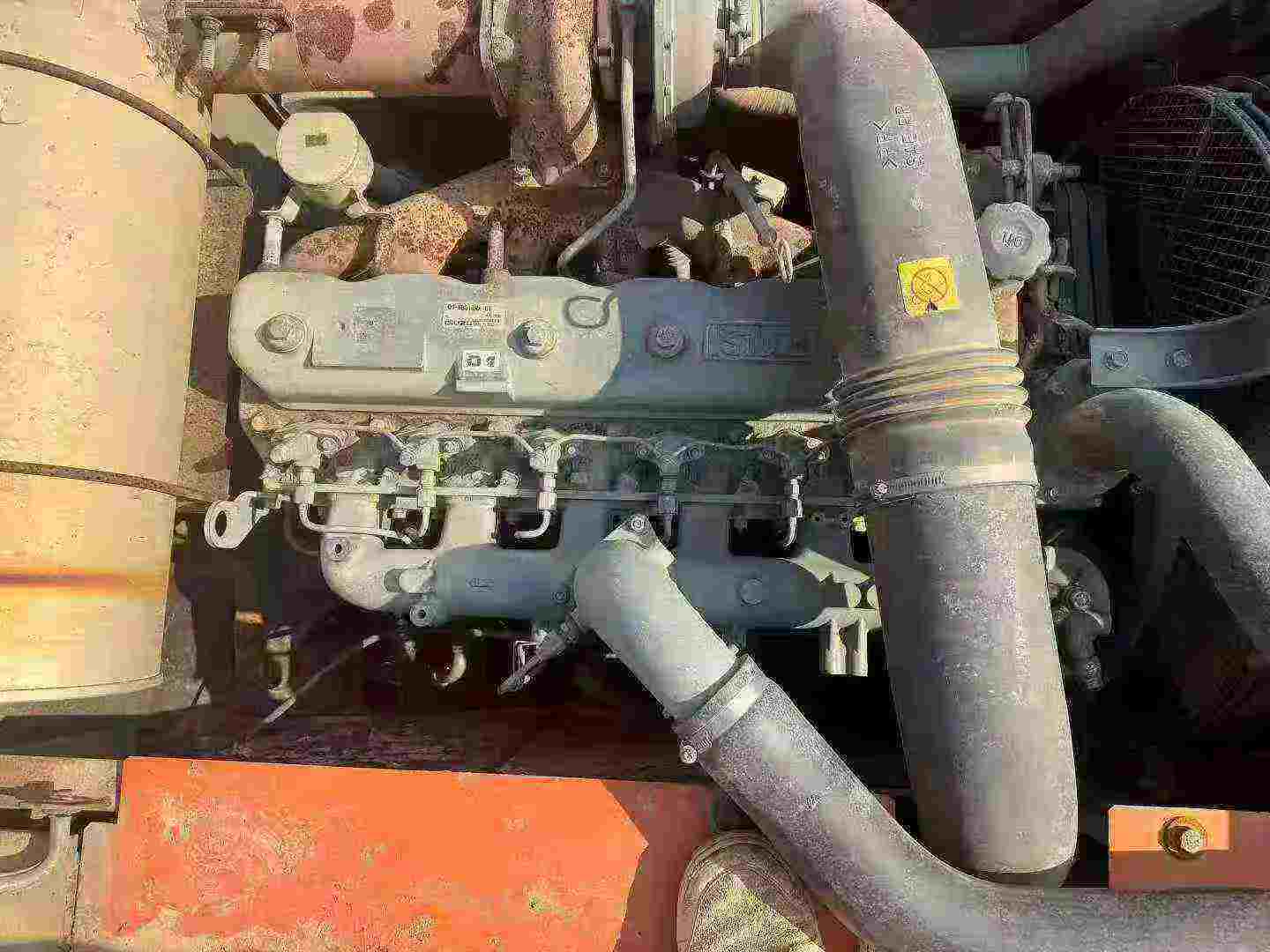

| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |

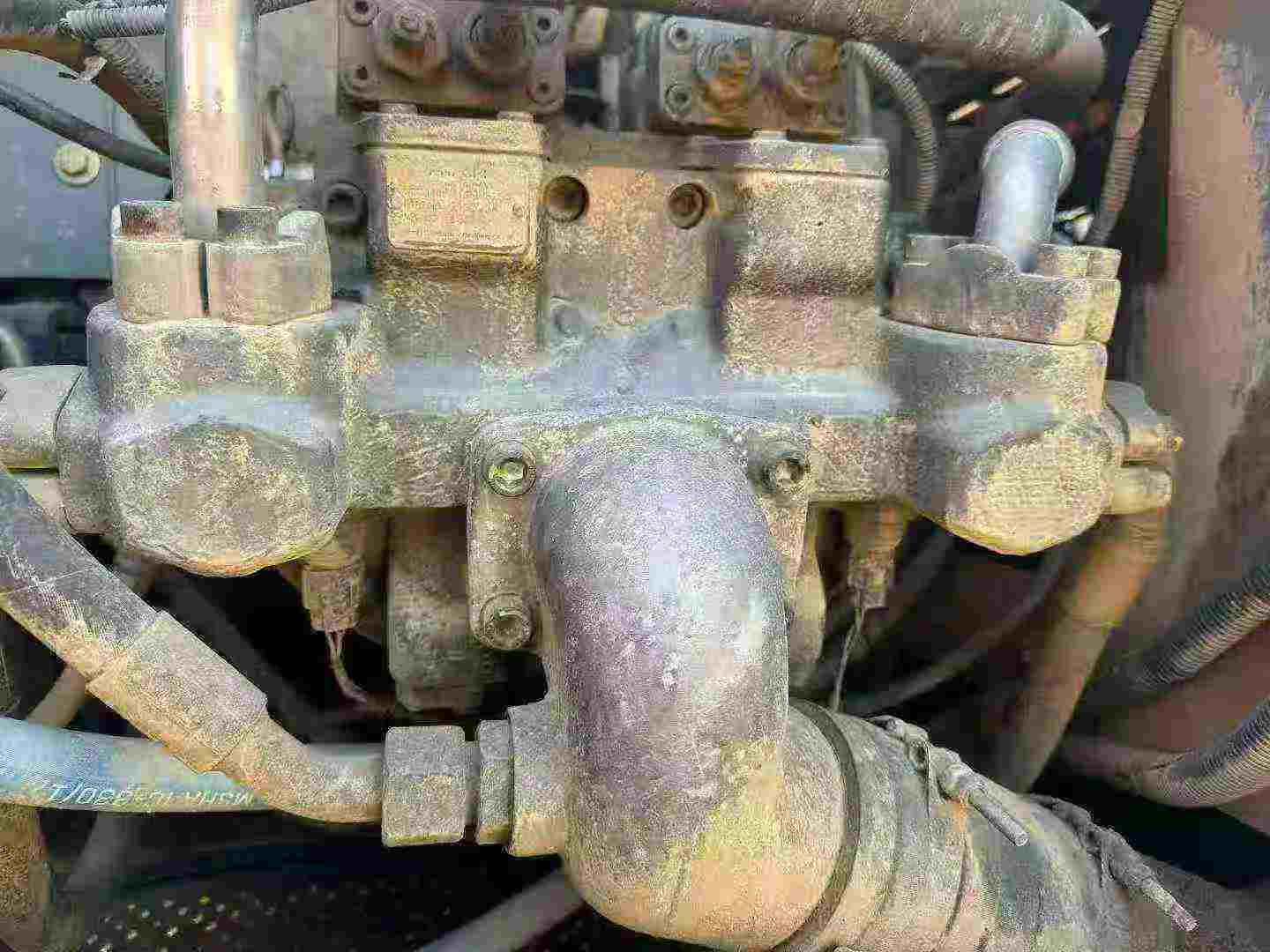

| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
