Product Description

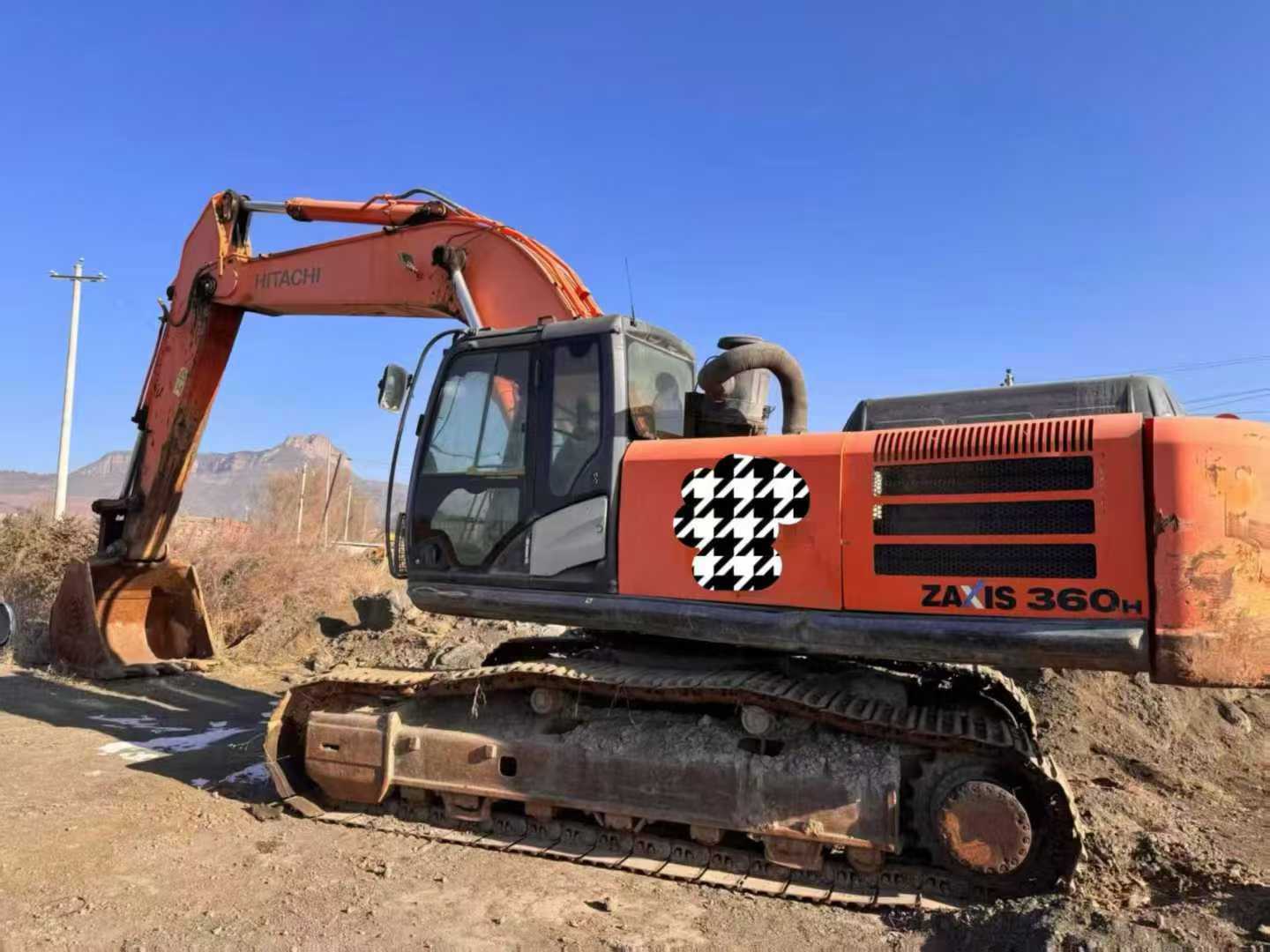

Hitachi 360-5G second-hand excavator, working time is only hand slow ️, ensuring low usage intensity and high residual value of the equipment. This excavator is equipped with a powerful and reliable engine, model Hitachi original ISUZU AH-6HK1X, with a power of 270 kilowatts, ensuring stable and abundant power output under various working conditions. In terms of the hydraulic system, the Hitachi 360-5G adopts an advanced configuration of hydraulic pumps and hydraulic motors, specifically including two variable piston pumps and multiple high-efficiency hydraulic motors, which can achieve precise control and rapid response, thereby enhancing work efficiency and reducing energy consumption. In addition, this model may also be equipped with an automatic idle function, further saving fuel consumption. As a highly praised large excavator, the Hitachi 360-5G not only boasts outstanding performance but also has won the favor of many users with its robust and durable design. Its spacious and comfortable cab, intuitive and user-friendly operation interface, as well as all-round safety protection measures, have greatly enhanced the working experience and safety of the operator. Whether it's mining or civil engineering, this excavator is your id
| Specifications | Value |
|---|---|
| No. | 977767 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
