Product Description

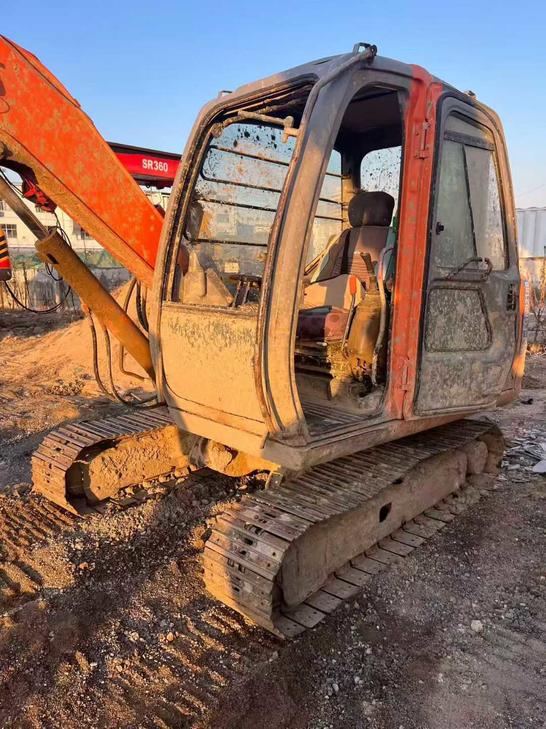

The second-hand Hitachi ZX60 excavator is a highly praised small excavator in the market. This device has a working time of approximately 2,500 hours, indicating that it has received good maintenance and care during its use. It is equipped with the powerful Yanmar 4TNV98 engine. This four-cylinder in-line water-cooled diesel engine is renowned for its high efficiency, low noise and low emissions, with a maximum power output of 37.7 kilowatts, ensuring outstanding power performance and excellent fuel economy. In terms of the hydraulic system, this model adopts an advanced load-sensing hydraulic system, combined with an efficient hydraulic pump and motor. This not only enables rapid response and smooth operation but also significantly enhances work efficiency. In addition, its compact design enables this excavator to operate flexibly in confined Spaces, making it highly suitable for meticulous excavation work in scenarios such as urban construction and landscaping. As a classic model of the Hitachi brand, this ZX60 excavator features a sturdy and durable structure as well as easy maintenance. Its cab is spacious and comfortable, and is equipped with an air conditioning system, providing an excellent working environment for the operator
| Specifications | Value |
|---|---|
| No. | 978812 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
