Product Description
Maximize your construction budget with this proven 2010 Hitachi ZX60 excavator from Hubei Province. Built for reliability, this 6-ton machine delivers exceptional value at a fraction of new equipment costs while maintaining the performance standards your projects demand.

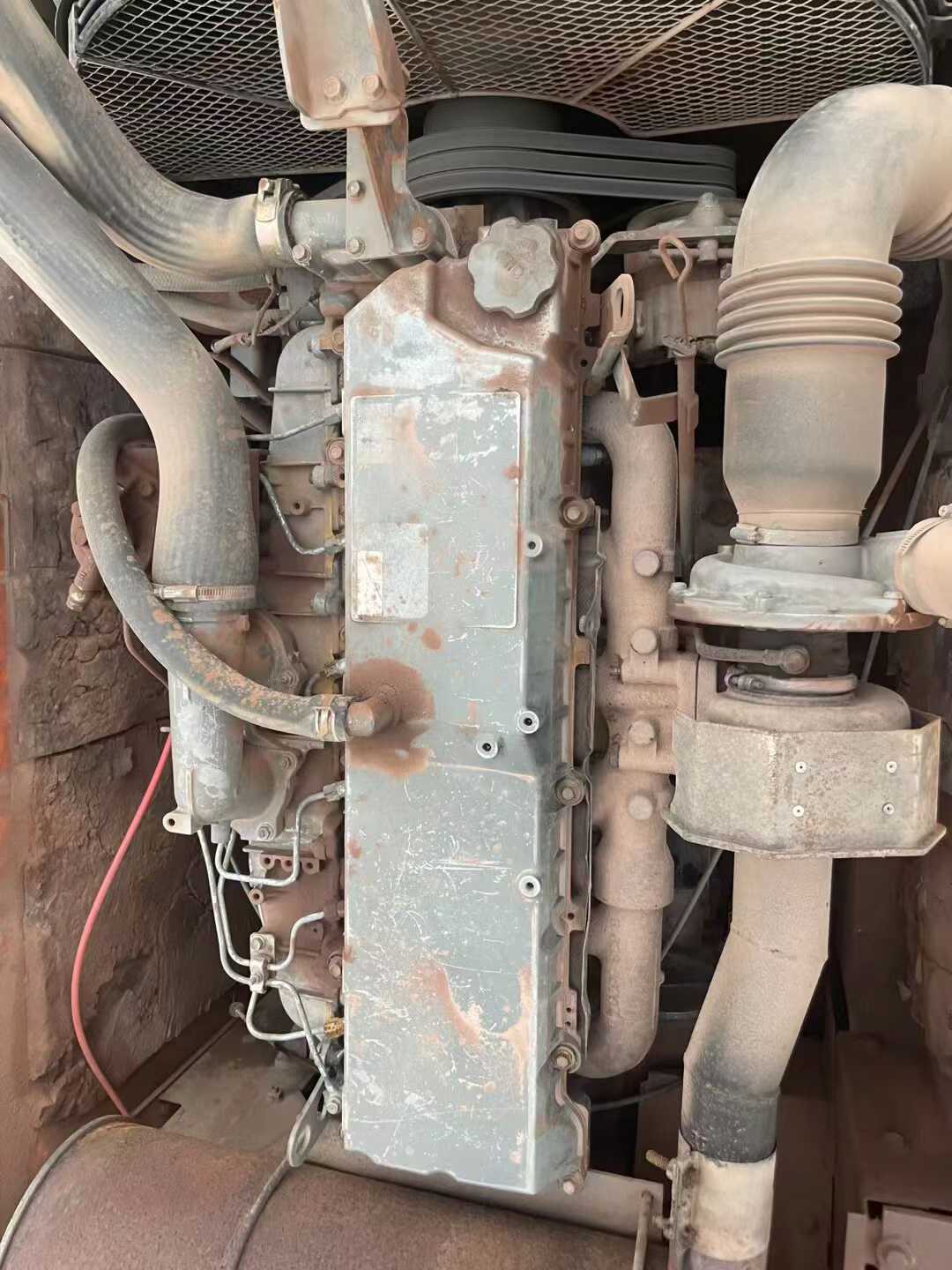

Powered by a robust ISUZU CC-4JG1 engine producing 40.5kW, this compact excavator combines efficiency with capability. Key specifications include:
- Working weight: 5,850kg with 0.22m³ bucket capacity
- Maximum digging reach: 6,250mm with 3,850mm depth capability
- Impressive digging forces: 41.4kN bucket, 28.4kN arm
- Dual-speed travel: 2.5/4.5 km/h for versatile site mobility
- 70% gradeability for challenging terrain navigation

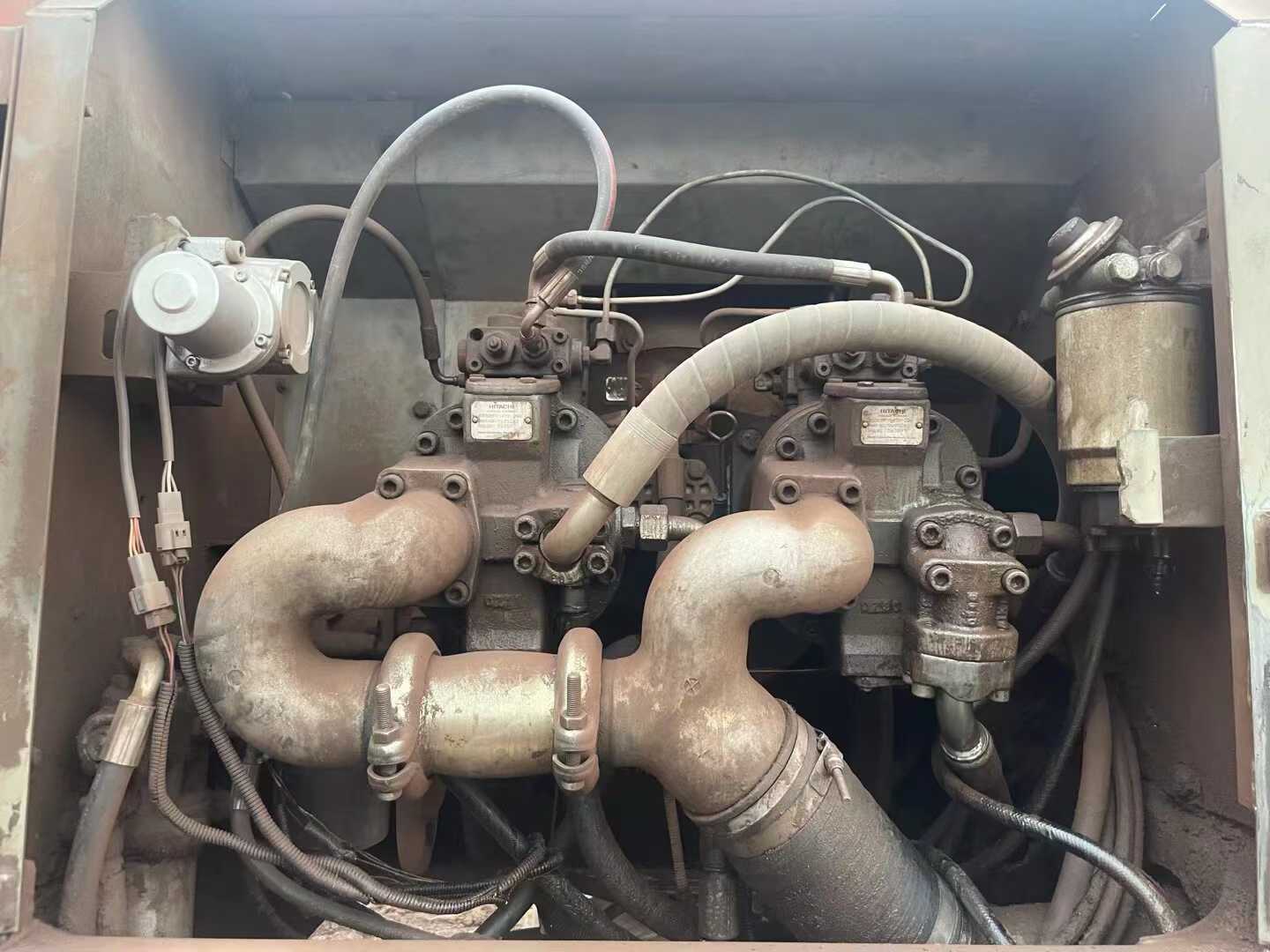

Smart buyers recognize the ZX60's proven track record in demanding applications. With proper maintenance history and comprehensive hydraulic systems featuring variable piston pumps, this machine offers years of productive service. Investment-grade equipment that delivers immediate ROI without the depreciation hit of new machinery.
| Specifications | Value |
|---|---|
| No. | 981438 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
