2016 Hitachi ZX68USR-5A

1/3
Used Hitachi ZX68USR-5A Excavator 2016 Model / 1

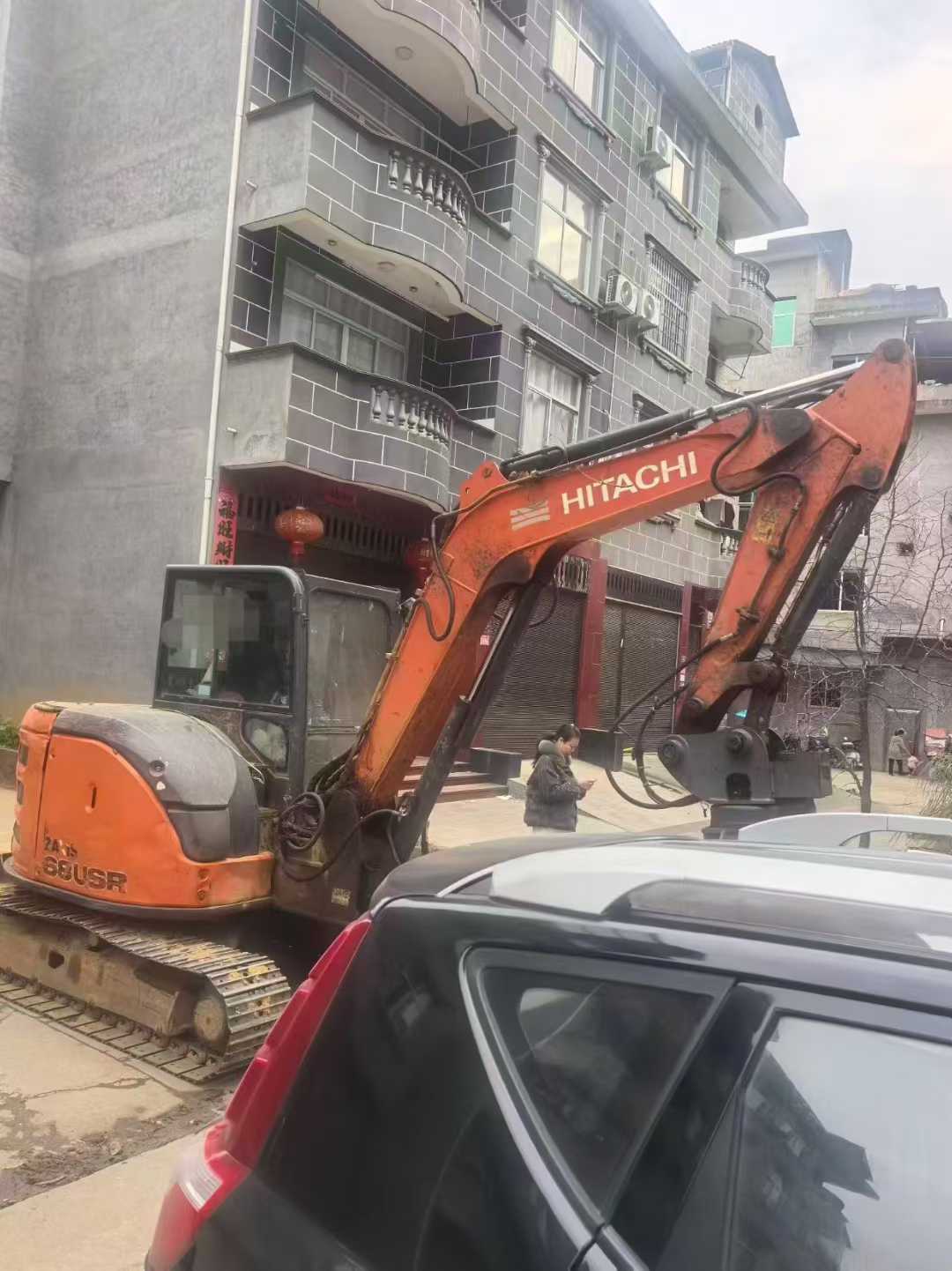

Used Hitachi ZX68USR-5A Excavator 2016 Model / 2

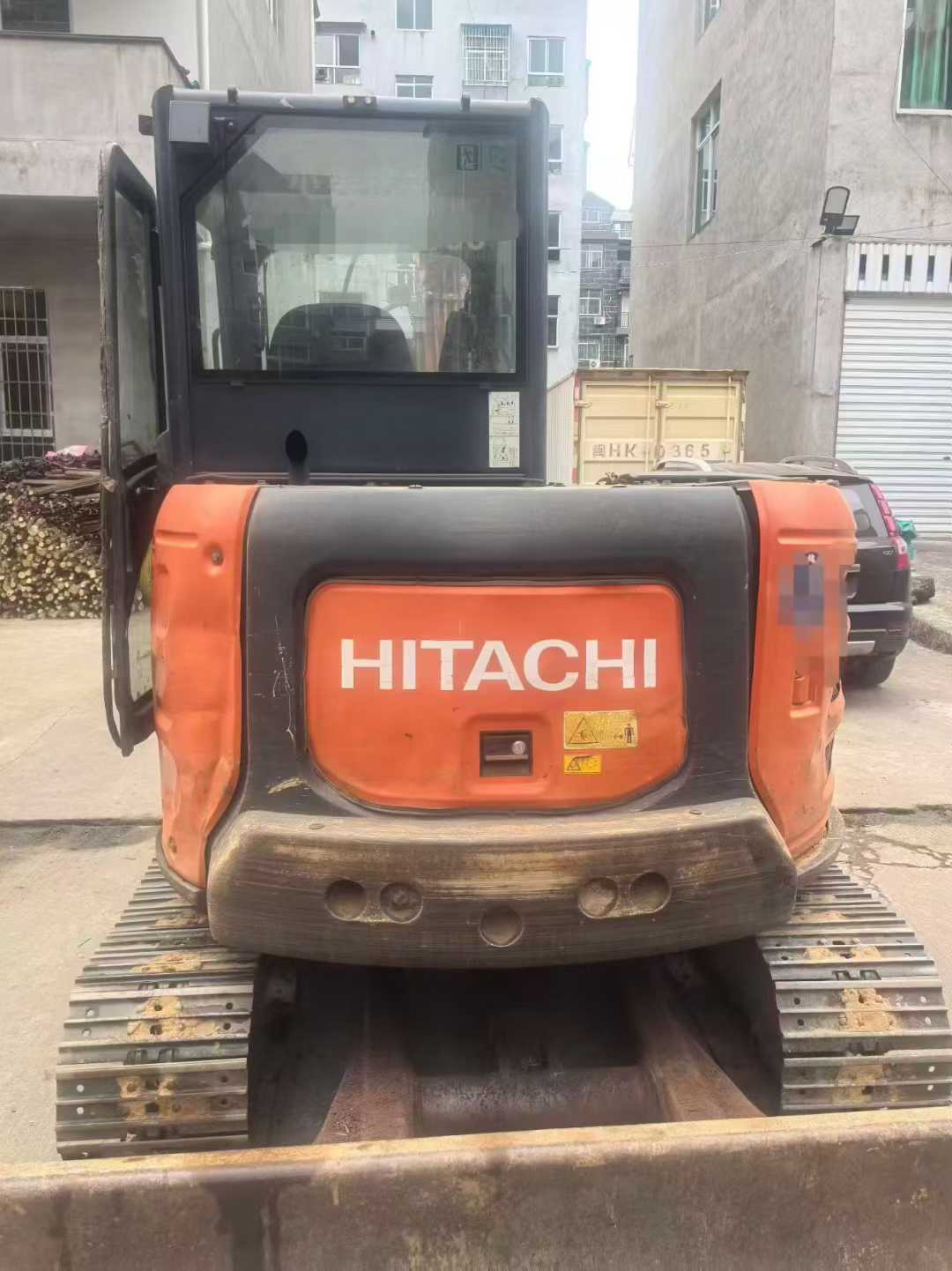

Used Hitachi ZX68USR-5A Excavator 2016 Model / 3

Product Description

There is currently a second-hand Hitachi ZX68 excavator from 2016, with a usage time of 5,000 hours. It is in good overall condition and has stable performance. This device is equipped with an efficient and reliable Isuzu 4LE2X engine, with a maximum power output of 40.5 kilowatts, ensuring strong power support under all working conditions. In terms of the hydraulic system, it is equipped with advanced negative flow control hydraulic pumps and high-performance hydraulic motors, which can achieve a precise and smooth operation experience. Whether it is excavation, loading or crushing operations, it can handle them with ease. The main advantage of this excavator lies in its excellent reliability and durability. As a globally renowned manufacturer of construction machinery, Hitachi, with years of technological accumulation and innovation, strictly controls every detail in the design and manufacturing process to ensure that each piece of equipment can meet users' dual demands for efficiency and safety. In addition, the spacious and comfortable cab design, along with the user-friendly operation interface, ensures that one will not feel fatigued even after long hours of work. To sum up, this Hitachi ZX68 excavator not only has a powerful w

SpecificationsValue
No.976203
Tonnage (tons)7
Working weight (kg)6380
Bucket capacity (m³)0.27
Rod length (mm)1500
Country of originJapanese original
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type4TNV94L-ZWHB
Rated power (kw/rpm)34.1/2000
Cylinder diameter × stroke (mm)94 x 110
Maximum torque (N.m)204
Displacement (L)3.053
Ground specific pressure (Kpa)9.5
Rotation speed (rpm)9.5
Climbing ability (%)47
Rod digging force (kN)31.1
Maximum tractive force (kN)39.8
Travel speed (km/h)2.8-4.7
Main overflow set pressure (Mpa)24.5
Maximum flow of main pump (l/min)144
Traveling Hydraulic Circuit (Mpa)25.7
Rotary Hydraulic Circuit (Mpa)19.6
Bucket cylinders - Number × diameter × stroke (mm)50*581
Bucket rod cylinders - Number × diameter × stroke (mm)90*770
Boom cylinders - Number × diameter × stroke (mm)110*785
Fuel Tank (L)120
Hydraulic Tank (L)60
Engine Oil changes (L)11.2
Coolant (L)7.4
Total transport length (mm)5870
Total transport width (mm)2000
Total transport height (mm)2550
Full cab height (mm)2550
Counterweight ground clearance (mm)615
Minimum ground clearance (mm)330
Minimum turning radius of front working device (mm)2450
Back end turning radius (mm)1410
Track gauge (mm)1600
Track plate width (mm)400
Total track width (mm)2000
Maximum digging radius (mm)6230
Maximum digging depth (mm)3790
Maximum excavation height (mm)5940
Maximum unloading height (mm)1700-4150
Maximum vertical digging depth (mm)3020
Maximum excavation radius of stop surface (mm)6090
see more

Overview

No.976203

Brand Name:

Hitachi

Model Number:

ZX68USR-5A

Year:

2016

Location:

Hunan China
