| Specifications | Value |
|---|---|
| No. | 962306 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6700 |
| Bucket capacity (m³) | 0.33 |
| Country of origin | Hefei, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar Yanmar 4TNV98-AVHBW |
| Rated power (kw/rpm) | 42.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 mm×110 mm |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | 4 stroke, water cooled, direct injection |
| Ground specific pressure (Kpa) | 31 |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 70% (35 °) |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 40 |
| Maximum tractive force (kN) | 47.8 |
| Travel speed (km/h) | High 5.0/ Low 3.4 |
| Turning torque (Nm) | 12.9 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Maximum flow of main pump (l/min) | 2 x 63 x 52.5 + 1 |
| Traveling Hydraulic Circuit (Mpa) | 31.4 |
| Rotary Hydraulic Circuit (Mpa) | 22.6 |
| Main pump type | 3 variable axial piston pumps +1 gear pump |
| Working Hydraulic Circuit (Mpa) | 26 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 21 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 85 x 55 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 95 x 60 |
| Boom cylinders - Number × diameter × stroke (mm) | 1 x 115 x 65 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 60 |
| Engine Oil changes (L) | 12.3 |
| Coolant (L) | 8 |
| Hydraulic System (L) | 100 |
| Total transport length (mm) | 6,080 |
| Total transport width (mm) | 2,260 |
| Total transport height (mm) | 2,600 |
| Full cab height (mm) | 2,600 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1,720 |
| Back end turning radius (mm) | 1,750 |
| Onboard width (mm) | 2,260 |
| Total track length (mm) | 2,765 |
| Track gauge (mm) | 1,750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,200 |
| Maximum digging radius (mm) | 6320 |
| Maximum digging depth (mm) | 4,170 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3,730 |
| Bulldozer lift or depth (mm) | 400 x 280 |
| Dodging plate width × height (mm) | 2320 x 435 |
| Maximum excavation radius of stop surface (mm) | 6,170 |
| Maximum effective digging depth (mm) | 3,800 |
Description

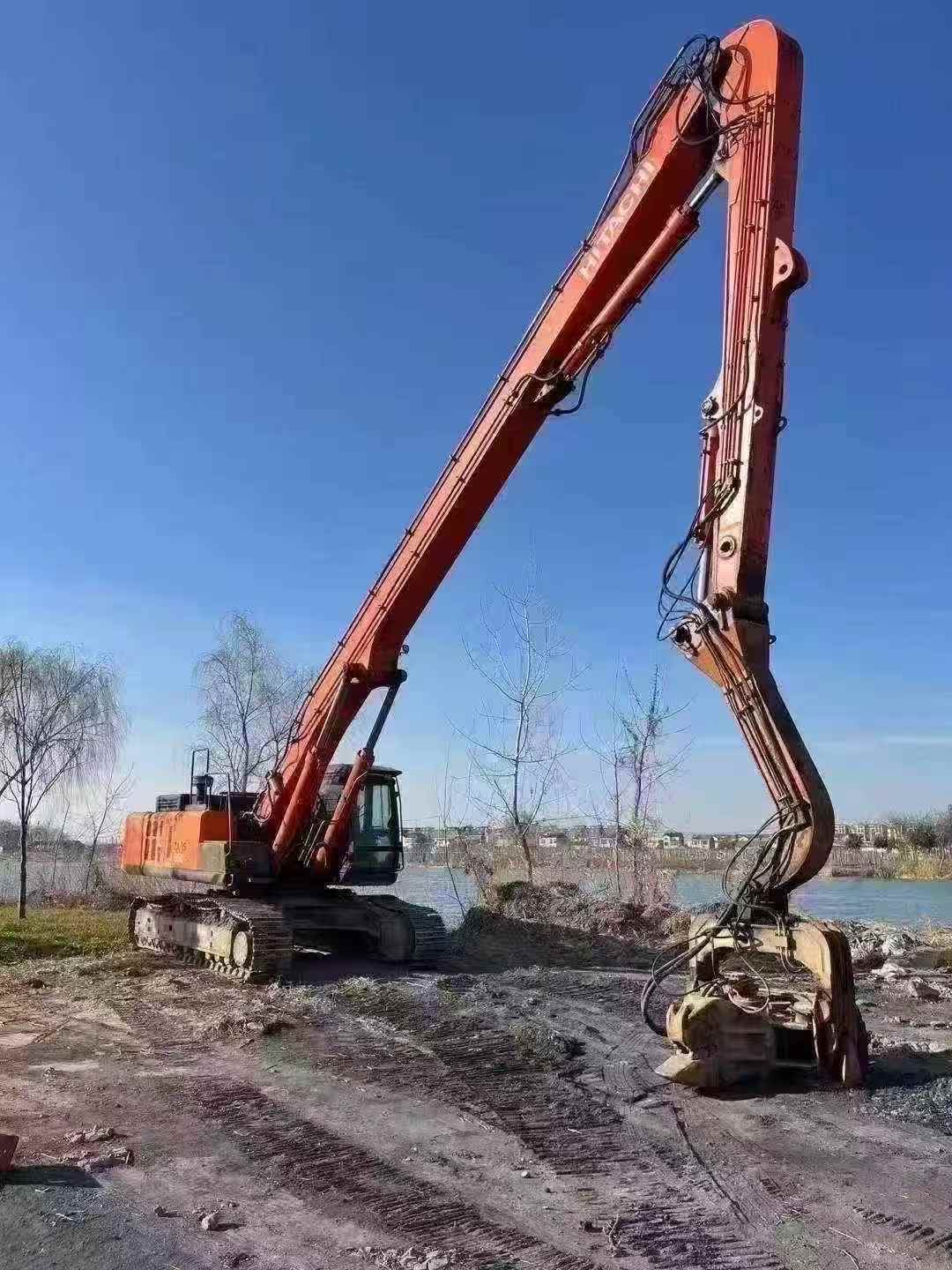

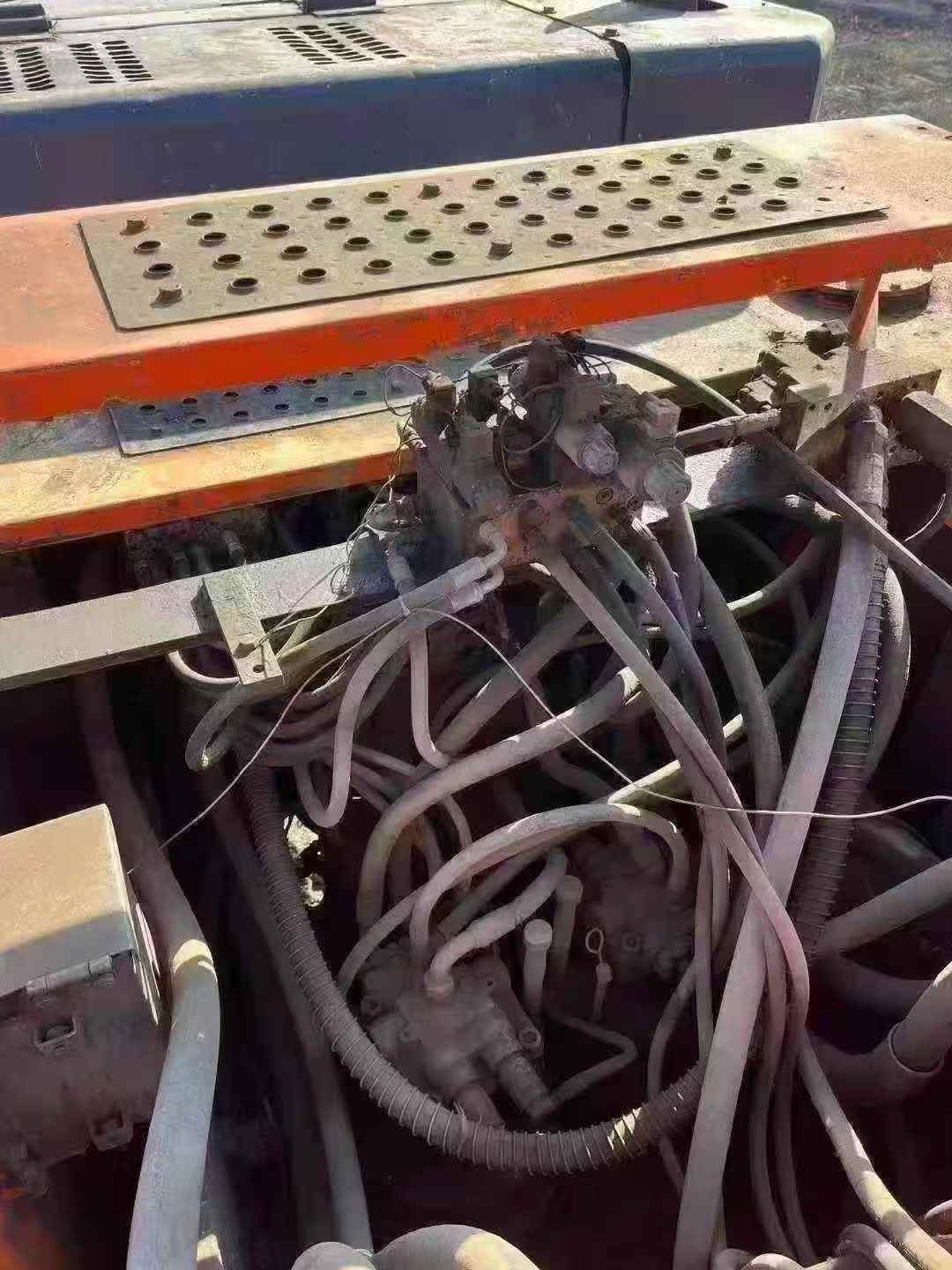

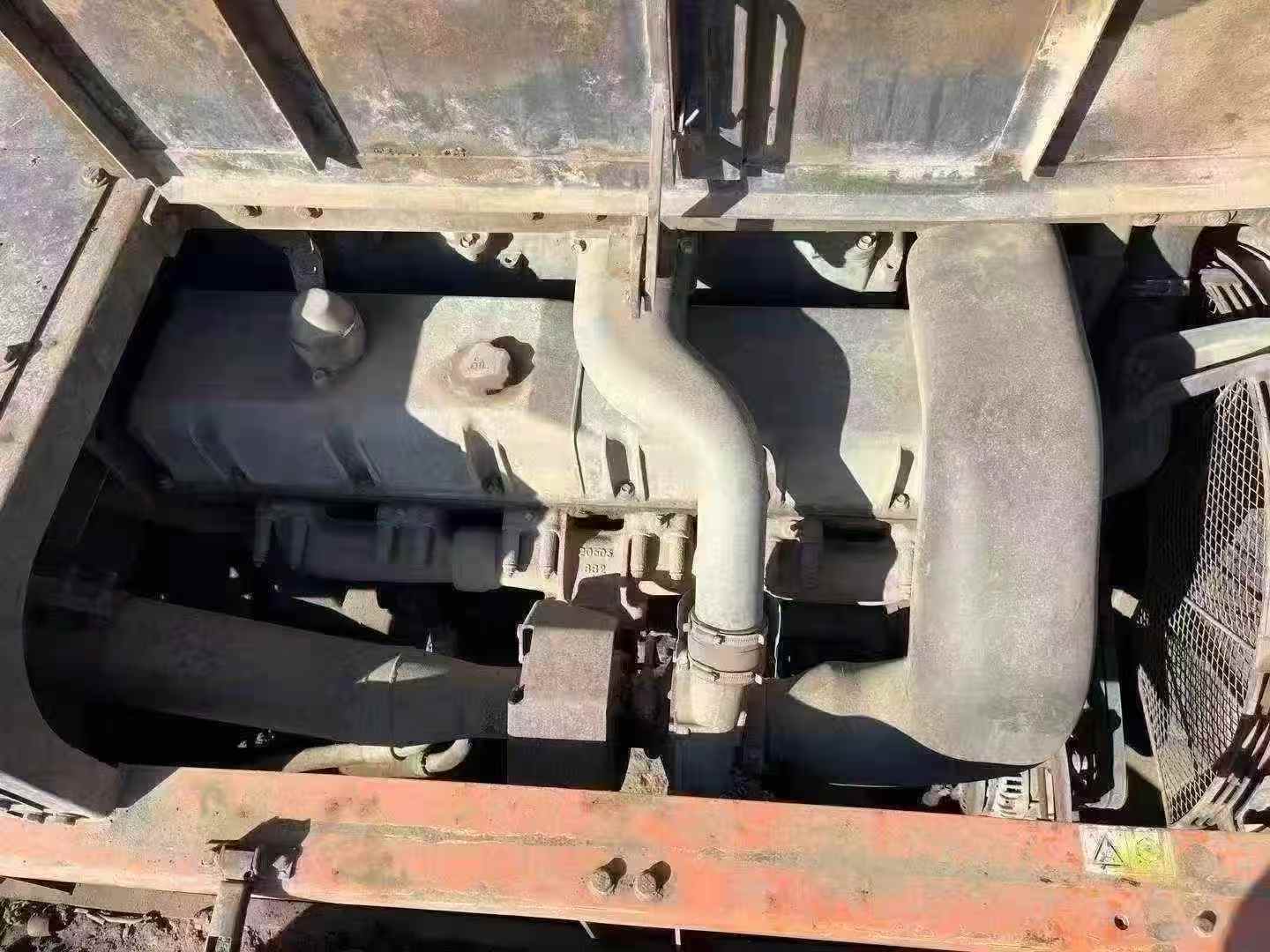

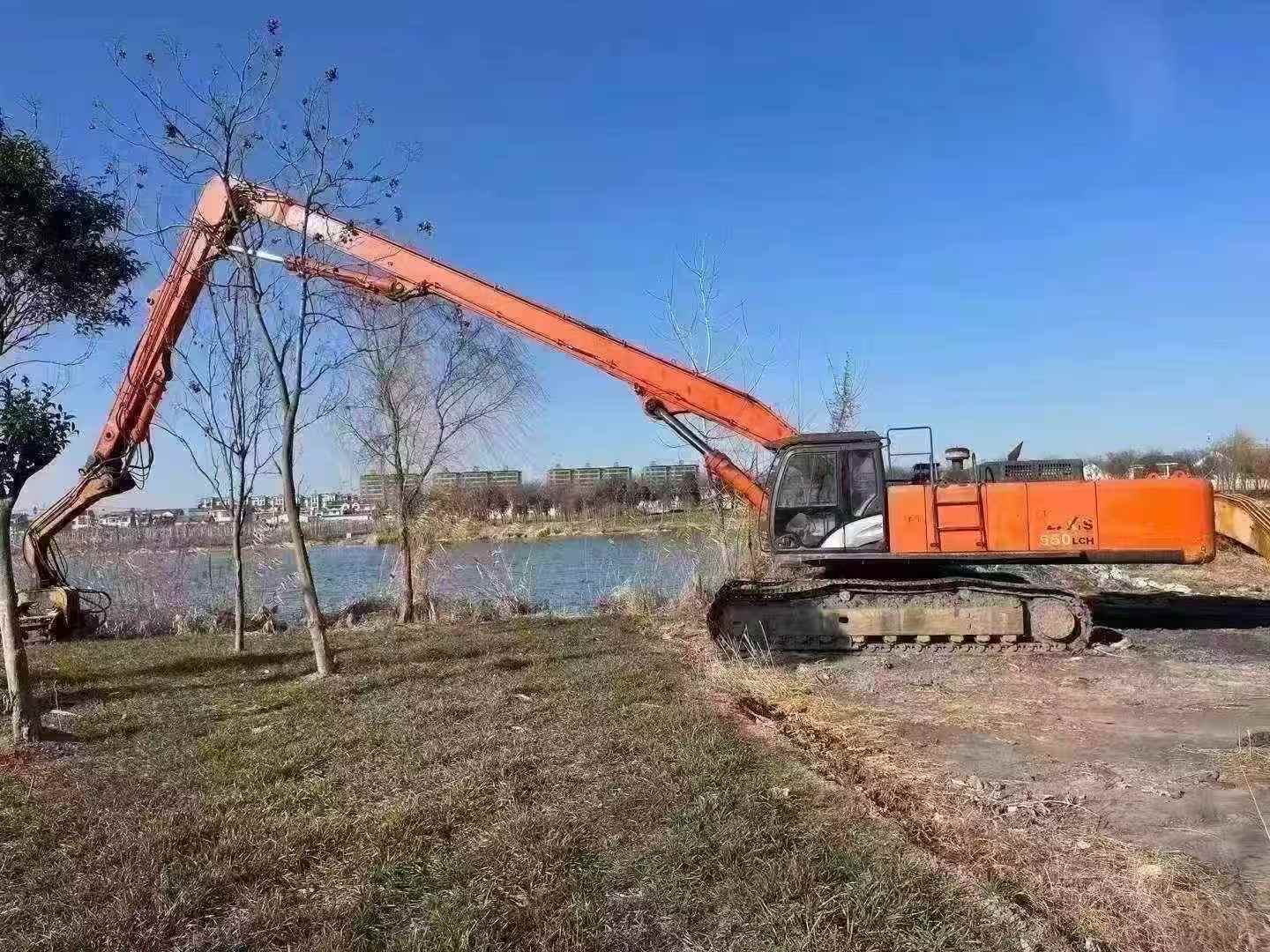

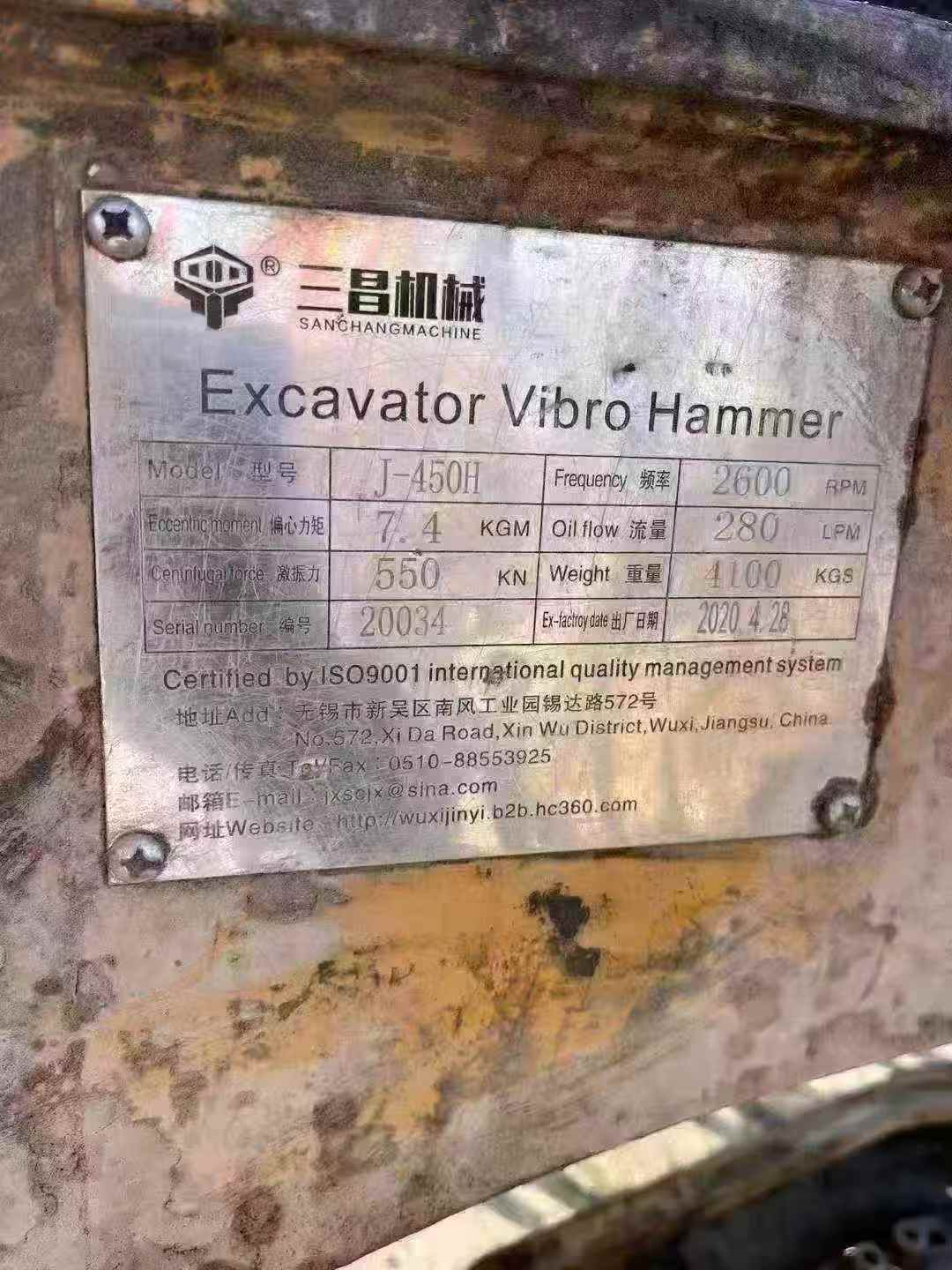

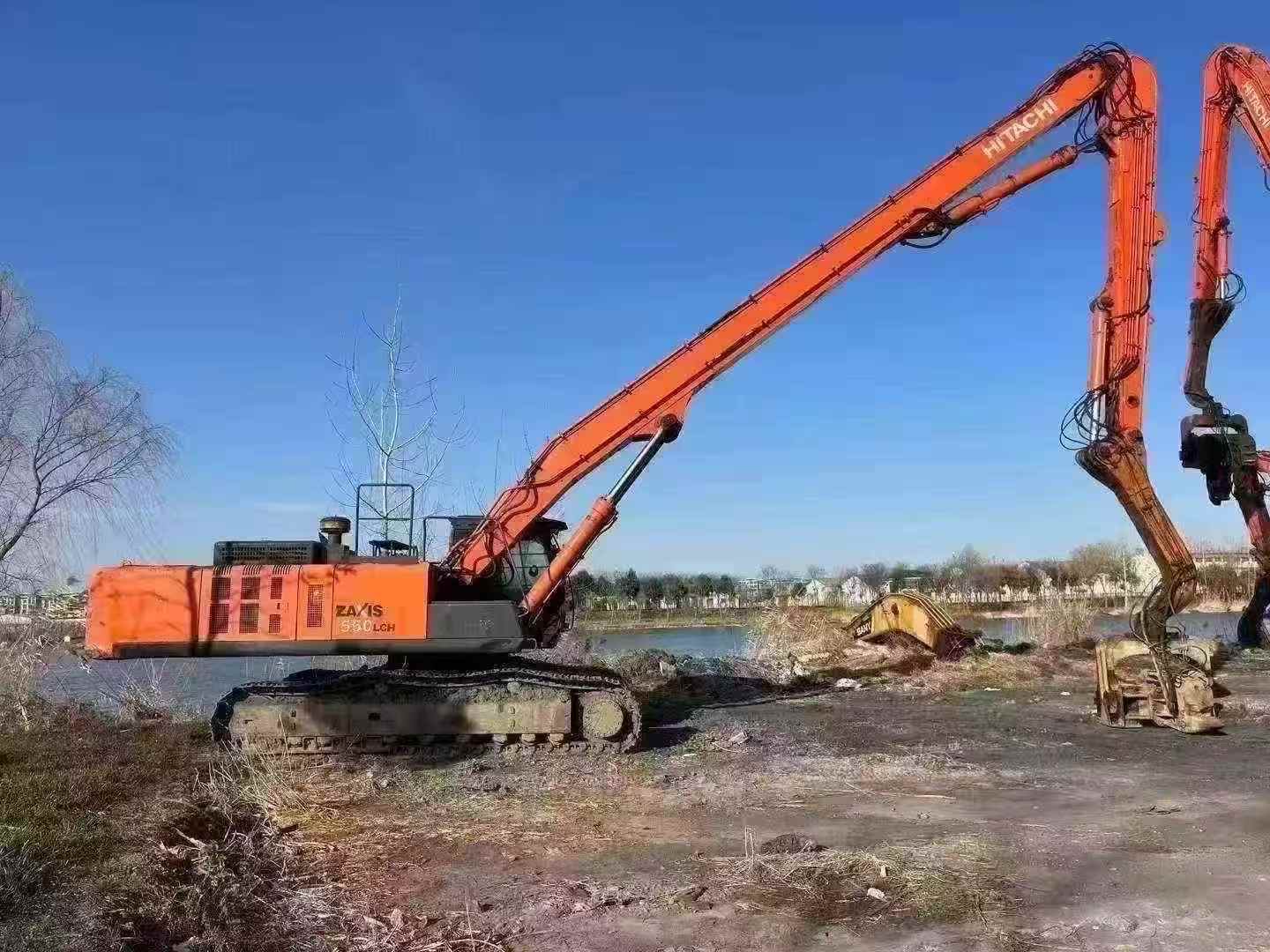

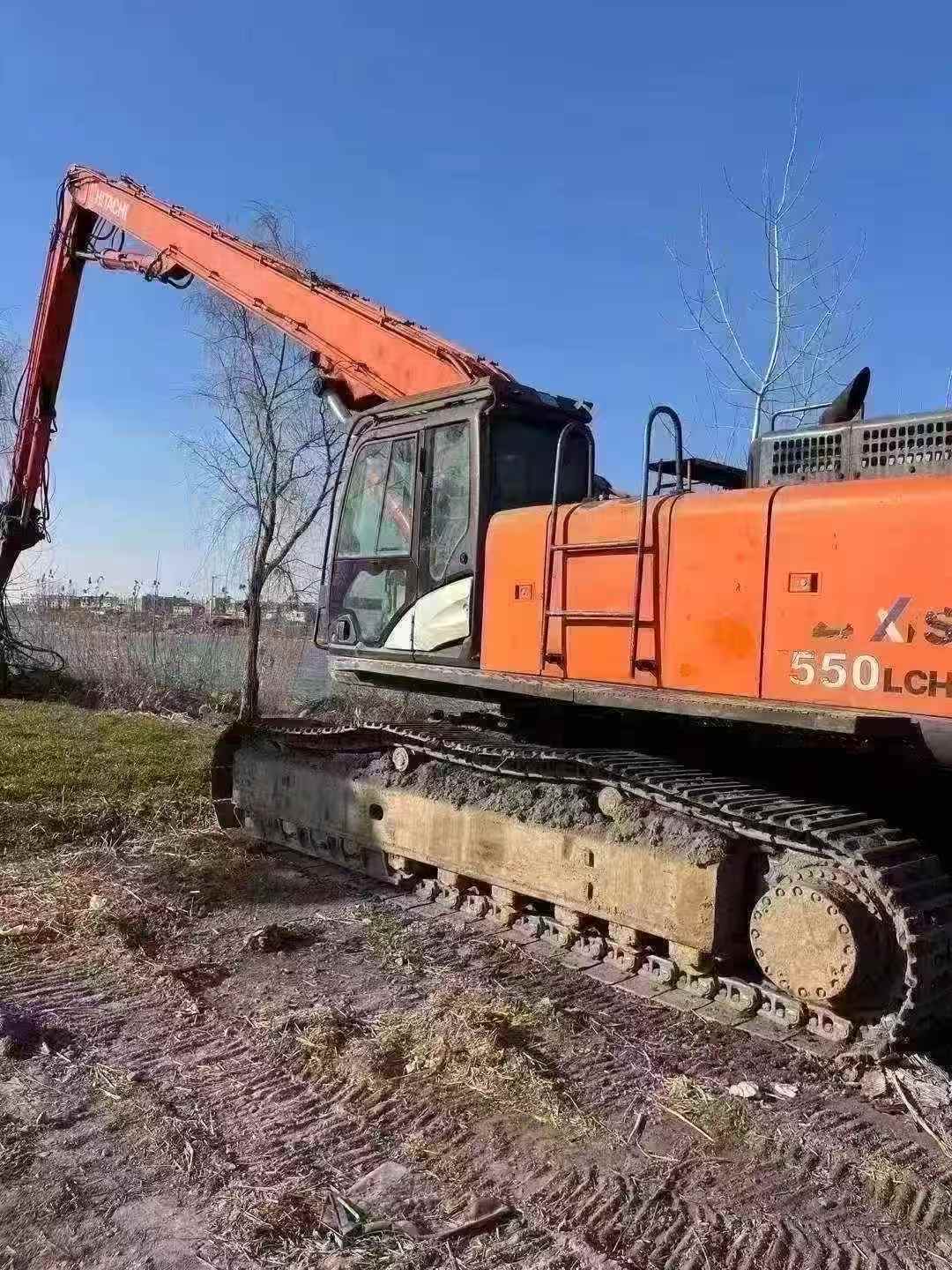

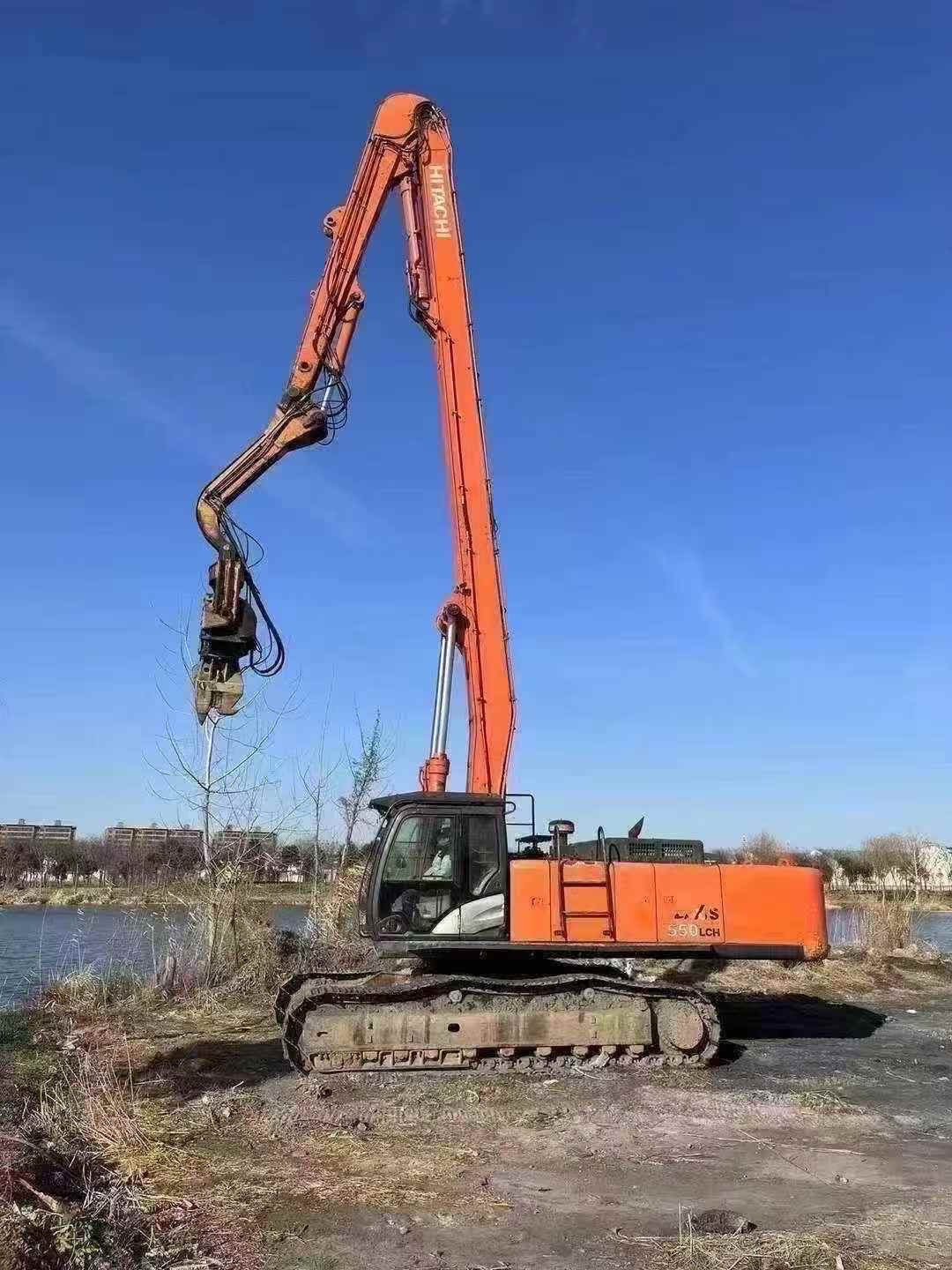

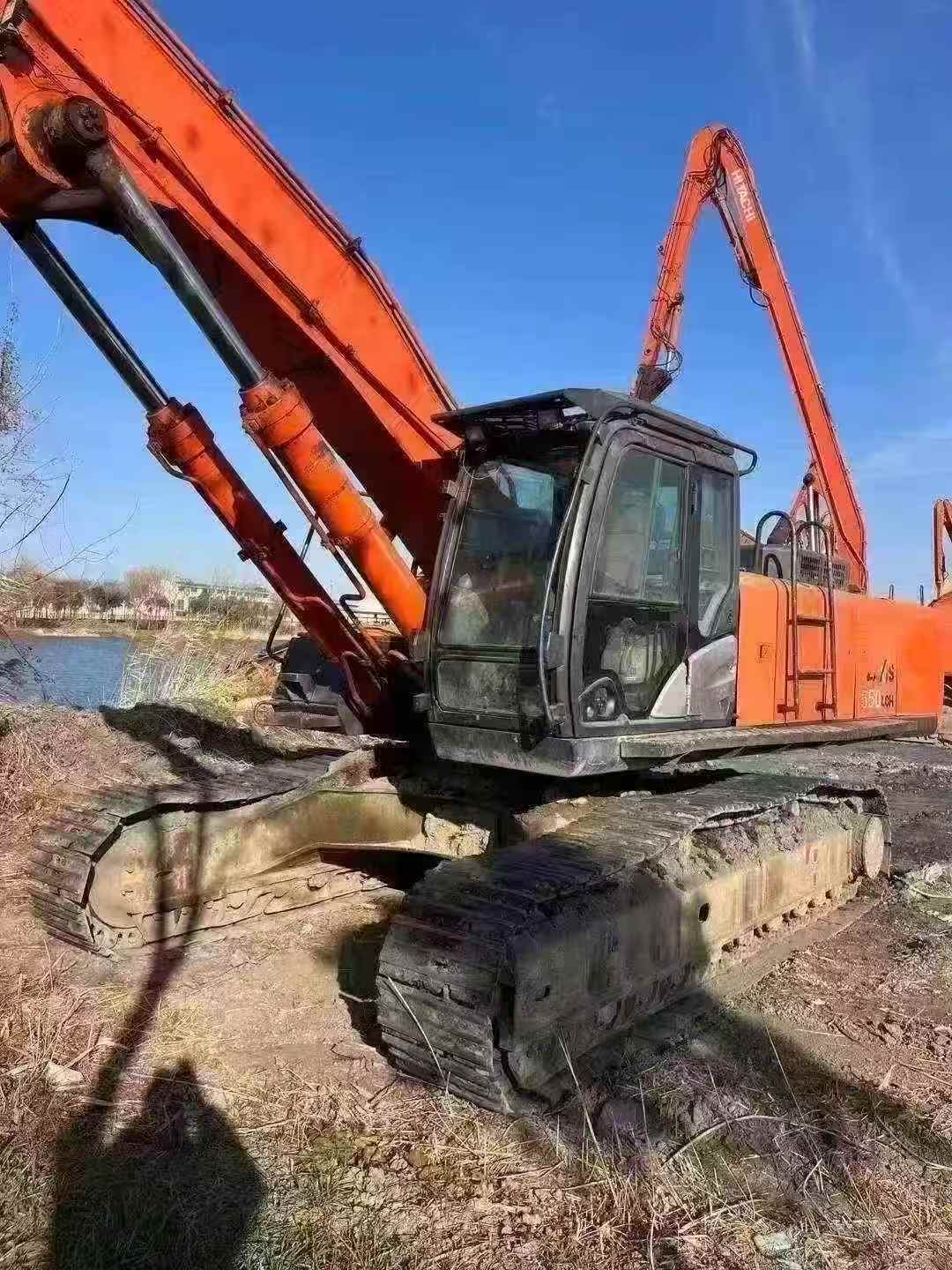

【 Premium Recommendation 】2015 Hitachi 470-5G excavator, equipped with Sanchang 450 hammerhead, 19-meter 6-long arm, and all enlarged oil cylinders. This device not only has a well-maintained appearance, with its major components still in excellent condition, but also is very reasonably priced. You are always welcome to view it. Working hours This Hitachi 470-5G excavator has a working duration of 8,000 hours, which is a medium usage frequency. The overall mechanical condition is good, with no signs of excessive wear. Whether it's daily construction or high-intensity operations, it can handle them with ease. Power system This machine is equipped with an original imported high-efficiency engine from Hitachi, which is powerful, stable and reliable. Thanks to the meticulous maintenance by a professional team, the engine's high-performance performance during long-term operation is ensured. Meanwhile, fuel economy has also been optimized, reducing operating costs. Hydraulic system The hydraulic system adopts advanced pump control technology, featuring rapid response and flexible operation. All cylinders are enlarged models, enhancing the digging force and stability, and are particularly suitable for complex terrains or heavy-load tasks.
