| Specifications | Value |
|---|---|
| No. | 962288 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6510 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3.72 |
| Rod length (mm) | 1.62(reinforced type) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 30 |
| Rotation speed (rpm) | 11.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 3.4/5.0 |
| Main overflow set pressure (Mpa) | 31.4 |
| Rotary hydraulic motor type | Variable piston pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Main pump type | Variable piston pump ×3+ gear pump ×1 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 60(over 100) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2600 |
| Full cab height (mm) | 2600 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2765 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2140 |
| Maximum digging radius (mm) | 6320 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3730 |
| Bulldozer lift or depth (mm) | No bulldozer |
Description

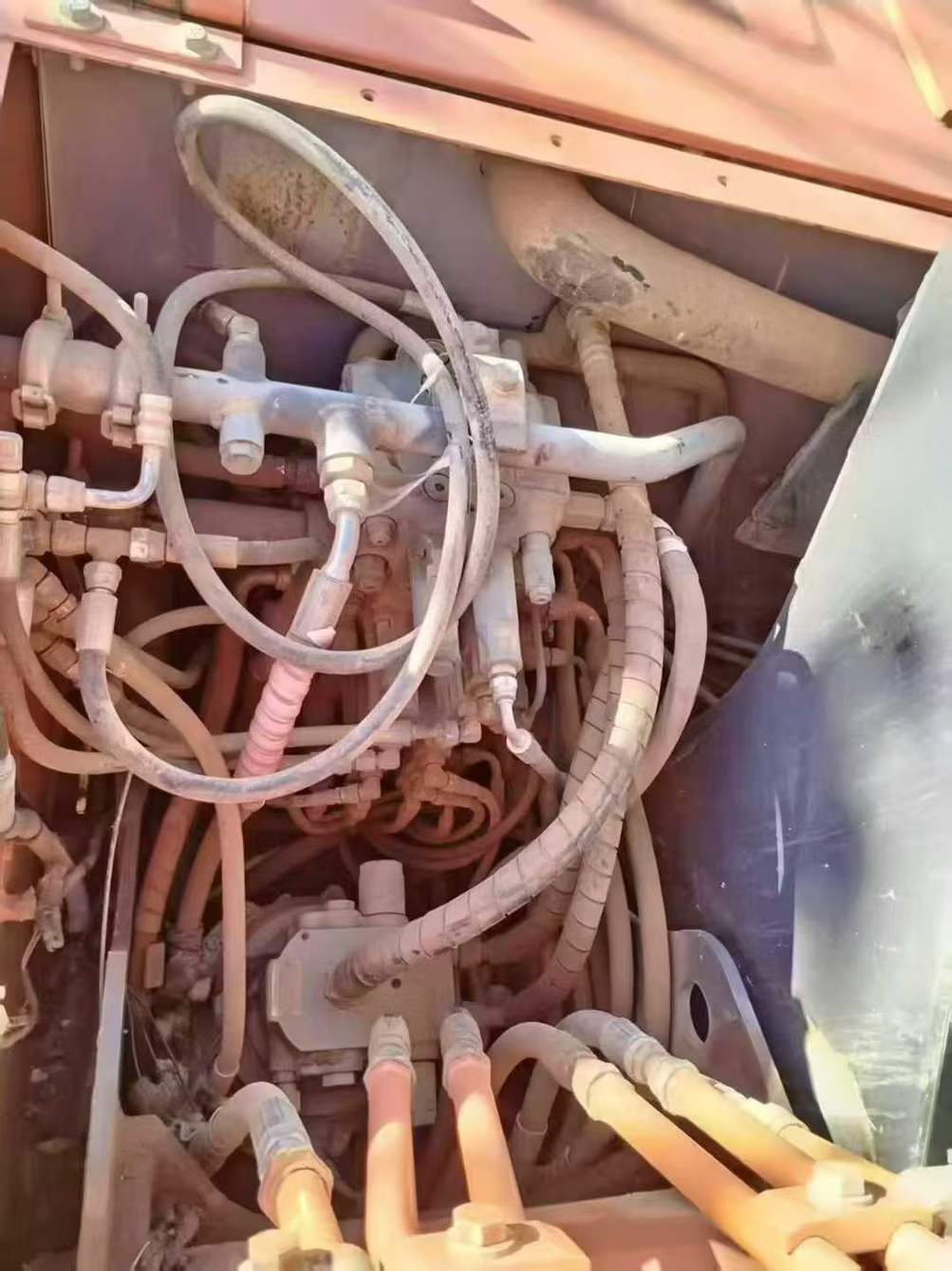

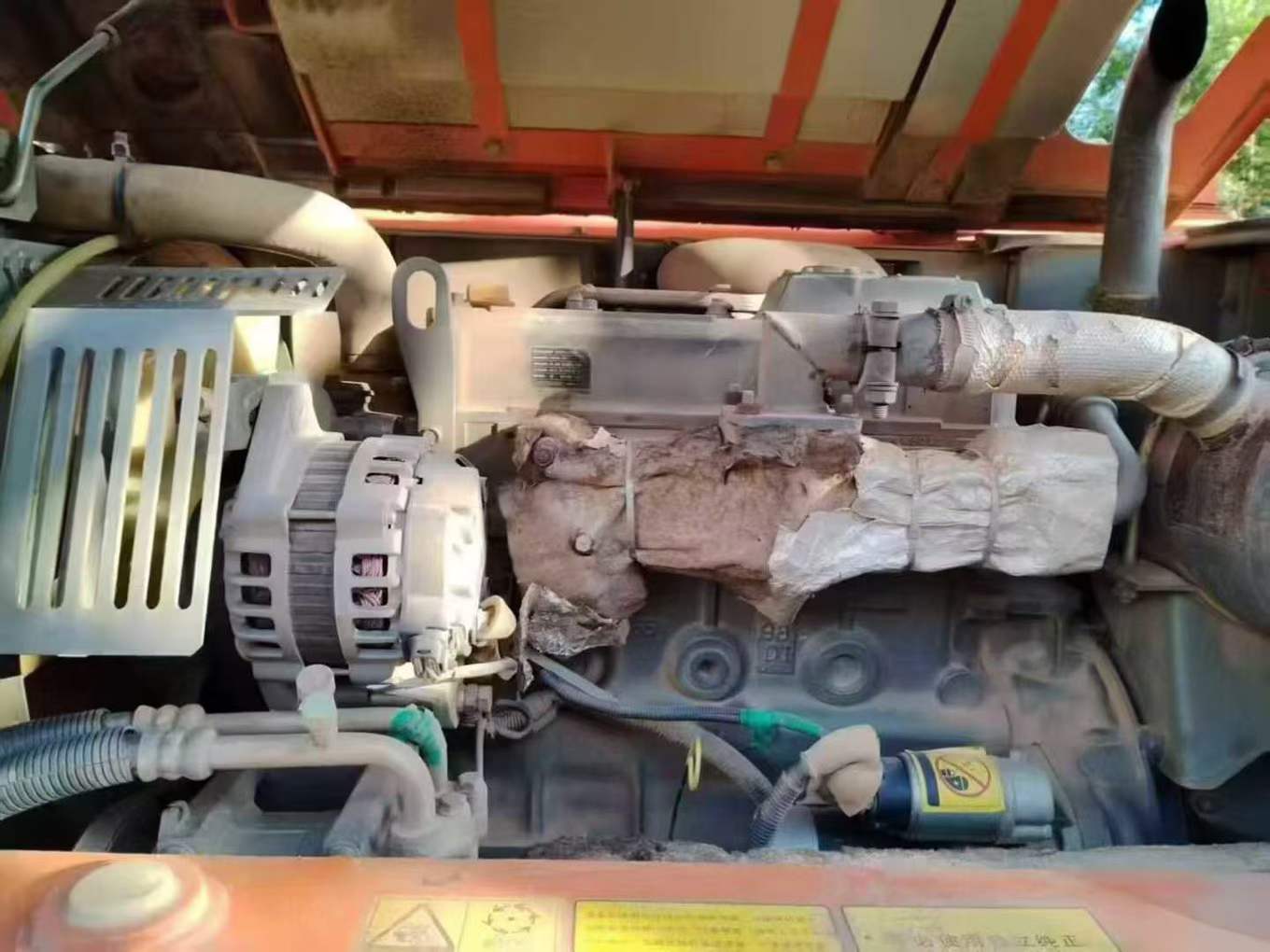

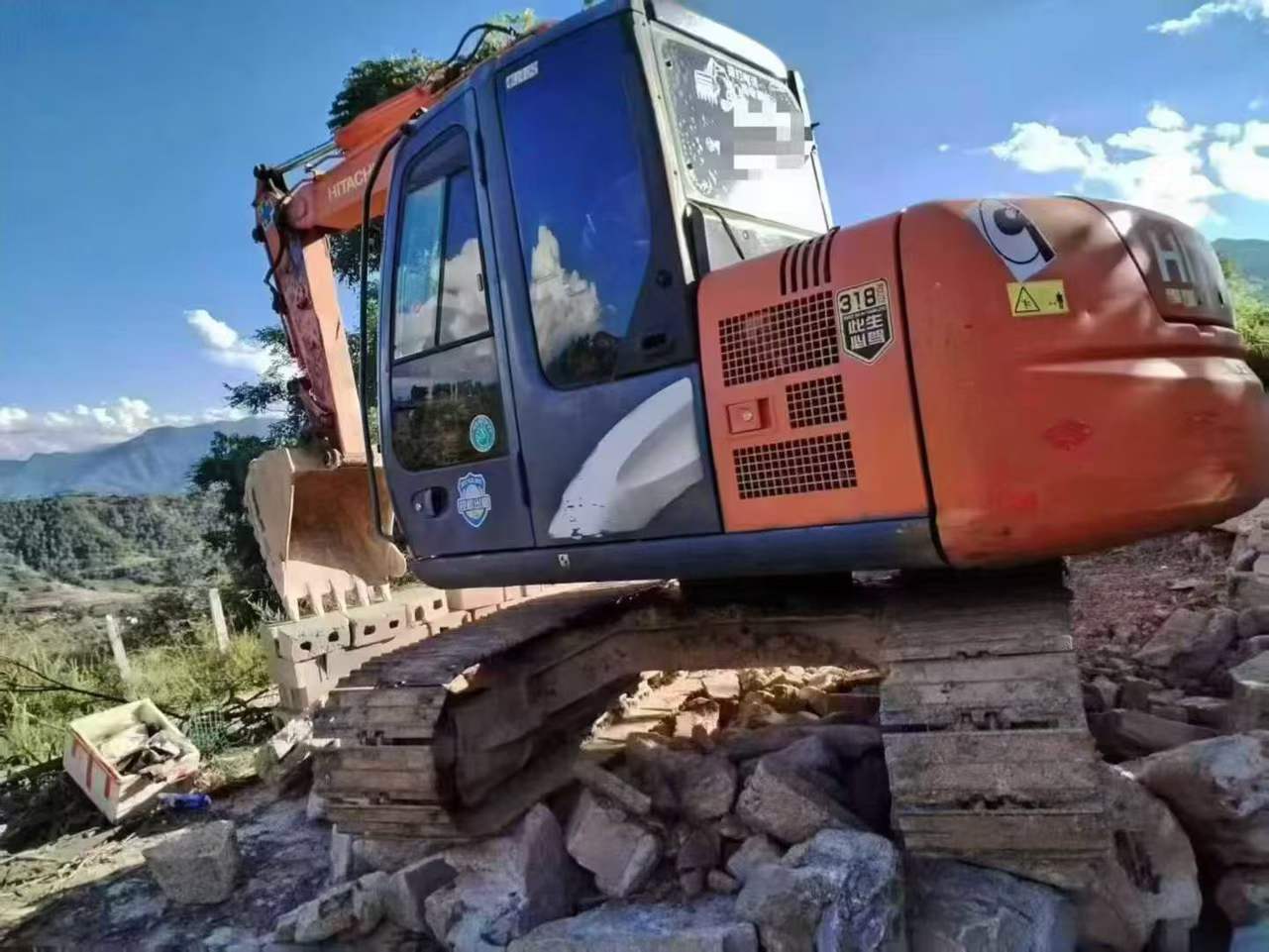

This Hitachi 70 excavator from 2016 is a premium model that the original owner has been using ever since. The entire machine is in excellent condition, with no major accident records. The body structure is intact, showing no obvious damage or rust. It is highly suitable for users who have high requirements for equipment quality. The working time of this excavator is only about 3,500 hours, which is far lower than the average usage time of similar models on the market, indicating that it still has a long service life waiting for excavation. In terms of the power system, this model is equipped with a highly efficient and energy-saving engine independently developed by Hitachi, which features excellent fuel economy and strong power output. It can ensure stable and reliable performance even under complex working conditions. After professional testing, all the indicators of the engine are at an excellent level, and no abnormal wear or leakage was found. The hydraulic system, as one of the core components of an excavator, also performs exceptionally well on this 70 model. The adoption of an advanced closed-loop center load sensitive control system makes the operation more precise and smooth, while significantly enhancing work efficiency an
