| Specifications | Value |
|---|---|
| No. | 963152 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6510 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3.72 |
| Rod length (mm) | 1.62(reinforced type) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 30 |
| Rotation speed (rpm) | 11.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 3.4/5.0 |
| Main overflow set pressure (Mpa) | 31.4 |
| Rotary hydraulic motor type | Variable piston pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Main pump type | Variable piston pump ×3+ gear pump ×1 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 60(over 100) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2600 |
| Full cab height (mm) | 2600 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2765 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2140 |
| Maximum digging radius (mm) | 6320 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3730 |
| Bulldozer lift or depth (mm) | No bulldozer |
Description

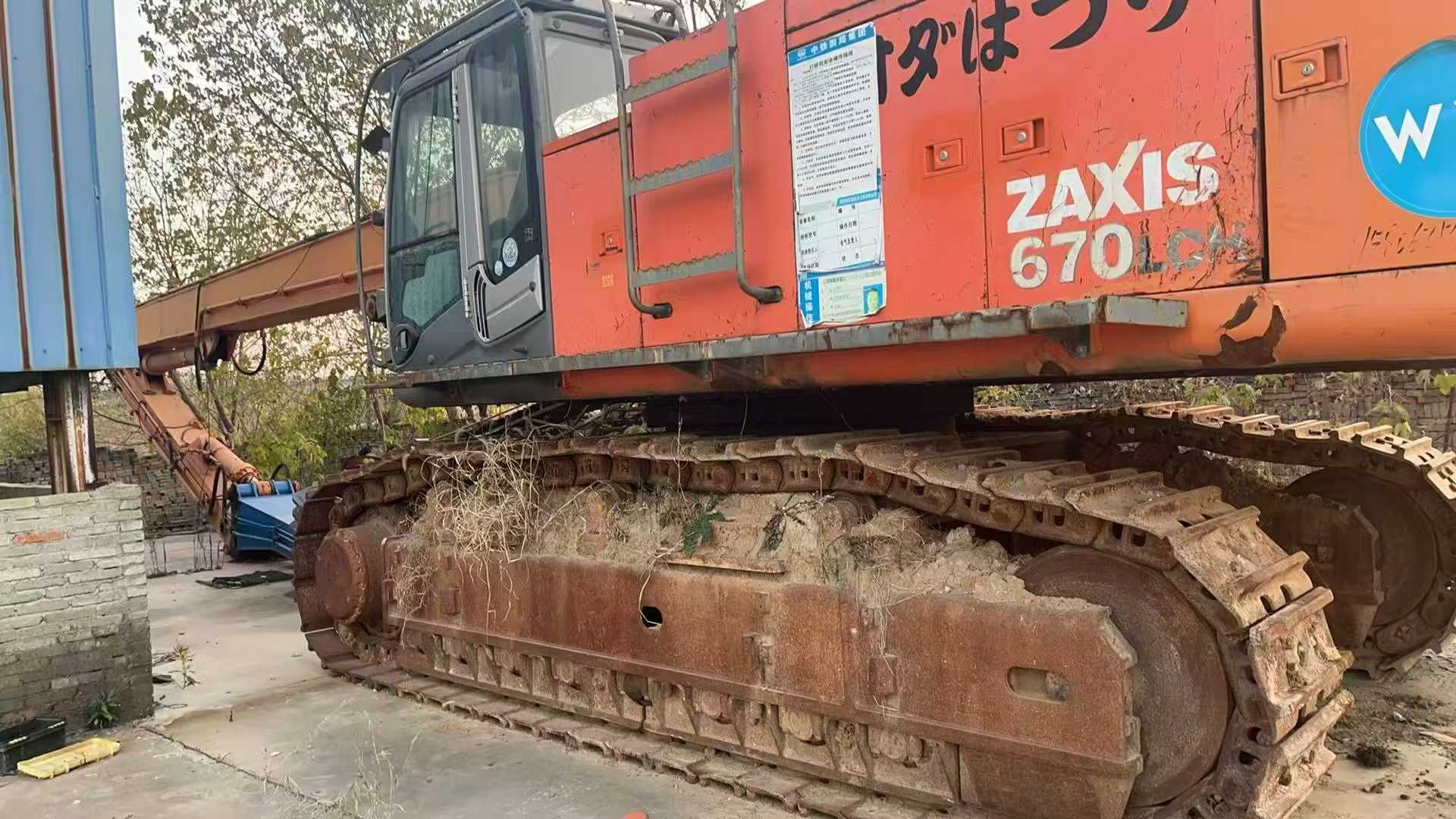

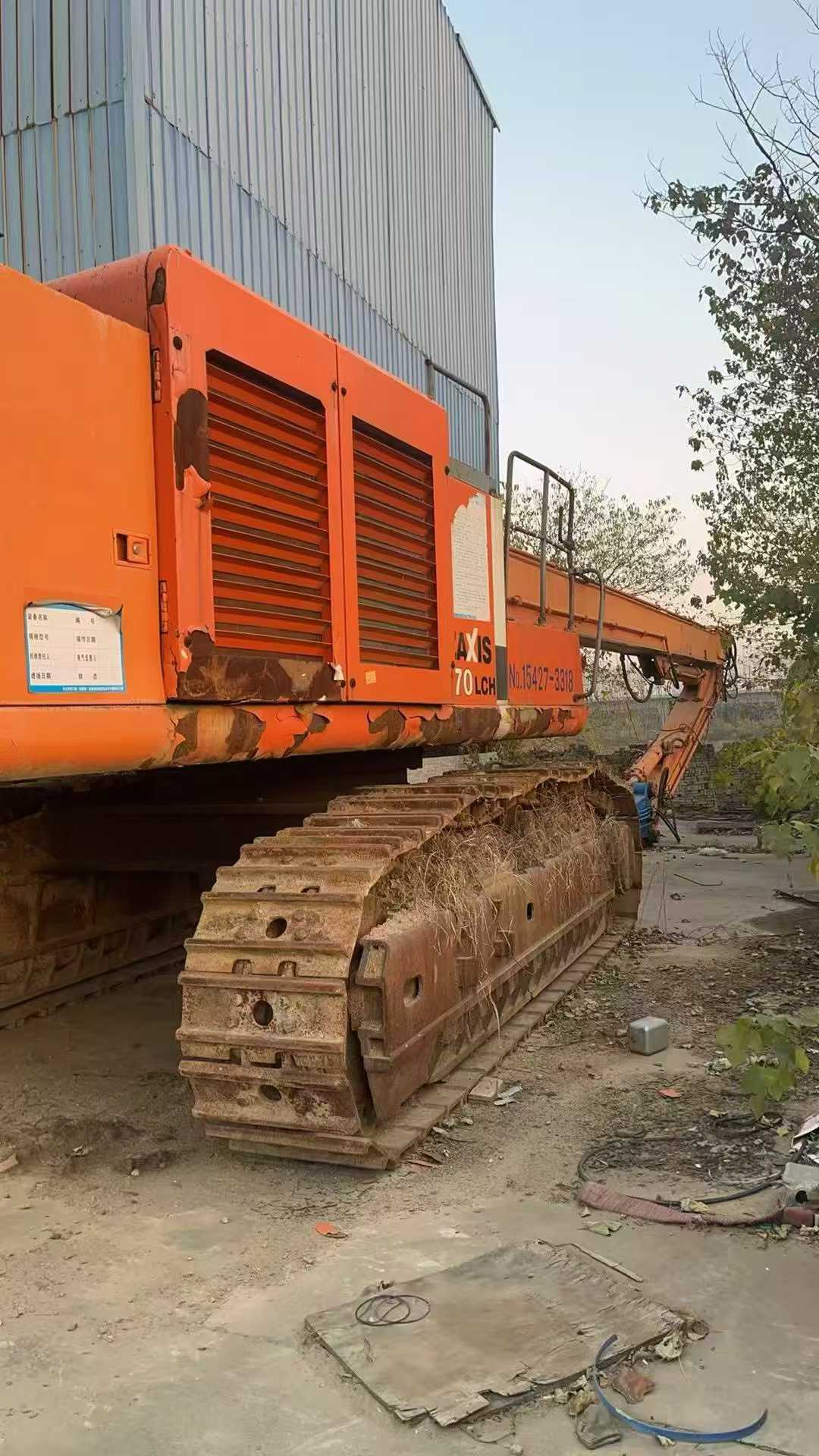

【 Hitachi 670 Pile Driver This second-hand Hitachi 670 pile driver is specially designed for efficient and stable pile driving operations and is suitable for various construction sites and infrastructure projects. Since its commissioning in 2015, this equipment has accumulated approximately 4,500 hours of working time. During this period, regular maintenance and upkeep have ensured its good operating condition. For a professional-grade construction machine, such a usage frequency means that it is in the best working cycle. In terms of the power system, a high-performance diesel engine is adopted as the core drive source, which not only provides strong power output but also takes into account fuel economy and environmental protection performance. In actual operation, it can respond quickly to the driver's instructions. Whether it is starting or accelerating, it is very smooth, ensuring construction efficiency while also reducing operating costs. The hydraulic system is a major highlight of this machine. It adopts an advanced closed-loop design, combined with high-precision proportional control valves, which makes the pressure loss of the entire system smaller and the response speed faster. This means that when performing complex and v
