| Specifications | Value |
|---|---|
| No. | 964569 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6510 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3.72 |
| Rod length (mm) | 1.62(reinforced type) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

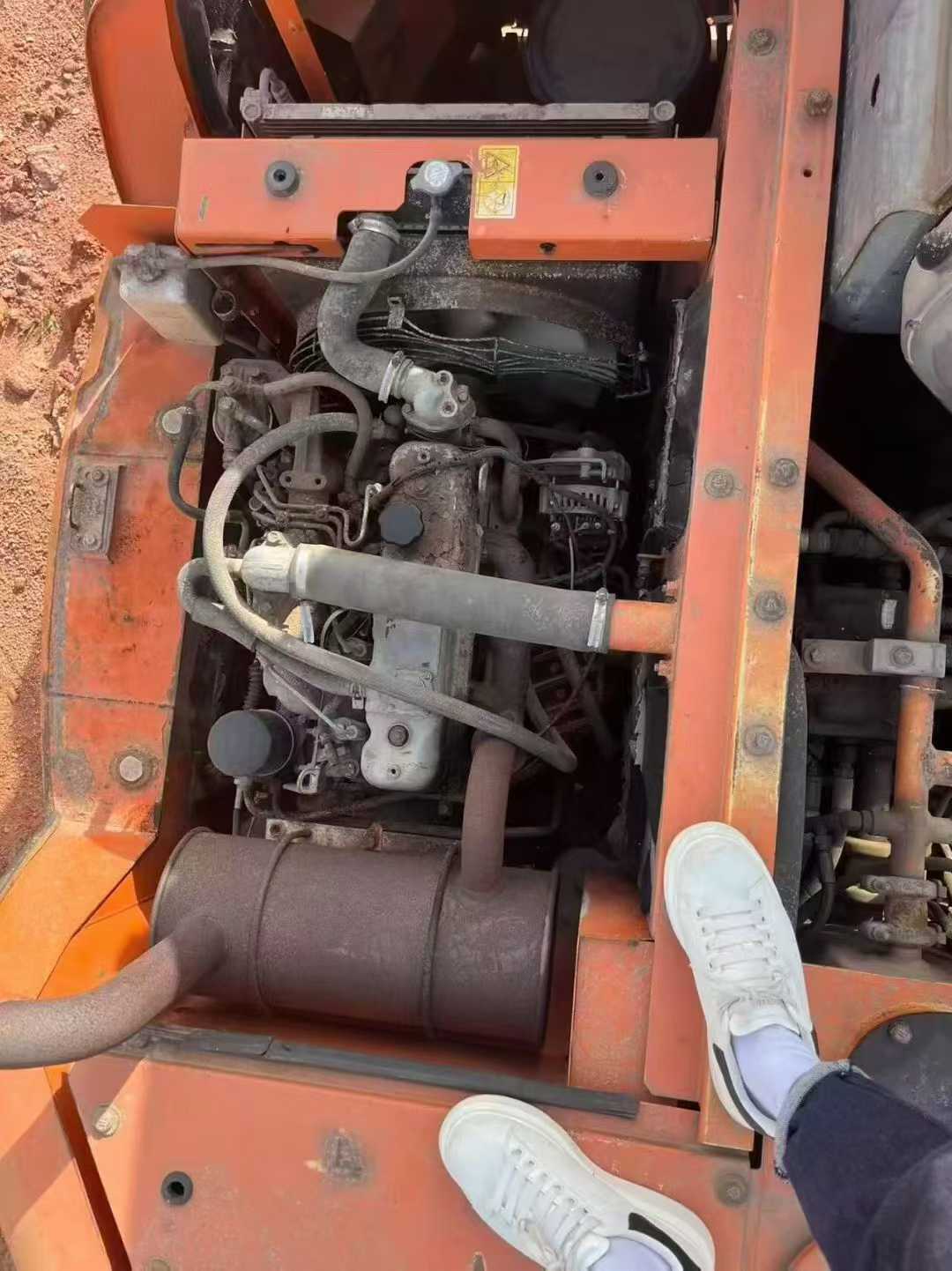

| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 30 |
| Rotation speed (rpm) | 11.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 3.4/5.0 |

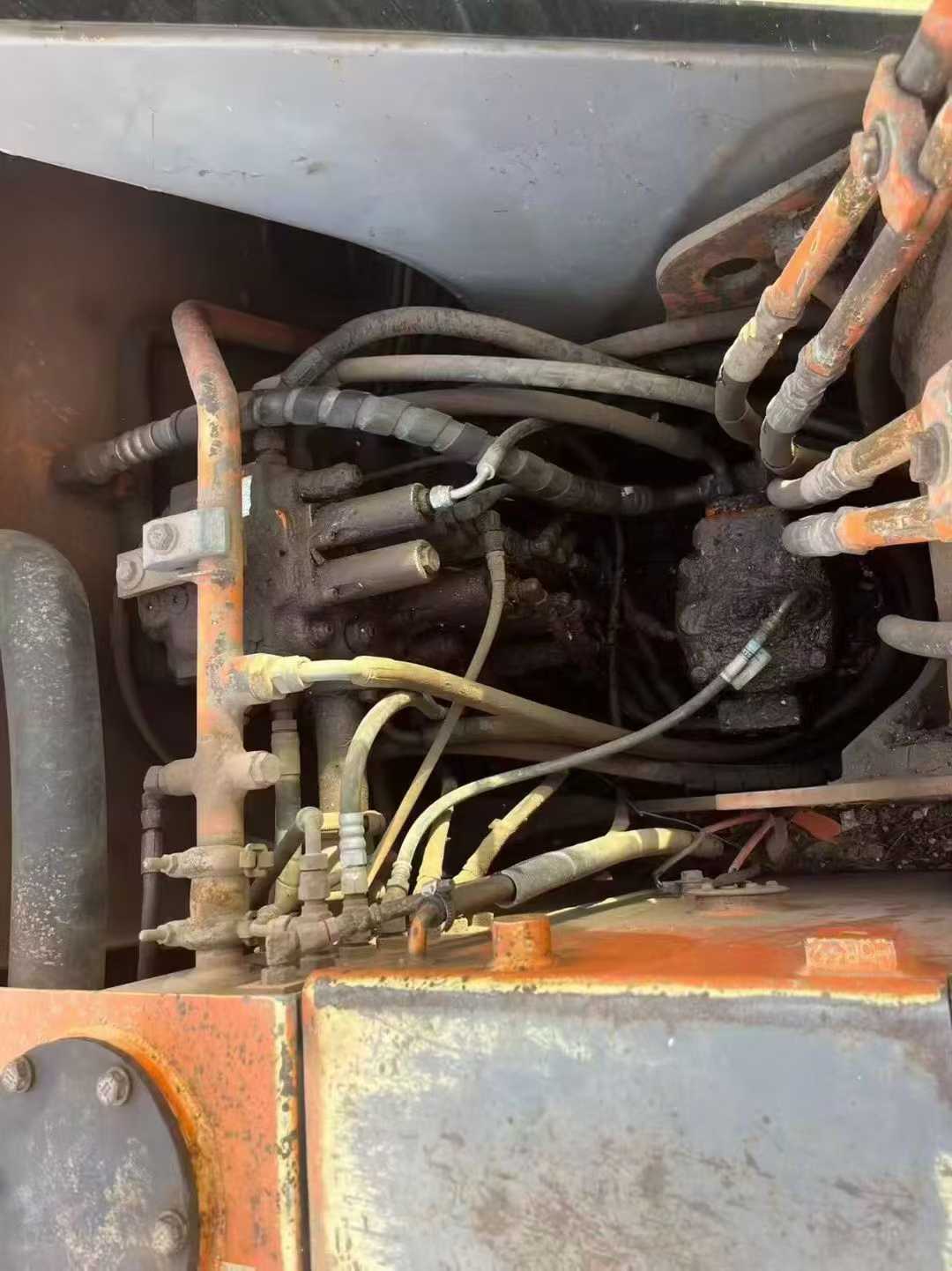

| Main overflow set pressure (Mpa) | 31.4 |
| Rotary hydraulic motor type | Variable piston pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Main pump type | Variable piston pump ×3+ gear pump ×1 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 60(over 100) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2600 |
| Full cab height (mm) | 2600 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2765 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2140 |
| Maximum digging radius (mm) | 6320 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3730 |
| Bulldozer lift or depth (mm) | No bulldozer |
Description
【 Second-hand Hitachi ZX70-4.3XTT Excavator 】 This second-hand Hitachi ZX70-4.3XTT excavator is a small excavator with outstanding performance and flexible operation. It has a working time of 2,600 hours, is in good overall condition and well-maintained, making it an ideal choice for your engineering operations. The power system is equipped with a high-efficiency and energy-saving engine imported from Hitachi, which features strong power output and smooth operation performance. It can maintain high efficiency even under harsh working conditions. The hydraulic system adopts advanced load sensing technology, ensuring more precise and smooth movements. It can handle both excavation and loading with ease. In addition, this model is also equipped with the XTT (X-Tra Travel Track) extended track design, which greatly enhances the stability and passability of the machine, especially performing well in soft soil or muddy environments. The spacious and comfortable cab, humanized control layout and all-round safety protection measures ensure that every operator can enjoy a safe and comfortable working experience. In conclusion, this Hitachi ZX70-4.3XTT not only boasts outstanding performance but is also economical and durable, making it highly
