| Specifications | Value |
|---|---|
| No. | 966436 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6510 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3.72 |
| Rod length (mm) | 1.62(reinforced type) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 30 |
| Rotation speed (rpm) | 11.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 3.4/5.0 |
| Main overflow set pressure (Mpa) | 31.4 |
| Rotary hydraulic motor type | Variable piston pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Main pump type | Variable piston pump ×3+ gear pump ×1 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 60(over 100) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2600 |
| Full cab height (mm) | 2600 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2765 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2140 |
| Maximum digging radius (mm) | 6320 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3730 |
| Bulldozer lift or depth (mm) | No bulldozer |
Description

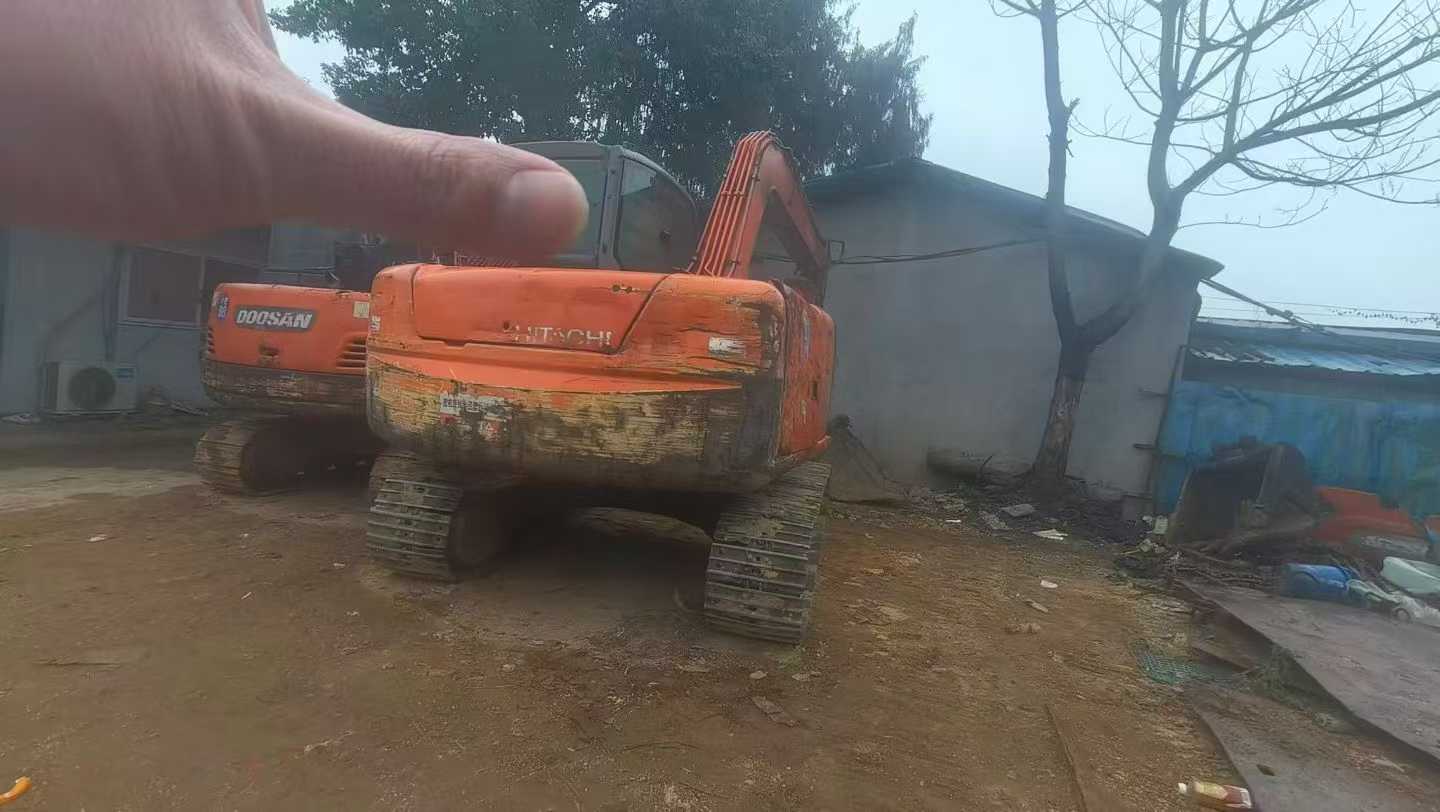

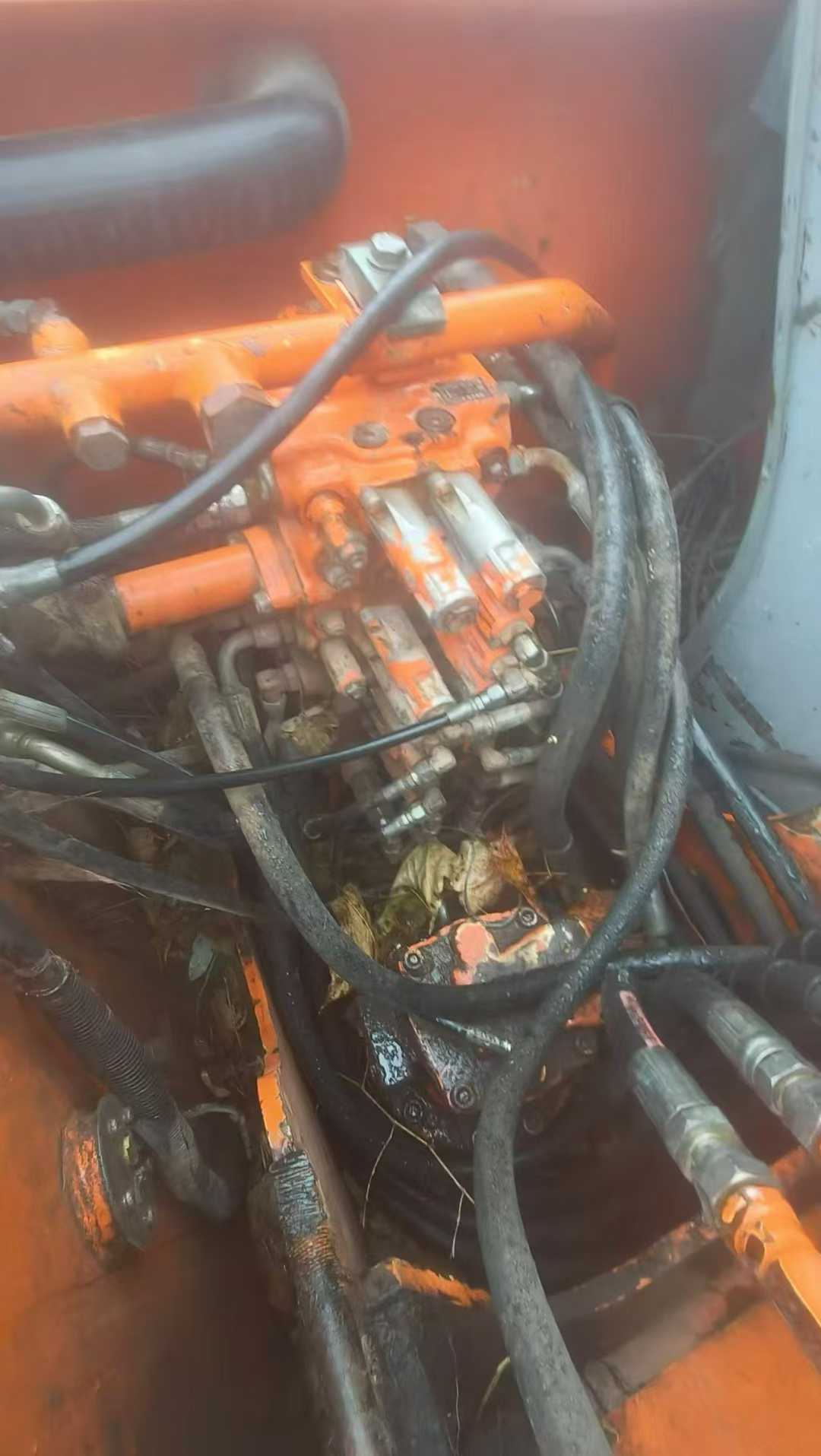

【 Hitachi 70 Second-hand Excavator, the best choice for cost performance 】 This second-hand Hitachi 70 excavator, with its outstanding performance and extremely high cost performance, has become the first choice for many construction machinery users. Compared with similar products, it is over 40,000 yuan cheaper, but the quality is not compromised at all. It is your ideal choice to save costs and improve work efficiency. This excavator has a working time of 2,500 hours and is in the best working condition, which not only ensures the stability of the equipment but also avoids the problems of the initial running-in period of a new machine. The power system is equipped with an original imported Hitachi engine, which features strong power output and smooth operation performance. It can handle complex terrains and heavy-load operations with ease. Meanwhile, this engine also features low fuel consumption and low emissions, not only meeting environmental protection requirements but also significantly reducing your operating costs. In terms of the hydraulic system, the Hitachi 70 is equipped with advanced load-sensing hydraulic technology, ensuring more precise and smooth operation. Whether in operations such as excavation, loading or groun
