| Specifications | Value |
|---|---|
| No. | 967121 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6510 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3.72 |
| Rod length (mm) | 1.62(reinforced type) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 30 |
| Rotation speed (rpm) | 11.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 3.4/5.0 |
| Main overflow set pressure (Mpa) | 31.4 |
| Rotary hydraulic motor type | Variable piston pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Main pump type | Variable piston pump ×3+ gear pump ×1 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 60(over 100) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2600 |
| Full cab height (mm) | 2600 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2765 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2140 |
| Maximum digging radius (mm) | 6320 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3730 |
| Bulldozer lift or depth (mm) | No bulldozer |
Description

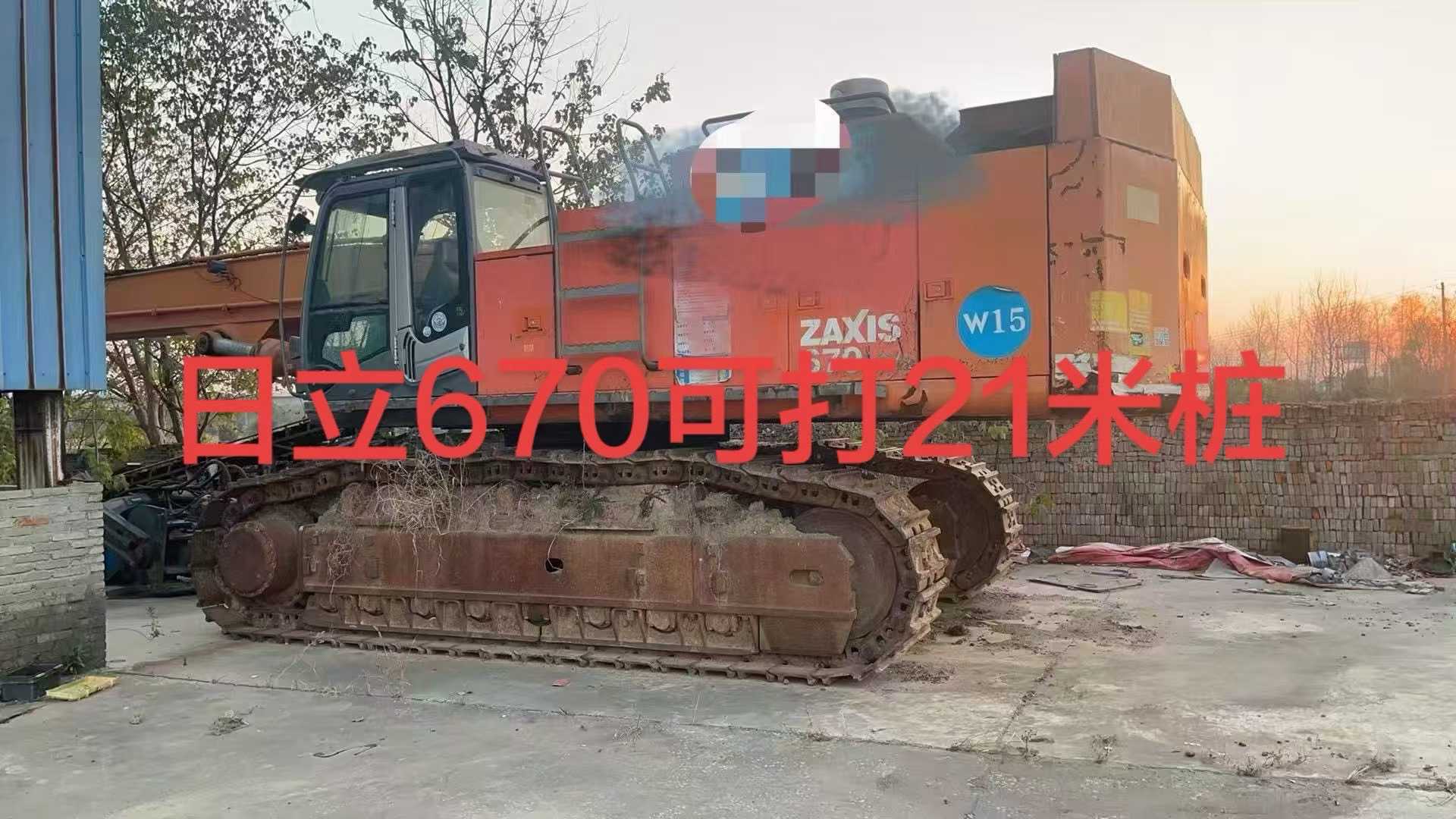

Hitachi 670 excavator, equipped with Fangfu 500 breaker, over 600,000 yuan This Hitachi 670 excavator is a highly popular heavy equipment in the market. Its outstanding performance and durability make it the first choice for many engineering projects. This machine has a working duration of 4,000 hours, which is of medium usage intensity. It is in good overall condition and well maintained, and can meet your needs for long-term high-intensity operations. In terms of the power system, it is equipped with an original imported Hitachi engine, which is powerful and runs smoothly, capable of easily handling heavy-load tasks under various complex working conditions. Meanwhile, this engine also features excellent fuel economy, significantly reducing operating costs. The hydraulic system is one of the technologies that Hitachi takes pride in. It adopts advanced negative flow control technology, which not only improves work efficiency but also significantly enhances operational flexibility and accuracy, making it easier for drivers to handle fine excavation or crushing operations. In addition, it is particularly worth mentioning that this excavator is equipped with the Fangfu 500 model high-efficiency breaker, which is specially designed for
