| Specifications | Value |
|---|---|
| No. | 967545 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6510 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3.72 |
| Rod length (mm) | 1.62(reinforced type) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 30 |
| Rotation speed (rpm) | 11.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 3.4/5.0 |
| Main overflow set pressure (Mpa) | 31.4 |
| Rotary hydraulic motor type | Variable piston pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Main pump type | Variable piston pump ×3+ gear pump ×1 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 60(over 100) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2600 |
| Full cab height (mm) | 2600 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2765 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2140 |
| Maximum digging radius (mm) | 6320 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3730 |
| Bulldozer lift or depth (mm) | No bulldozer |
Description

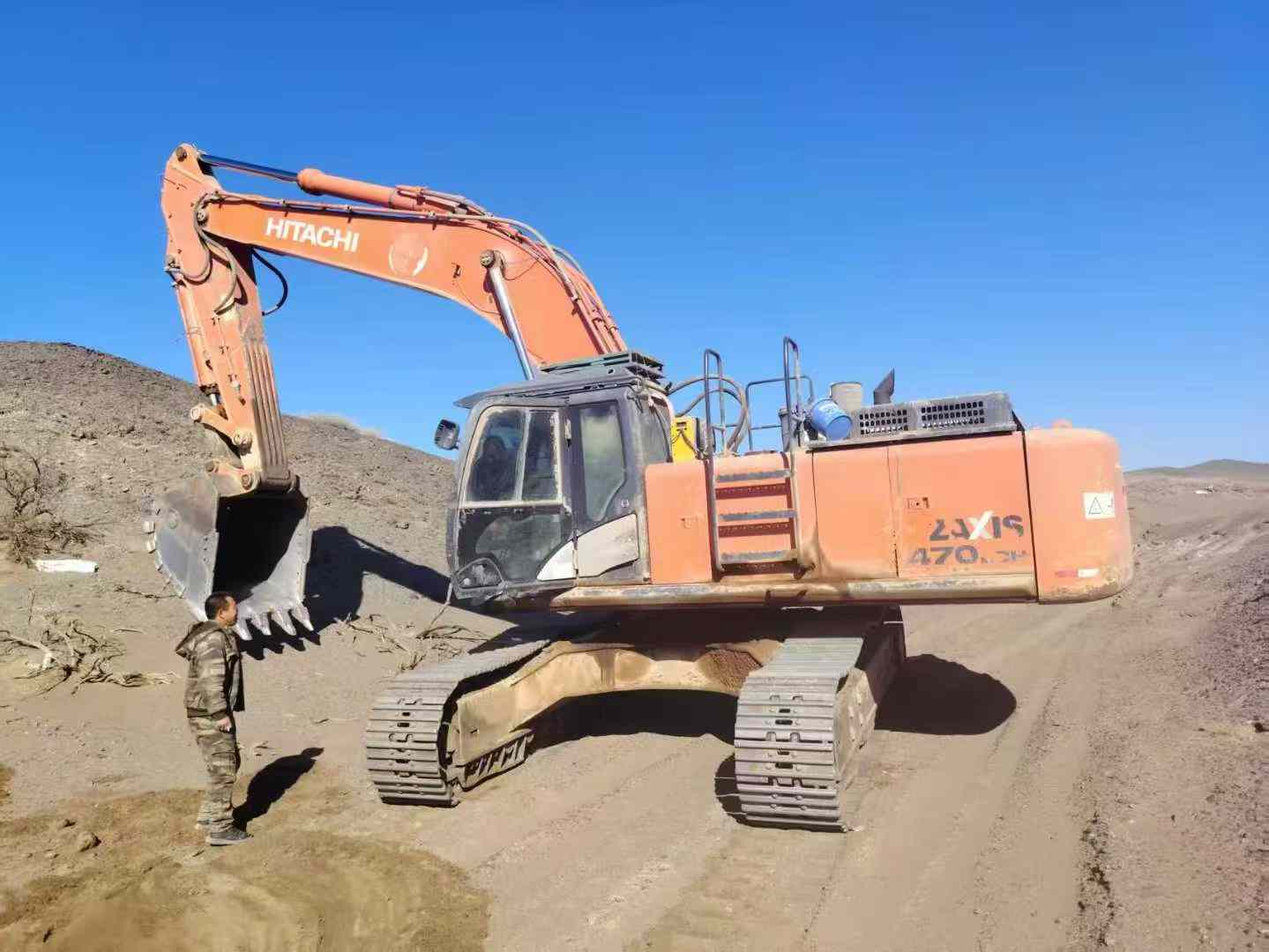

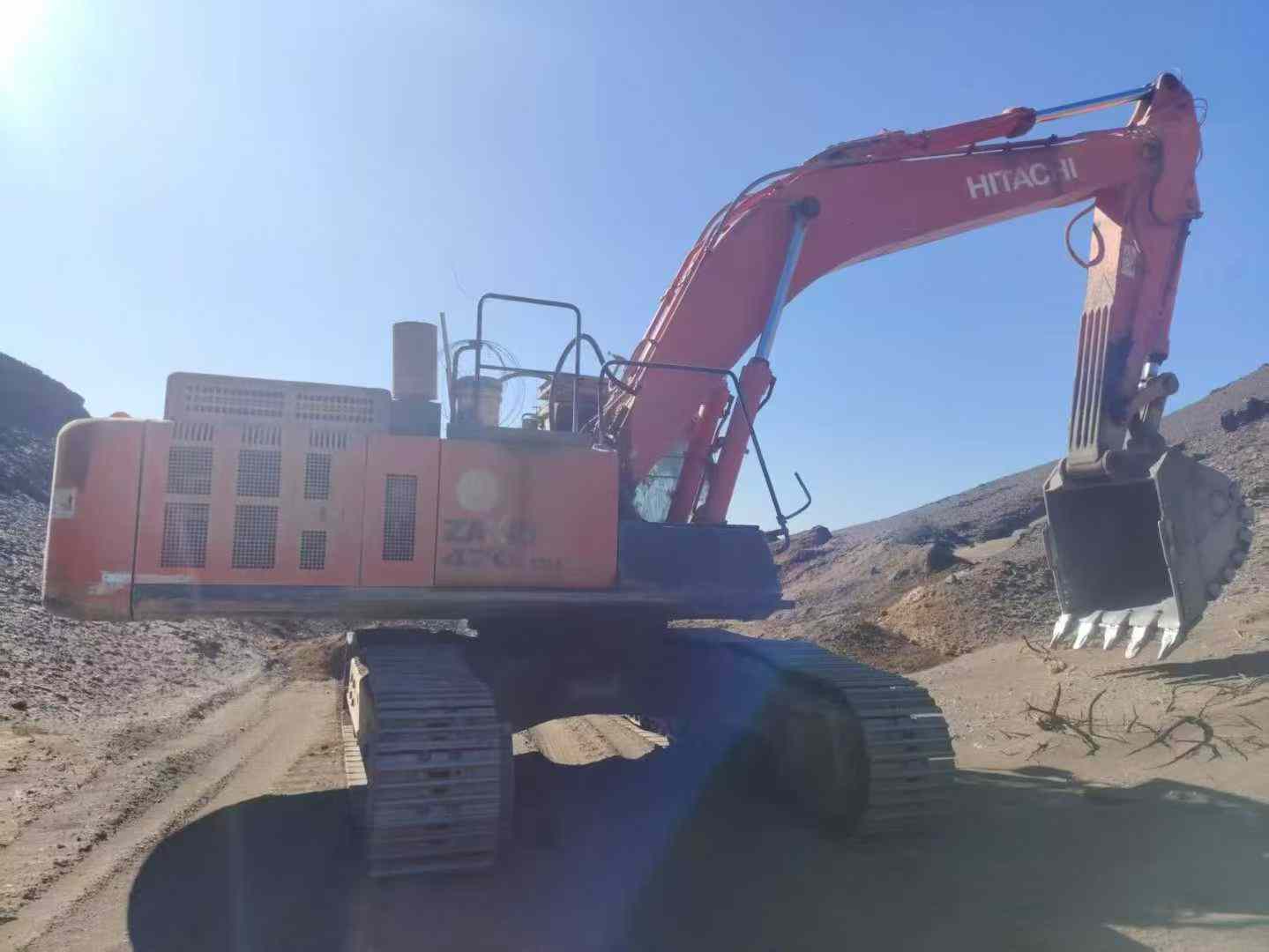

【 Premium Recommendation 】 Three Hitachi ZX470-5G excavators from 2014 are now on sale at a low price! All three excavators have undergone professional inspection and maintenance, ensuring their outstanding working performance and good mechanical condition. The cumulative working hours of each excavator are approximately 8,000 hours, which is considered a medium usage level and is highly suitable for users who require cost-effective equipment. In terms of power, this Hitachi ZX470-5G is equipped with the highly efficient and energy-saving Isuzu GH-6HK1X engine, with a maximum output power of up to 298kW (approximately 400 horsepower). This not only ensures strong power output but also takes into account fuel economy, effectively controlling your operating costs. In addition, this model is also equipped with an advanced electronic control system, which can automatically adjust the best working mode according to the actual working conditions, further enhancing work efficiency. The hydraulic system is a major highlight of this excavator. It adopts the HIOS III hydraulic system independently developed by Hitachi, featuring fast response speed and high operational sensitivity. It can handle both excavation and loading operations with ease
