| Specifications | Value |
|---|---|
| No. | 970543 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6510 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3.72 |
| Rod length (mm) | 1.62(reinforced type) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 30 |
| Rotation speed (rpm) | 11.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 3.4/5.0 |
| Main overflow set pressure (Mpa) | 31.4 |
| Rotary hydraulic motor type | Variable piston pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Main pump type | Variable piston pump ×3+ gear pump ×1 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 60(over 100) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2600 |
| Full cab height (mm) | 2600 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2765 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2140 |
| Maximum digging radius (mm) | 6320 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3730 |
| Bulldozer lift or depth (mm) | No bulldozer |
Description

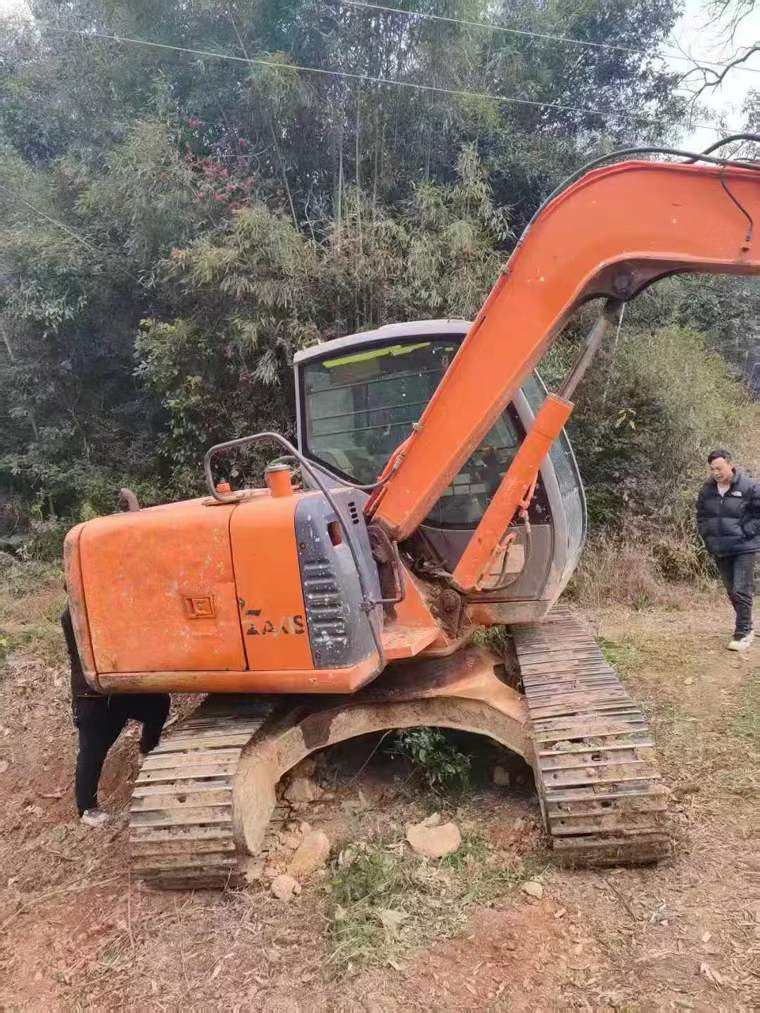

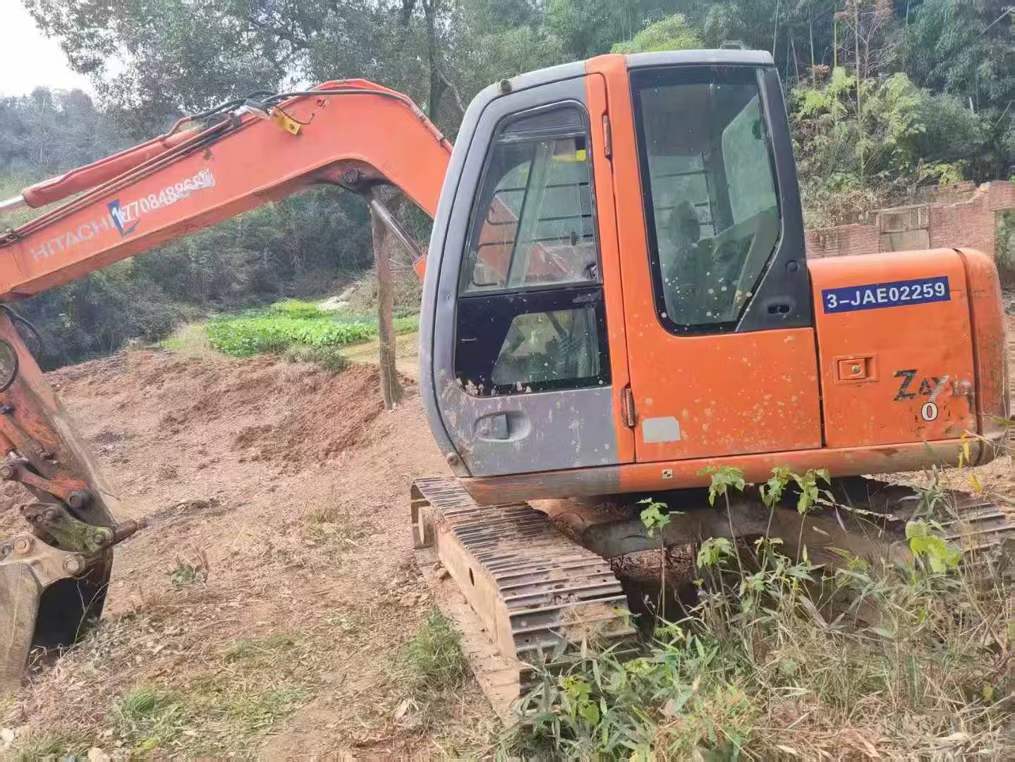

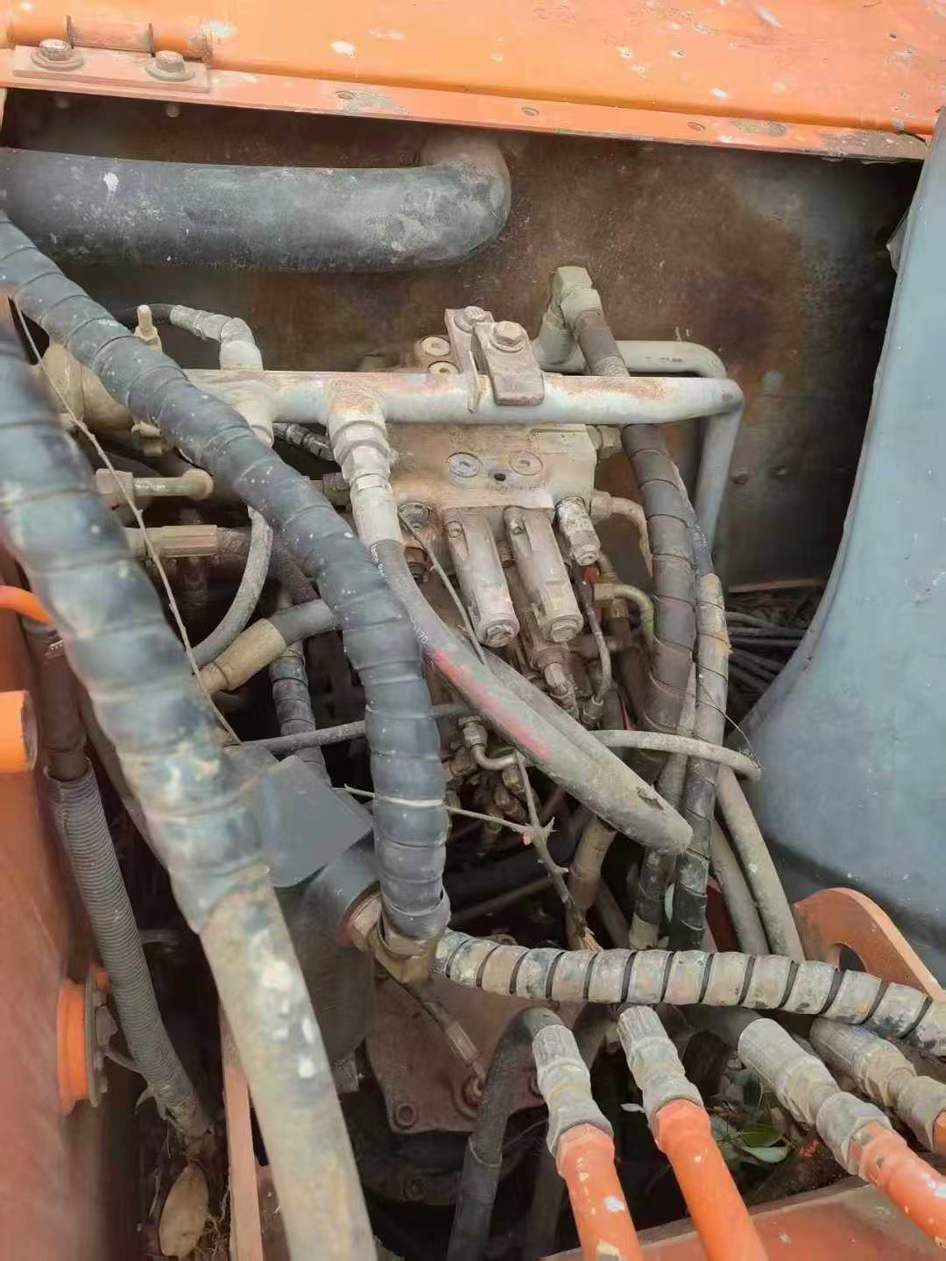

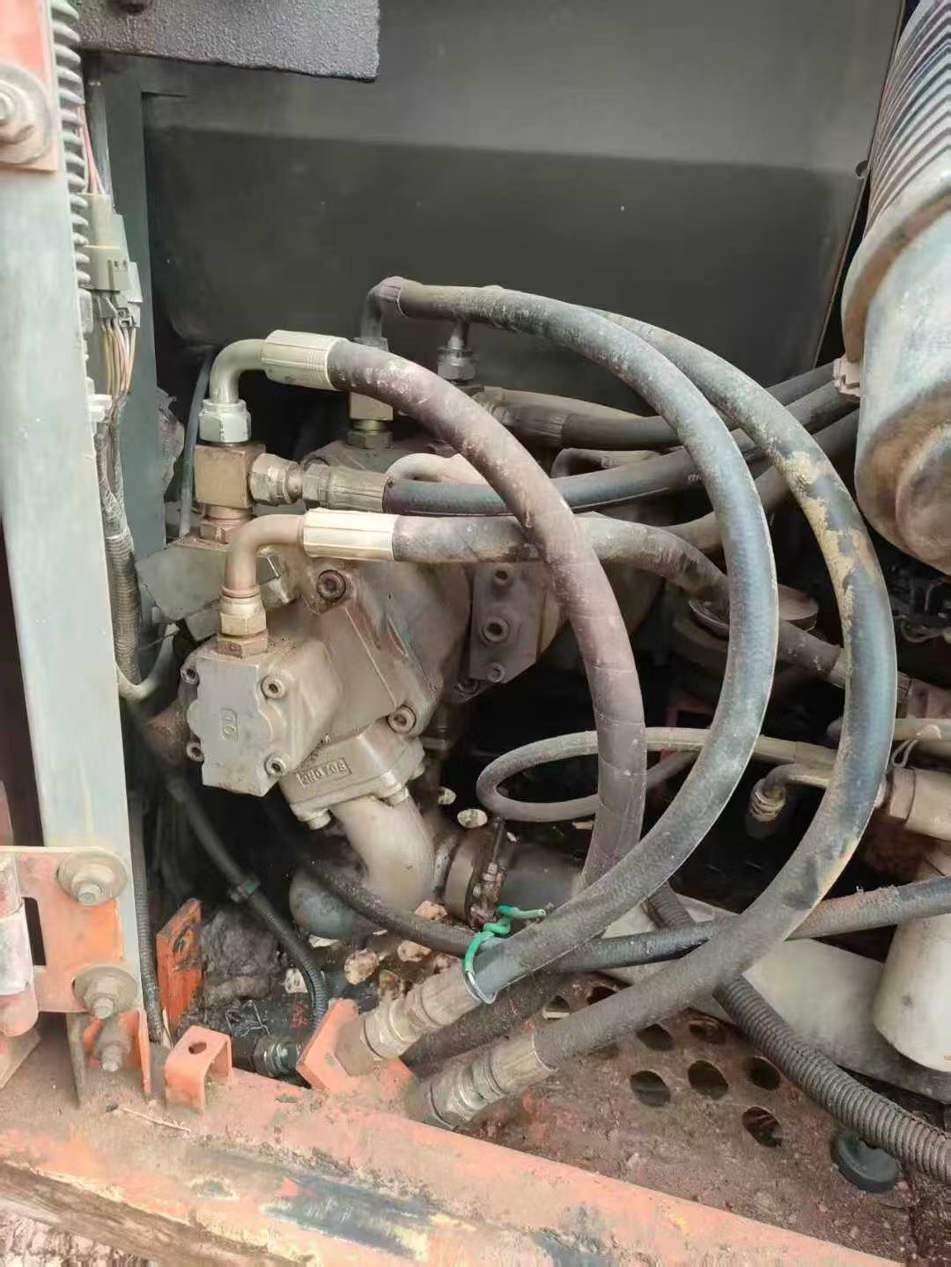

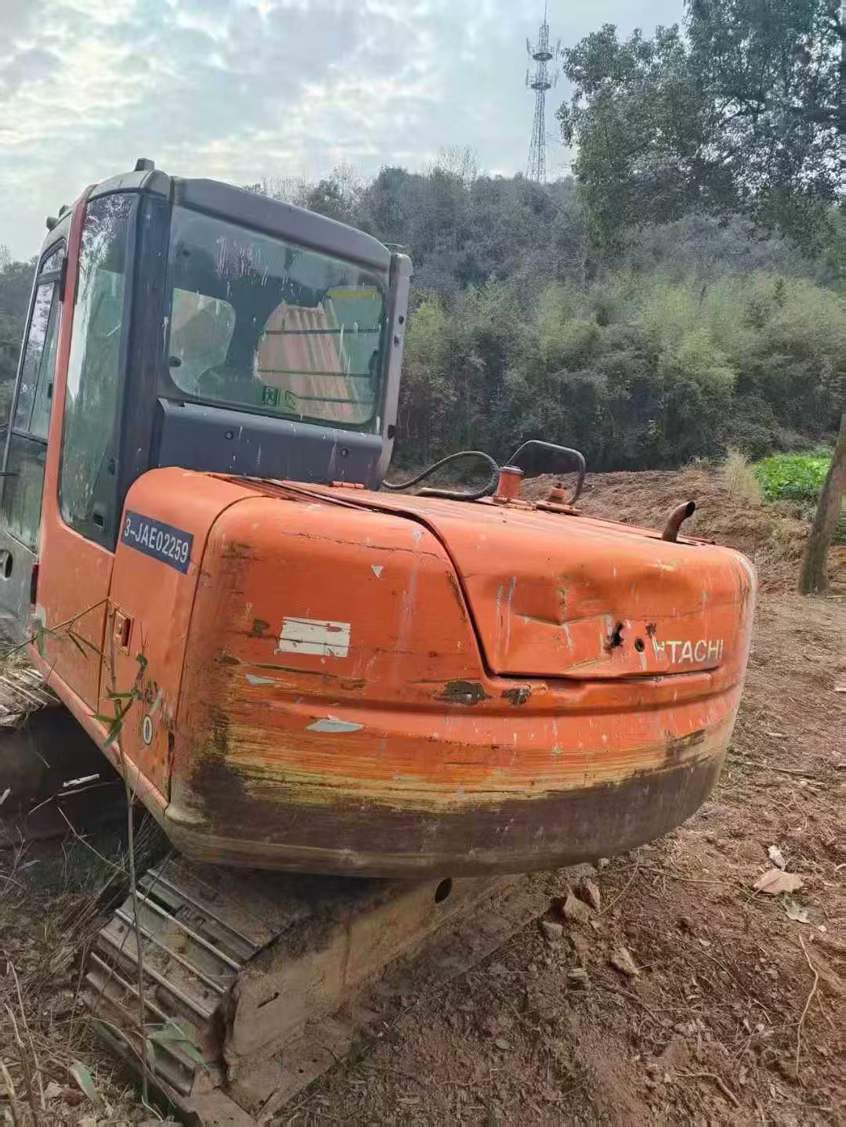

【 Premium Recommendation 】 Hitachi ZX70 second-hand excavator from 2011, with outstanding performance and reliable quality, is your ideal choice for engineering operations. Since its release from the factory, this excavator has worked for only over 60,000 hours in total, which is far shorter than the average service life of similar equipment. It can be called an "excellent" choice. After professional testing, all performance indicators of this machine have met the standards for exemption from inspection, so there is no need to worry about any potential problems. In terms of the power system, this machine is equipped with an original imported Hitachi engine, which is powerful and stable, and can perform well even in complex and harsh working environments. Its advanced fuel injection technology not only enhances fuel efficiency but also significantly reduces emission pollution, meeting modern environmental protection requirements. In addition, this engine also features excellent durability and reliability, enabling it to operate continuously for long periods without frequent maintenance. The hydraulic system adopts Hitachi's latest generation of high-efficiency and energy-saving design, ensuring flexible operation and rapid response of
