| Specifications | Value |
|---|---|
| No. | 970918 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6510 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3.72 |
| Rod length (mm) | 1.62(reinforced type) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 30 |
| Rotation speed (rpm) | 11.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 3.4/5.0 |
| Main overflow set pressure (Mpa) | 31.4 |
| Rotary hydraulic motor type | Variable piston pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Main pump type | Variable piston pump ×3+ gear pump ×1 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 60(over 100) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2600 |
| Full cab height (mm) | 2600 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2765 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2140 |
| Maximum digging radius (mm) | 6320 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3730 |
| Bulldozer lift or depth (mm) | No bulldozer |
Description

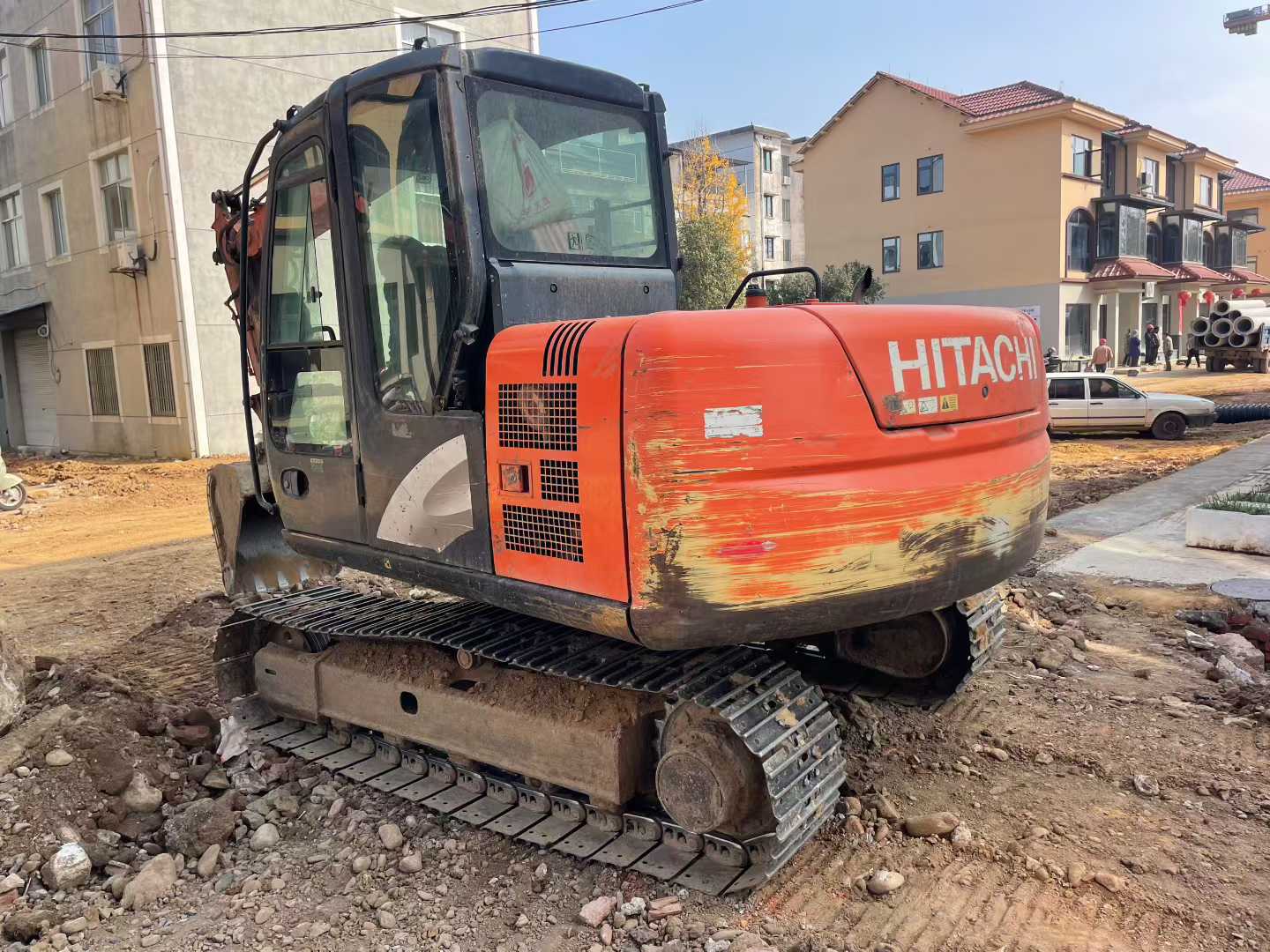

【 Premium Recommendation 】2019 Hitachi ZX70-5A second-hand excavator, outstanding performance, no-inspection quality, ready to use right after purchase, no need to worry! Since this excavator was put into use in 2019, its total working hours have only been 3,500 hours. It is in the best working condition, well maintained and has no record of major overhauls. The appearance is neat and tidy, and the internal structure is as good as new. Both in terms of appearance and interior, it maintains an extremely high standard. In terms of the power system, it adopts an original imported high-efficiency and energy-saving engine from Hitachi, which features strong power output and smooth operation characteristics. Even in complex and changeable construction environments, it can easily handle various challenges. Meanwhile, this engine also features excellent fuel economy, significantly reducing operating costs and enhancing work efficiency. In addition, it is equipped with an advanced electronic control system that can automatically adjust the power output according to the actual working conditions, ensuring the stability and reliability of the equipment. The hydraulic system is a major highlight of this excavator. It adopts high-pressure common
