Product Description

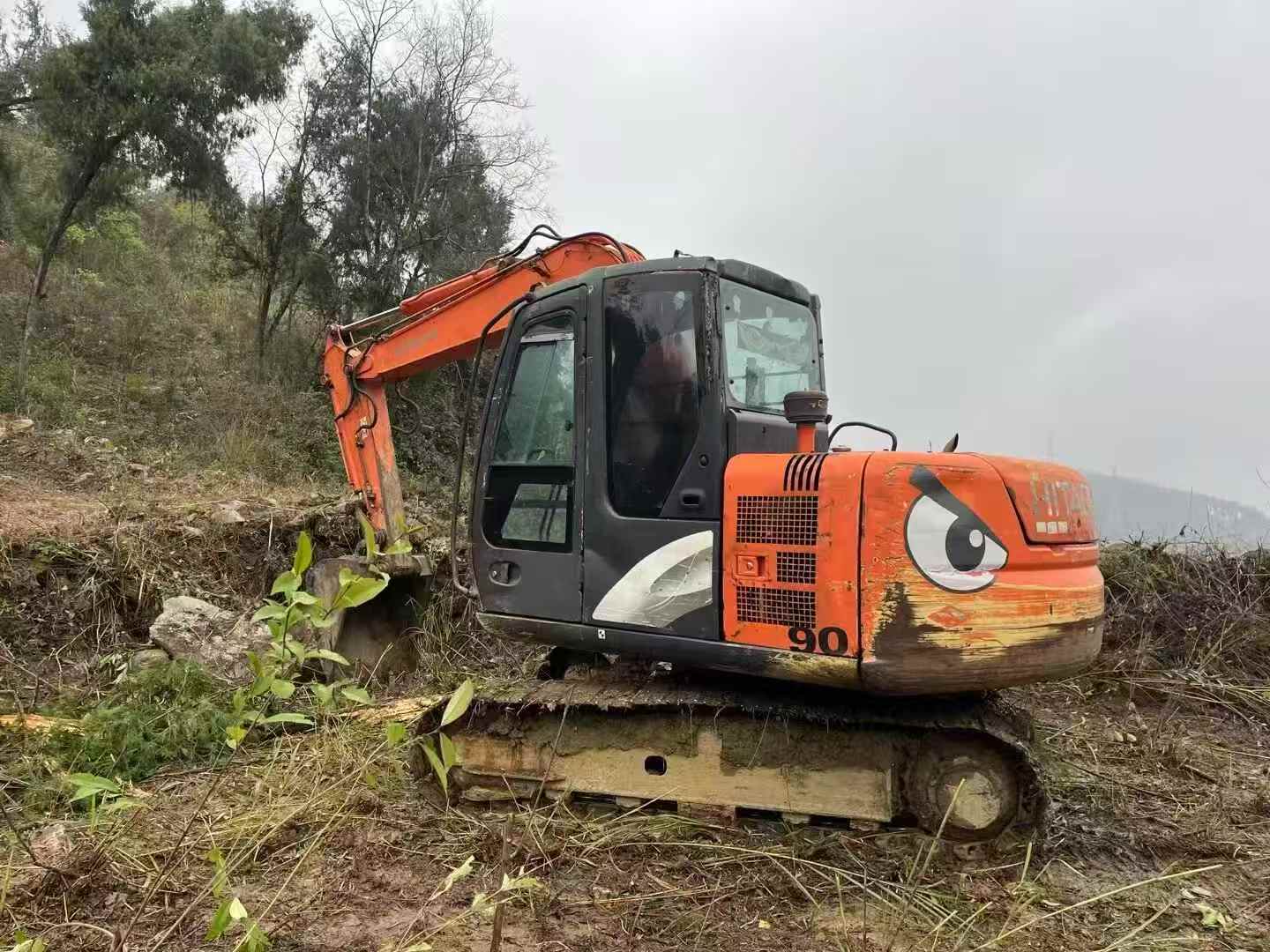

This second-hand Hitachi excavator from 2014 has a cumulative working time of approximately 78,000 hours, demonstrating its outstanding durability and stability. Equipped with an efficient and reliable engine, although the specific model is not provided, based on the same series of Hitachi models, it is expected to be a high-performance diesel engine with strong power, ensuring excellent working efficiency under various operating conditions. In terms of the hydraulic system, this equipment is equipped with an advanced combination of hydraulic pumps and hydraulic motors, providing a smooth and precise operation experience. Whether it is excavation, loading or crushing operations, it can handle them with ease, greatly improving the construction efficiency and quality. In addition, this excavator also features several design highlights: a spacious and comfortable cab, equipped with a good field of vision and an ergonomic seat, which reduces the fatigue caused by long-term operation; Maintenance and upkeep are convenient, and key components are easily accessible for inspection or replacement, reducing the operating costs in the later stage. Overall, this is a second-hand excavator with an extremely high cost performance, which is very sui
| Specifications | Value |
|---|---|
| No. | 976659 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6510 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3.72 |
| Rod length (mm) | 1.62(reinforced type) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 30 |
| Rotation speed (rpm) | 11.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 3.4/5.0 |
| Main overflow set pressure (Mpa) | 31.4 |
| Rotary hydraulic motor type | Variable piston pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Main pump type | Variable piston pump ×3+ gear pump ×1 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 60(over 100) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2600 |
| Full cab height (mm) | 2600 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2765 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2140 |
| Maximum digging radius (mm) | 6320 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3730 |
| Bulldozer lift or depth (mm) | No bulldozer |
