Product Description

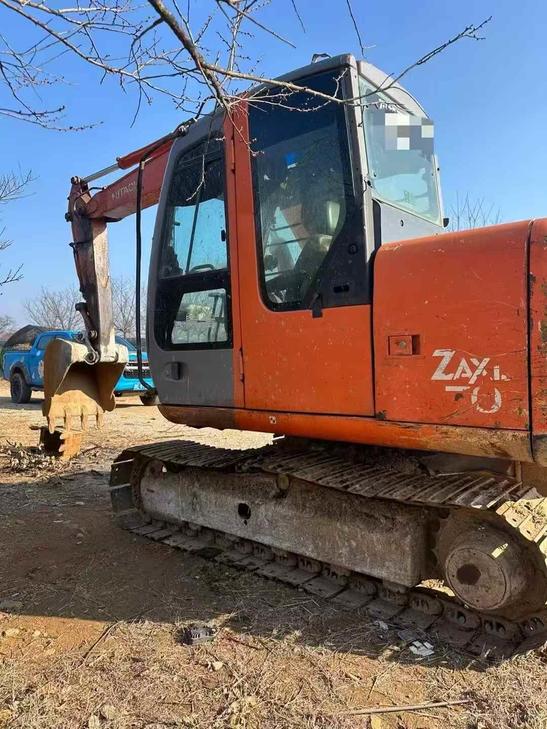

There is currently a second-hand Hitachi 70 series excavator with a total working time of approximately 50,000 hours. This device adopts the highly efficient engine independently developed by Hitachi. The model may be ISUZU AH-6HK1X, and the maximum output power is expected to reach 40 kilowatts, ensuring a perfect combination of strong power performance and fuel economy. After professional maintenance and upkeep, the engine is in good operating condition, starts quickly and generates low noise. In terms of the hydraulic system, it is equipped with high-performance variable piston pumps and high-quality hydraulic motors, which can provide a stable and precise operation experience. It performs exceptionally well in both excavation depth and lifting height, meeting the demands of various complex working conditions. In addition, its unique load sensing technology enables the entire machine to automatically adjust to the best working mode under different operating conditions, greatly enhancing work efficiency and reducing energy consumption. As a classic model, this Hitachi 70 series excavator not only boasts outstanding reliability and durability, but also offers excellent maneuverability and comfort. The spacious and bright cab design,
| Specifications | Value |
|---|---|
| No. | 978721 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6510 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3.72 |
| Rod length (mm) | 1.62(reinforced type) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 30 |
| Rotation speed (rpm) | 11.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 3.4/5.0 |
| Main overflow set pressure (Mpa) | 31.4 |
| Rotary hydraulic motor type | Variable piston pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Main pump type | Variable piston pump ×3+ gear pump ×1 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 60(over 100) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2600 |
| Full cab height (mm) | 2600 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2765 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2140 |
| Maximum digging radius (mm) | 6320 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3730 |
| Bulldozer lift or depth (mm) | No bulldozer |
