Product Description

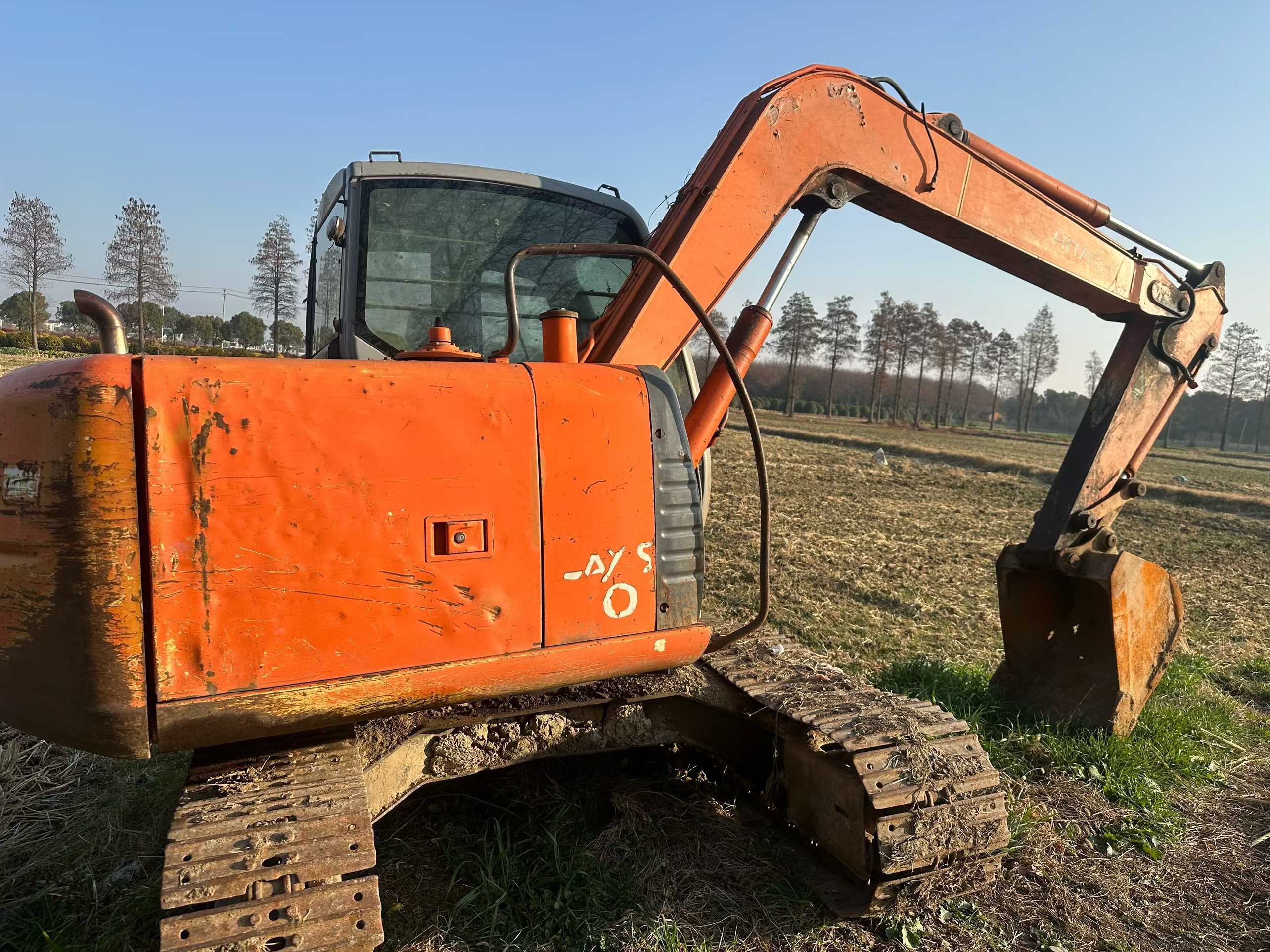

Engineered with precision hydraulics and powered by a robust ISUZU CC-4JG1 engine delivering 40.5kW at 2000 rpm, this 2010 Hitachi ZX70 represents proven Japanese excavation technology. Built in Hefei with joint venture manufacturing standards, this 7-ton compact excavator combines exceptional digging performance with reliable operational efficiency.
Key technical specifications include:
- Maximum digging depth of 4,170mm with 6,320mm reach radius
- Powerful bucket digging force of 55kN and rod force of 38kN
- Variable piston pump hydraulic system with 31.4 Mpa main overflow pressure
- Water-cooled 4-cylinder engine with 3.318L displacement
- Compact transport dimensions: 6,080mm × 2,260mm × 2,600mm
- Superior climbing capability up to 70% grade
Currently located in Wuxi, Jiangsu Province, this ZX70 maintains the Hitachi legacy of durability and precision control. With reinforced rod construction and comprehensive hydraulic capabilities, it delivers consistent performance for demanding excavation projects across various terrain conditions.
| Specifications | Value |
|---|---|
| No. | 981857 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6510 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3.72 |
| Rod length (mm) | 1.62(reinforced type) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 30 |
| Rotation speed (rpm) | 11.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 3.4/5.0 |
| Main overflow set pressure (Mpa) | 31.4 |
| Rotary hydraulic motor type | Variable piston pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Main pump type | Variable piston pump ×3+ gear pump ×1 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 60(over 100) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2600 |
| Full cab height (mm) | 2600 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2765 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2140 |
| Maximum digging radius (mm) | 6320 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3730 |
| Bulldozer lift or depth (mm) | No bulldozer |
