Product Description

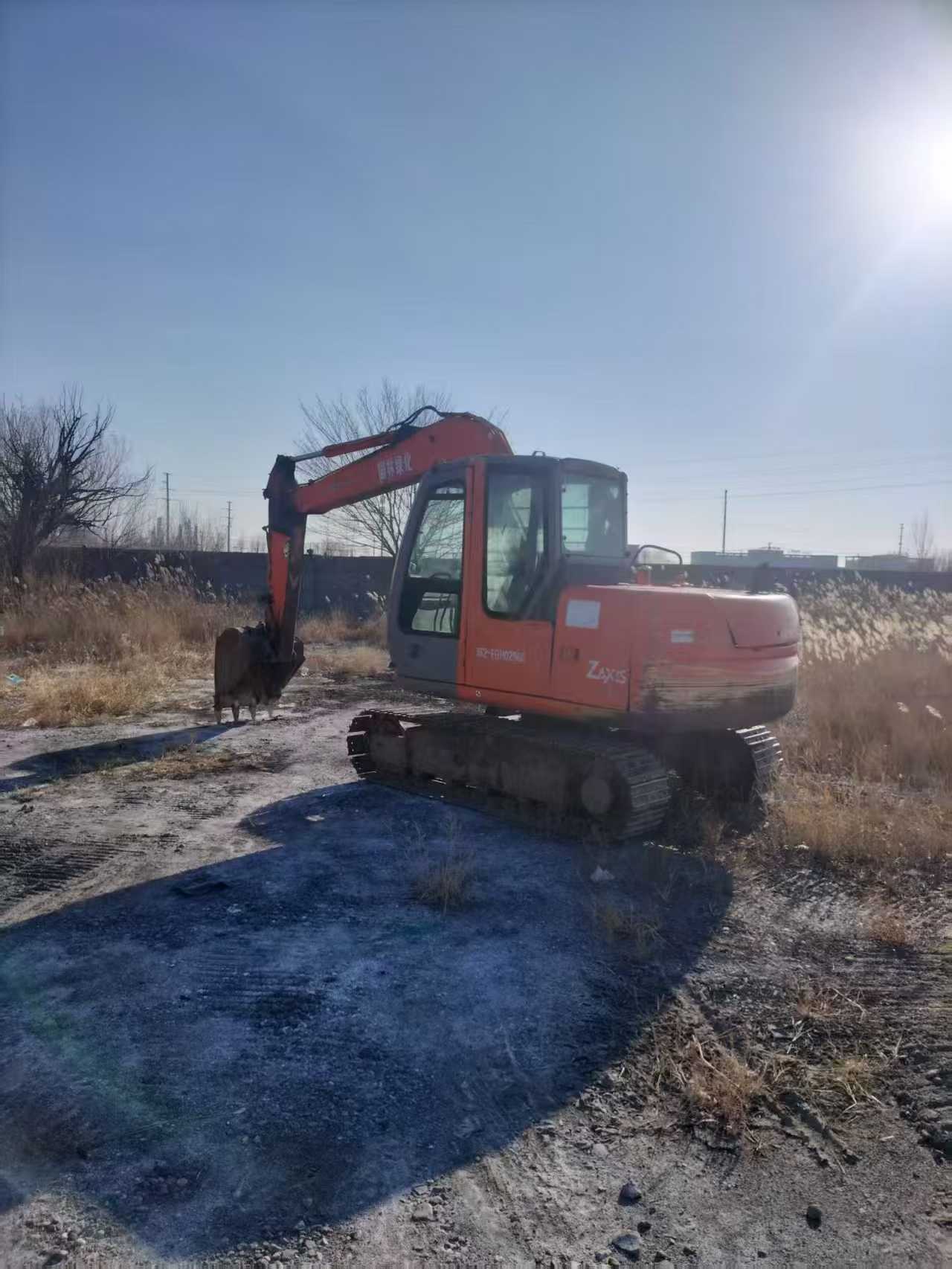

Built for precision and reliability, this 2010 Hitachi ZX70 excavator delivers exceptional operator control with its 7-ton working capacity and robust ISUZU CC-4JG1 engine. Operating from Shandong Dongying, this machine features reinforced rod construction and water-cooled efficiency for demanding jobsite conditions.
Superior handling characteristics include variable piston pump hydraulics providing smooth operation across all functions. Operators benefit from excellent cabin visibility and intuitive controls, while the machine's 30 kPa ground pressure ensures minimal surface disturbance. With a maximum digging radius of 6.32m and depth capability of 4.17m, this excavator tackles diverse excavation tasks with confidence.
- 7-ton working weight with 0.3m³ bucket capacity
- 40.5kW rated power at 2000 RPM
- Enhanced stability with 1750mm track gauge
- Reinforced rod design for extended durability
- 135L fuel capacity for extended operation
Manufactured in Hefei, Anhui Province, this joint venture model represents proven engineering excellence. Ready for immediate deployment in construction, landscaping, and utility applications.
| Specifications | Value |
|---|---|
| No. | 985403 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6510 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3.72 |
| Rod length (mm) | 1.62(reinforced type) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 30 |
| Rotation speed (rpm) | 11.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 3.4/5.0 |
| Main overflow set pressure (Mpa) | 31.4 |
| Rotary hydraulic motor type | Variable piston pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Main pump type | Variable piston pump ×3+ gear pump ×1 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 60(over 100) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2600 |
| Full cab height (mm) | 2600 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2765 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2140 |
| Maximum digging radius (mm) | 6320 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3730 |
| Bulldozer lift or depth (mm) | No bulldozer |
