Product Description

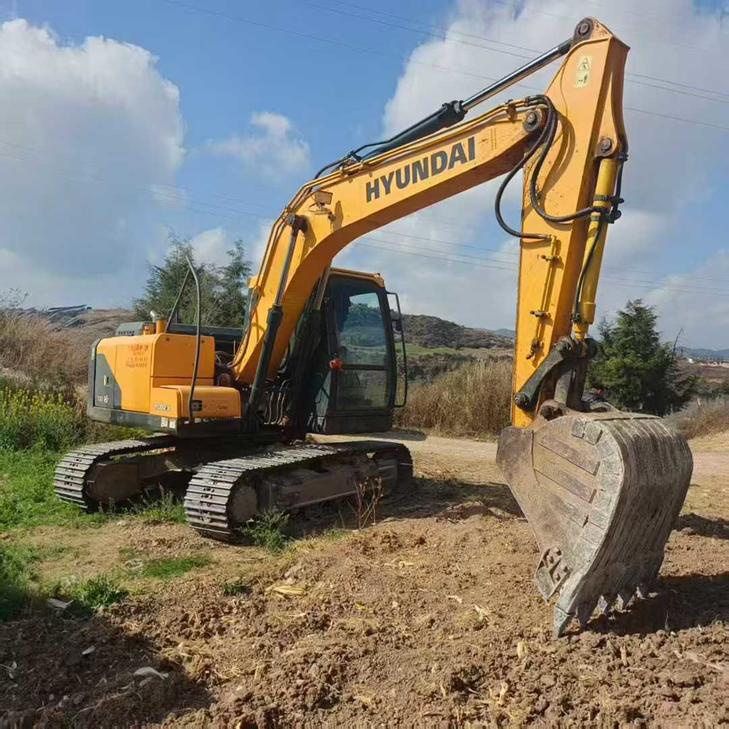

Skip the factory lead times with this 2020 Hyundai 110LVS excavator, available now from Hunan China for immediate deployment to your site. Built for demanding operations, this 11-ton machine delivers reliable performance with its MITSUBISHI 4FRC engine producing 99kW of rated power and 43.5 N.m maximum torque.
Engineered for versatility and efficiency, this compact excavator features a 0.45m³ bucket capacity and impressive reach specifications: 7740mm maximum digging radius and 5090mm maximum digging depth. Advanced hydraulic systems with dual variable plunger pumps ensure smooth operation across all functions.
- 11-ton operating weight with 4300mm boom length
- MITSUBISHI 4FRC engine: 4.2L displacement, water-cooled direct injection
- Dual hydraulic pumps: 2×112 L/min maximum flow
- 70% climbing ability with 5.5 km/h travel speed
- 250L fuel tank for extended operation
- Located in Hunan China - fast deployment available
Ready for immediate shipment, this proven excavator eliminates waiting periods and gets your project moving without delay.
| Specifications | Value |
|---|---|
| No. | 980872 |
| Tonnage (tons) | 11 |
| Bucket capacity (m³) | 0.45m3 |
| Boom length (mm) | 4300mm |
| Rod length (mm) | 2260mm |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | MITSUBISHI 4FRC |
| Rated power (kw/rpm) | 99(74) / 2000 |
| Cylinder diameter × stroke (mm) | 102 (4.02) x 130 (5.12) |
| Maximum torque (N.m) | 43.5(315) / 1350 |
| Displacement (L) | 4.2 |
| Working form | 4 cylinder 4 stroke water cooled direct injection engine |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.5 km/h (3.4 mph) / 3.4 km/h (2.1 mph) |
| Maximum flow of main pump (l/min) | 2×112 (2×29.6) |
| Traveling Hydraulic Circuit (Mpa) | 330 |
| Rotary Hydraulic Circuit (Mpa) | 240 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 330 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-95 x 65 x 855 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-110 x 75 x 1070 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-95 x 70 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 17.5 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 210 |
| Full cab height (mm) | 2800 |
| Counterweight ground clearance (mm) | 900 |
| Back end turning radius (mm) | 2380mm |
| Total track length (mm) | 7270 |
| Total track width (mm) | 2490 |
| Maximum digging radius (mm) | 7740mm |
| Maximum digging depth (mm) | 5090mm |
| Maximum excavation height (mm) | 8070mm |
| Maximum unloading height (mm) | 5710mm |
| Maximum vertical digging depth (mm) | 4430mm |
| Maximum excavation radius of stop surface (mm) | 7610mm |
