| Specifications | Value |
|---|---|
| No. | 967497 |
| Tonnage (tons) | 13 |
| Bucket capacity (m³) | 0.3-0.59m3 |
| Boom length (mm) | 4300mm |
| Rod length (mm) | 2260mm |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | MITSUBISHI 4FRC |
| Rated power (kw/rpm) | 131(98) / 2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 (4.0) x 120 (4.7) |
| Displacement (L) | 4.2 |
| Working form | 4 cylinder 4 stroke water cooled direct injection engine |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.5 km/h (3.4 mph) / 3.2 km/h (2.0 mph) |
| Maximum flow of main pump (l/min) | 2 x 124 |
| Traveling Hydraulic Circuit (Mpa) | 365 |
| Rotary Hydraulic Circuit (Mpa) | 285 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 350 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-100 x 70 x 840 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-115 x 80 x 1138 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-105 x 75 x 1075 |
| Fuel Tank (L) | 270 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 17.5 |
| Hydraulic System (L) | 210 |
| Total transport height (mm) | 8330 |
| Counterweight ground clearance (mm) | 935 |
| Back end turning radius (mm) | 2310 |
| Onboard width (mm) | 2476 |
| Total track length (mm) | 4300 |
| Total track width (mm) | 2500 |
| Maximum digging radius (mm) | 8330mm |
| Maximum digging depth (mm) | 5550mm |
| Maximum excavation height (mm) | 8500mm |
| Maximum unloading height (mm) | 6060mm |
| Maximum vertical digging depth (mm) | 5330mm |
| Maximum excavation radius of stop surface (mm) | 8180mm |
Description

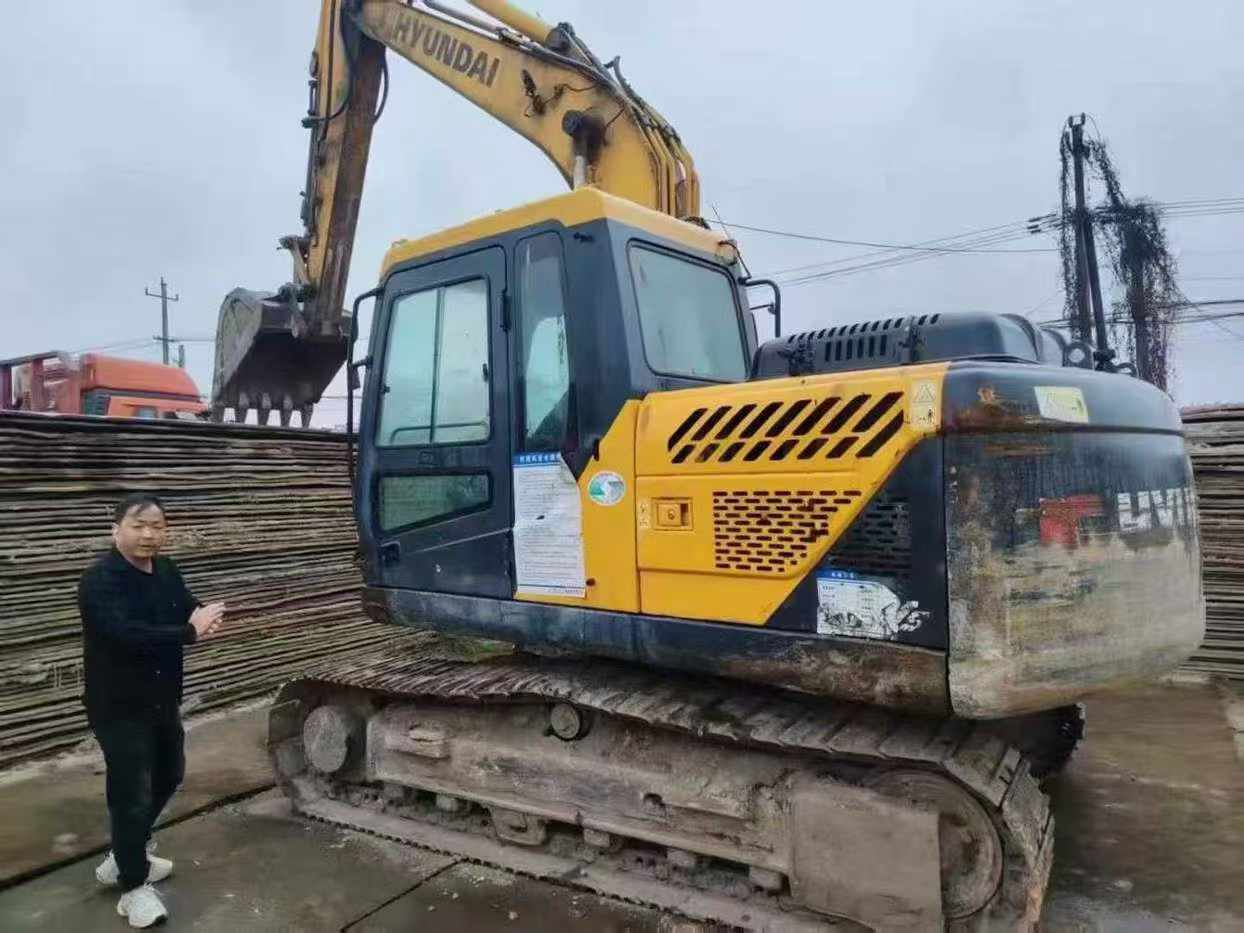

【 Premium Recommendation 】 20-year-old Hyundai R130 second-hand excavator, with outstanding performance and high cost performance! This 20-year-old Hyundai R130 second-hand excavator has a working time of only 3,500 hours, which is far lower than the average usage time of similar equipment. The overall mechanical condition is good and it is well maintained. Its engine is equipped with a Cummins diesel engine that has been tested by the market for a long time. It is powerful, stable and reliable. Whether facing complex terrain or heavy-load operations, it can handle them with ease. Meanwhile, this model has excellent fuel economy performance and can effectively reduce operating costs. In terms of the hydraulic system, this R130 is equipped with an advanced negative flow control system, ensuring smooth operation and rapid response. It is particularly suitable for application scenarios such as fine excavation and quick loading. In addition, its unique cooling design enables it to maintain efficient operation even in high-temperature environments, thereby extending the service life of the equipment. Most notably, this excavator has undergone comprehensive testing by a professional team, and it has been confirmed that there are no major
