Product Description

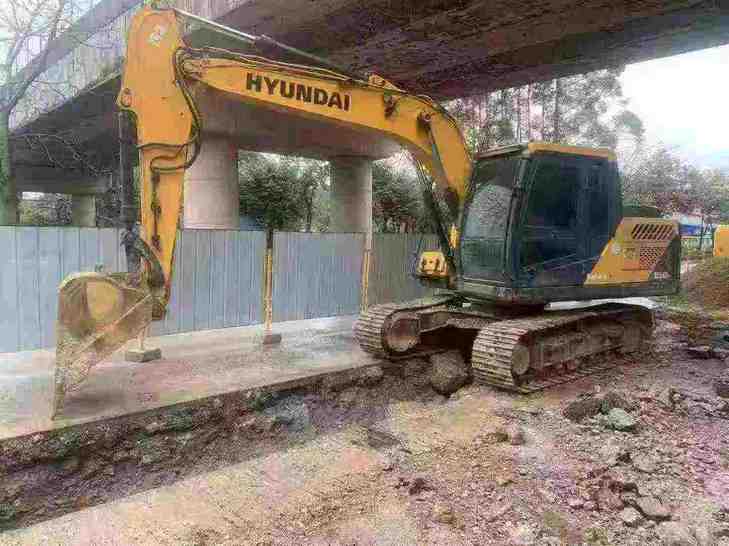

Built for reliability and performance, this 2021 Hyundai 130LVS excavator delivers proven value in the used equipment market. With 13 tons of operating weight and a robust MITSUBISHI 4FRC engine producing 131kW at 2200 RPM, this machine handles demanding excavation tasks with confidence.
Hyundai's reputation for durability translates directly to lower ownership costs and stronger resale values. Parts availability remains excellent through established dealer networks, while the brand's engineering standards ensure consistent performance even in pre-owned units.
- Maximum digging depth: 5,550mm with 8,330mm reach
- Bucket capacity: 0.3-0.59m³ for versatile material handling
- Dual variable plunger pumps deliver 2 x 124 L/min flow
- 270L fuel tank supports extended operation cycles
- 70% climbing ability tackles challenging terrain
Currently located in Guangxi Laibin, this excavator represents smart investment in proven technology. Hyundai's joint venture manufacturing ensures quality components while maintaining competitive pricing in the secondary market.
| Specifications | Value |
|---|---|
| No. | 985633 |
| Tonnage (tons) | 13 |
| Bucket capacity (m³) | 0.3-0.59m3 |
| Boom length (mm) | 4300mm |
| Rod length (mm) | 2260mm |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | MITSUBISHI 4FRC |
| Rated power (kw/rpm) | 131(98) / 2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 (4.0) x 120 (4.7) |
| Displacement (L) | 4.2 |
| Working form | 4 cylinder 4 stroke water cooled direct injection engine |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.5 km/h (3.4 mph) / 3.2 km/h (2.0 mph) |
| Maximum flow of main pump (l/min) | 2 x 124 |
| Traveling Hydraulic Circuit (Mpa) | 365 |
| Rotary Hydraulic Circuit (Mpa) | 285 |
| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 350 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-100 x 70 x 840 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-115 x 80 x 1138 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-105 x 75 x 1075 |
| Fuel Tank (L) | 270 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 17.5 |
| Hydraulic System (L) | 210 |
| Total transport height (mm) | 8330 |
| Counterweight ground clearance (mm) | 935 |
| Back end turning radius (mm) | 2310 |
| Onboard width (mm) | 2476 |
| Total track length (mm) | 4300 |
| Total track width (mm) | 2500 |
| Maximum digging radius (mm) | 8330mm |
| Maximum digging depth (mm) | 5550mm |
| Maximum excavation height (mm) | 8500mm |
| Maximum unloading height (mm) | 6060mm |
| Maximum vertical digging depth (mm) | 5330mm |
| Maximum excavation radius of stop surface (mm) | 8180mm |
