Product Description

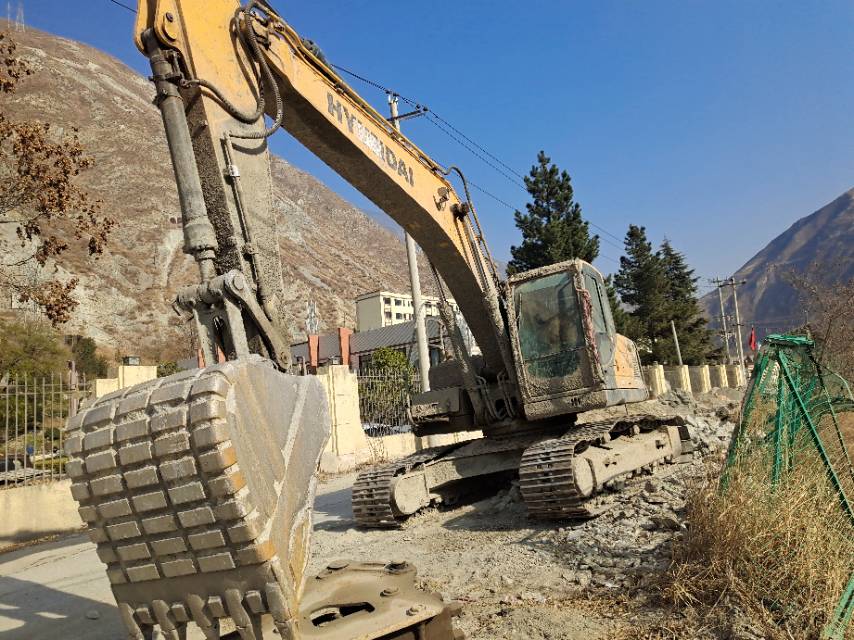

We are selling a 2019 Hyundai 225LVS excavator with a cumulative working time of 8,000 hours. This device is equipped with an efficient and reliable engine. Although the specific model is not provided, based on the standard configuration of this series, it is expected to be a Cummins or an equivalent well-known brand engine with strong power, ensuring excellent working efficiency under various operating conditions. In terms of the hydraulic system, it is equipped with advanced variable piston pumps and high-performance hydraulic motors, which can achieve a precise and smooth operation experience. Whether it is excavation, loading or leveling operations, it can handle them with ease. This hydraulic system has an extremely fast response speed and excellent energy-saving effect, effectively reducing operating costs. In addition, this 225LVS excavator also features many design highlights: a spacious and comfortable cab equipped with an air conditioning system, ensuring the operator's good condition even during long periods of operation; The sturdy and durable chassis structure enhances the stability and passability of the entire machine. And its feature of being easy to maintain and service makes daily use more convenient and worry-free.
| Specifications | Value |
|---|---|
| No. | 977992 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22570 |
| Bucket capacity (m³) | 1.05 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2920 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

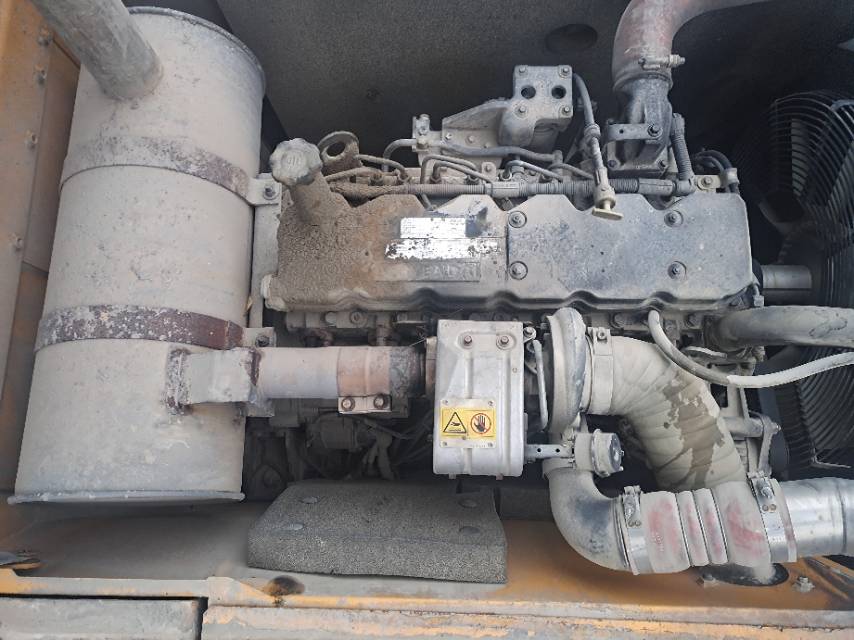

| Engine type | HYUNDAI HE6.7 |
| Rated power (kw/rpm) | 113 / 1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Maximum torque (N.m) | 63 / 1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | 6-cylinder, 4-stroke, water-cooled turbocharged engine |
| Climbing ability (%) | 35 ° (70%). |
| Travel speed (km/h) | 5.3/ 3.4 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2 x 222 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Control Hydraulic Circuit (Mpa) | 4 |

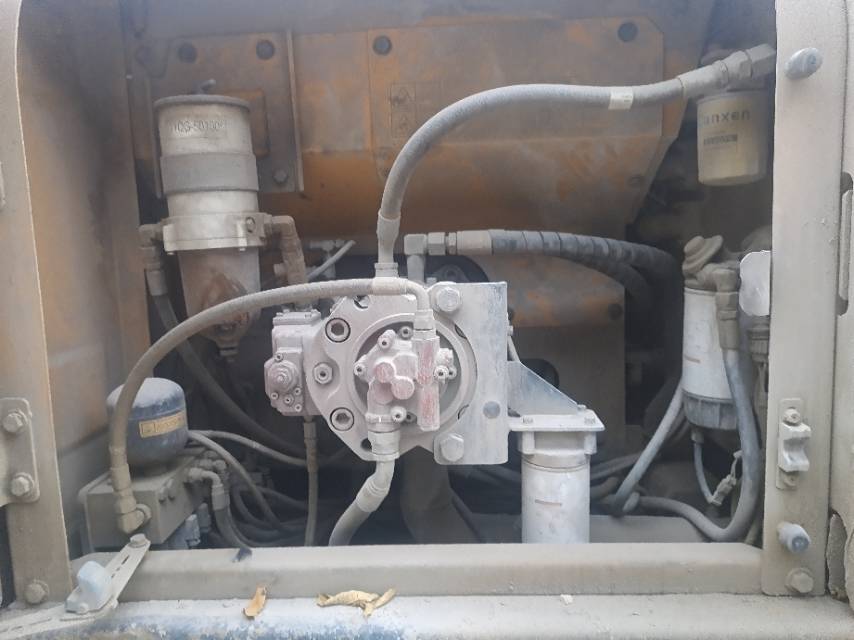

| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 85 x 1055 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 140 x ø 100 x 1510 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 120 x ø 85 x 1290 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 275 |
| Theoretical fuel consumption (L/h) | 160 |
| Total transport length (mm) | 9550 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3080 |
| Full cab height (mm) | 2920 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum turning radius of front working device (mm) | 3740 |
| Back end turning radius (mm) | 2840 |
| Onboard width (mm) | 2740 |
| Number of sprockets (single side) (each) | 2 |

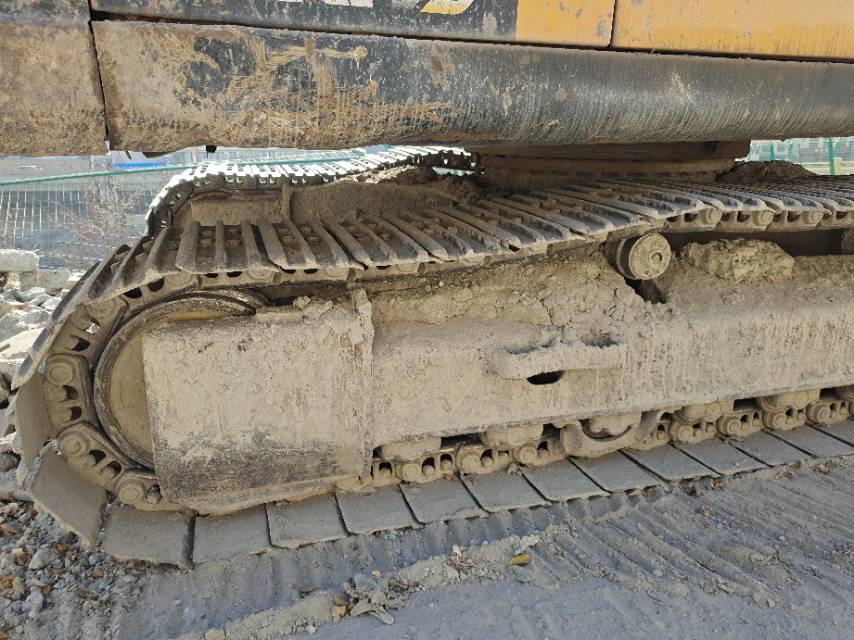

| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 9980 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6280 |
| Maximum excavation radius of stop surface (mm) | 2990 |
| Maximum effective digging depth (mm) | 6730 |
