2016 Hyundai HX305L

1/6
Used Hyundai HX305L Excavator 2016 Model / 1
Used Hyundai HX305L Excavator 2016 Model / 2
Used Hyundai HX305L Excavator 2016 Model / 3

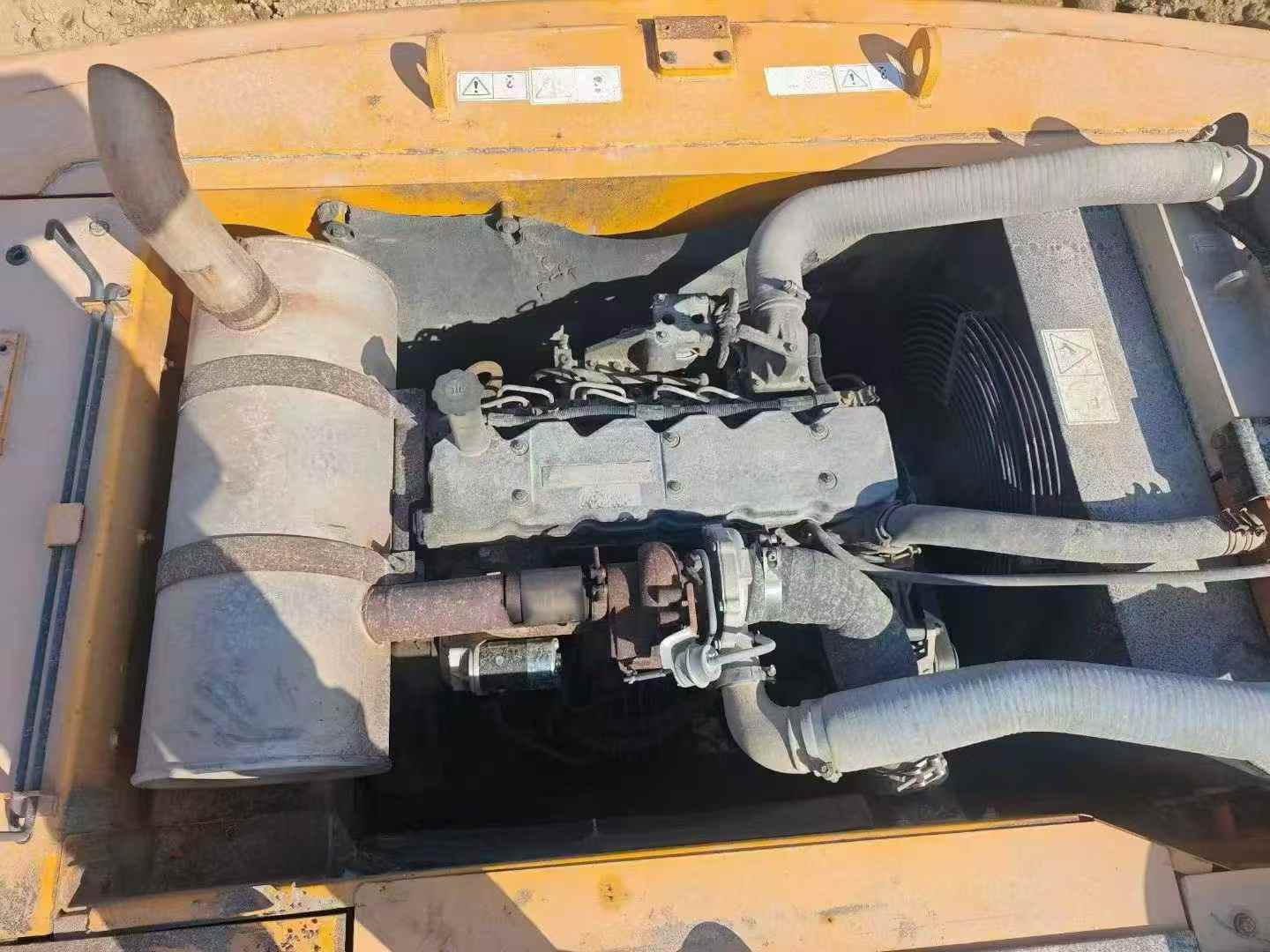

Used Hyundai HX305L Excavator 2016 Model / 4

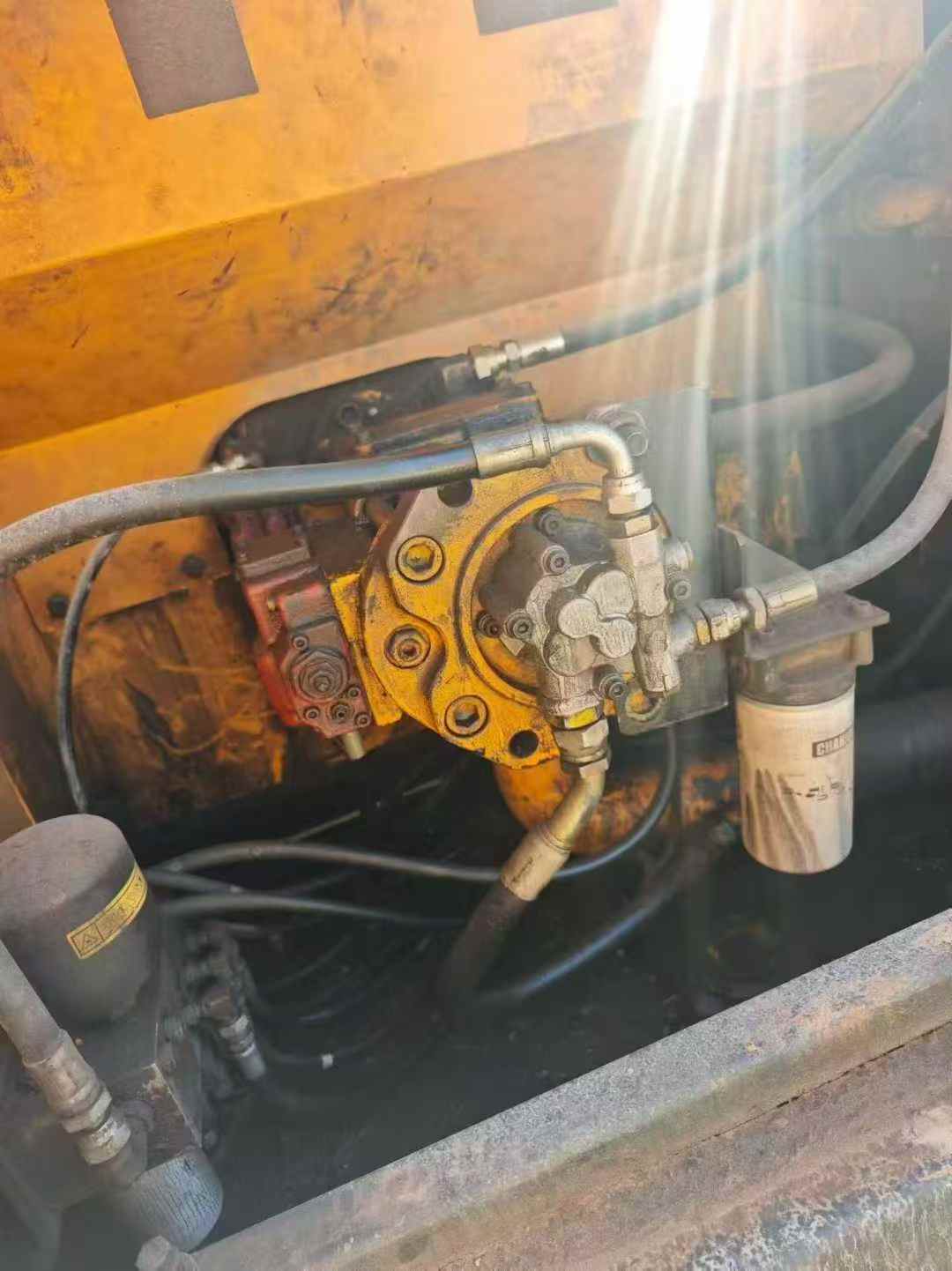

Used Hyundai HX305L Excavator 2016 Model / 5

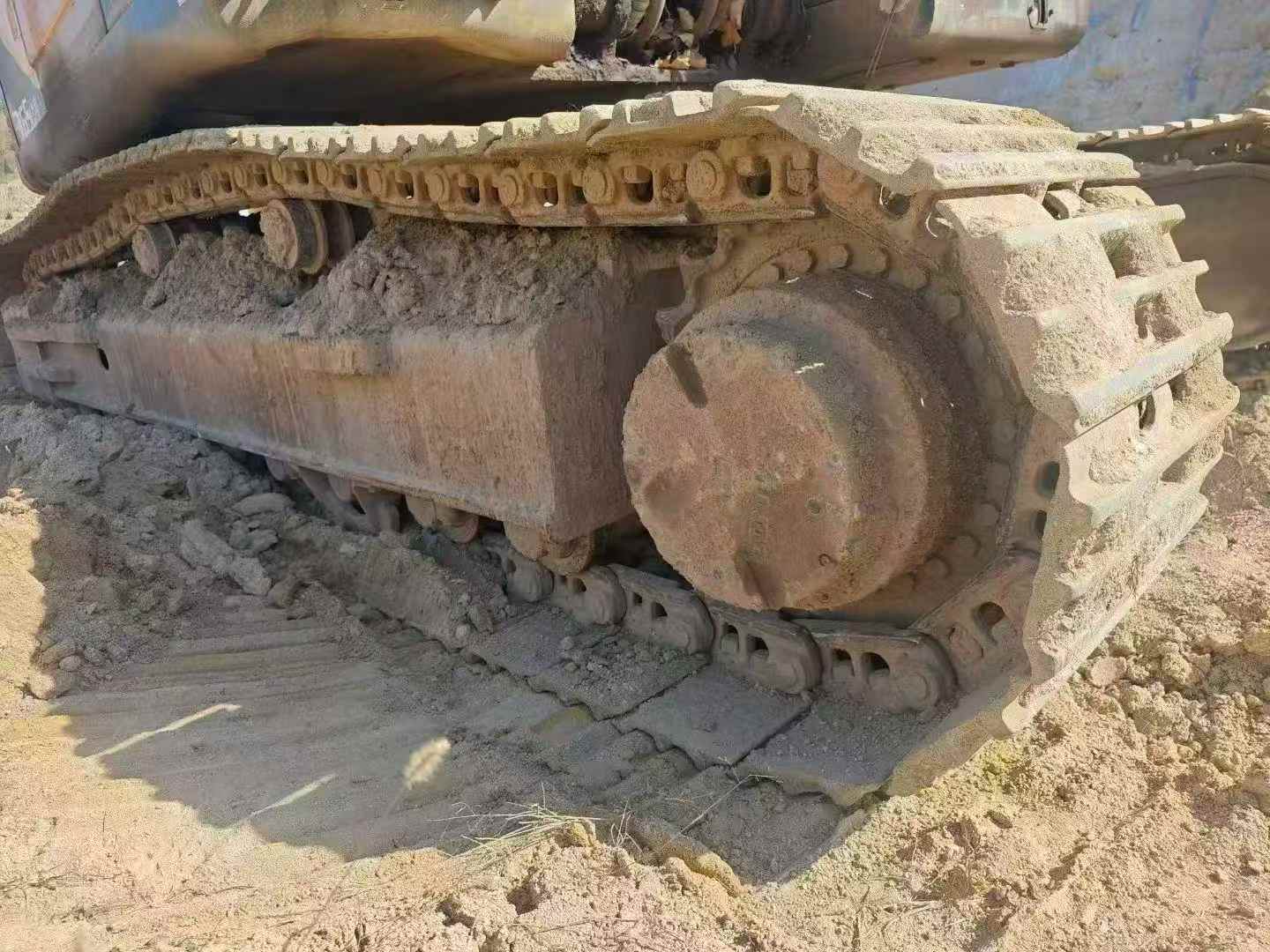

Used Hyundai HX305L Excavator 2016 Model / 6

Product Description

【 Premium Recommendation 】 Second-hand Hyundai 305-9 excavator This Hyundai 305-9 excavator is a rare masterpiece on the market. Not only is its appearance well maintained, but the internal mechanical condition is also excellent. It only worked for 2,800 hours. For a second-hand excavator, this usage time is very ideal, meaning it still has a long service life and high working efficiency. The originally expensive one can now be taken home for only 126,000 yuan, offering an extremely high cost performance! This model is equipped with a Cummins 4-cylinder turbocharged engine, which is powerful and has low fuel consumption. It can maintain stable output even in harsh working environments. Its highly efficient hydraulic system has been meticulously tuned, featuring a sensitive response and smooth operation. It can handle both excavation and loading tasks with ease. In addition, this machine is also equipped with an advanced electronic control system, which can achieve precise control, improving construction efficiency while reducing operational difficulty. We provide a large amount of detailed information about this device, including but not limited to maintenance records, performance test reports, etc., to ensure that you can have a co

SpecificationsValue
No.971038
Tonnage (tons)31
Working weight (kg)31700
Bucket capacity (m³)1.44/1.63
Boom length (mm)6250
Rod length (mm)3050/2850
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCummins B7
Rated power (kw/rpm)173/2000
Cylinder diameter × stroke (mm)107*124
Maximum torque (N.m)949/1200
Number of cylinders (PCS)6
Displacement (L)6.7
Rotation speed (rpm)10.7
Travel speed (km/h)5.6/3.2
Turning torque (Nm)93.7k
Maximum flow of main pump (l/min)2*285
Fuel Tank (L)460
Hydraulic Tank (L)200
Engine Oil changes (L)34
Coolant (L)41
Hydraulic System (L)360
Urea Tank (L)70
Total transport length (mm)10600
Total transport width (mm)3200
Total transport height (mm)3240
Full cab height (mm)3130
Counterweight ground clearance (mm)1190
Minimum ground clearance (mm)500
Minimum turning radius of front working device (mm)4280
Back end turning radius (mm)3210
Onboard width (mm)2980
Total track length (mm)4940
Track gauge (mm)2600
Track plate width (mm)600
Track ground length (mm)4030
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)48
Maximum digging radius (mm)10785
Maximum digging depth (mm)7305
Maximum excavation height (mm)10115
Maximum unloading height (mm)7175
Maximum vertical digging depth (mm)5065
Maximum excavation radius of stop surface (mm)10580
see more

Overview

No.971038

Brand Name:

Hyundai

Model Number:

HX305L

Year:

2016

Location:

Fujian China
