HOME>>Find Excavators>>Hyundai HX305L

2016 Hyundai HX305L

1/5

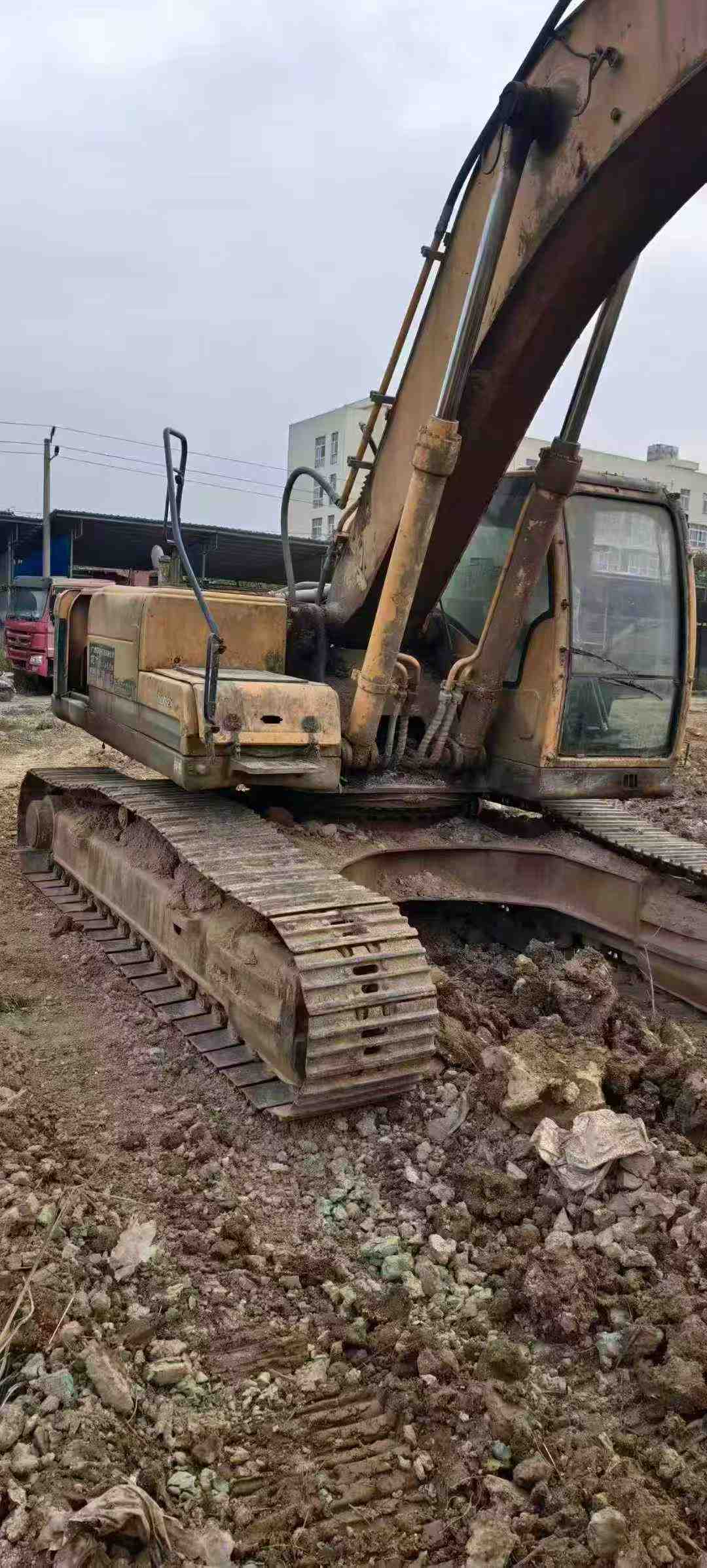

Used Hyundai HX305L Excavator 2016 Model / 1

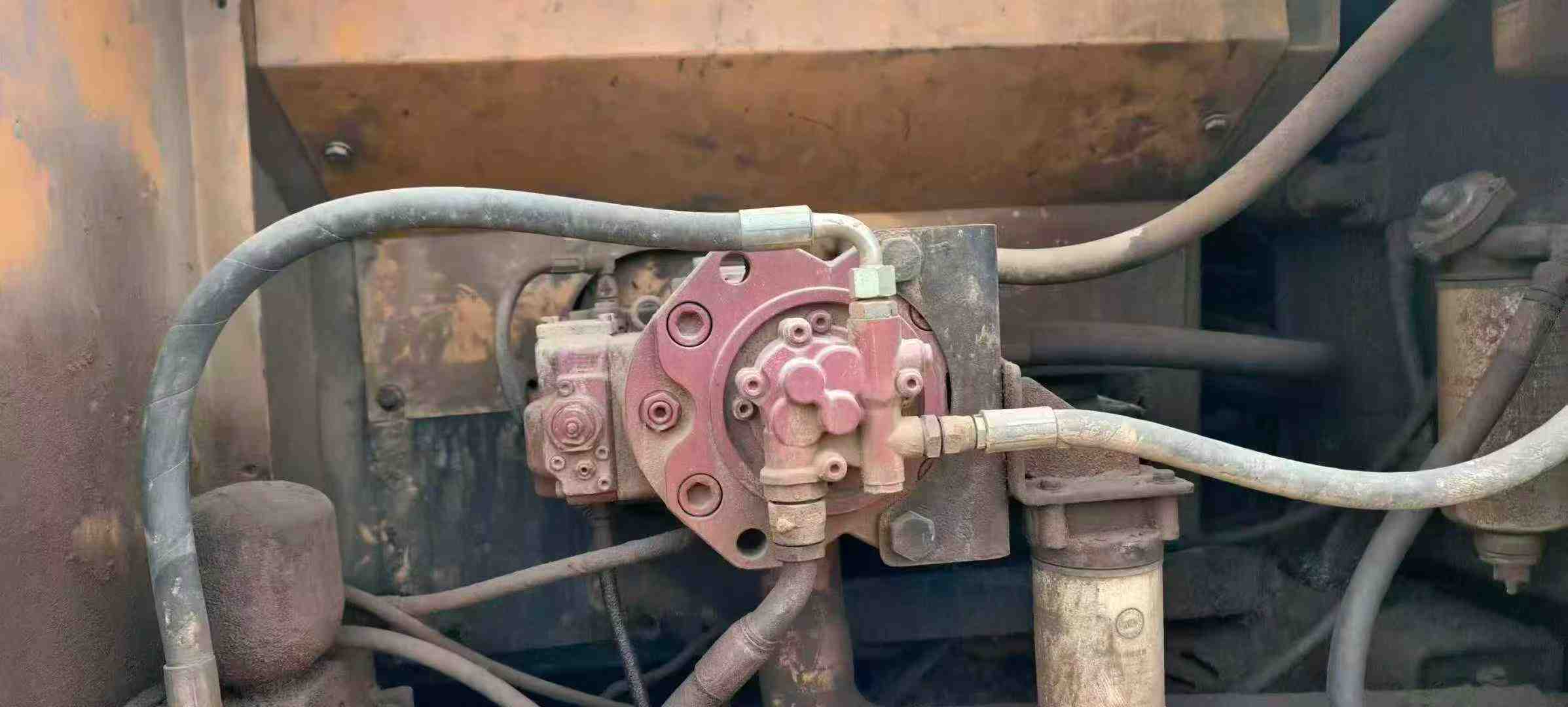

Used Hyundai HX305L Excavator 2016 Model / 2

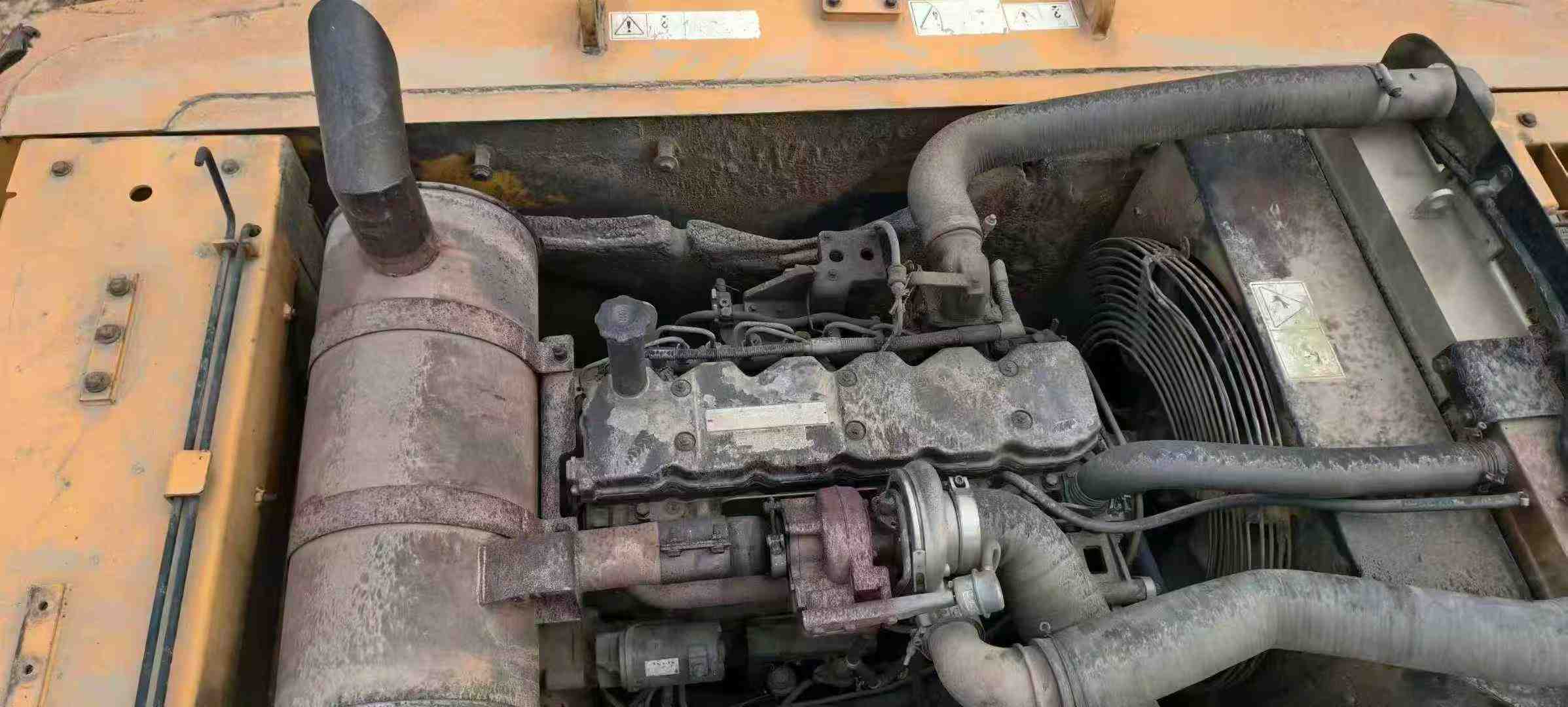

Used Hyundai HX305L Excavator 2016 Model / 3

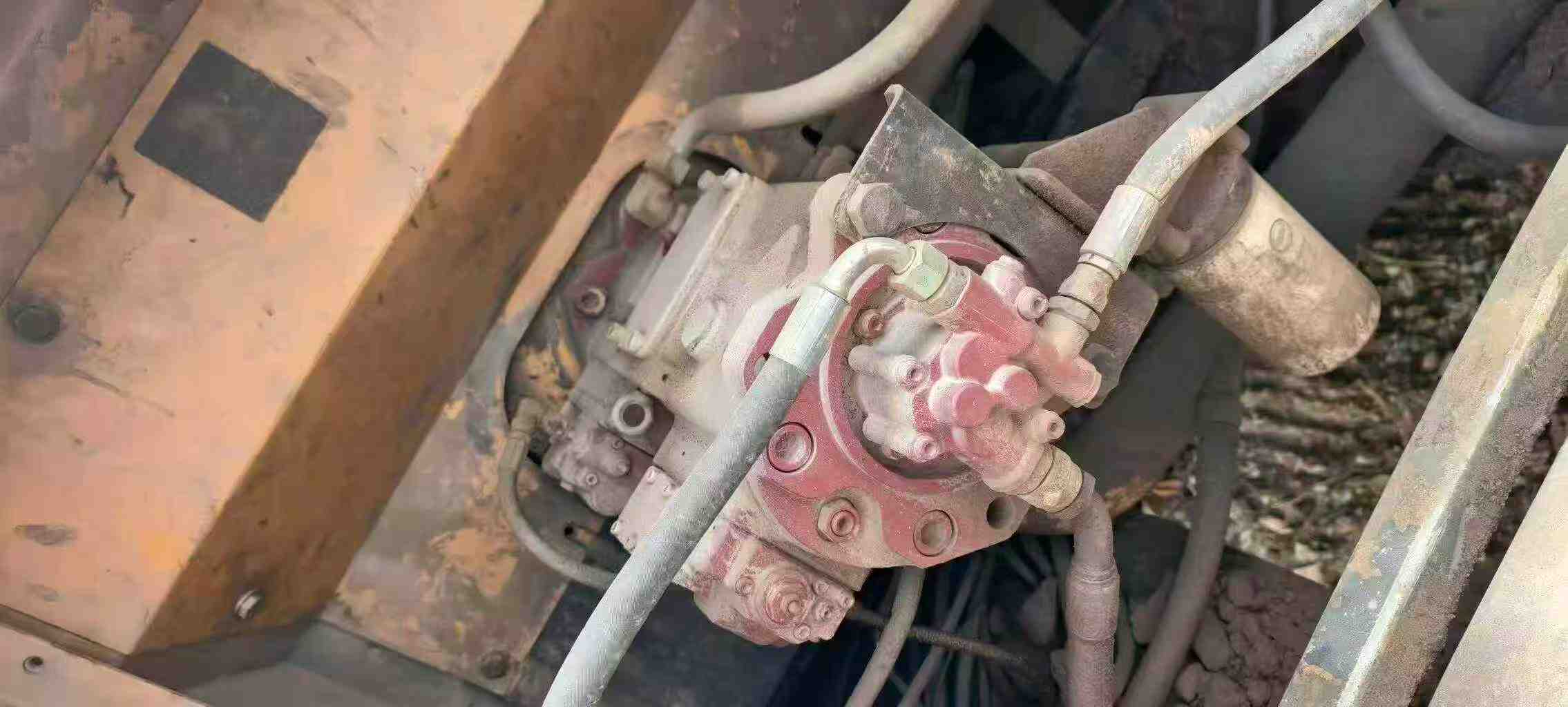

Used Hyundai HX305L Excavator 2016 Model / 4

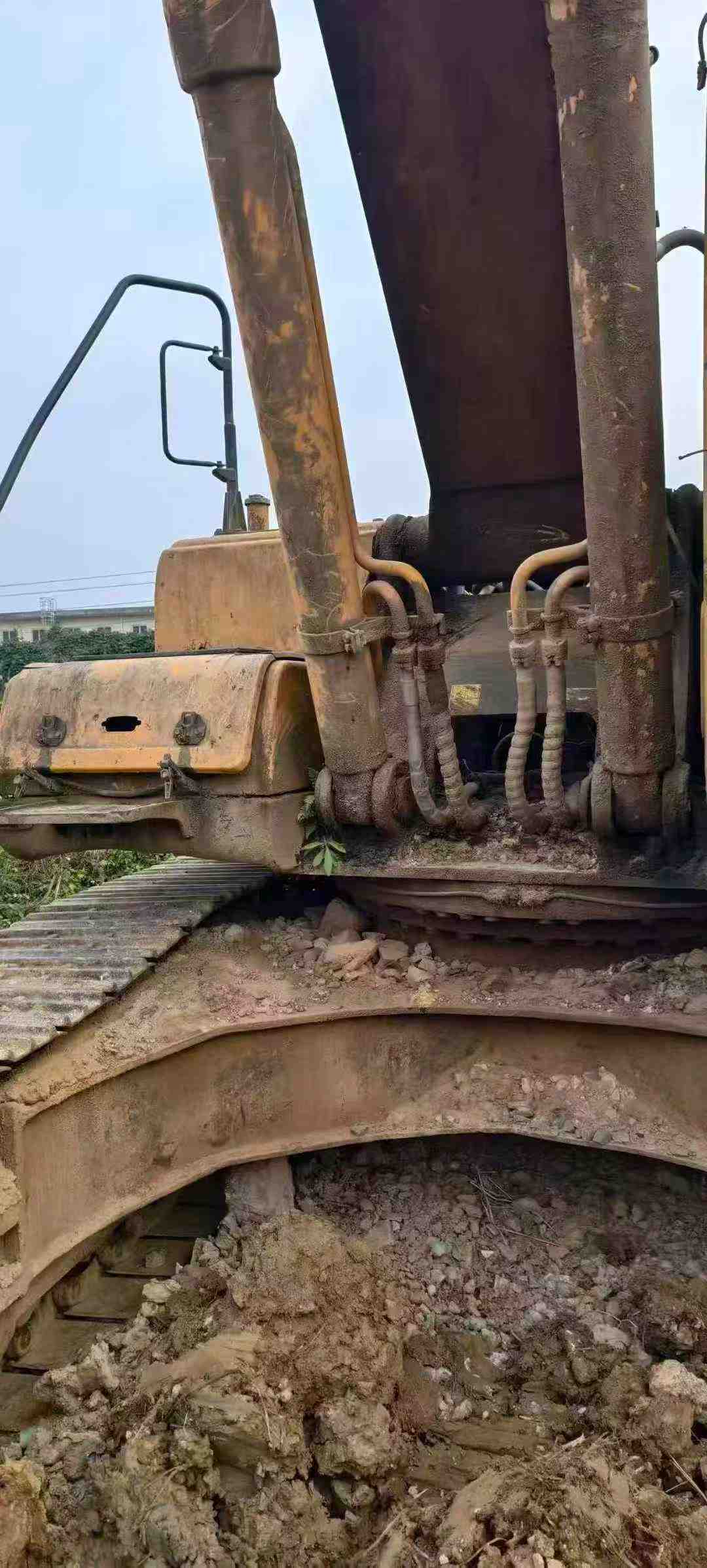

Used Hyundai HX305L Excavator 2016 Model / 5

Product Description

【 Premium Recommendation 】 First-hand supply, top-quality modern original 305L-C_9H second-hand excavator, now on sale for just over 120,000! This equipment is your ideal choice for engineering operations. Whether it's municipal construction, landscaping or small-scale earthwork projects, it can handle them all with ease. Since its manufacture, this machine has accumulated only about 2,000 hours of working time, is in the best usage condition, and is well maintained with no major overhaul records, ensuring its outstanding performance and long service life. In terms of the power system, it is equipped with an efficient and energy-saving engine, which not only provides strong and stable power but also has excellent fuel economy, effectively reducing operating costs. In addition, the advanced hydraulic system design makes the operation more smooth and precise. Both the digging force and the rotation speed have reached the industry-leading level, greatly improving work efficiency. It is particularly worth mentioning that this excavator adopts a number of humanized designs, such as a spacious and comfortable cab, all-round vision, and easy maintenance features, allowing every operator to enjoy a pleasant working experience. In conclusion,

SpecificationsValue
No.971500
Tonnage (tons)31
Working weight (kg)31700
Bucket capacity (m³)1.44/1.63
Boom length (mm)6250
Rod length (mm)3050/2850
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCummins B7
Rated power (kw/rpm)173/2000
Cylinder diameter × stroke (mm)107*124
Maximum torque (N.m)949/1200
Number of cylinders (PCS)6
Displacement (L)6.7
Rotation speed (rpm)10.7
Travel speed (km/h)5.6/3.2
Turning torque (Nm)93.7k
Maximum flow of main pump (l/min)2*285
Fuel Tank (L)460
Hydraulic Tank (L)200
Engine Oil changes (L)34
Coolant (L)41
Hydraulic System (L)360
Urea Tank (L)70
Total transport length (mm)10600
Total transport width (mm)3200
Total transport height (mm)3240
Full cab height (mm)3130
Counterweight ground clearance (mm)1190
Minimum ground clearance (mm)500
Minimum turning radius of front working device (mm)4280
Back end turning radius (mm)3210
Onboard width (mm)2980
Total track length (mm)4940
Track gauge (mm)2600
Track plate width (mm)600
Track ground length (mm)4030
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)48
Maximum digging radius (mm)10785
Maximum digging depth (mm)7305
Maximum excavation height (mm)10115
Maximum unloading height (mm)7175
Maximum vertical digging depth (mm)5065
Maximum excavation radius of stop surface (mm)10580
see more

Overview

No.971500

Brand Name:

Hyundai

Model Number:

HX305L

Year:

2016

Location:

Sichuan China
