2016 Hyundai HX60

1/5
Used Hyundai HX60 Excavator 2016 Model / 1

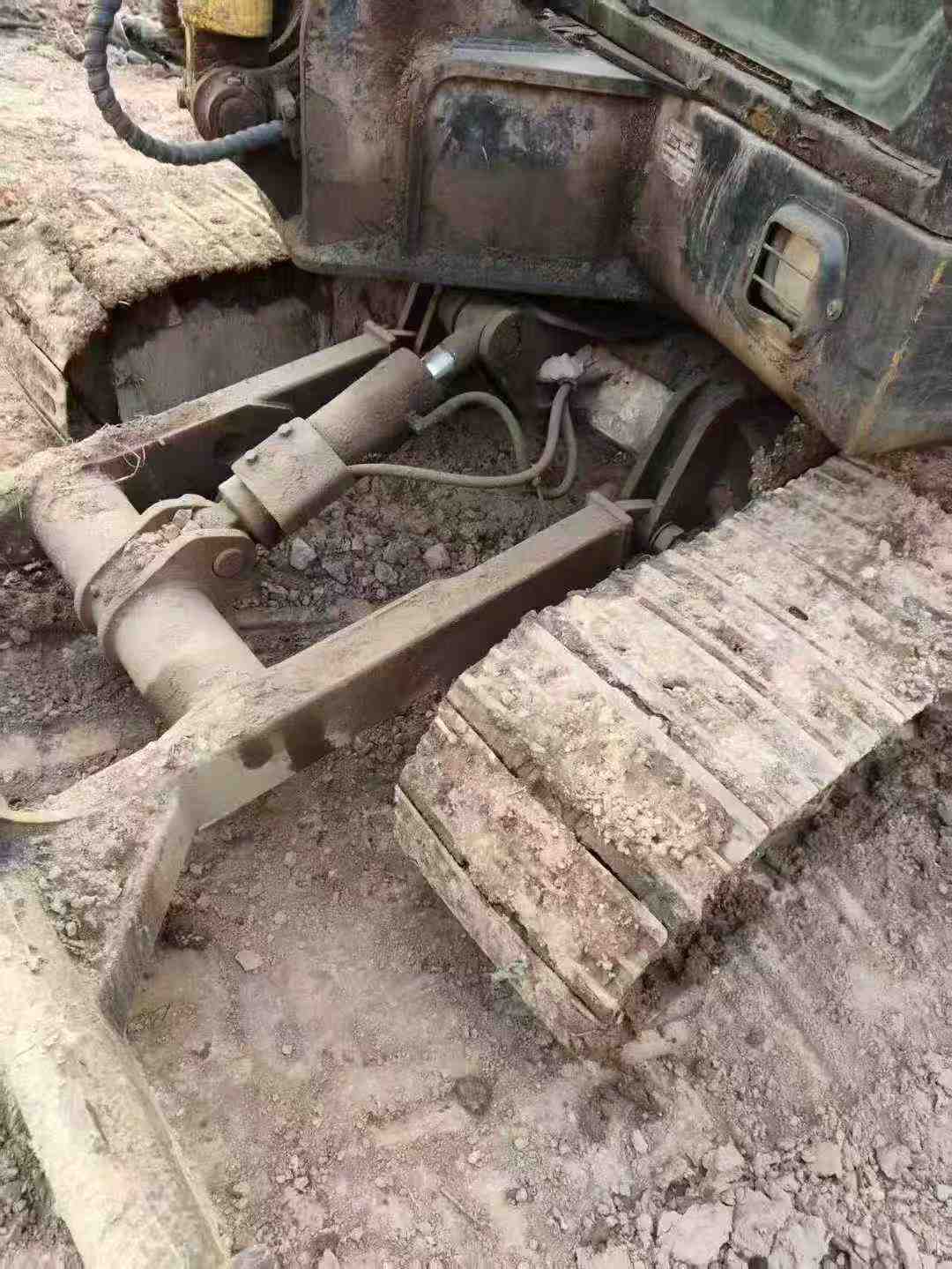

Used Hyundai HX60 Excavator 2016 Model / 2

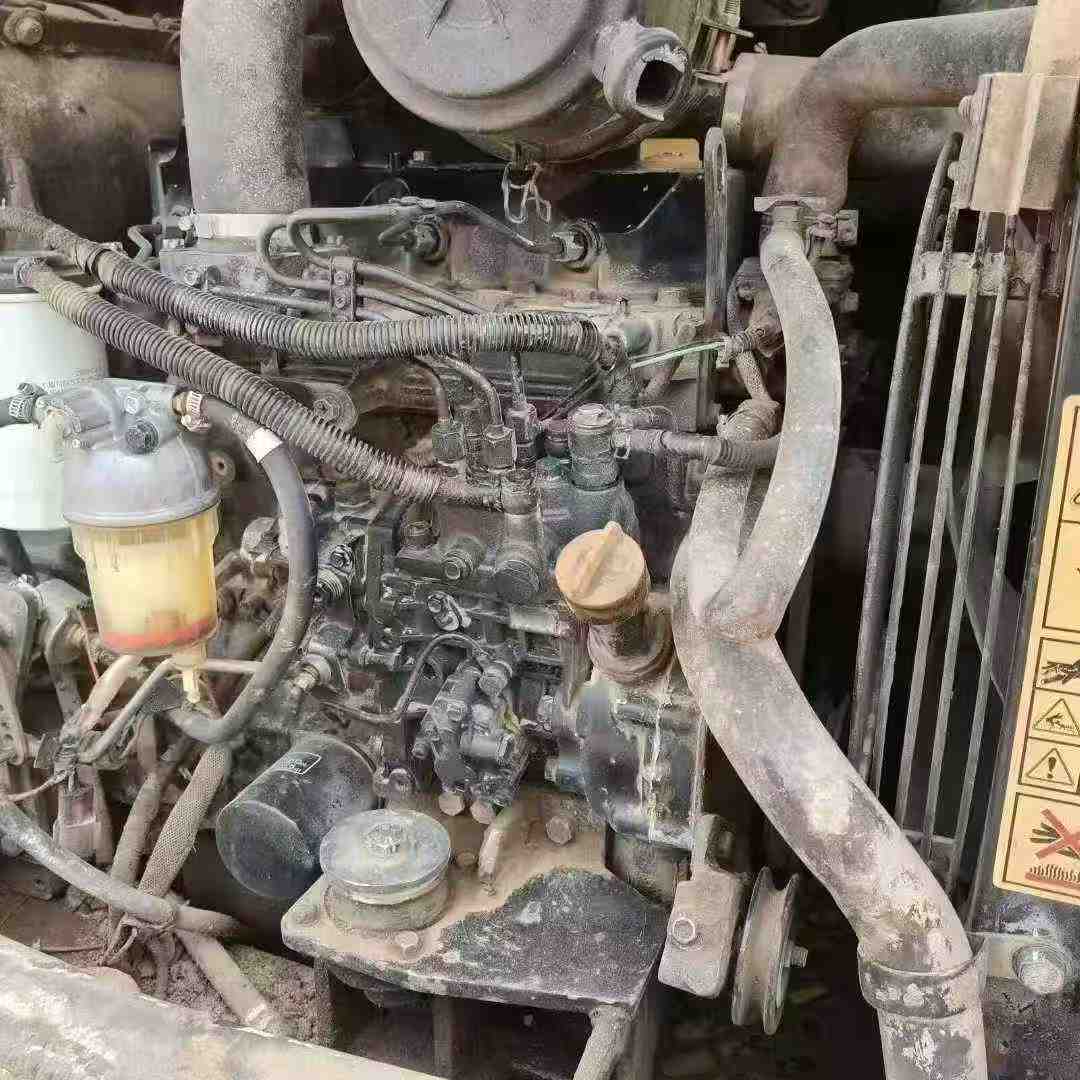

Used Hyundai HX60 Excavator 2016 Model / 3

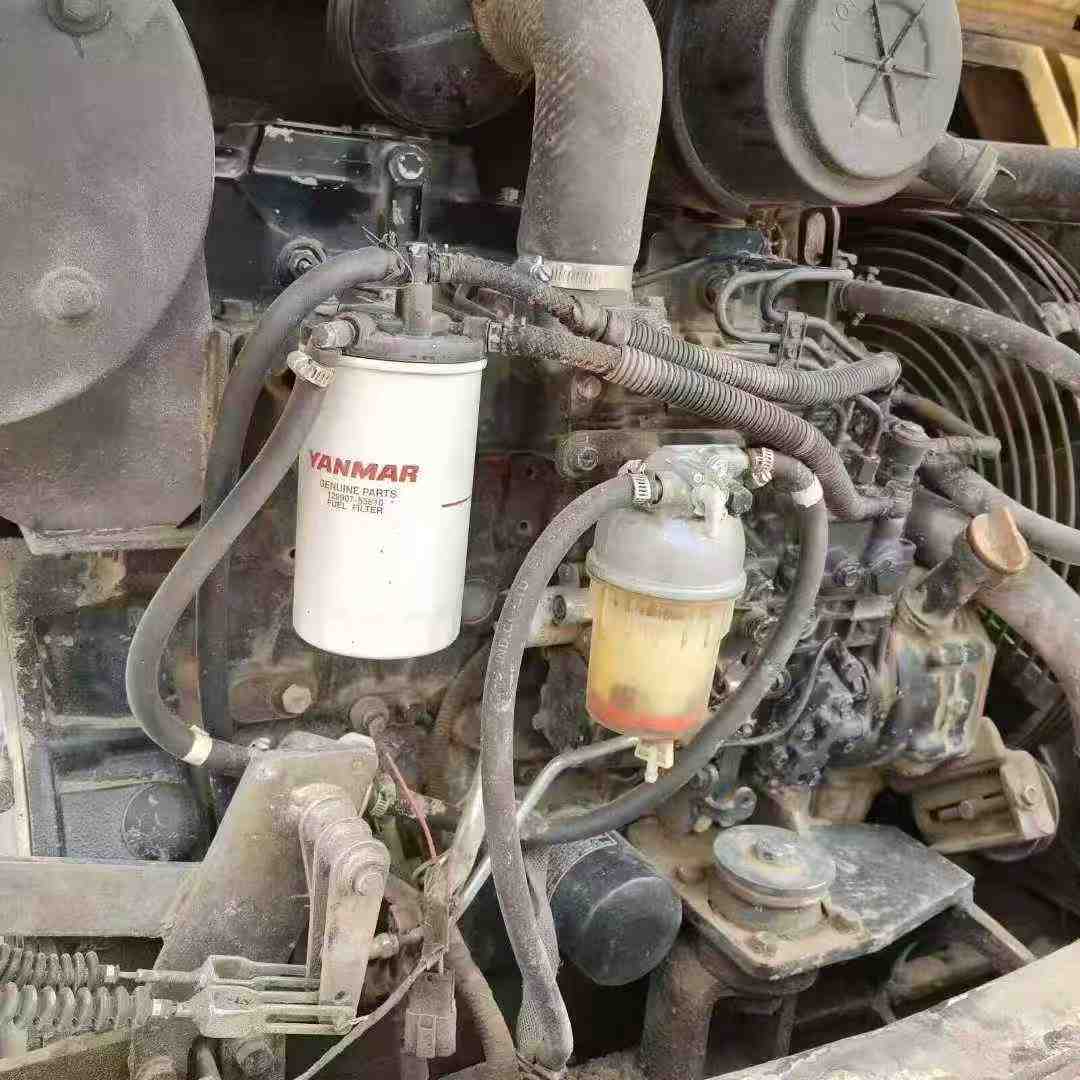

Used Hyundai HX60 Excavator 2016 Model / 4

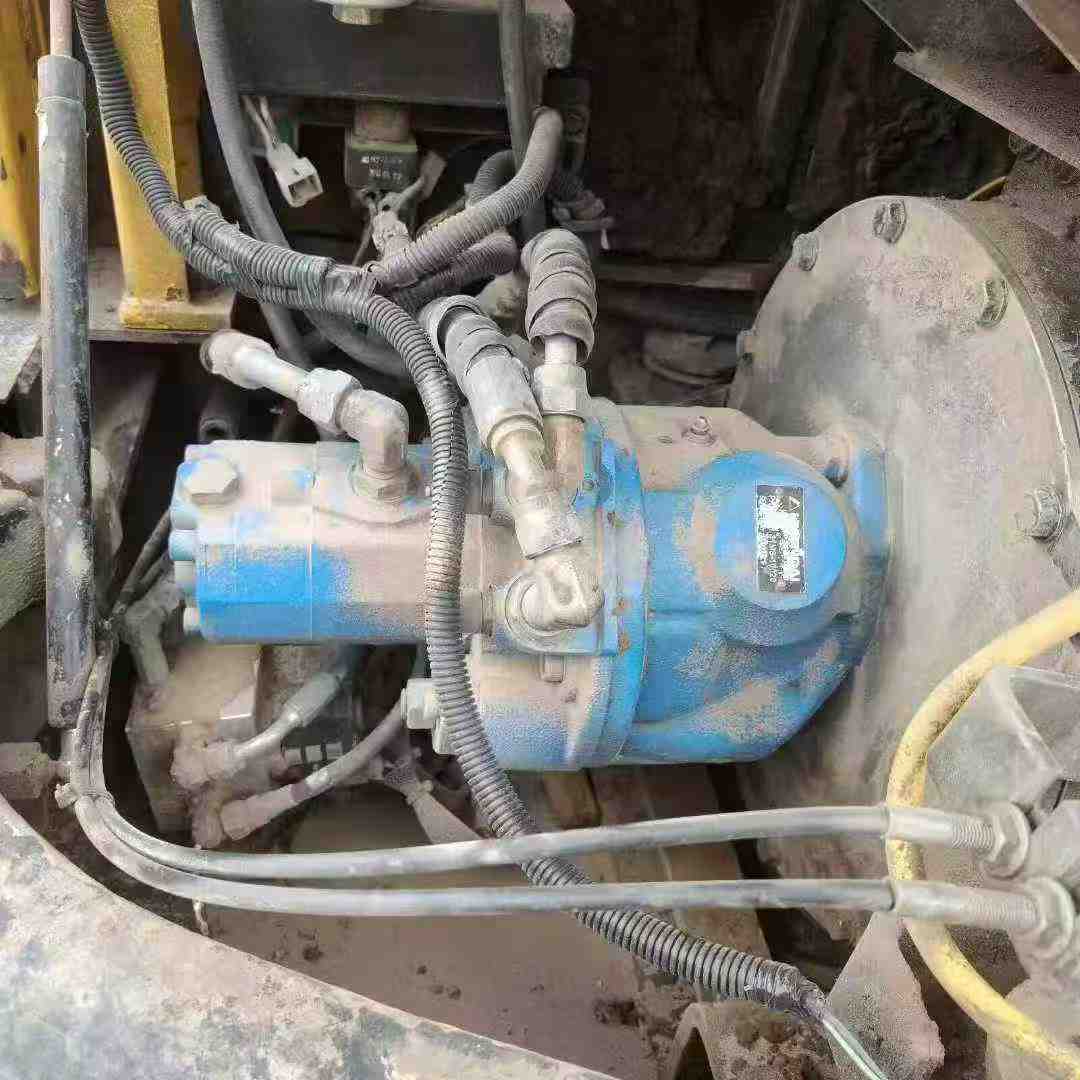

Used Hyundai HX60 Excavator 2016 Model / 5

Product Description

"Modern R60-7 second-hand excavator Dear customer, hello! We currently have a first-hand supply of high-quality second-hand Hyundai R60-7 excavators and sincerely invite agents from all over the country to cooperate. This device is sold at a price of 28,000 yuan, offering an extremely high cost performance. It is an ideal choice for you to start a business or expand your business. 【 Basic Information - Brand: Modern Model: R60-7 - Working hours: Approximately 3,000 hours (the exact figure can be adjusted based on the actual inspection results) - Engine model: Yanmar 4TNV98T-EUH (High-efficiency and energy-saving type), with a maximum power output of 40.5KW at 2200rpm. It is powerful and has good fuel economy. - Hydraulic system: Advanced negative flow control technology is adopted to ensure smooth operation and rapid response. The main pump is designed as a double-gear pump, featuring a large flow rate and low pressure loss, which can meet the operational requirements under various complex working conditions. - Walking speed: It can reach 4.5km/h in high-speed mode and 2.5km/h in low-speed mode, meeting the movement requirements under different terrain conditions. 【 Product Highlights 1. ** High cost performance ** : As a small exca

SpecificationsValue
No.971496
Tonnage (tons)6
Working weight (kg)5720
Bucket capacity (m³)0.21
Boom length (mm)3000
Rod length (mm)1600
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV94L-ZXSHYB(XSNSRE)
Rated power (kw/rpm)36.2/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)94 x 110
Maximum torque (N.m)201.1/1400
Number of cylinders (PCS)4
Displacement (L)3.053
Working form4 stroke, direct injection engine
Rotation speed (rpm)10.88
Climbing ability (%)70
Bucket digging force (kN)46.7
Rod digging force (kN)27.5
Travel speed (km/h)4.6 / 2.4
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)138
Hydraulic crushing pipeline is standardis
Main pump typeVariable piston pump
Bucket cylinders - Number × diameter × stroke (mm)1-80 * 50 * 660
Bucket rod cylinders - Number × diameter × stroke (mm)1-85 * 55 * 850
Boom cylinders - Number × diameter × stroke (mm)1-105 * 60 * 715
Fuel Tank (L)118.5
Hydraulic Tank (L)70
Engine Oil changes (L)11.6
Coolant (L)10
Hydraulic System (L)120
Total transport length (mm)5900
Total transport width (mm)1920
Total transport height (mm)2550
Full cab height (mm)1860
Minimum turning radius of front working device (mm)2350
Back end turning radius (mm)1650
Track ground length (mm)1990
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)40
Maximum digging radius (mm)6127
Maximum digging depth (mm)3760
Maximum excavation height (mm)5753
Maximum unloading height (mm)4080
Maximum vertical digging depth (mm)2915
Maximum excavation radius of stop surface (mm)5990
see more

Overview

No.971496

Brand Name:

Hyundai

Model Number:

HX60

Year:

2016

Location:

Sichuan China
