2016 Hyundai HX60

1/8
Used Hyundai HX60 Excavator 2016 Model / 1

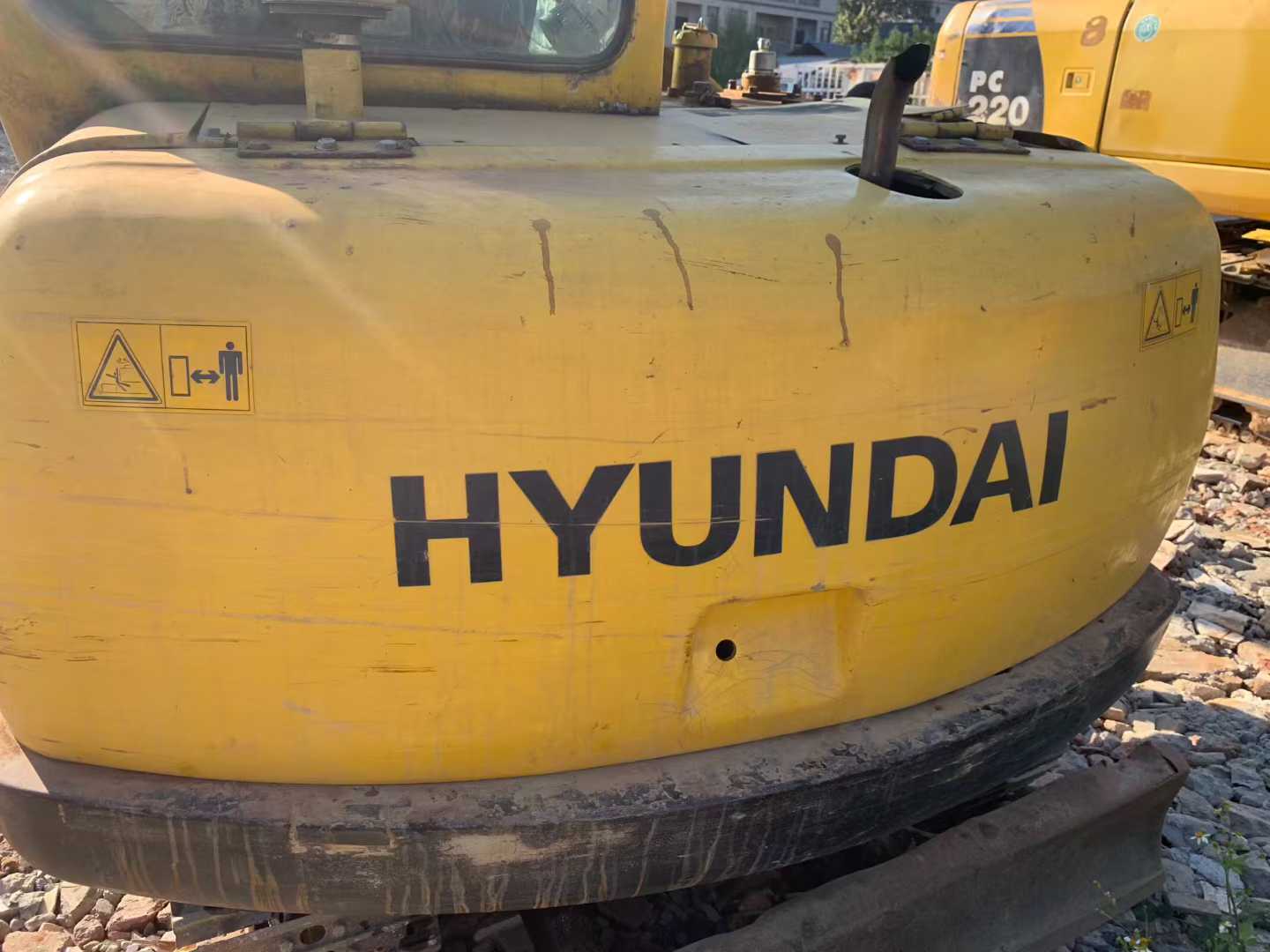

Used Hyundai HX60 Excavator 2016 Model / 2
Used Hyundai HX60 Excavator 2016 Model / 3

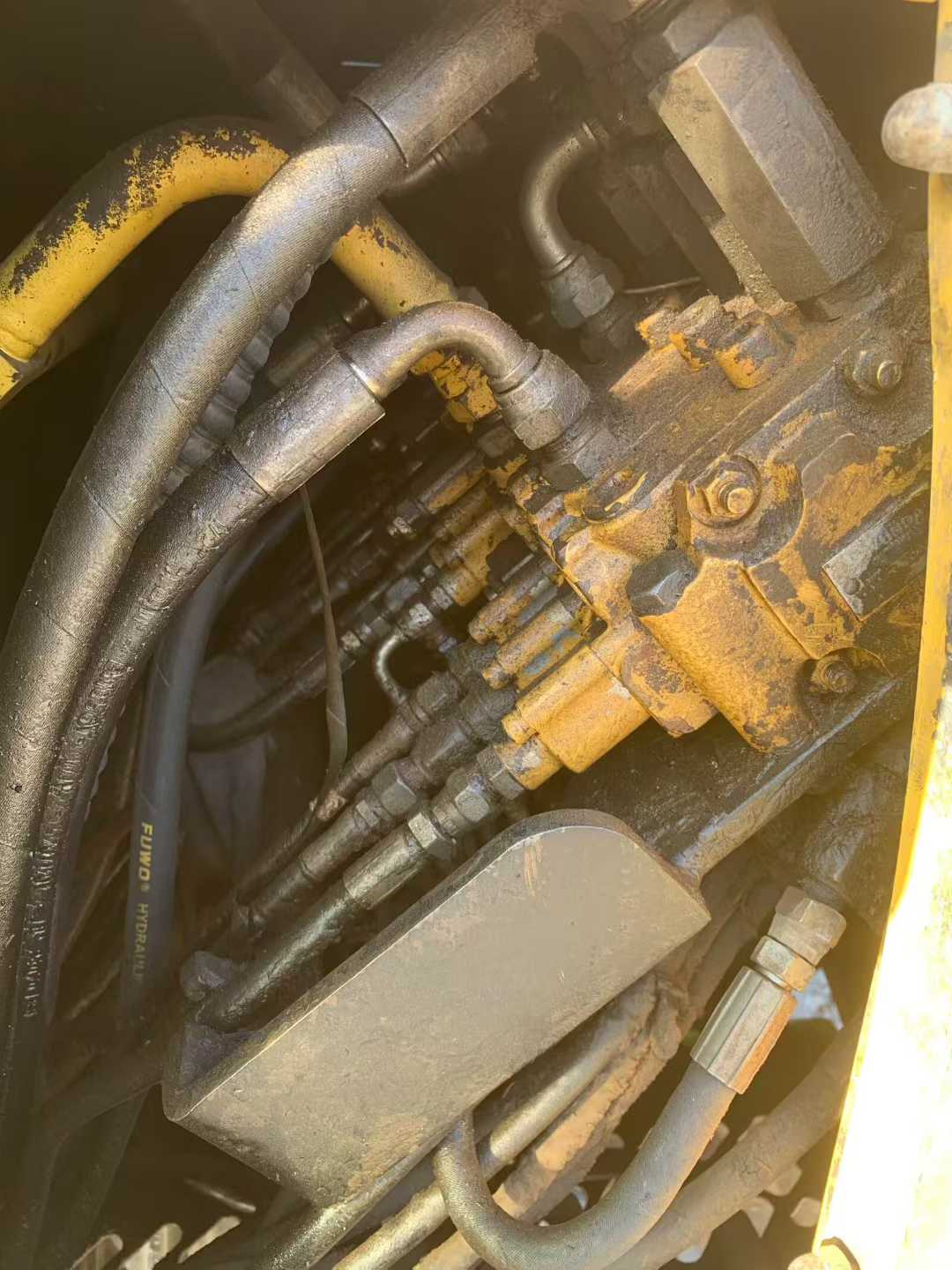

Used Hyundai HX60 Excavator 2016 Model / 4
Used Hyundai HX60 Excavator 2016 Model / 5
Used Hyundai HX60 Excavator 2016 Model / 6

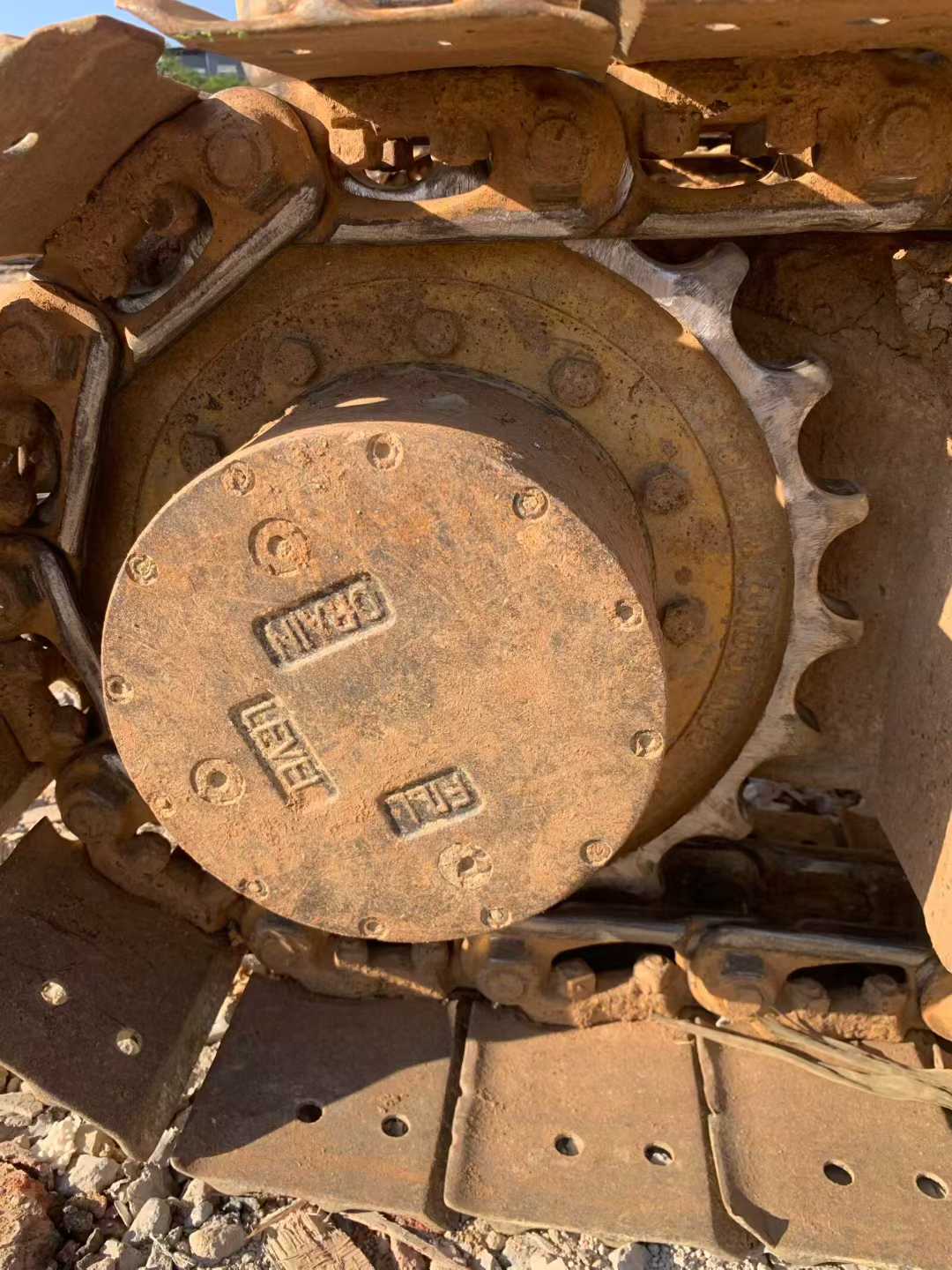

Used Hyundai HX60 Excavator 2016 Model / 7

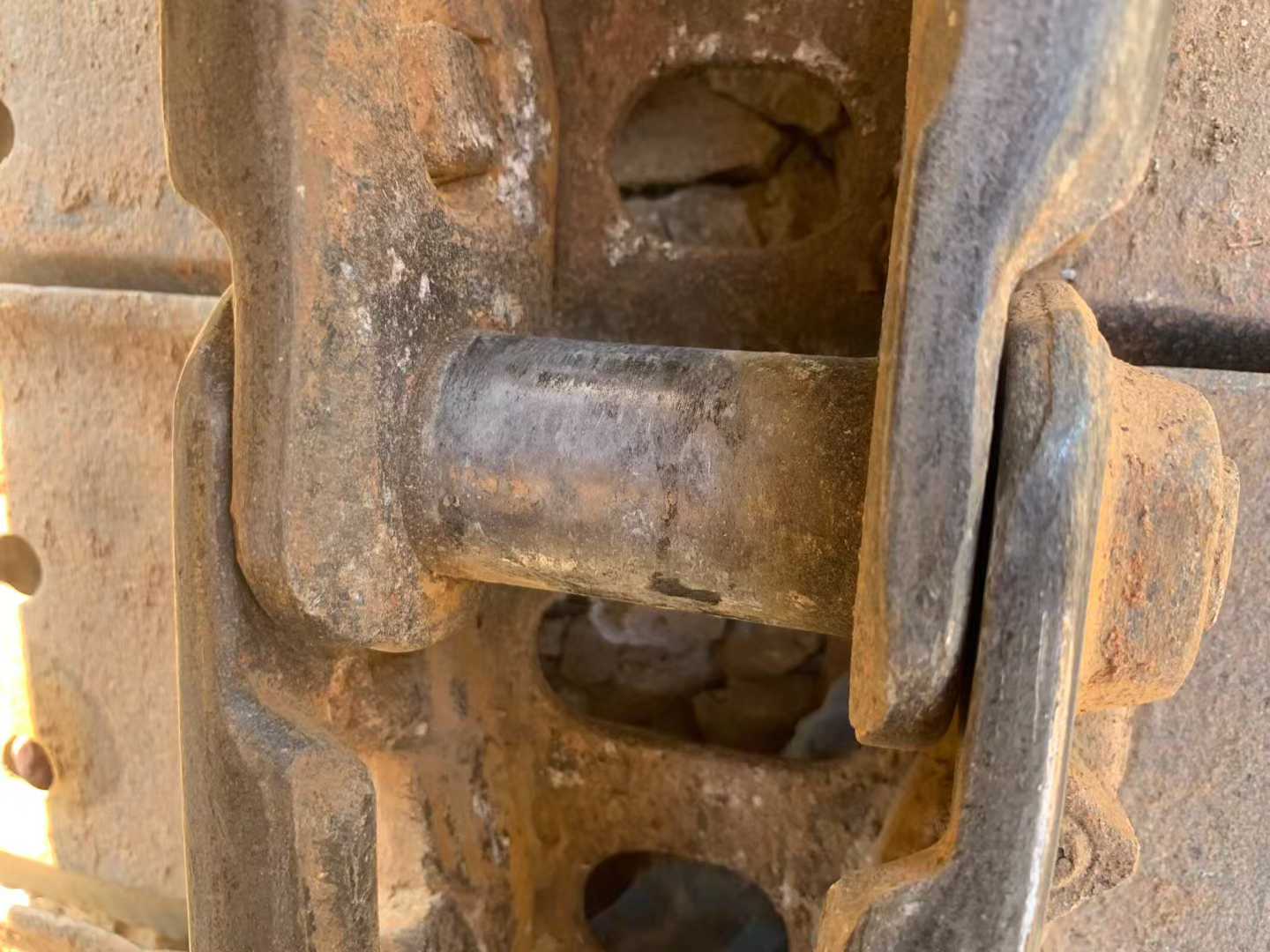

Used Hyundai HX60 Excavator 2016 Model / 8

Product Description

The modern 60-type second-hand excavator has a working time of only about 20,000 hours, with outstanding performance. It has undergone strict testing to ensure there are no potential faults. This device is equipped with an efficient engine system (expected to be a diesel engine that meets the National III emission standards), featuring strong power and excellent fuel economy, capable of meeting the operational requirements under various complex working conditions. Its hydraulic system adopts an advanced combination of variable piston pumps and high-efficiency hydraulic motors, which not only enhances the operational flexibility and response speed of the entire machine, but also ensures the stability and reliability during long-term operation. The main advantages of this excavator lie in its excellent durability and low maintenance cost. The sturdy and durable design enables it to maintain a good working condition even in harsh environments. The optimized internal structure has significantly reduced the time and cost required for daily maintenance. In addition, the spacious and comfortable cab design, the user-friendly control interface and the all-round view also provide the operator with an excellent working experience. In conclusio

SpecificationsValue
No.976754
Tonnage (tons)6
Working weight (kg)5720
Bucket capacity (m³)0.21
Boom length (mm)3000
Rod length (mm)1600
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV94L-ZXSHYB(XSNSRE)
Rated power (kw/rpm)36.2/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)94 x 110
Maximum torque (N.m)201.1/1400
Number of cylinders (PCS)4
Displacement (L)3.053
Working form4 stroke, direct injection engine
Rotation speed (rpm)10.88
Climbing ability (%)70
Bucket digging force (kN)46.7
Rod digging force (kN)27.5
Travel speed (km/h)4.6 / 2.4
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)138
Hydraulic crushing pipeline is standardis
Main pump typeVariable piston pump
Bucket cylinders - Number × diameter × stroke (mm)1-80 * 50 * 660
Bucket rod cylinders - Number × diameter × stroke (mm)1-85 * 55 * 850
Boom cylinders - Number × diameter × stroke (mm)1-105 * 60 * 715
Fuel Tank (L)118.5
Hydraulic Tank (L)70
Engine Oil changes (L)11.6
Coolant (L)10
Hydraulic System (L)120
Total transport length (mm)5900
Total transport width (mm)1920
Total transport height (mm)2550
Full cab height (mm)1860
Minimum turning radius of front working device (mm)2350
Back end turning radius (mm)1650
Track ground length (mm)1990
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)40
Maximum digging radius (mm)6127
Maximum digging depth (mm)3760
Maximum excavation height (mm)5753
Maximum unloading height (mm)4080
Maximum vertical digging depth (mm)2915
Maximum excavation radius of stop surface (mm)5990
see more

Overview

No.976754

Brand Name:

Hyundai

Model Number:

HX60

Year:

2016

Location:

Yunnan China
