2013 Hyundai HX60

1/5
Used Hyundai HX60 Excavator 2013 Model / 1

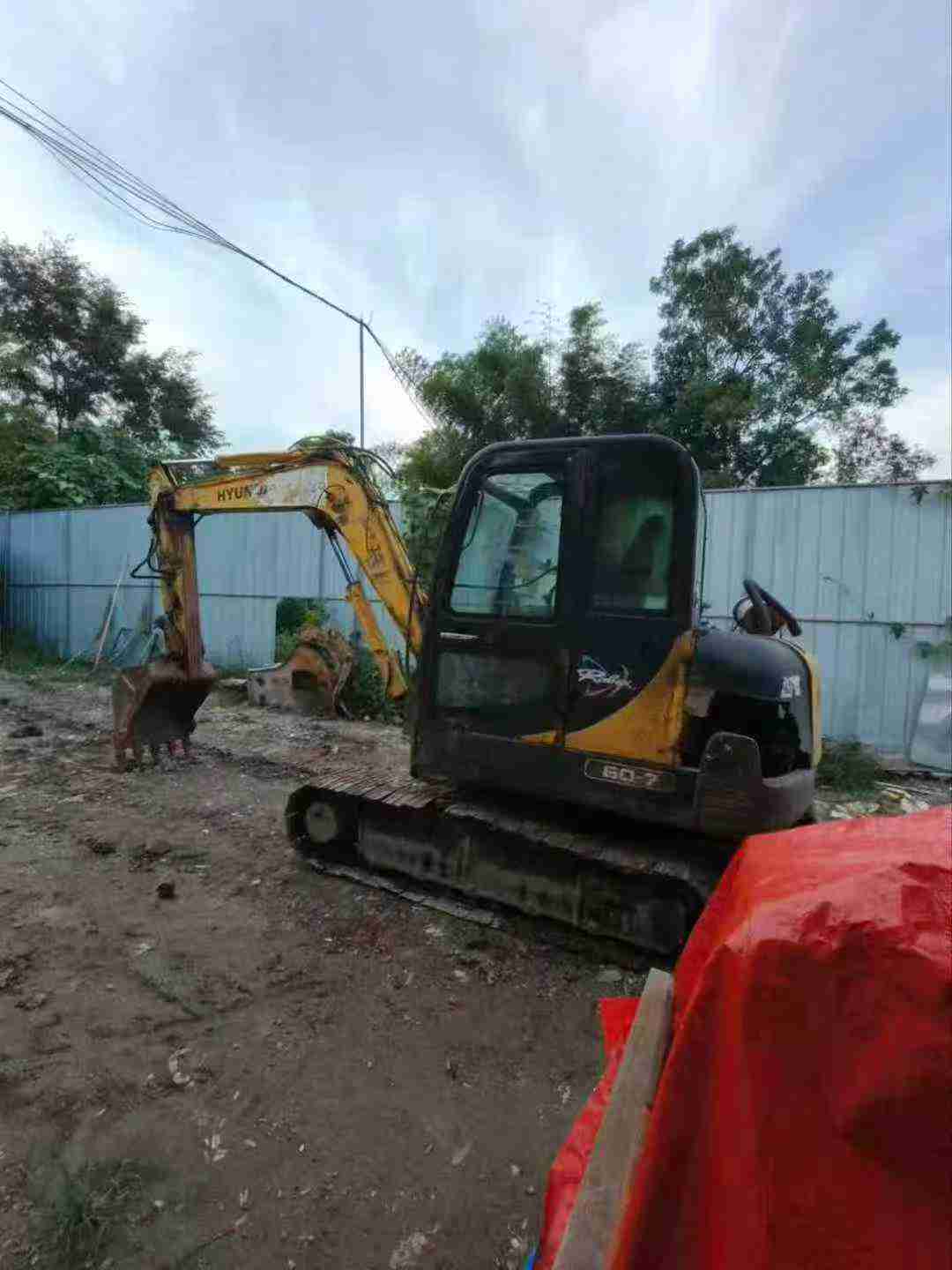

Used Hyundai HX60 Excavator 2013 Model / 2

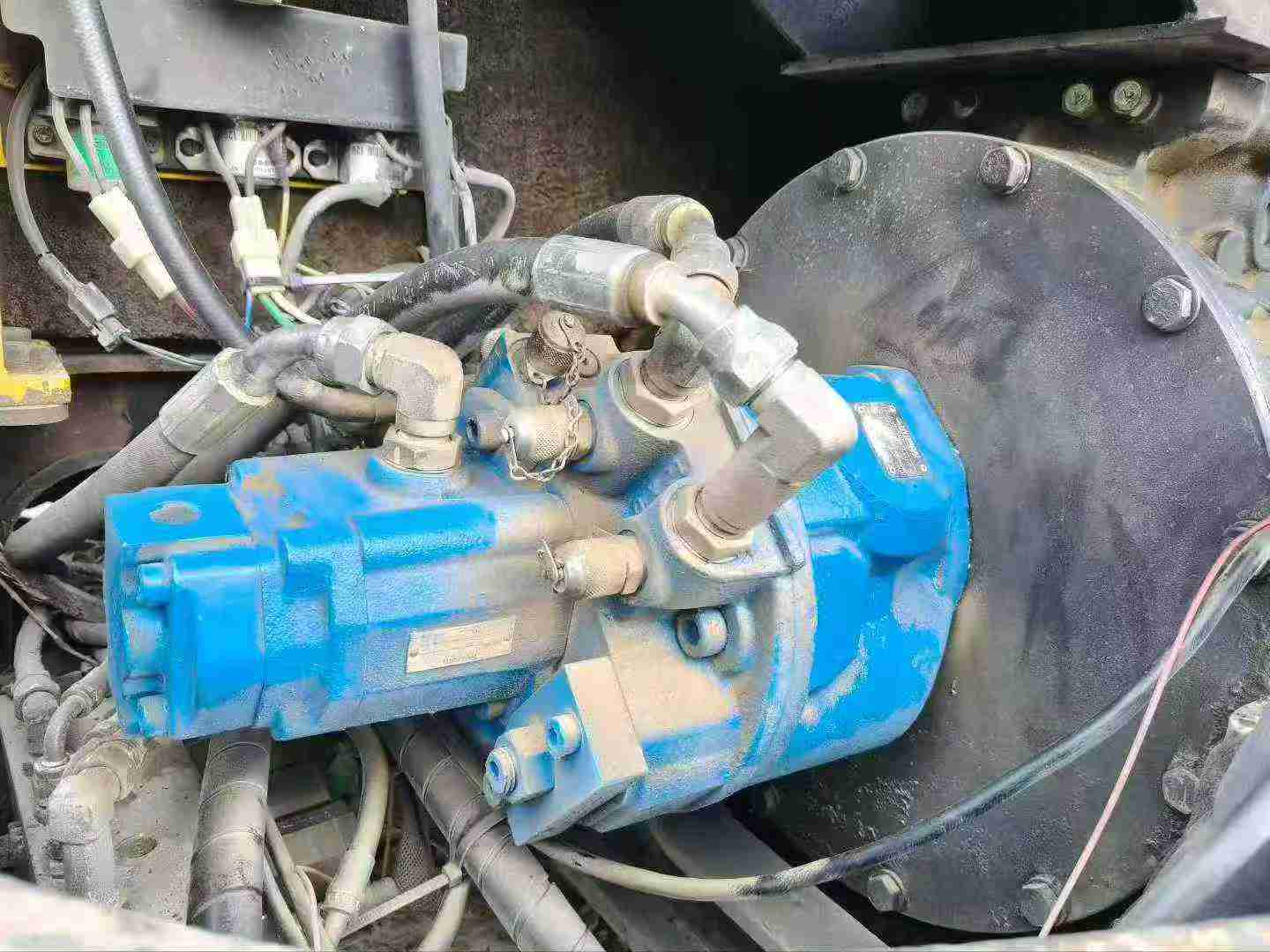

Used Hyundai HX60 Excavator 2013 Model / 3

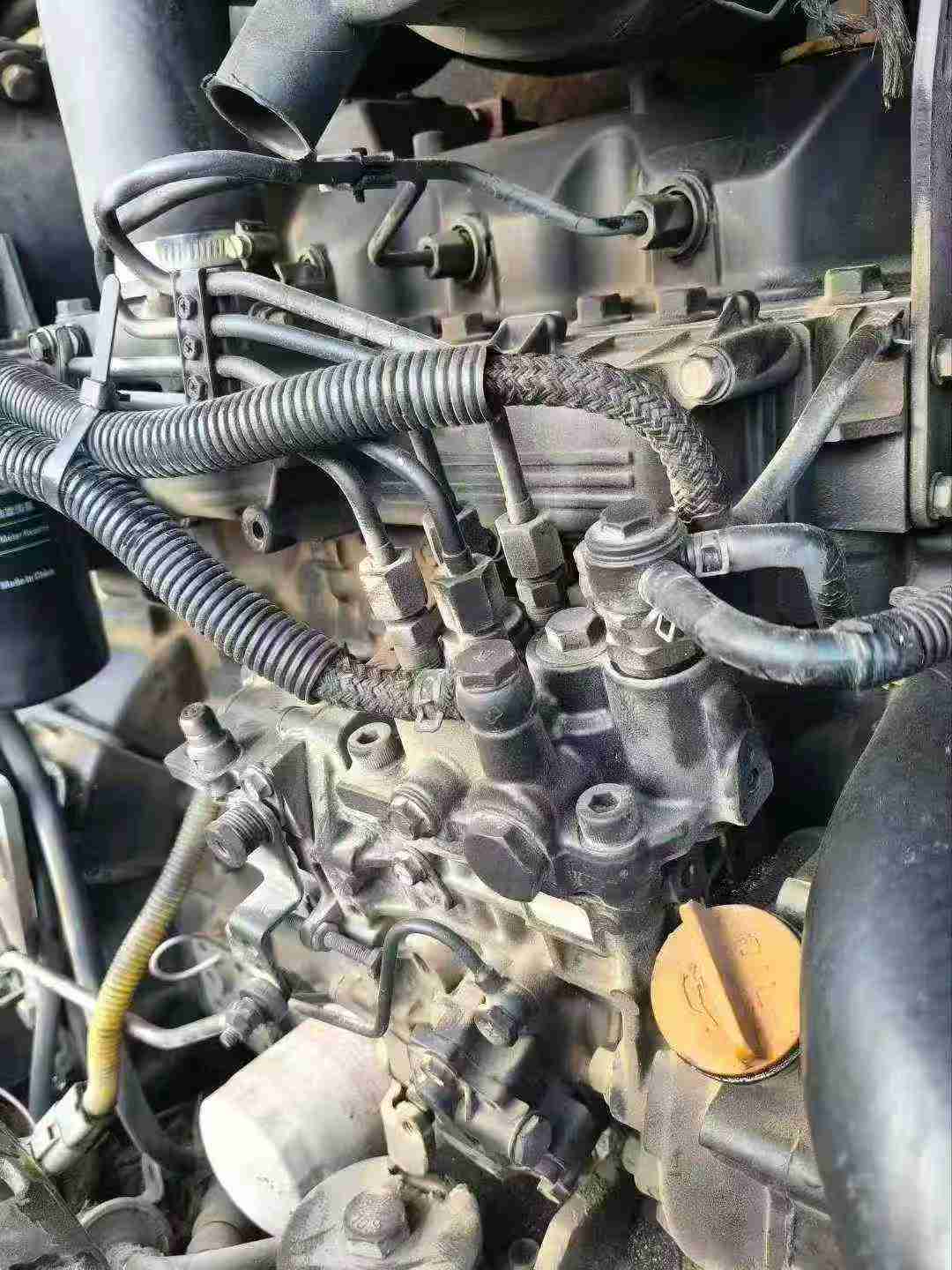

Used Hyundai HX60 Excavator 2013 Model / 4
Used Hyundai HX60 Excavator 2013 Model / 5

Product Description

There is currently a second-hand Hyundai R60 excavator produced in 2013. It has a moderate working time and is expected to be used for 4,000 to 5,000 hours. Its overall performance is stable and reliable. This equipment is equipped with the well-tested Yanmar 4TNV98 engine, with a rated power of 40.5 kilowatts. It is powerful and has excellent fuel economy, capable of providing continuous and stable operation under various working conditions. In terms of the hydraulic system, it is equipped with a high-efficiency variable piston pump combined with a high-quality hydraulic motor, ensuring smooth operation, rapid response, and excellent micro-motion and stability during operation. It is highly suitable for the refined construction requirements of urban buildings, landscaping, and other fields. The main advantage of this modern R60 excavator lies in its compact design, which endows it with excellent flexibility and passability, enabling it to easily complete tasks even in narrow Spaces. The sturdy and durable structural design, combined with the original factory's high-quality manufacturing process, ensures that the equipment can still maintain a good condition even after long-term and high-intensity use. In addition, the simplicity and

SpecificationsValue
No.977272
Tonnage (tons)6
Working weight (kg)5720
Bucket capacity (m³)0.21
Boom length (mm)3000
Rod length (mm)1600
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV94L-ZXSHYB(XSNSRE)
Rated power (kw/rpm)36.2/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)94 x 110
Maximum torque (N.m)201.1/1400
Number of cylinders (PCS)4
Displacement (L)3.053
Working form4 stroke, direct injection engine
Rotation speed (rpm)10.88
Climbing ability (%)70
Bucket digging force (kN)46.7
Rod digging force (kN)27.5
Travel speed (km/h)4.6 / 2.4
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)138
Hydraulic crushing pipeline is standardis
Main pump typeVariable piston pump
Bucket cylinders - Number × diameter × stroke (mm)1-80 * 50 * 660
Bucket rod cylinders - Number × diameter × stroke (mm)1-85 * 55 * 850
Boom cylinders - Number × diameter × stroke (mm)1-105 * 60 * 715
Fuel Tank (L)118.5
Hydraulic Tank (L)70
Engine Oil changes (L)11.6
Coolant (L)10
Hydraulic System (L)120
Total transport length (mm)5900
Total transport width (mm)1920
Total transport height (mm)2550
Full cab height (mm)1860
Minimum turning radius of front working device (mm)2350
Back end turning radius (mm)1650
Track ground length (mm)1990
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)40
Maximum digging radius (mm)6127
Maximum digging depth (mm)3760
Maximum excavation height (mm)5753
Maximum unloading height (mm)4080
Maximum vertical digging depth (mm)2915
Maximum excavation radius of stop surface (mm)5990
see more

Overview

No.977272

Brand Name:

Hyundai

Model Number:

HX60

Year:

2013

Location:

Sichuan China
