2016 Hyundai HX60

1/5
Used Hyundai HX60 Excavator 2016 Model / 1

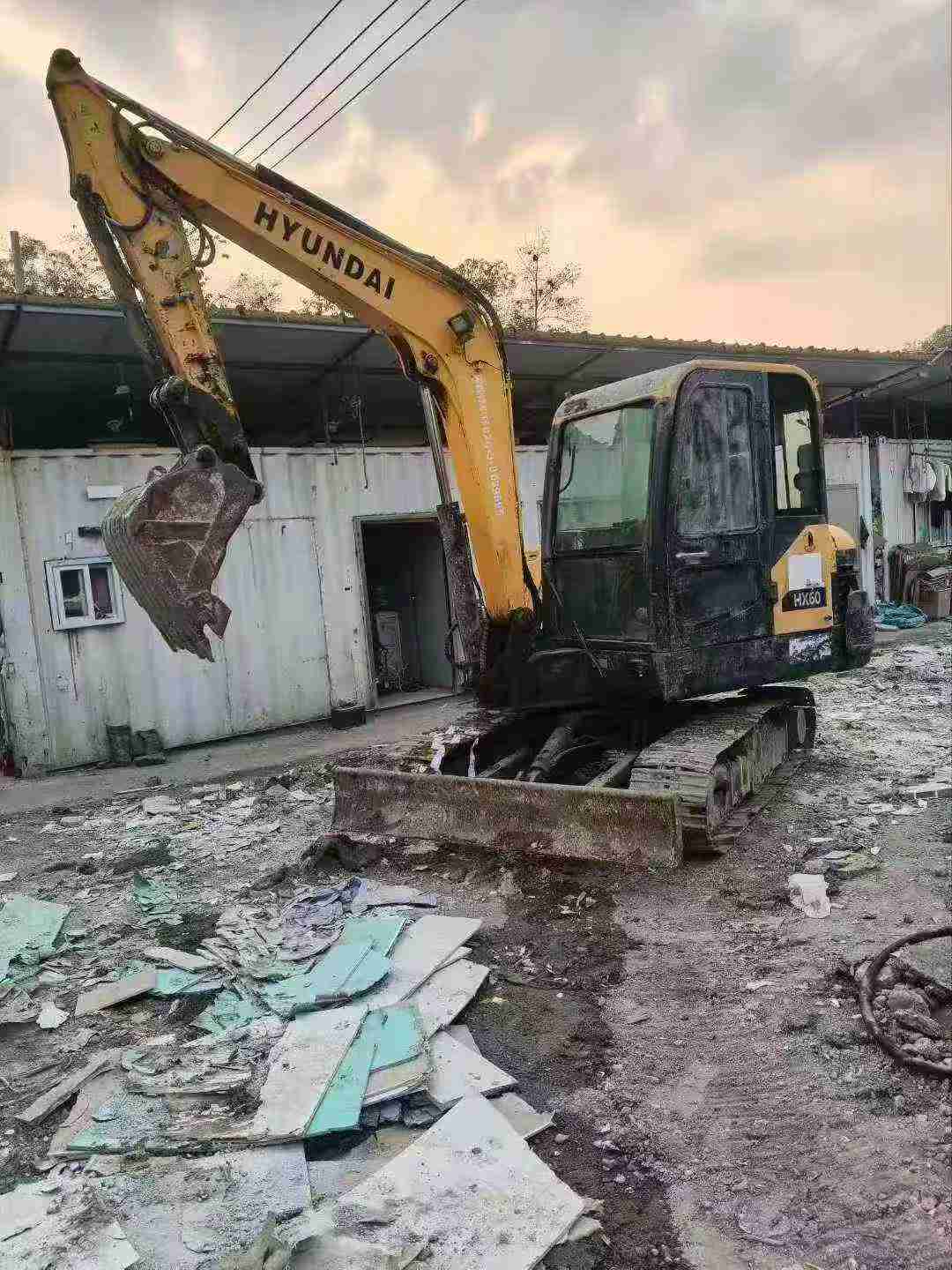

Used Hyundai HX60 Excavator 2016 Model / 2

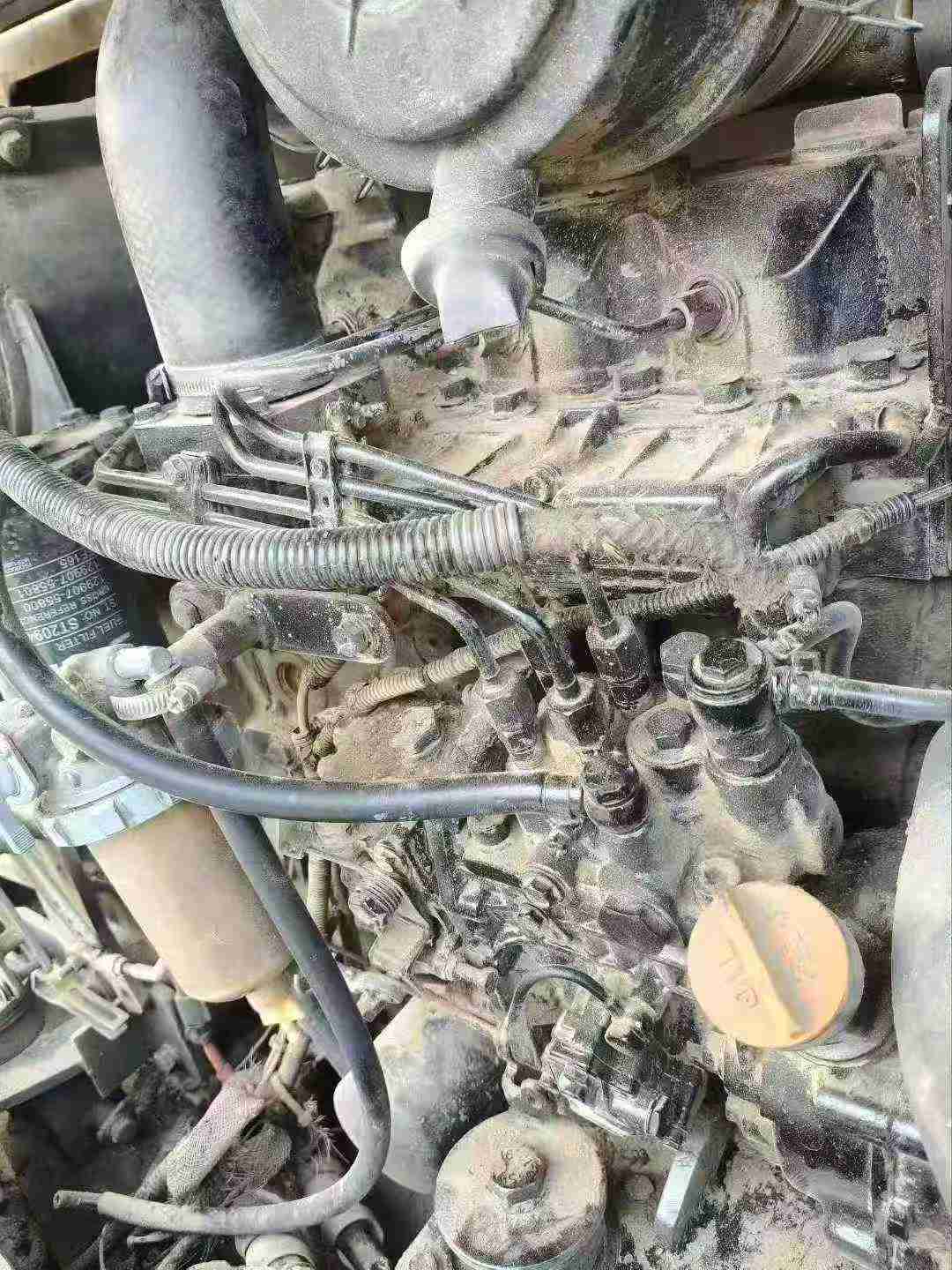

Used Hyundai HX60 Excavator 2016 Model / 3
Used Hyundai HX60 Excavator 2016 Model / 4

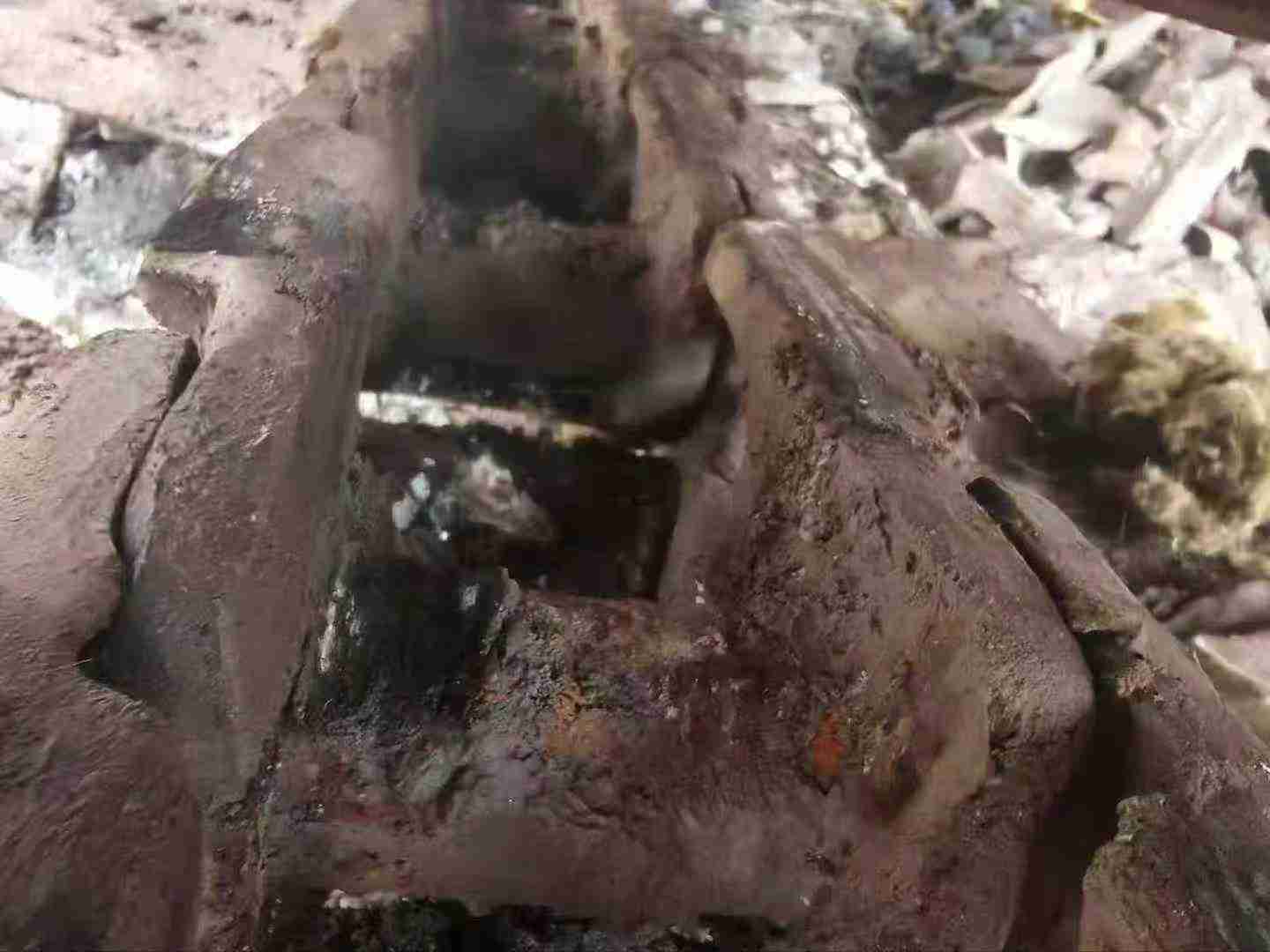

Used Hyundai HX60 Excavator 2016 Model / 5

Product Description

We currently have a second-hand Hyundai 60HX excavator with outstanding performance. It has a working time of only 1,500 hours and is in good condition. It is in first-hand stock and the price is very reasonable. You can get the vehicle for just over 20,000 yuan. This excavator is equipped with the well-tested Yanmar 4TNV98 engine, which has a power output of 37.5 kilowatts. It is powerful and has excellent fuel economy, capable of easily meeting the demands of various working conditions. In terms of the hydraulic system, this machine is equipped with a combination of an efficient variable piston pump and a high-torque hydraulic motor, ensuring smoothness and accuracy during operation. Whether it is excavation, crushing or loading operations, it can perform outstandingly and meet all your expectations for efficient construction. In addition, its robust and durable design, combined with advanced shock absorption technology, makes the driving experience more comfortable and extends the service life of the equipment. As an enhanced small excavator, the Hyundai 60HX also has the following significant advantages: - Easy operation: The humanized control panel design enables even beginners to get started quickly. - Easy maintenance: The ope

SpecificationsValue
No.977273
Tonnage (tons)6
Working weight (kg)5720
Bucket capacity (m³)0.21
Boom length (mm)3000
Rod length (mm)1600
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV94L-ZXSHYB(XSNSRE)
Rated power (kw/rpm)36.2/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)94 x 110
Maximum torque (N.m)201.1/1400
Number of cylinders (PCS)4
Displacement (L)3.053
Working form4 stroke, direct injection engine
Rotation speed (rpm)10.88
Climbing ability (%)70
Bucket digging force (kN)46.7
Rod digging force (kN)27.5
Travel speed (km/h)4.6 / 2.4
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)138
Hydraulic crushing pipeline is standardis
Main pump typeVariable piston pump
Bucket cylinders - Number × diameter × stroke (mm)1-80 * 50 * 660
Bucket rod cylinders - Number × diameter × stroke (mm)1-85 * 55 * 850
Boom cylinders - Number × diameter × stroke (mm)1-105 * 60 * 715
Fuel Tank (L)118.5
Hydraulic Tank (L)70
Engine Oil changes (L)11.6
Coolant (L)10
Hydraulic System (L)120
Total transport length (mm)5900
Total transport width (mm)1920
Total transport height (mm)2550
Full cab height (mm)1860
Minimum turning radius of front working device (mm)2350
Back end turning radius (mm)1650
Track ground length (mm)1990
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)40
Maximum digging radius (mm)6127
Maximum digging depth (mm)3760
Maximum excavation height (mm)5753
Maximum unloading height (mm)4080
Maximum vertical digging depth (mm)2915
Maximum excavation radius of stop surface (mm)5990
see more

Overview

No.977273

Brand Name:

Hyundai

Model Number:

HX60

Year:

2016

Location:

Sichuan China
