2016 Hyundai HX60

1/5
Used Hyundai HX60 Excavator 2016 Model / 1

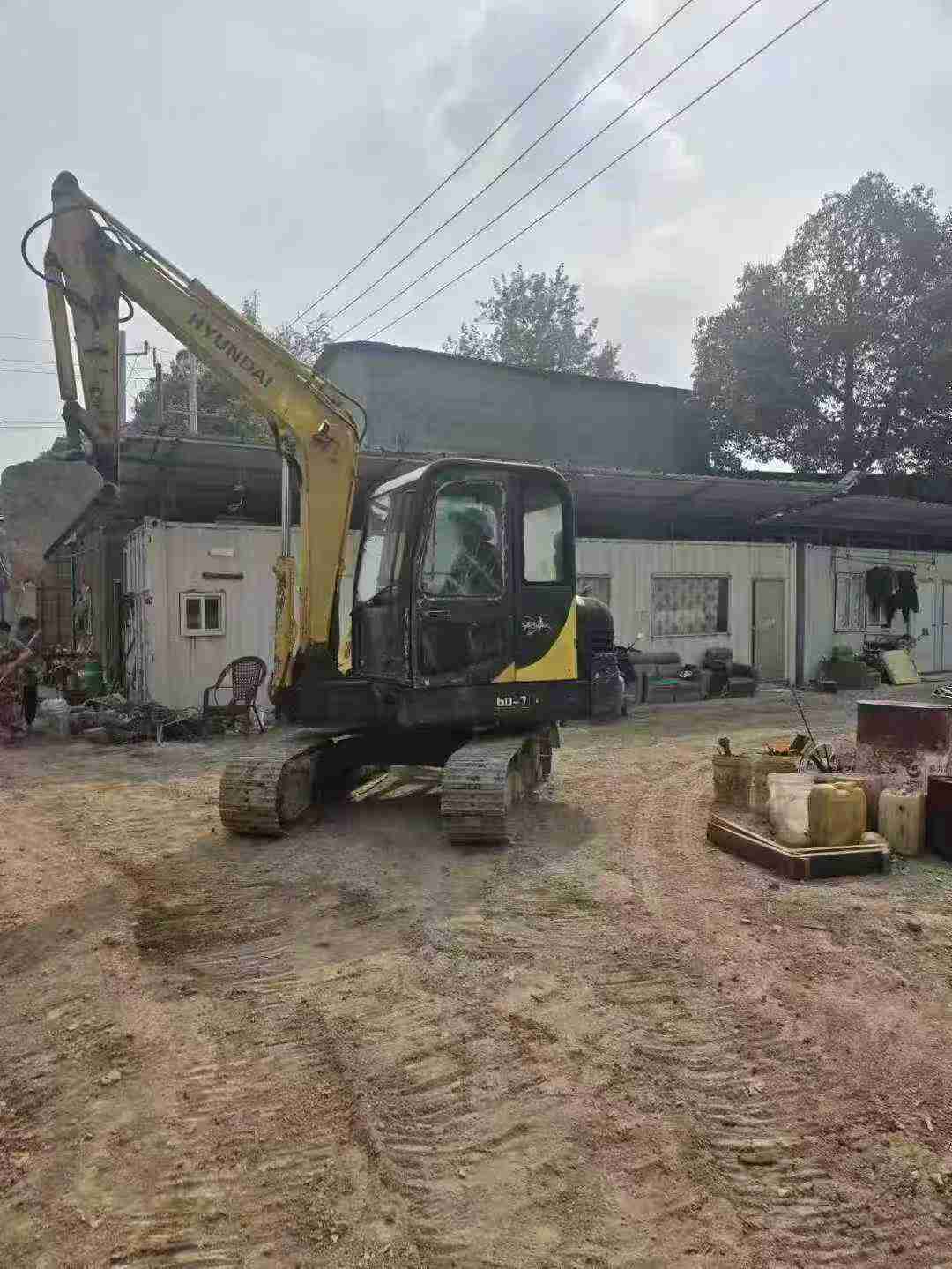

Used Hyundai HX60 Excavator 2016 Model / 2

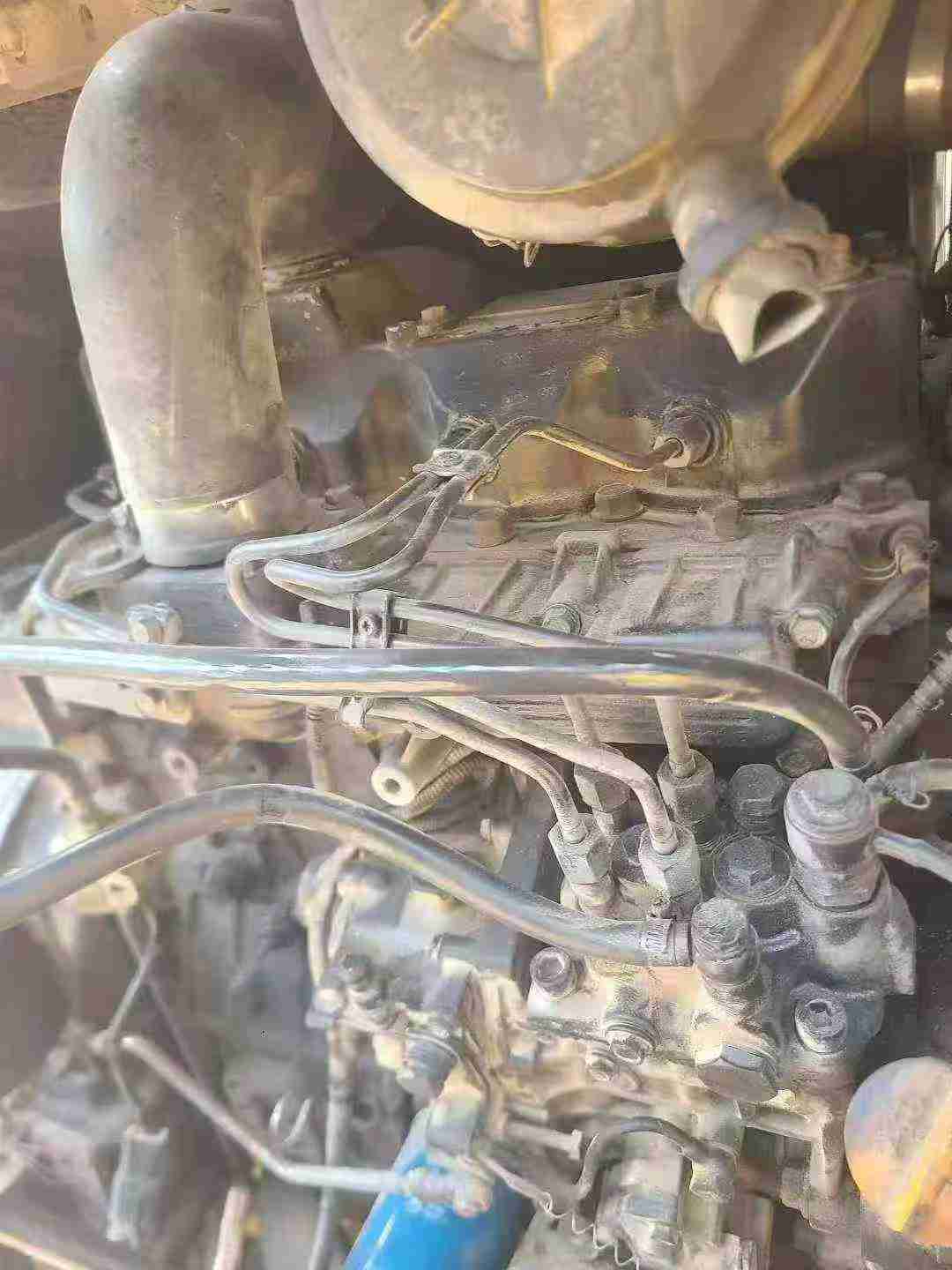

Used Hyundai HX60 Excavator 2016 Model / 3

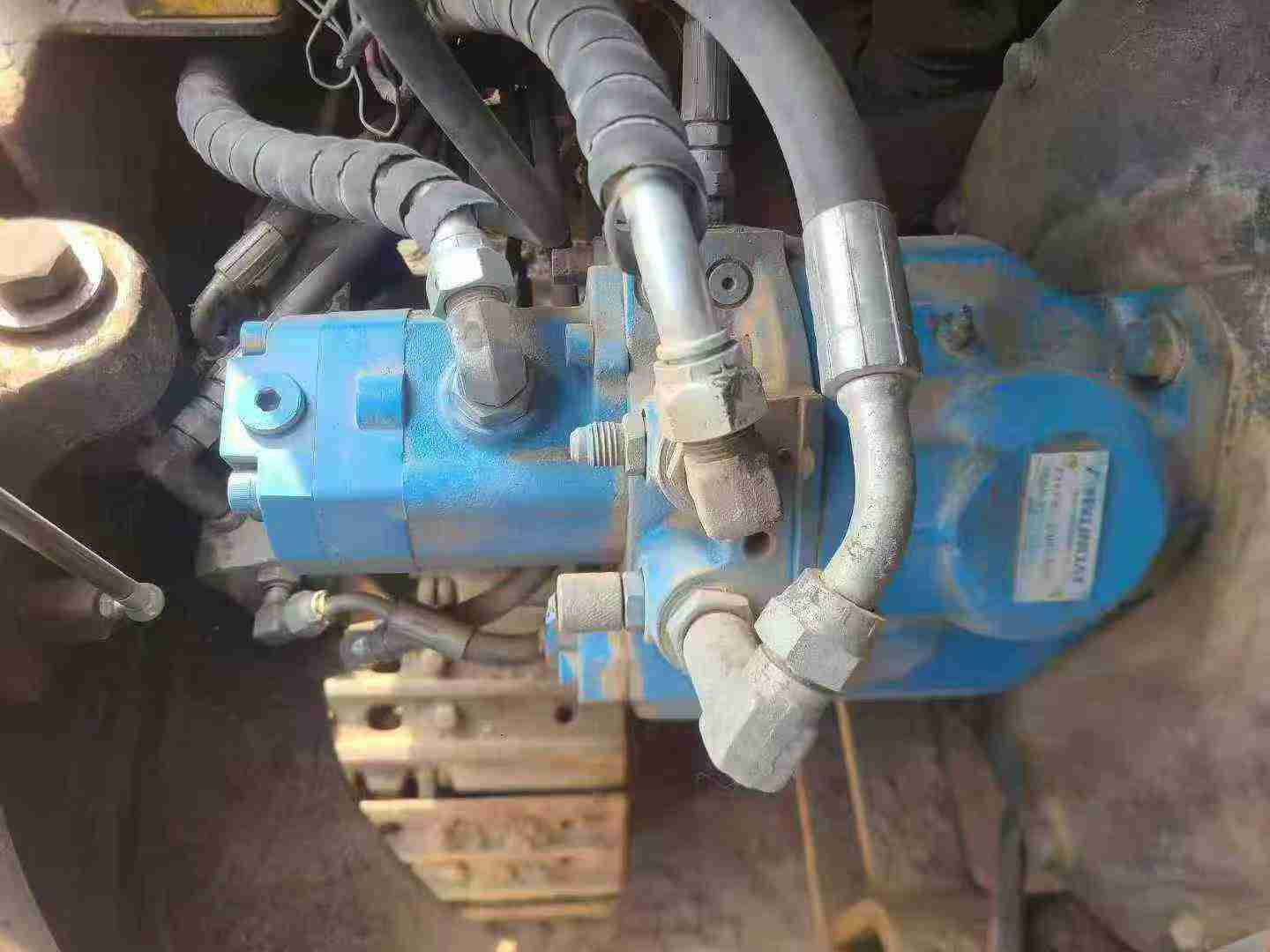

Used Hyundai HX60 Excavator 2016 Model / 4

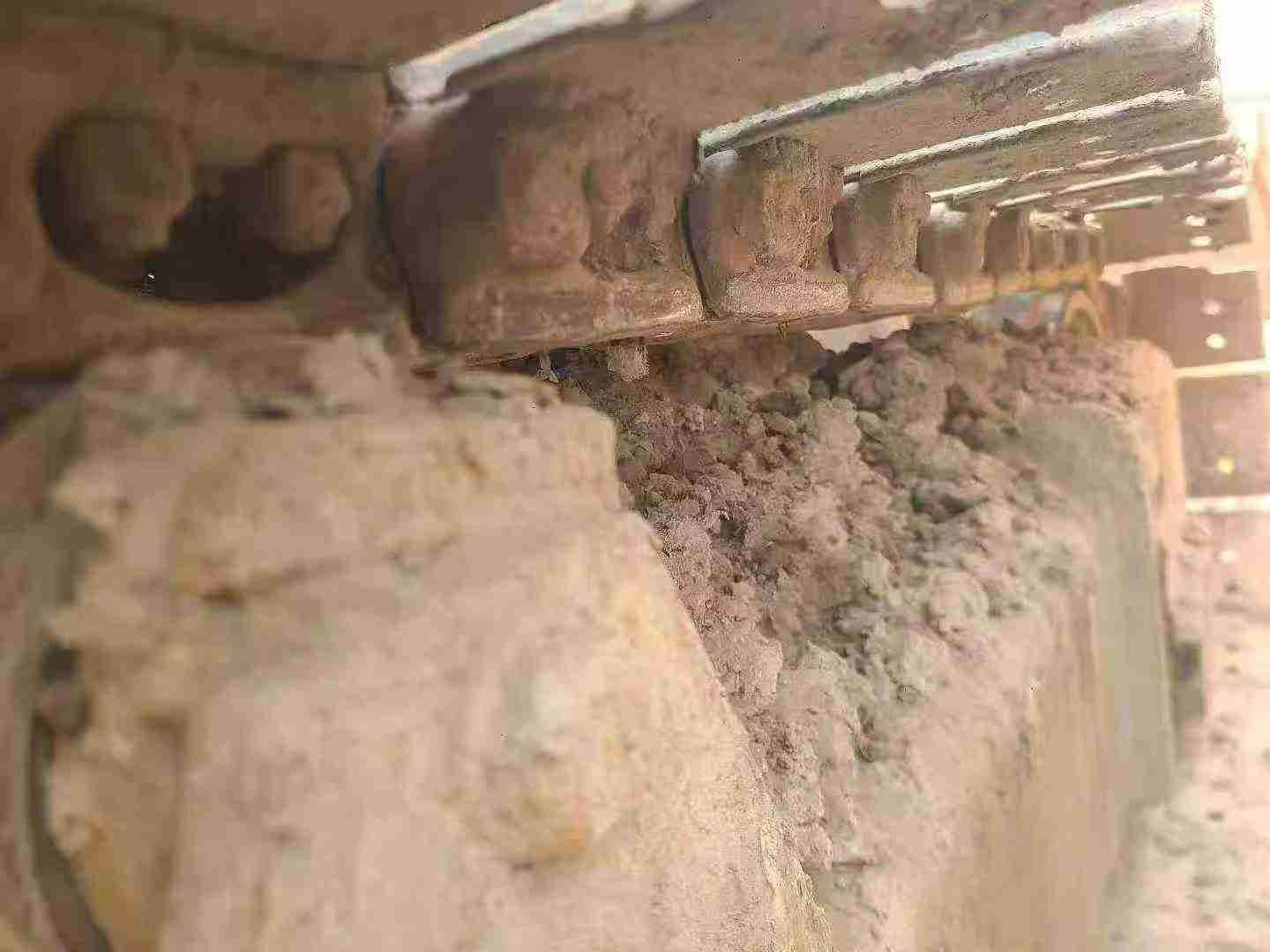

Used Hyundai HX60 Excavator 2016 Model / 5

Product Description

The modern 60 small steel cannon excavator is a highly efficient operation equipment that has received wide acclaim in the market. It is particularly suitable for urban construction and small-scale projects. This excavator has a working time of approximately 20,000 hours. With professional maintenance and upkeep, it ensures a high cost-performance ratio in the second-hand market. In terms of the power system, this excavator is equipped with a well-tested engine (expected to be a dedicated model for the Hyundai brand), which has a strong and stable output power and can easily handle heavy-load tasks under various complex working conditions. Meanwhile, this engine also features excellent fuel economy, reducing operating costs and enhancing work efficiency. The hydraulic system is a major highlight of the modern 60 small steel gun. It adopts an advanced combination design of hydraulic pump and hydraulic motor, which not only provides a smooth and precise operation experience, but also ensures excellent energy conversion efficiency while enhancing the digging force. This means that users can complete more work in a shorter time, thereby enhancing overall productivity. In addition, this machine also features a compact body size, flexible

SpecificationsValue
No.977283
Tonnage (tons)6
Working weight (kg)5720
Bucket capacity (m³)0.21
Boom length (mm)3000
Rod length (mm)1600
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV94L-ZXSHYB(XSNSRE)
Rated power (kw/rpm)36.2/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)94 x 110
Maximum torque (N.m)201.1/1400
Number of cylinders (PCS)4
Displacement (L)3.053
Working form4 stroke, direct injection engine
Rotation speed (rpm)10.88
Climbing ability (%)70
Bucket digging force (kN)46.7
Rod digging force (kN)27.5
Travel speed (km/h)4.6 / 2.4
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)138
Hydraulic crushing pipeline is standardis
Main pump typeVariable piston pump
Bucket cylinders - Number × diameter × stroke (mm)1-80 * 50 * 660
Bucket rod cylinders - Number × diameter × stroke (mm)1-85 * 55 * 850
Boom cylinders - Number × diameter × stroke (mm)1-105 * 60 * 715
Fuel Tank (L)118.5
Hydraulic Tank (L)70
Engine Oil changes (L)11.6
Coolant (L)10
Hydraulic System (L)120
Total transport length (mm)5900
Total transport width (mm)1920
Total transport height (mm)2550
Full cab height (mm)1860
Minimum turning radius of front working device (mm)2350
Back end turning radius (mm)1650
Track ground length (mm)1990
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)40
Maximum digging radius (mm)6127
Maximum digging depth (mm)3760
Maximum excavation height (mm)5753
Maximum unloading height (mm)4080
Maximum vertical digging depth (mm)2915
Maximum excavation radius of stop surface (mm)5990
see more

Overview

No.977283

Brand Name:

Hyundai

Model Number:

HX60

Year:

2016

Location:

Sichuan China
