2016 Hyundai HX60

1/5
Used Hyundai HX60 Excavator 2016 Model / 1

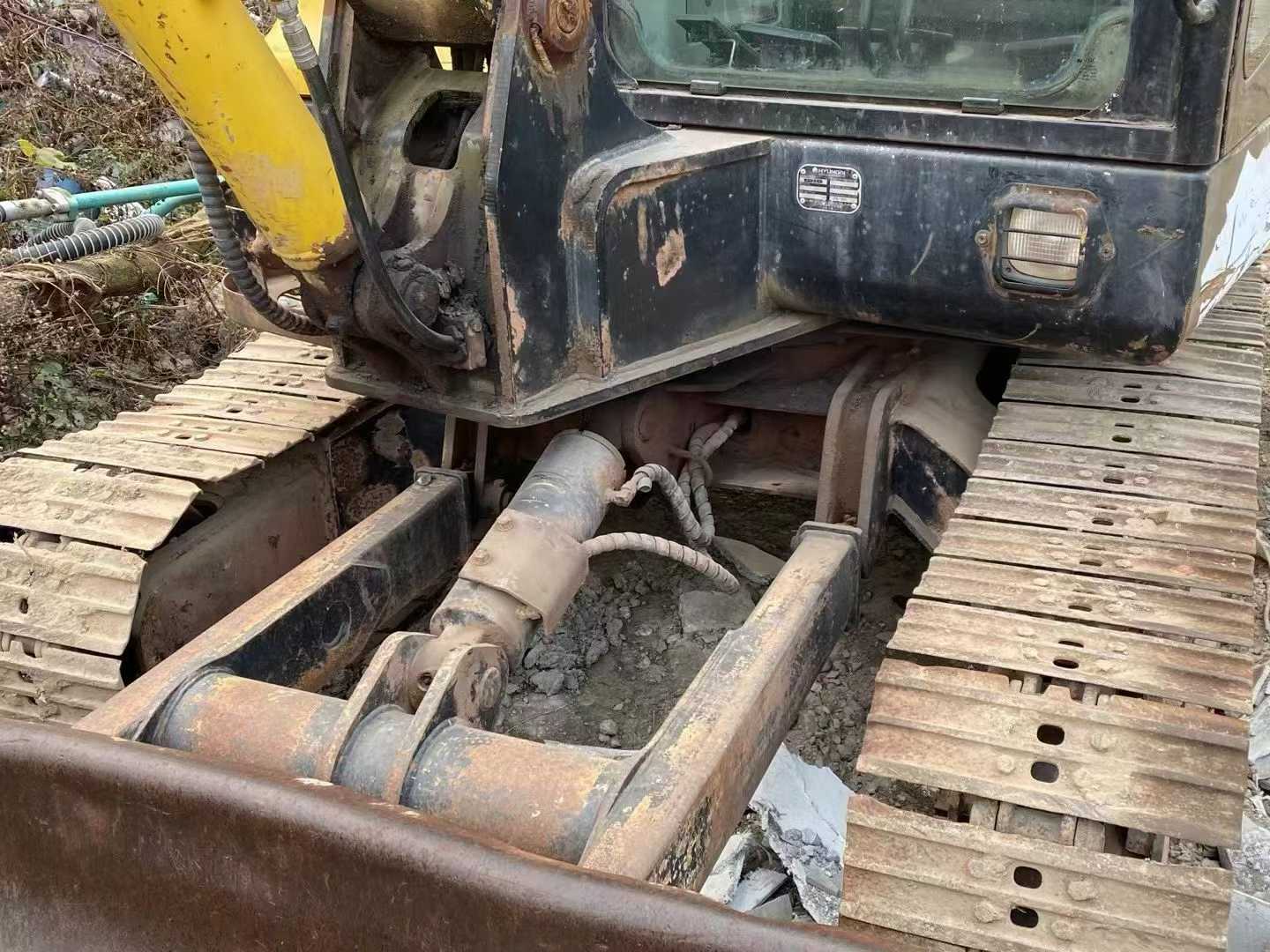

Used Hyundai HX60 Excavator 2016 Model / 2

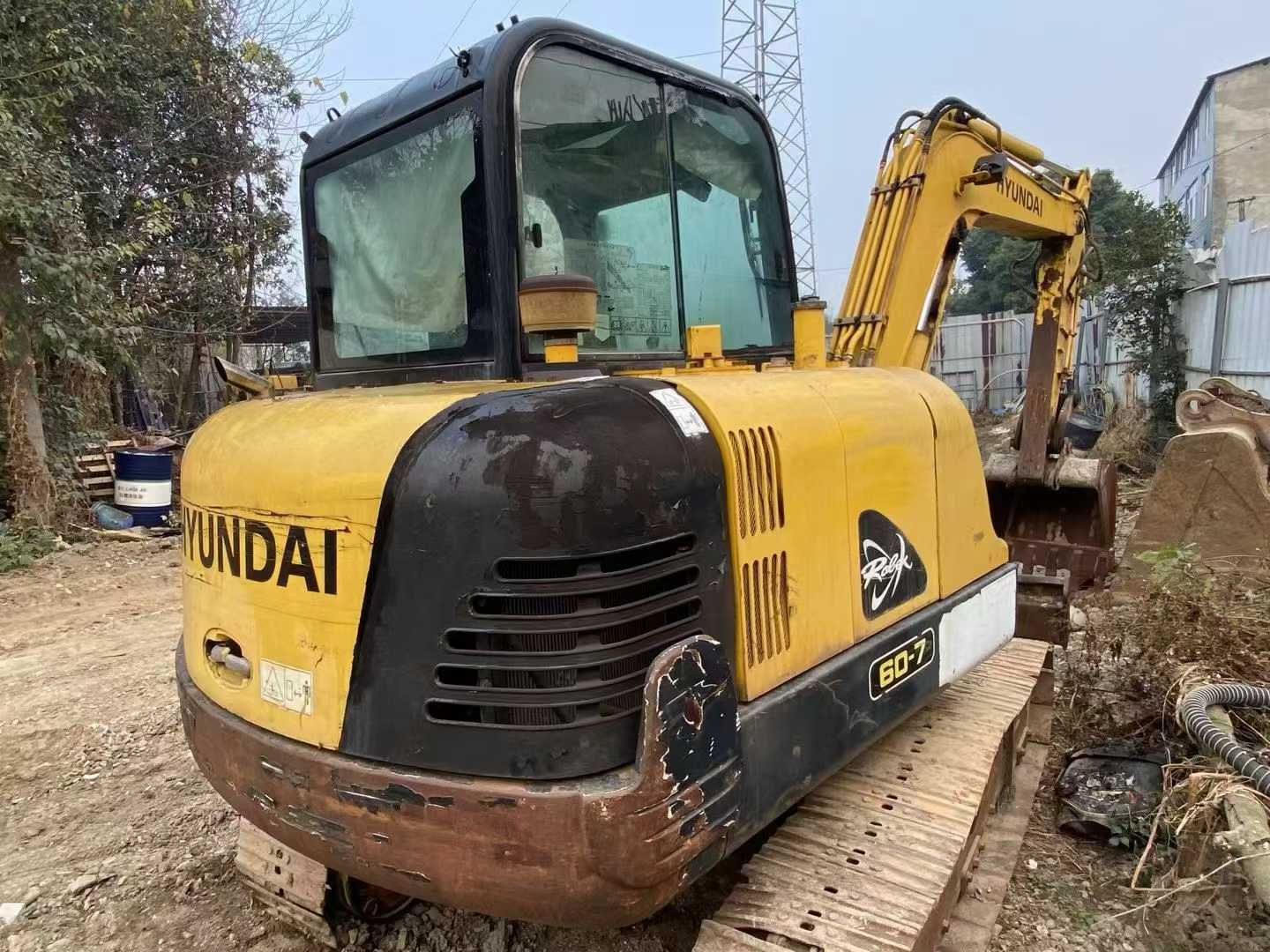

Used Hyundai HX60 Excavator 2016 Model / 3

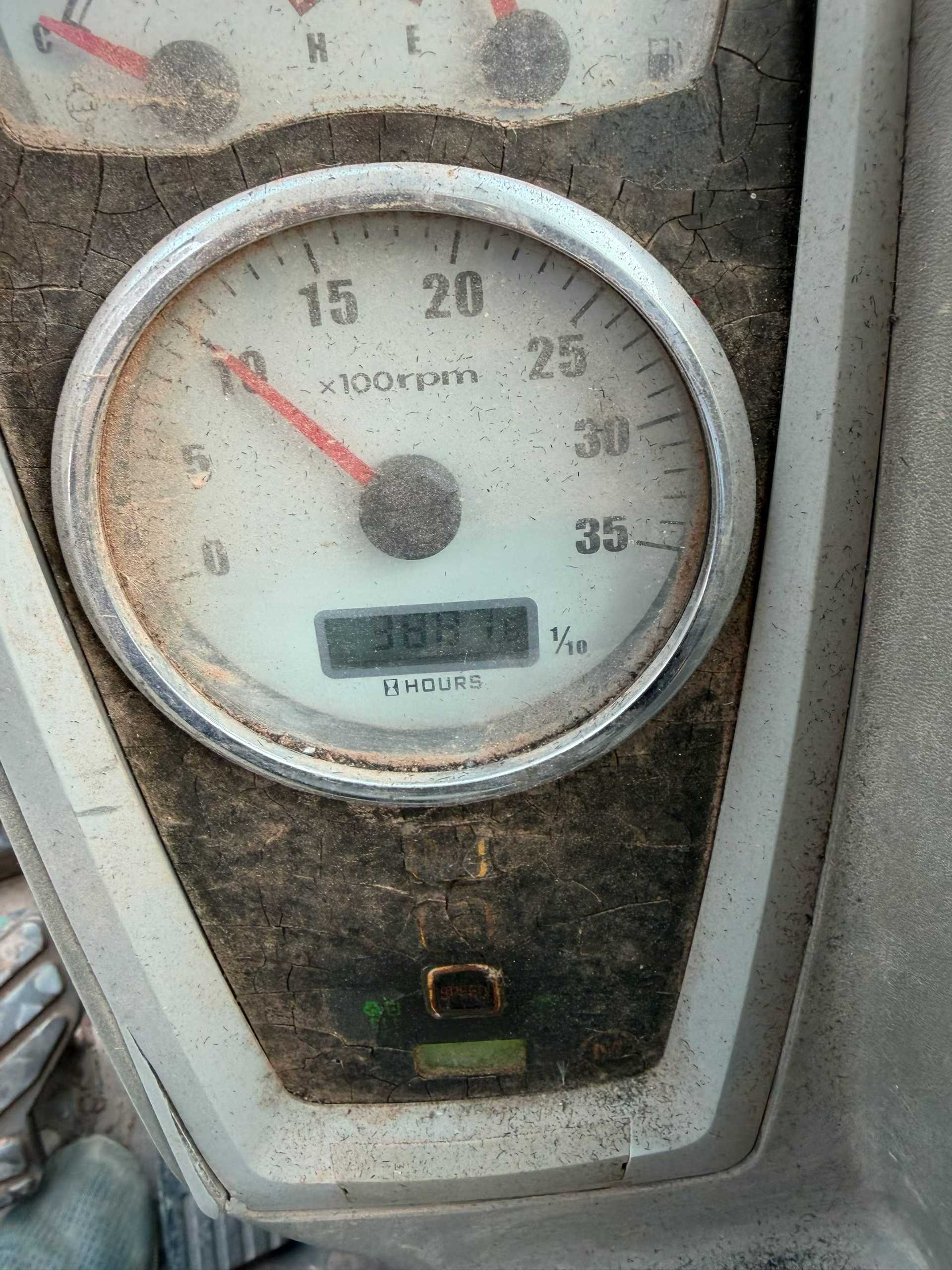

Used Hyundai HX60 Excavator 2016 Model / 4
Used Hyundai HX60 Excavator 2016 Model / 5

Product Description

This second-hand Hyundai 60 excavator, with its outstanding performance and excellent maintenance condition, has become a rare high-quality choice in the market. The equipment has been in operation for only 1,500 hours (estimated), and is in excellent overall condition. The primer on the chassis is intact and the appearance is almost as good as new. In terms of the power system, this excavator is equipped with an efficient and reliable engine, model Hyundai D4DD, with a rated power of 40 kilowatts, ensuring strong and stable power output under all working conditions. In addition, the low-noise and low-emission design of this engine not only meets environmental protection standards but also significantly enhances the operational comfort. The hydraulic system is one of the key factors in measuring the performance of an excavator. This modern 60 model is equipped with an advanced combination of variable piston pumps and high-performance hydraulic motors, enabling rapid response and smooth operation. It can handle both excavation and loading tasks with ease. Its excellent flow control technology ensures higher working efficiency and lower energy consumption. In addition to its powerful core configuration, this machine also features a nu

SpecificationsValue
No.978038
Tonnage (tons)6
Working weight (kg)5720
Bucket capacity (m³)0.21
Boom length (mm)3000
Rod length (mm)1600
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV94L-ZXSHYB(XSNSRE)
Rated power (kw/rpm)36.2/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)94 x 110
Maximum torque (N.m)201.1/1400
Number of cylinders (PCS)4
Displacement (L)3.053
Working form4 stroke, direct injection engine
Rotation speed (rpm)10.88
Climbing ability (%)70
Bucket digging force (kN)46.7
Rod digging force (kN)27.5
Travel speed (km/h)4.6 / 2.4
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)138
Hydraulic crushing pipeline is standardis
Main pump typeVariable piston pump
Bucket cylinders - Number × diameter × stroke (mm)1-80 * 50 * 660
Bucket rod cylinders - Number × diameter × stroke (mm)1-85 * 55 * 850
Boom cylinders - Number × diameter × stroke (mm)1-105 * 60 * 715
Fuel Tank (L)118.5
Hydraulic Tank (L)70
Engine Oil changes (L)11.6
Coolant (L)10
Hydraulic System (L)120
Total transport length (mm)5900
Total transport width (mm)1920
Total transport height (mm)2550
Full cab height (mm)1860
Minimum turning radius of front working device (mm)2350
Back end turning radius (mm)1650
Track ground length (mm)1990
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)40
Maximum digging radius (mm)6127
Maximum digging depth (mm)3760
Maximum excavation height (mm)5753
Maximum unloading height (mm)4080
Maximum vertical digging depth (mm)2915
Maximum excavation radius of stop surface (mm)5990
see more

Overview

No.978038

Brand Name:

Hyundai

Model Number:

HX60

Year:

2016

Location:

Sichuan China
