2016 Hyundai HX60

1/8

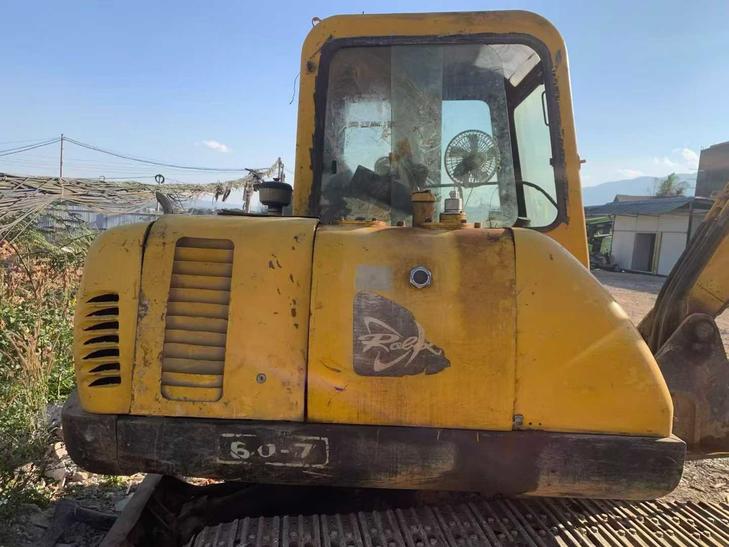

Used Hyundai HX60 Excavator 2016 Model / 1
Used Hyundai HX60 Excavator 2016 Model / 2
Used Hyundai HX60 Excavator 2016 Model / 3
Used Hyundai HX60 Excavator 2016 Model / 4
Used Hyundai HX60 Excavator 2016 Model / 5
Used Hyundai HX60 Excavator 2016 Model / 6
Used Hyundai HX60 Excavator 2016 Model / 7
Used Hyundai HX60 Excavator 2016 Model / 8

Product Description

There is currently a second-hand modern 60-type excavator with a working time of only 18,000 hours. It is stable and reliable in performance and does not require frequent maintenance. This equipment is equipped with a high-performance engine (possibly an original imported model from Hyundai), which is powerful and ensures efficient operation under various complex working conditions. In terms of the hydraulic system, it is equipped with an advanced combination of hydraulic pumps and hydraulic motors, which can provide a smooth and precise operation experience. At the same time, it has a good energy-saving effect and reduces long-term operating costs. The main advantages of this excavator include but are not limited to: Its compact design makes it highly suitable for construction needs in narrow urban Spaces; The cab is spacious and comfortable with a wide field of vision, which greatly enhances the operator's work efficiency and safety. Maintenance and upkeep are simple and quick, and parts are easy to replace, effectively reducing downtime. In addition, its robust and durable structural design ensures that it can maintain long-term stable performance even in harsh environments. To sum up, this is a second-hand construction machinery

SpecificationsValue
No.979126
Tonnage (tons)6
Working weight (kg)5720
Bucket capacity (m³)0.21
Boom length (mm)3000
Rod length (mm)1600
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV94L-ZXSHYB(XSNSRE)
Rated power (kw/rpm)36.2/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)94 x 110
Maximum torque (N.m)201.1/1400
Number of cylinders (PCS)4
Displacement (L)3.053
Working form4 stroke, direct injection engine
Rotation speed (rpm)10.88
Climbing ability (%)70
Bucket digging force (kN)46.7
Rod digging force (kN)27.5
Travel speed (km/h)4.6 / 2.4
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)138
Hydraulic crushing pipeline is standardis
Main pump typeVariable piston pump
Bucket cylinders - Number × diameter × stroke (mm)1-80 * 50 * 660
Bucket rod cylinders - Number × diameter × stroke (mm)1-85 * 55 * 850
Boom cylinders - Number × diameter × stroke (mm)1-105 * 60 * 715
Fuel Tank (L)118.5
Hydraulic Tank (L)70
Engine Oil changes (L)11.6
Coolant (L)10
Hydraulic System (L)120
Total transport length (mm)5900
Total transport width (mm)1920
Total transport height (mm)2550
Full cab height (mm)1860
Minimum turning radius of front working device (mm)2350
Back end turning radius (mm)1650
Track ground length (mm)1990
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)40
Maximum digging radius (mm)6127
Maximum digging depth (mm)3760
Maximum excavation height (mm)5753
Maximum unloading height (mm)4080
Maximum vertical digging depth (mm)2915
Maximum excavation radius of stop surface (mm)5990
see more

Overview

No.979126

Brand Name:

Hyundai

Model Number:

HX60

Year:

2016

Location:

Yunnan China
